Short Depth 4U Rackmountable Tower Server/Pedestal Solution featuring 6 x 5.25" with 2 x 2.5" HDD + 4 x 3.5" External Drive Cage with 1 x Slim ODD Drive Cage

PCICASE Model No: CRS8445
Please Call Sales
Key Features
  • 4U Rack mount or Pedestal stand-alone
  • Chassis Depth: 469mm
  • Anti-vibration designed drive cages
  • Versatile configurations on drive cages and front bezel
  • Front 120mm fan module with filter for add-on card cooling
  • Supports ATX single or mini-redundant PSU
  • Optional PCI Card Retainer for holding different height add-on cards

The CRS84450x is the ultimate product for customers who are looking for a case that offers quality, diversity, scalability and style, whist still maintaining a professional look and feel.  System builders can combine PCICase’s additional products to design a bespoke build that can be tailored to suit their unique business requirements whether that be as a Tower Server or a 19" Rackmount solution



Standard
CRS8445

SPECIFICATIONS
Model CRS8455
Versatile Cage for
- Slim ODD Bay
- 5.25”ODD Bay
- 3.5”HDD Bay
- 2.5”HDD Bay

1
6
4
2
Cooling fan by zone
- L/R HDD Cage
- Center Hard drives bay
- Exhaust out (rear)



1x 8cmx2.5cm

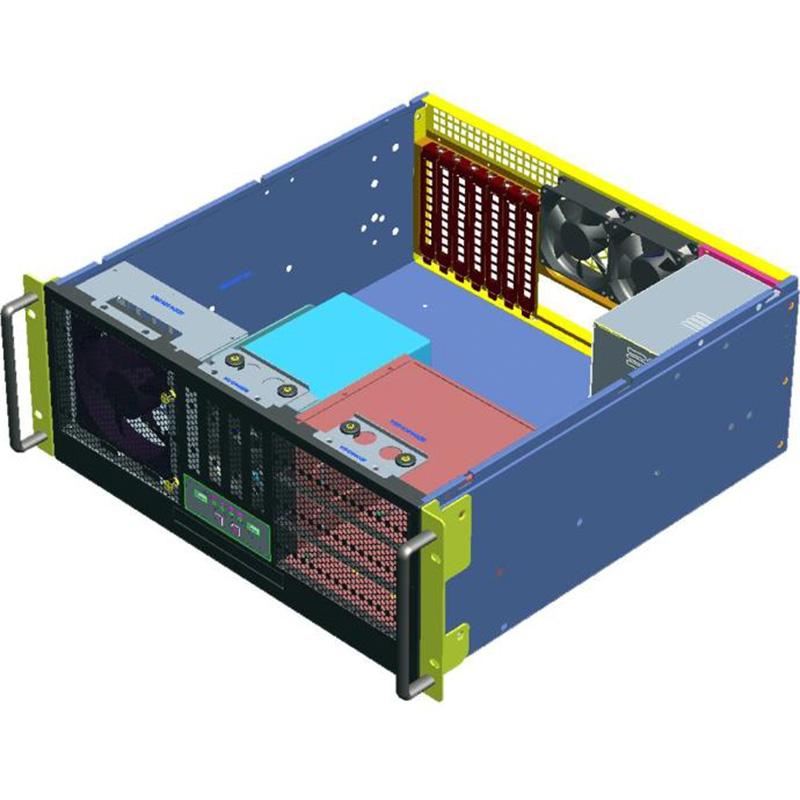

CRS844500

SPECIFICATIONS
Model CRS844500
Versatile Cage for
- Slim ODD Bay
- 5.25”ODD Bay
- 3.5”HDD Bay
- 2.5”HDD Bay

1
3
4
1
Cooling fan by zone
- L/R HDD Cage
- Center Hard drives bay
- Exhaust out (rear)

1x 12cmx2.5cm
1x 8cmx2.5cm
2x 8cmx2.5cm

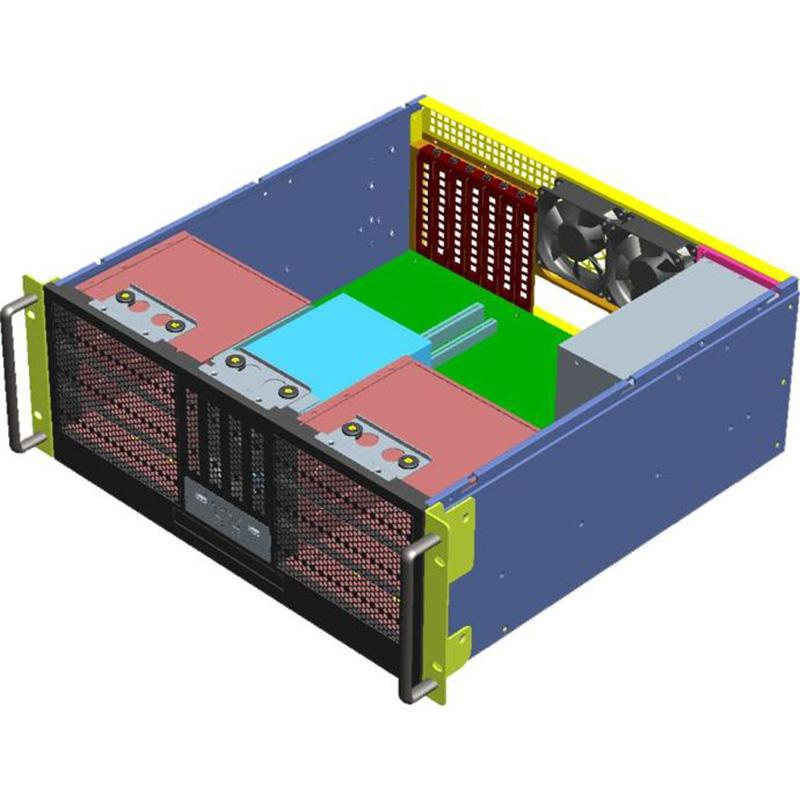

CRS844501

SPECIFICATIONS
Model CRS844501
Versatile Cage for
- Slim ODD Bay
- 5.25”ODD Bay
- 3.5”HDD Bay
- 2.5”HDD Bay

1
6
4
2
Cooling fan by zone
- L/R HDD Cage
- Center Hard drives bay
- Exhaust out (rear)

-
1x 8cmx2.5cm
2x 8cmx2.5cm

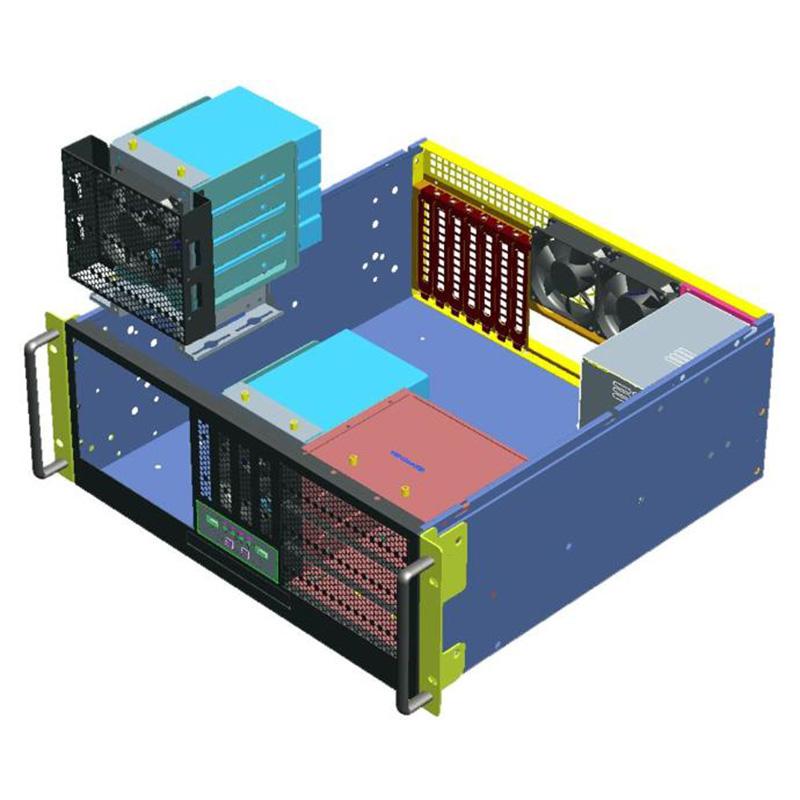

CRS844502

SPECIFICATIONS
Model CRS844502
Versatile Cage for
- Slim ODD Bay
- 5.25”ODD Bay
- 3.5”HDD Bay
- 2.5”HDD Bay

1
3
8
2
Cooling fan by zone
- L/R HDD Cage
- Center Hard drives bay
- Exhaust out (rear)

1x 12cmx2.5cm
1x 8cmx2.5cm
2x 8cmx2.5cm

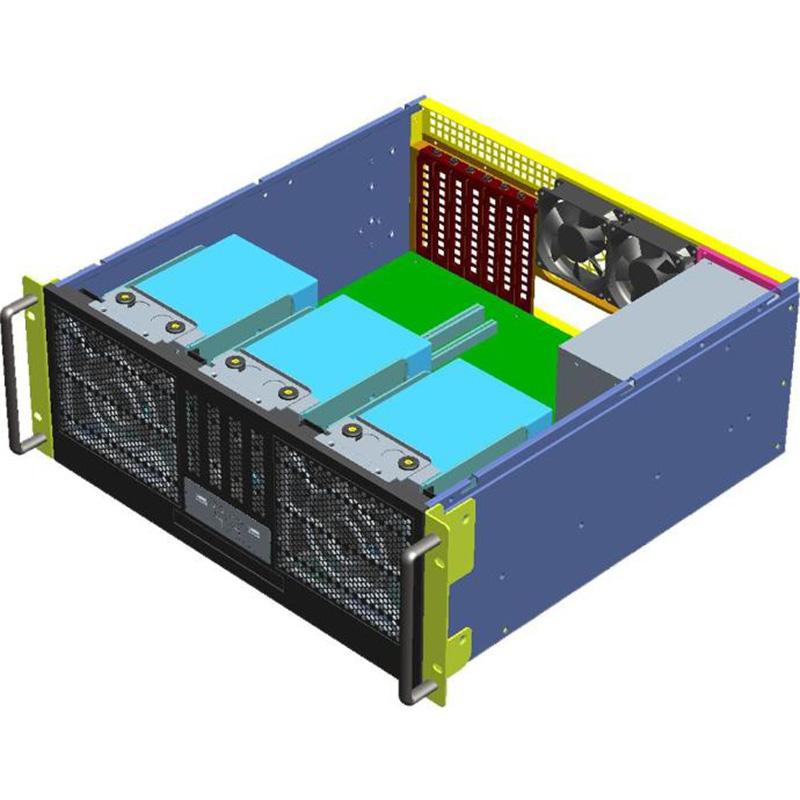

CRS844503

SPECIFICATIONS
Model CRS844503
Versatile Cage for
- Slim ODD Bay
- 5.25”ODD Bay
- 3.5”HDD Bay
- 2.5”HDD Bay

1
-
12
2
Cooling fan by zone
- L/R HDD Cage
- Center Hard drives bay
- Exhaust out (rear)

2x 12cmx2.5cm
1x 8cmx2.5cm
2x 8cmx2.5cm


CRS844504

SPECIFICATIONS
Model CRS844504
Versatile Cage for
- Slim ODD Bay
- 5.25”ODD Bay
- 3.5”HDD Bay
- 2.5”HDD Bay

1
-

2
Cooling fan by zone
- L/R HDD Cage
- Center Hard drives bay
- Exhaust out (rear)

2x 12cmx2.5cm
1x 8cmx2.5cm
2x 8cmx2.5cm

Standard Model CRS8445

M/B Support 12” x9.6” / 12”x 10.5”

HDD/ODD Bays 6 x 5.25”ODD Bay
4 x 3.5”HDD Bay
2 x 2.5”HDD Bay
1 x Slim ODD Bay

Front Panel I/O and Indicators 1x Power switch, 1x Reset switch
1x Power LED, 1x HDD LED, 2x LAN LED
2x USB3.0 (default)

Extensibility 7 expansion full height slots

Optional PSU ATX or Mini Redundant

Standard Front Bezel 1-door (flip down door)

Material / Body Colour SGCC t1.2mm

Standard Fans included 1x8cm t25mm ((Exhaust out(Rear))

Stands for Pedestal Tower Purpose Included (4 pcs)

Handle Bracket for Pedestal Tower Purpose Included (2 pcs)

Add-on Card Bar Included (1 pc)

Dimension WxHxD 430x176x446mm without bezel / 430x176x469mm with bezel

Packing / Container Loading 55x60.5x32 (3.76cuft) 20’ : 264pcs /40’ : 532cs / 40’HQ : 608pcs
Optional Parts:
CRS-rail-84x5  22” slider rails
CRS-SB1010 14 slot backplane
CRS-3525cage-L-84x5 3 x 5.25" drive cage - left
CRS-435cage-L-84x5 4 x 3.5" drive cage - left
CRS84xx-CGB Card Guide Bracket
Datasheet CRS844500 Datasheet

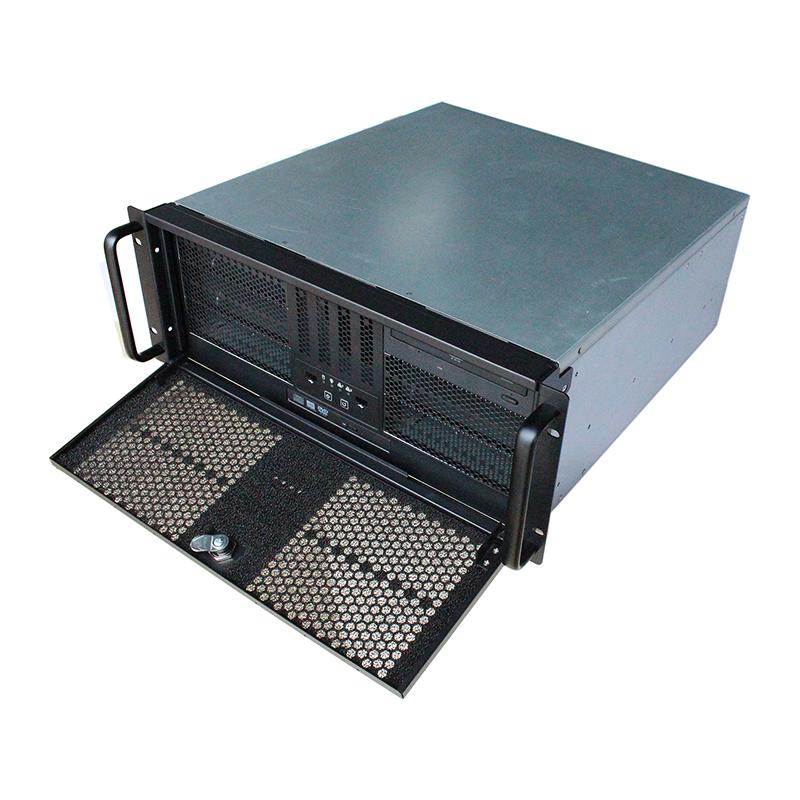

Product Images CRS844500  (Front 45 Degrees)

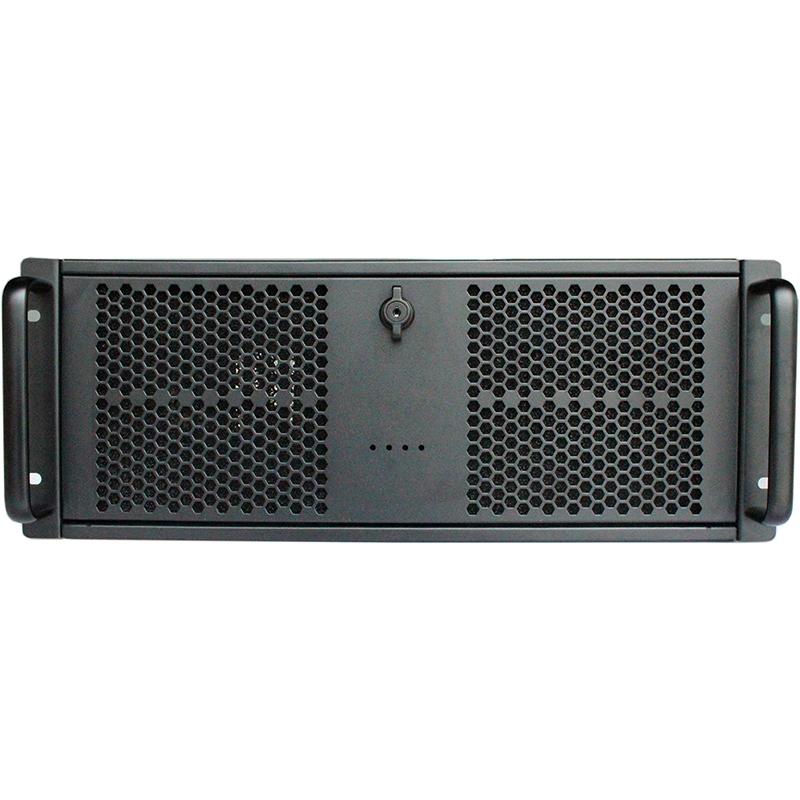

Product Images                                          CRS844500 (Front)

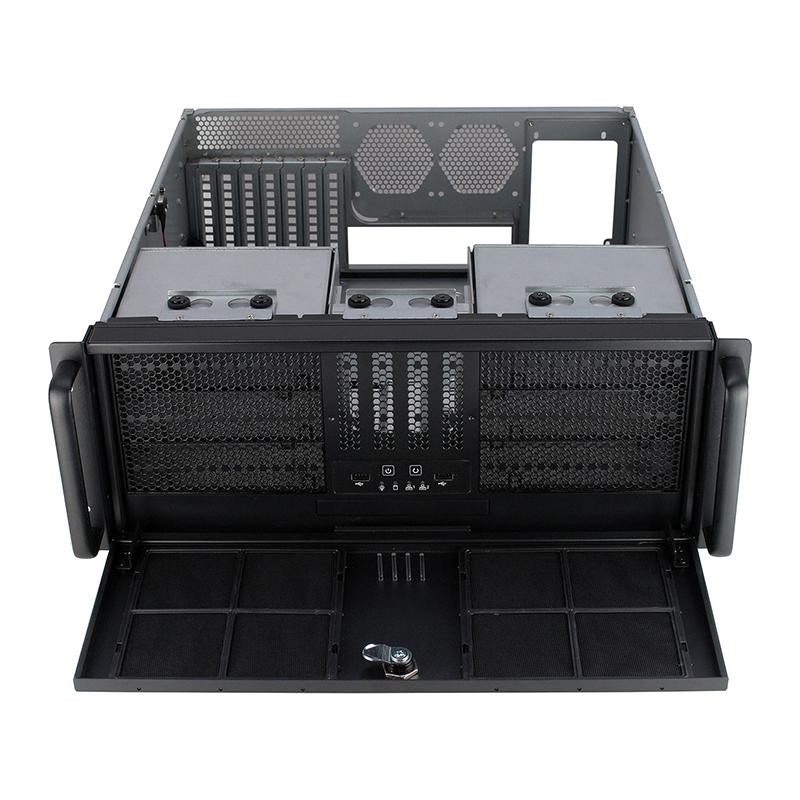

Product Images     CRS844500 (Front_Open)

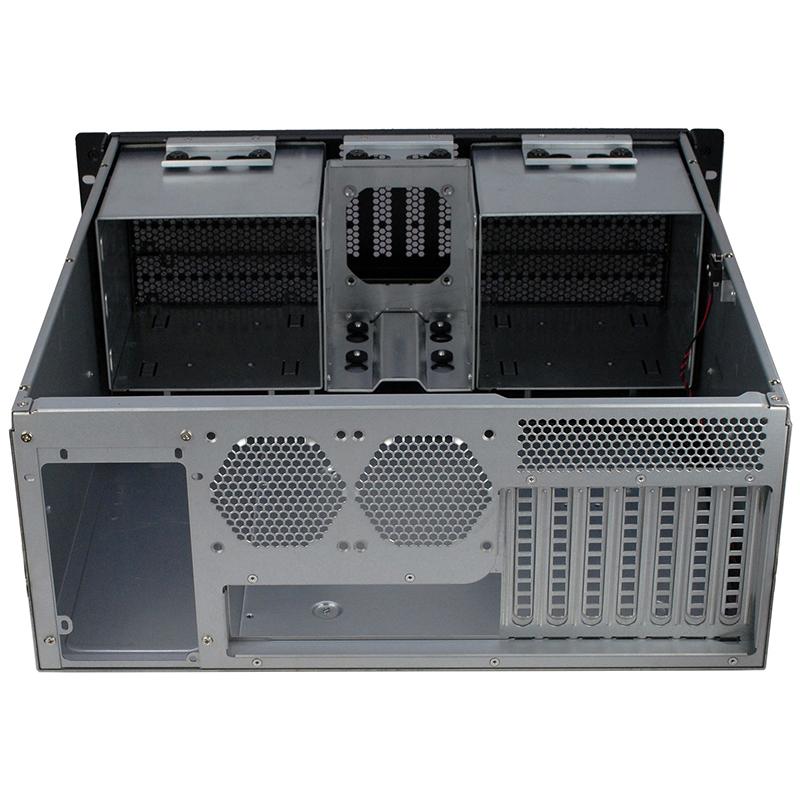

Product Images CRS844500 (Rear)

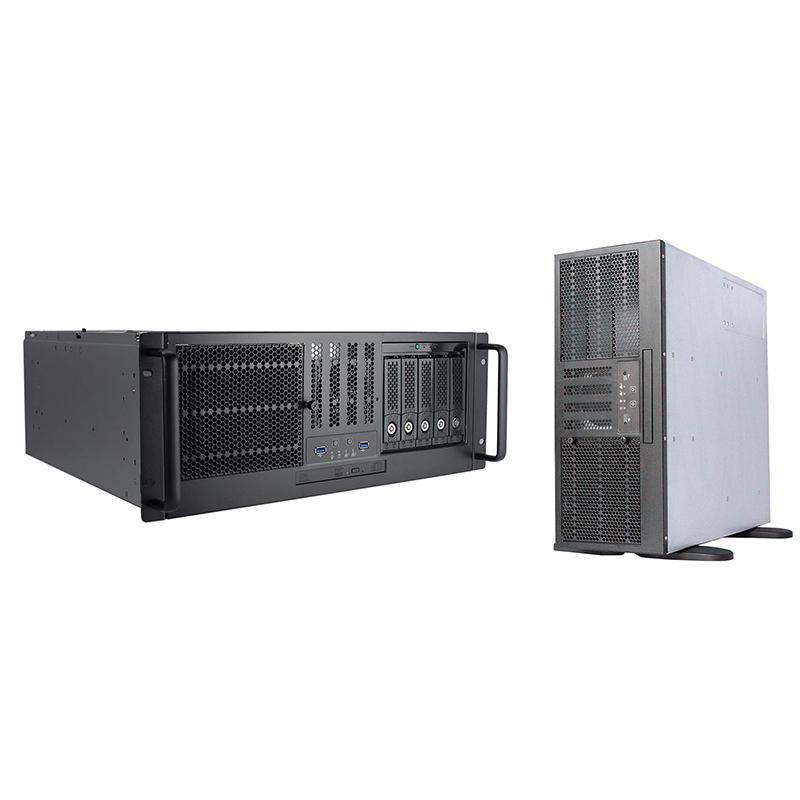

Product Images CRS844500 (Multi)


Product Images CRS844500 (Standing)
