1 x 5.25" to 4 x 2.5" 12G + 6G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design

PCICASE Model No: N-49SS
Manufacturer Model No: N-49SS
UK Stock
Key Features

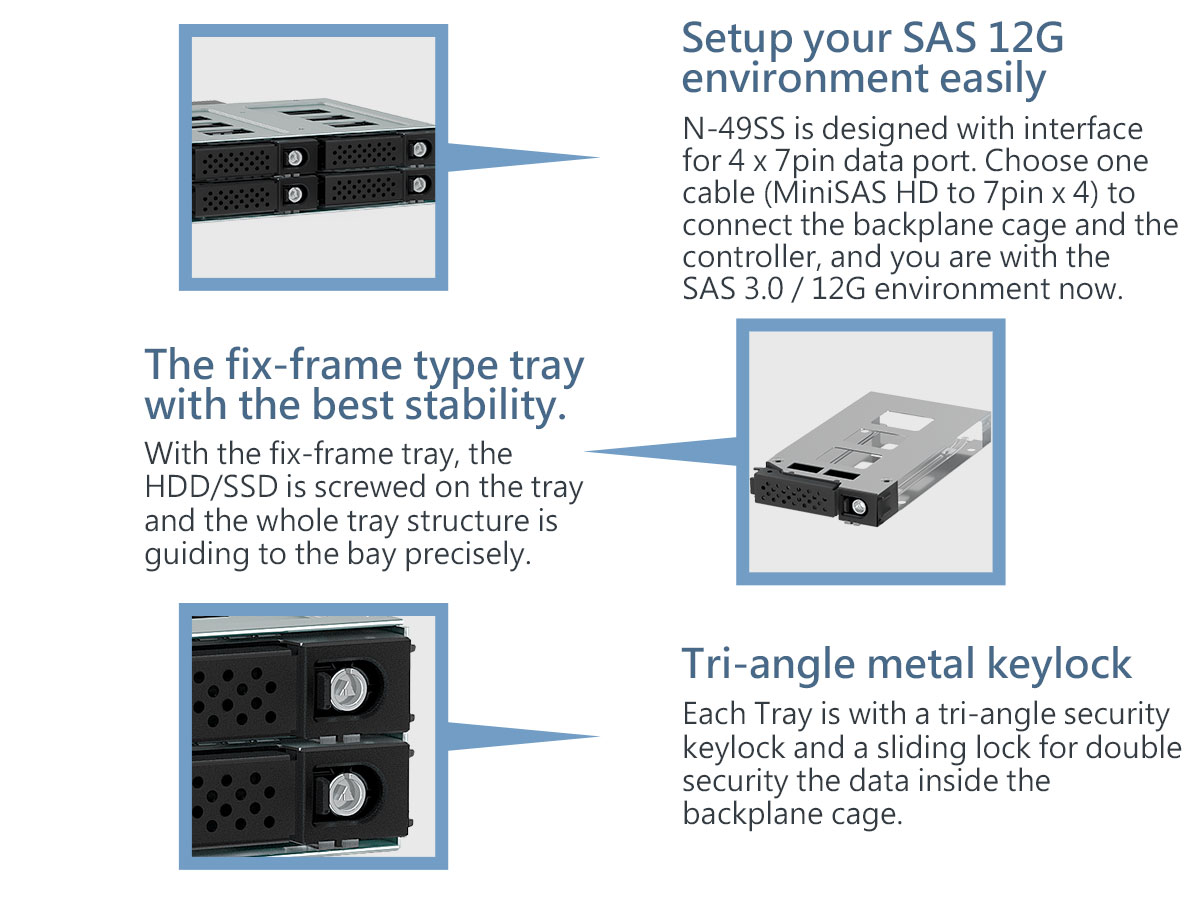

  • Converts 1 x 5.25" Bay for 4 x 2.5" HDD into a Hot-Swap Bay
  • Key Locking For Added Security
  • 6 Gb/s Transfer Rate via SATA
  • 12Gb/s Transter Via SATA - 4 x SATA to 1 x 8643 Fly Out Cable
  • 40 x 40 x 20mm Fans for cooling

Form Factor
1 X 5.25" Drive Bay

Support HDD Type
4 X 2.5” SATA I, II, III & SAS I, II, III (12Gbps) HDD/SSD (* Height Up To 15mm)

Interface
7pin SATA Connector X 4
15pin SATA Power Connector X 1

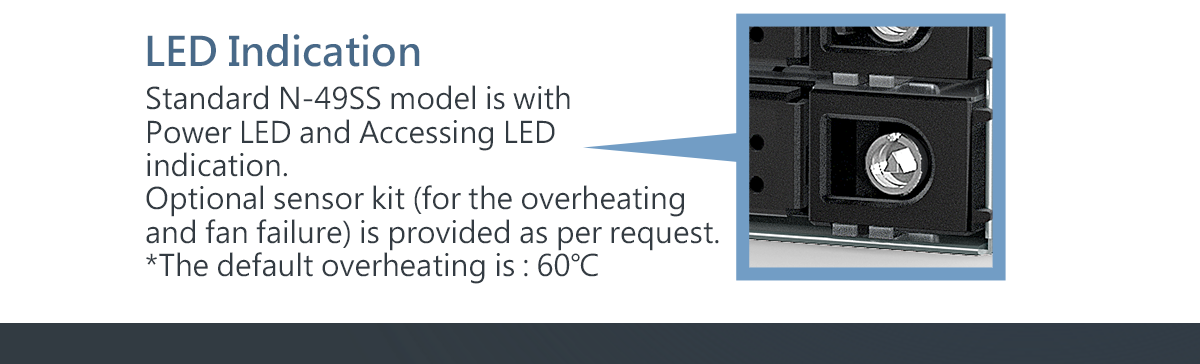

Indictors
Power On- Green
HDD Access- Orange Blinking
Fan Failure- Red (*Need Optional Sensor Kit)

Security
Metal Key Lock

Material
Aluminum Body & Stainless HDD Tray

Cooling Fan
1 x 4cm fan

Compatibility
Windows/Linux/Mac

Dimension
 159(L) X 145.8(W) X 41.6(H) mm

Weight
0.59
