1 x 3.5" to 2 x 2.5" 12G + 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design.

PCICASE Model No: N-20SS
Manufacturer Model No: N-20SS
UK Stock
Key Features

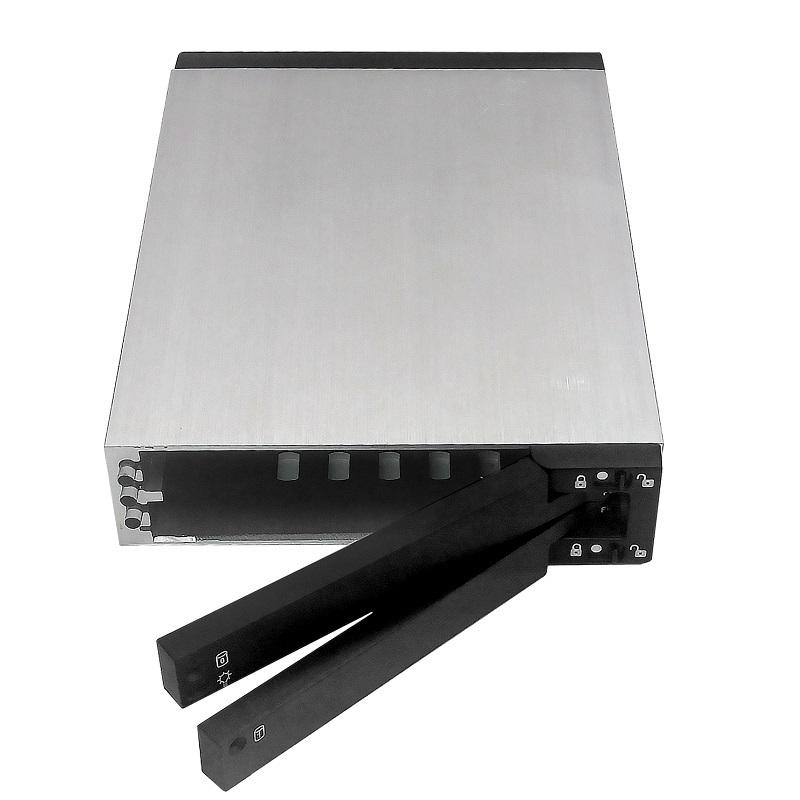

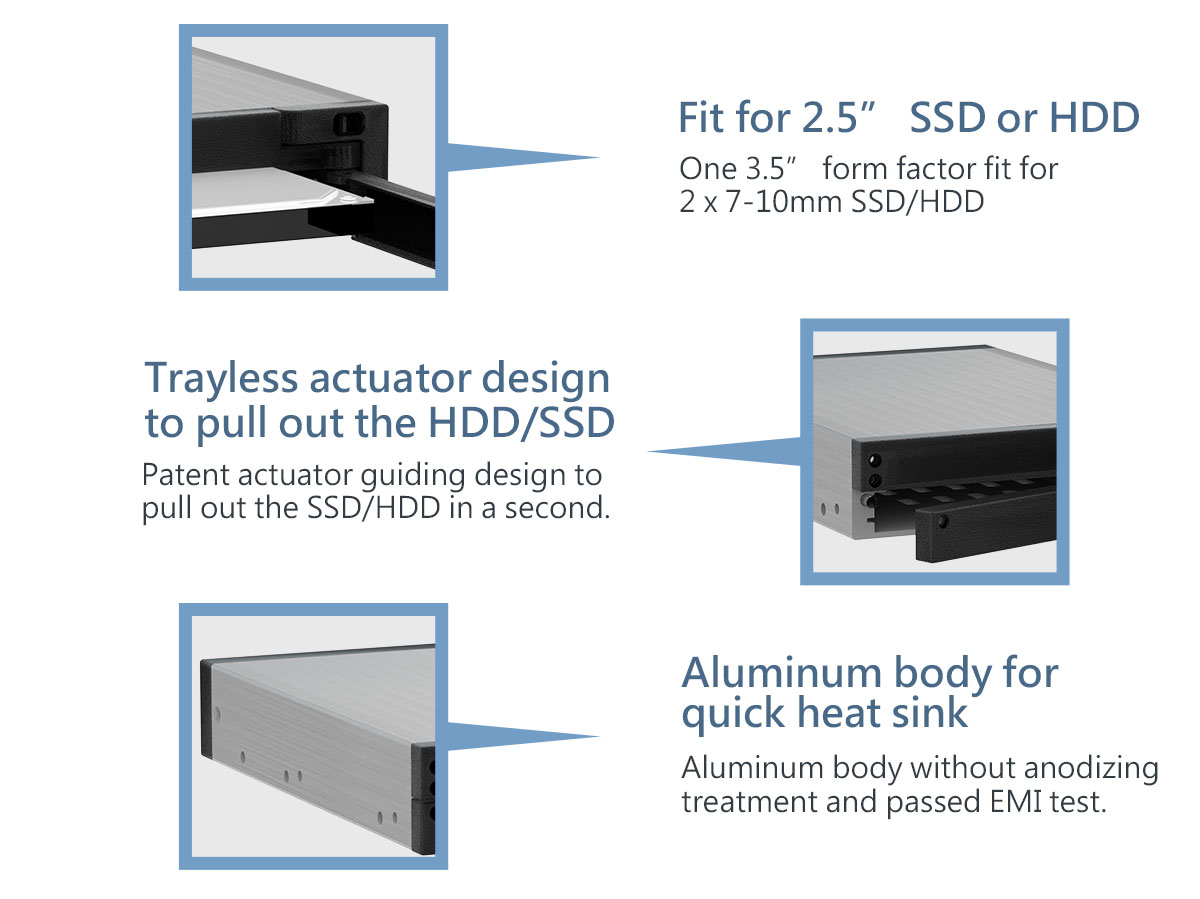

  • Trayless Design
  • Converts 1 x 3.5" External Bay Into 2 x 2.5" HDD
  • 6 Gb/s Transfer Rate via SATA
  • 12Gb/s Transter Via SATA - 8643 Fly Out Cable
  • Slider Lock To Prevent Accidental Ejection



Support HDD type
2.5" SATA HDD or SSD

Support SATA Specs Support
SATA III
 SATA 3.2
• SATA 3.3

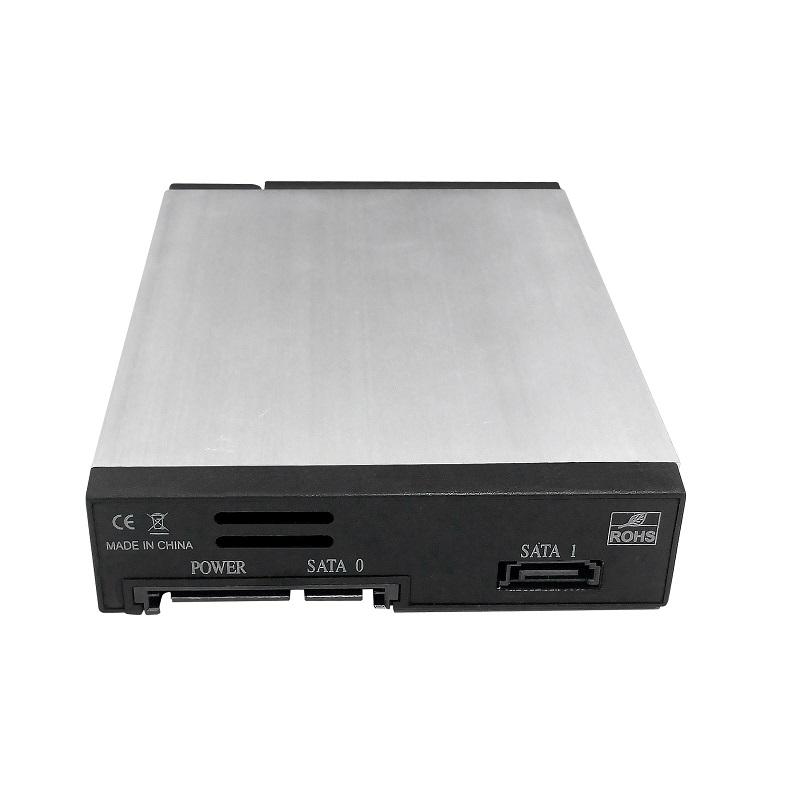

Power Connector
• SATA 15pin x 1

Plus & Play
YES

Materials
• Front bezel Aluminum
Body and front plastic bezel

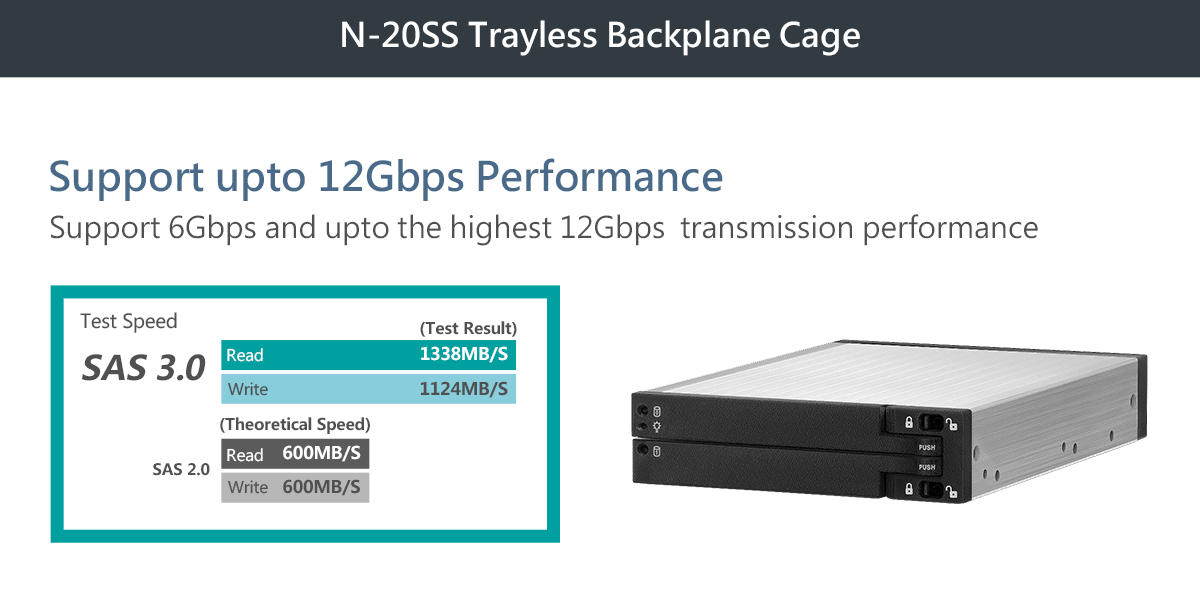

Transfer rate
• Upto 6.0 Gbps for SATA-III SATA Cable
 12G for SAS III

HDD Connection
• Cableless HDD connection

Air Ventilation
• Fanless design

Support HDD Height
• 7mm to 9.5mm of each

HDD Mounting type
• Front handle actuator & side press design

Security Mechanical Lock
Material Aluminum body plastic front bezel/rear cover

Color
Black

EMI Test
• Passed EMI

Dimension
146(L) x 101(W) x 25(H)mm

Weight
• 0.36 kgs
