1 x 5.25" to 1 x 3.5" 12G + 6G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design.

PCICASE Model No: N-16TM
Manufacturer Model No: N-16TM
UK Stock
Key Features
  • Converts 1 x 5.25" Bay for 1 x 3.5" HDD (Hot-Swap)
  • 6Gb/s via SATA

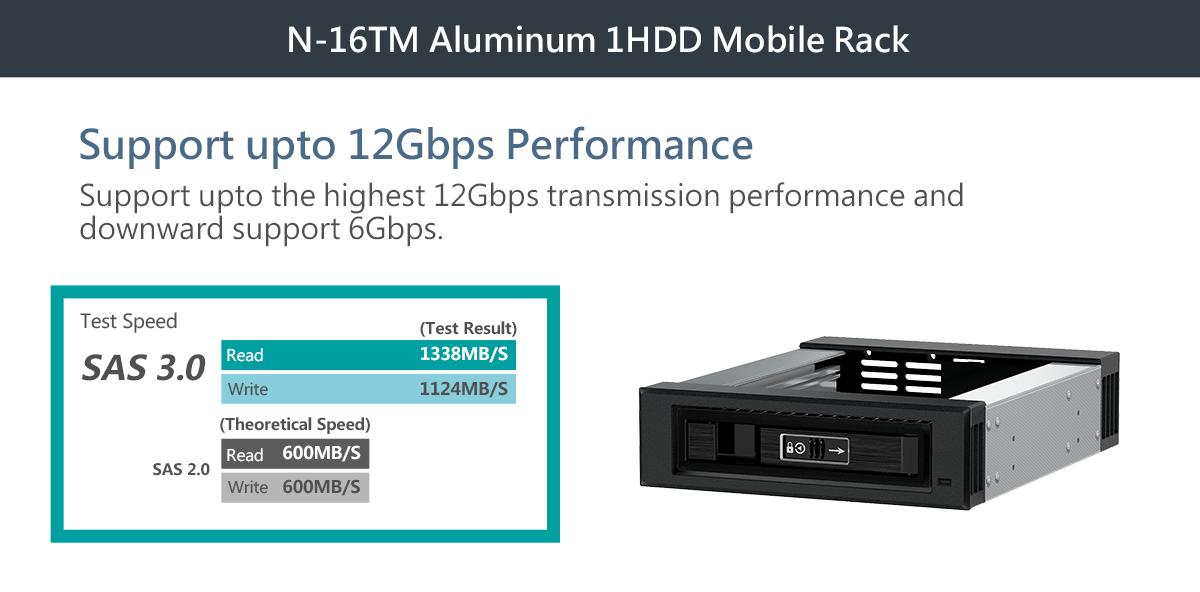

  • 12Gb/s via SATA to 8642 Fly Out Cable
  • Lock For Added Security

Form Factor
1 X 5.25 Drive Bay

Support HDD Type
1 X 3.5” & 2.5" SATA I, II, III & SAS I, II, III (12Gbps) HDD/ SSD

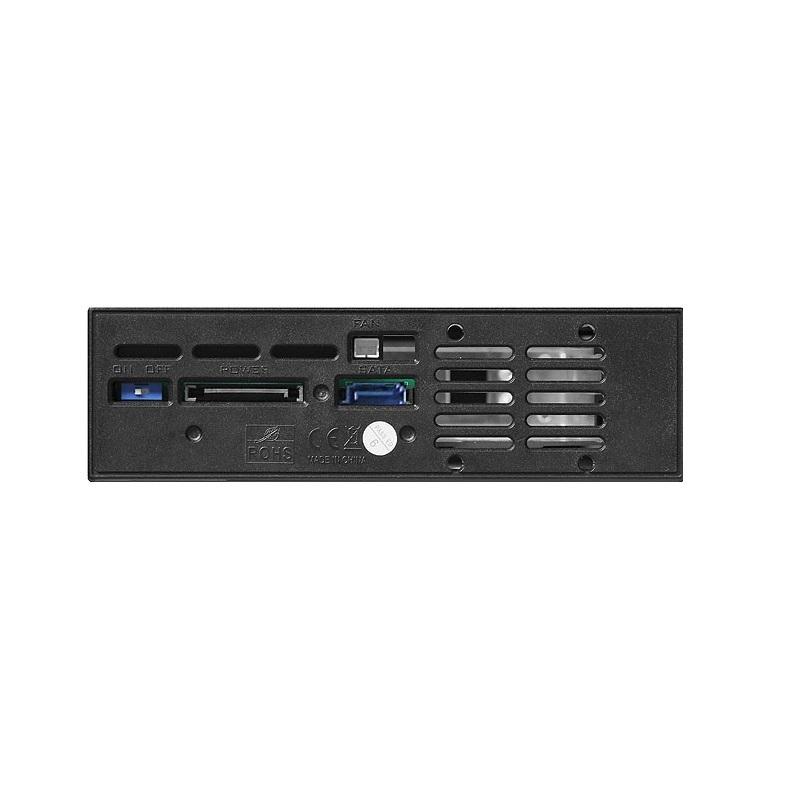

Interface
7pin SATA Connector X 1
15pin SATA Power Connector X 1

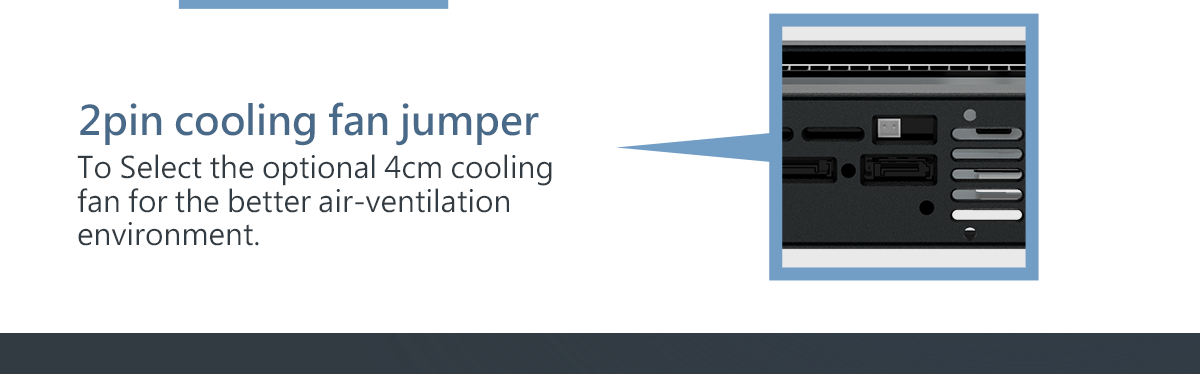

2pin Cooling Fan Jumper X 1

LED Indication
Power On- Green
HDD Access- Orange
LED Indicating On/Off Switch

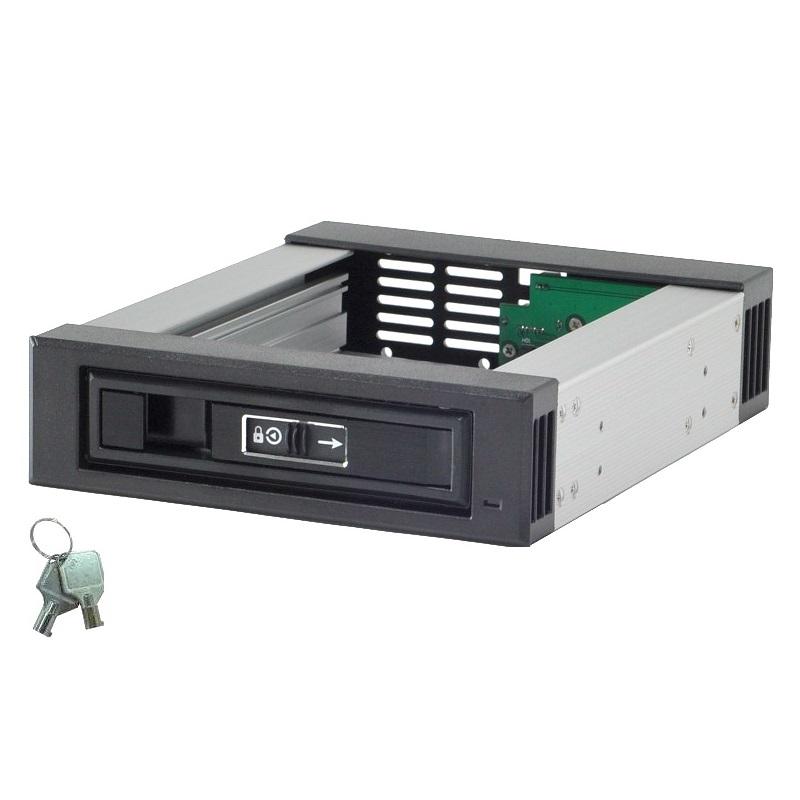

Security Design
Metal Key Lock (Poower & Mechanifcal Lock)

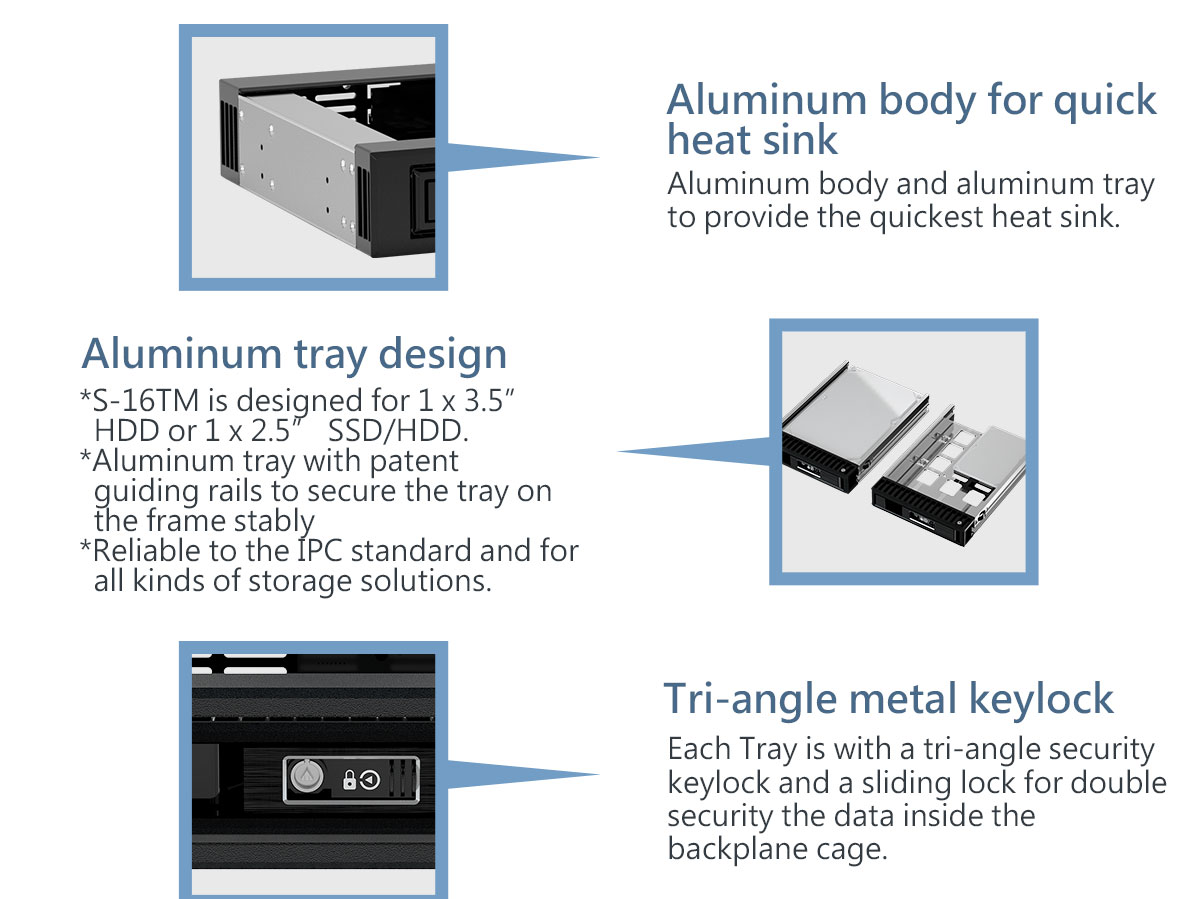

Material
Aluminum Body & HDD Tray

Fan
1 x 4 Cm Fan

Operating System
Windows/ Linux/Mac

Product Dimension
187(L) X 147(W) X 42(H) Mm

Product Weight
0.73kg
