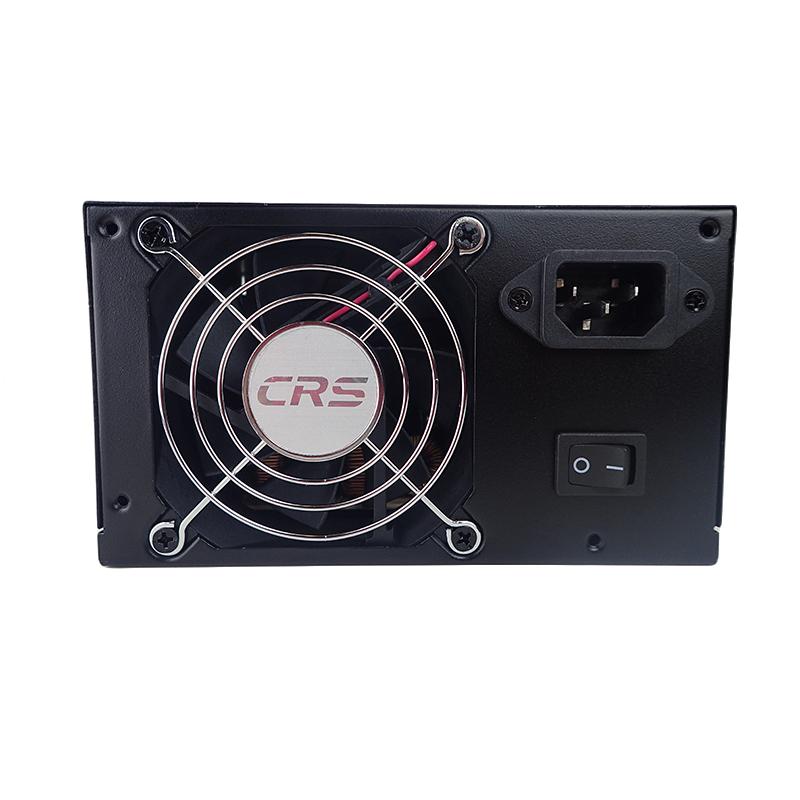

500W 8cm quiet 80+ PS2 Power Supply

PCICASE Model No: CRS-C2050-85-08
Manufacturer Model No: CRS-C2050-85-08 (GTIN NO:5060547731619)
UK Stock
Key Features
  • Ideal solution for a 2U PSU that requires 8cm Fan
  • 80+ Bronze Efficiency
  • Smart and silent fan control
  • 110V-230V, 47~63Hz AC input
  • ErP compliant
  • High efficiency
  • ATX12V + EPS12V connector (4+4 pin)
  • 2 x PCI-Express connector (6+2 pin)
  • 80mm ball-bearing fan
  • Protections: OVP, UVP, SCP, OPP
  • Certifications: CE (EN 62368-1, EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013, EN 55024:2010+A1:2015)

Dimensions Dimensions (WxDxH):
150 x 140 x 86mm

Input Specifications
Input voltage: 110V-230V 47~63Hz AC

PSU Rating
80+ Bronze Efficiency

Output Specifications
Power: 500 Watts
+5V: 17A
+3.3V 18A
+12V 38A
-12V 0.3A
+5Vsb 2.5A
Combined +5V/+3.3V output = 110W max.

Connector & Cable Configurations
1 x 20+4-pin EPS/ATX connector, 400mm cable
ATX12V + EPS12V connector (4+4 pin), 400mm cable
2 x PCI-Express connectors (6+2 pin), 470 + 140mm cable
2 x SATA/SATA/MOLEX Connectors, 420 + 140 +140mm cable

Package Contents
1 x CRS-C2050-85-08

Product Certifications, Standards & Safety
CE (EN 62368-1, EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013, EN 55024:2010+A1:2015)

Please note all prices & specifications are subject to change without prior notice.

Please note all images are for illustration purposes only & DO NOT include any additional items which maybe pictured unless otherwise specified.
