500W x 2 Mini Redundant PSU 80+ Silver Power

PCICASE Model No: PIST1050-EPSH-80-N
Manufacturer Model No: PIST1050-EPSH-80-N
UK Stock
Key Features
  • Hot-Swappable & Power Sharing capability
  • High Efficiency 80+ Silver
  • PS/2 Size design
  • 2x40mm fan(Each module)
  • Cerified to UL62368-1, CAN/CSA62368-1-14, EN62368-1:2014/A11:2017, IEC62368-1:2014

Dimension (LxWxH):
199x150x86(mm)/7.83x5.9x3.38(inches)



AC Input
Voltage:100-240V,(115/230 Auto)
Frequency:50/60Hz
Input Current:8A/4A for 115230VAC
Inrush Current:60A/80A Max for 115/230

DC Output

Output Voltage:              +5VDC   +12VDC    +3.3VDC    -12VDC      +5VSB
Output Current(Max):       25A         41A         25A            0.8A           3.5A
Output Current(Min):        1A           3A           1A              0A             0.1A
Ripple/Noise Max.(P-P):    50mv      70mv       50mv          70mv        50mv
Line Regulation:               1%         1%           1%             1%            1%
Load Regulation:              5%         5%           5%             5%            5%

Features
Dimension:LxWxH:199x150x86(mm)/7.83x5.9x3.38(inches)
Cooling:By forced air 2x40mm fan(Each module)
PS/2 Size design.
Hot-Swappable & Power Sharing capability.
Meet EN61000-3-2 Class D(Active PFC)
High Efficiency 80+ Silver.

Safty Certificates

UL62368-1
CAN/CSA62368-1-14
EN62368-1:2014/A11:2017
IEC62368-1:2014
TUV
CB
CE
FCC
BSMI
C-TICK


Datasheet  PIST1050-EPSH-80-N


 SPEC_PIST1050-EPSH-80-N_20201207.pdf

WireOut_PIST1050-EPSH-80-N_20201204.pdf

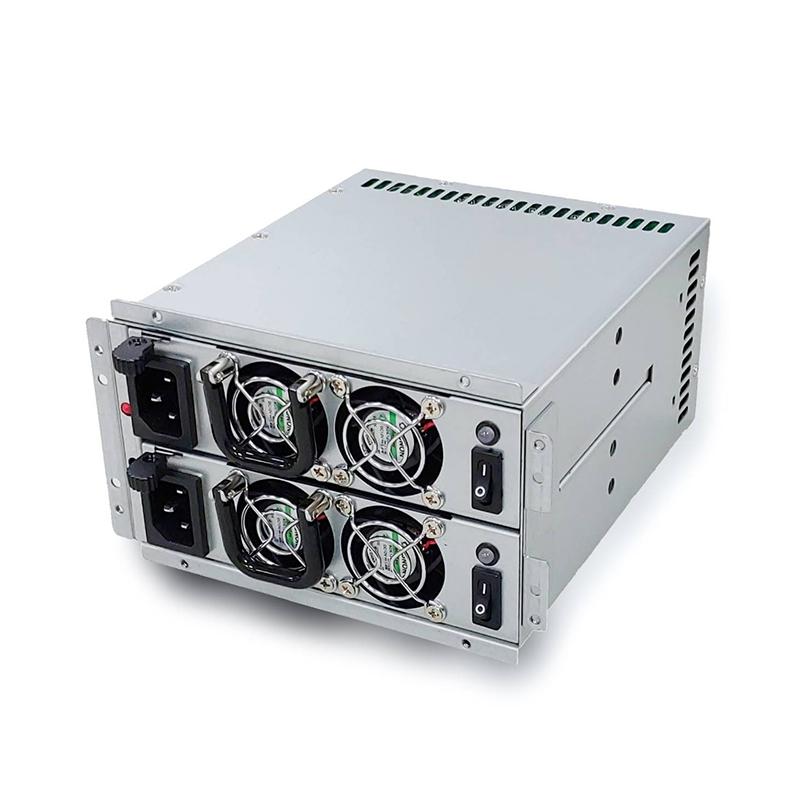

Product Images  PIST1050-EPSH-80-N
