1 x 5.25" drive bay to 2 x 2.5" SFF hot swap bays, supporting 2 NVMe PCIe SSDs

PCICASE Model No: N-29NVMe-15
Manufacturer Model No: N-29NVMe-15
UK Stock
key features

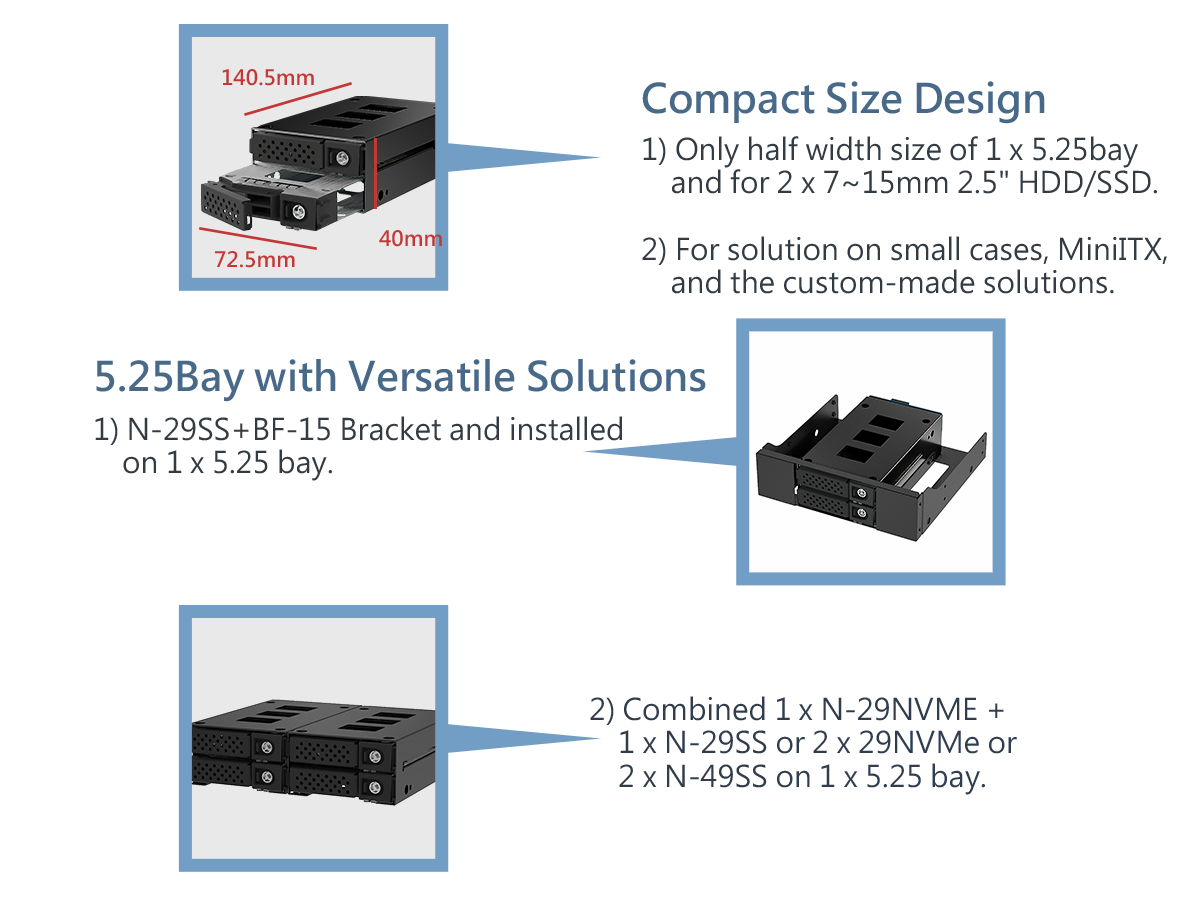

  • Converts 1 x 5.25" Bay to 2 x 2.5" SFF hot swap bays, supporting 2 NVMe PCIe SSDs (using BF-15 Bracket)




Form Factor
Half 5.25" Drive Bay Width Size

Dimensions
146mm (w) x 140mm (d) x 41.8mm (h)


Support HDD Type
2 X 2.5” NVMe U2 SSD (32Gbps)

Interface

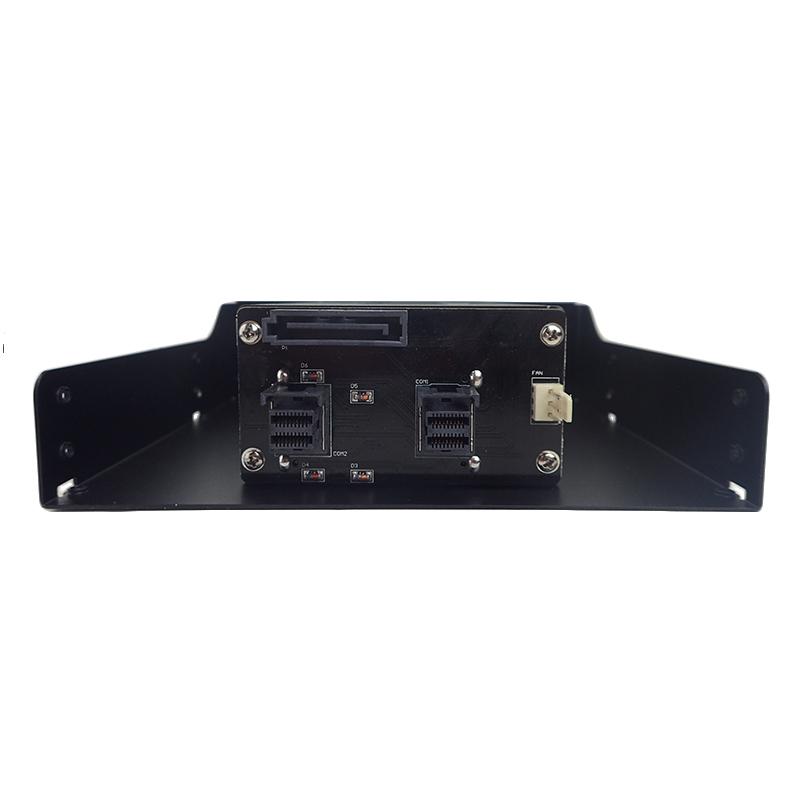

Mini SAS SFF-8343 Connector X 2
15pin Power Connector X 1
3pin Cooling Fan Jumper X 1

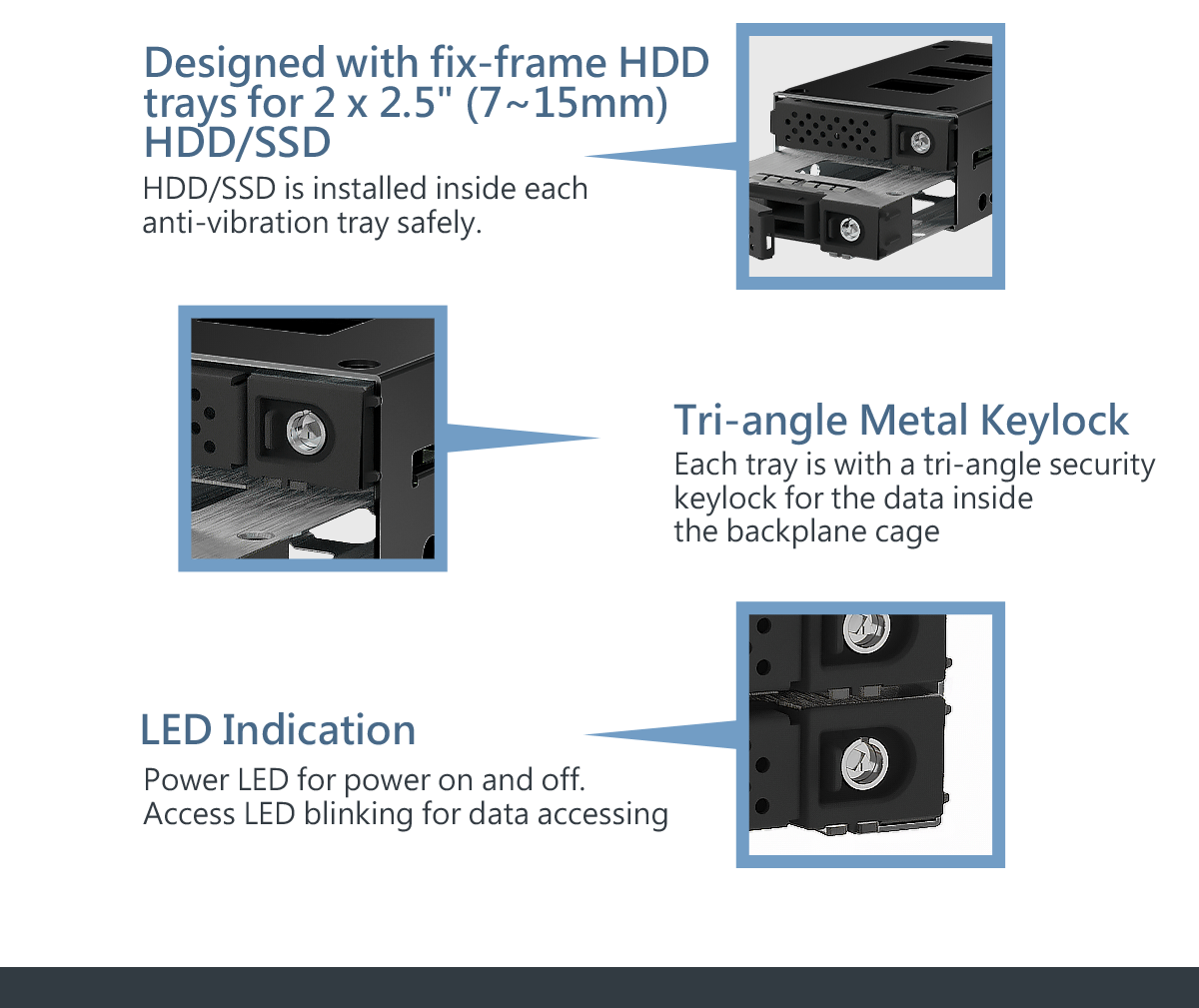

LED Indication
Power On- Green
HDD Access- Orange Blinking

Security Design

Metal Key Lock

Material
Metal Frame & Stainless HDD Tray

Fan
N/A

Operating System Windows/ Linux/Mac
Product Dimension 140(L) X 72(W) X 40(H) mm

Product Weight
0.38kg
