2U Short Depth Micro-ATX Enterprise Sever Chassis With PS2 Single or Mini-Red PSU

* Storage capacity: 2 x 5.25" ODD, 2 x 3.5" HDD (or no 3.5" but 2 x 2.5" SSD)

* HDD bay equipped with damping function reduces vibration & improve storage life

* Equipped with high strength aluminum die-casting handles as standard

* Front bezel equipped with two USB3.0 ports and LAN/HDD/Power LED

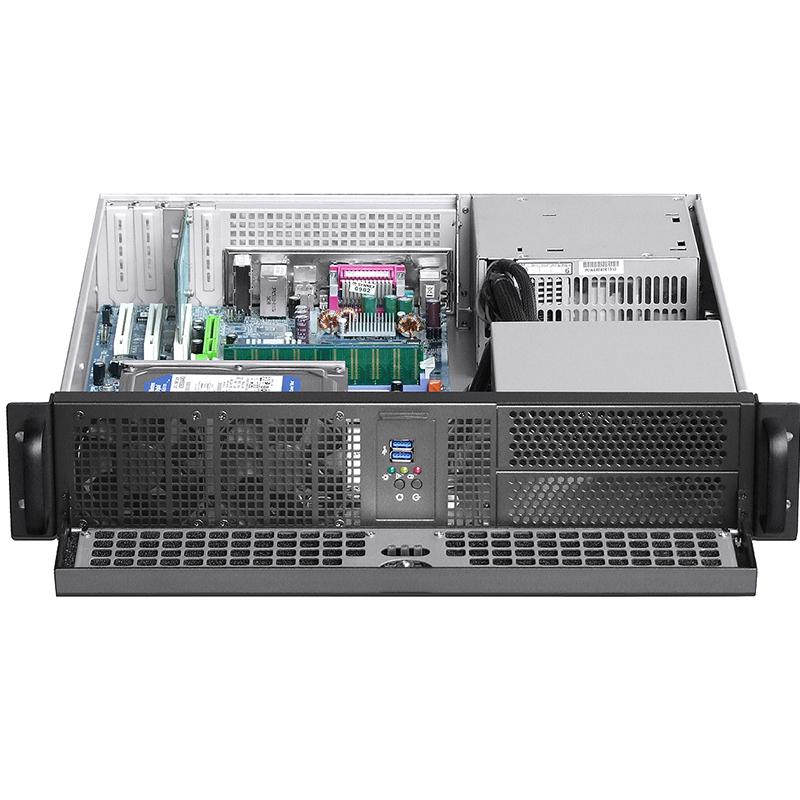

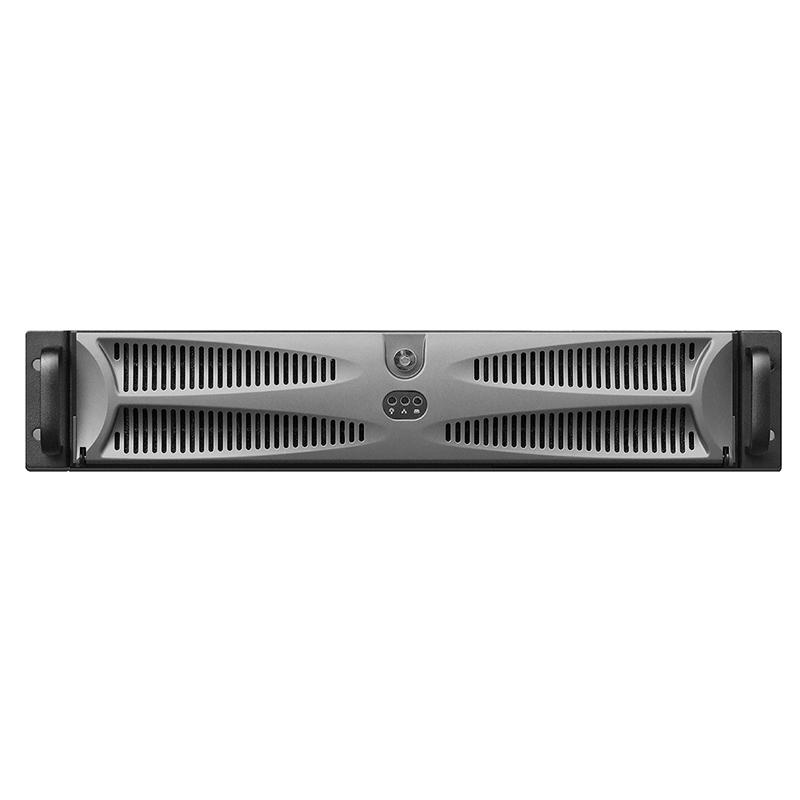

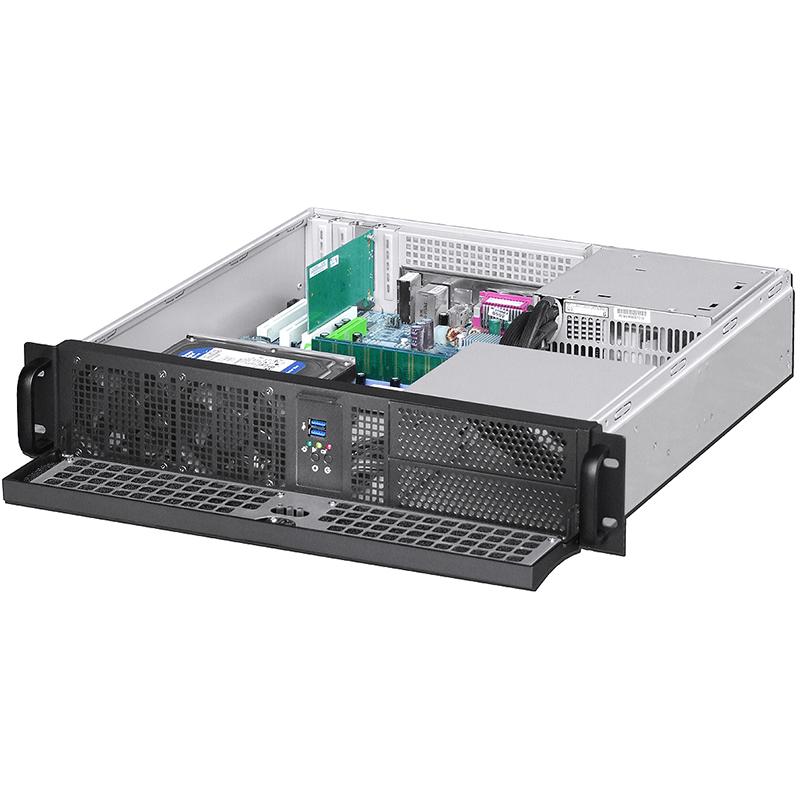

* Removable front door with security keylock and air filter function

* Two brand new low noise 80mmx25mm intake fans at front (part# D80SM-12)

* Compatible motherboard: MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

* Support 4-slot low profile height expansion cards at maximum 255mm deep

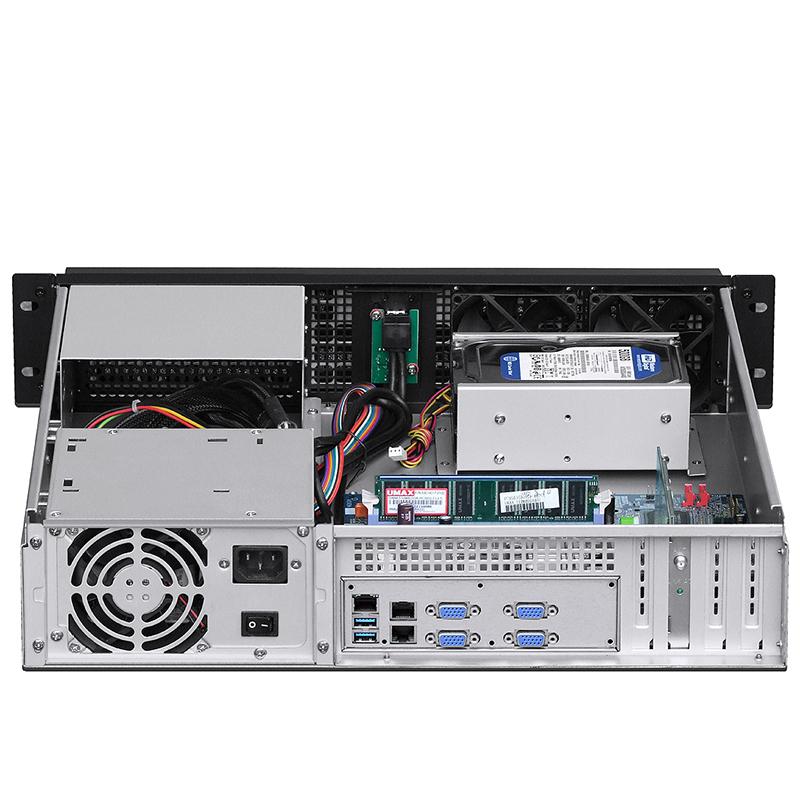

* Front-Right without 5.25" installed, max. 250mm deep PSU supported

* Front-Right with 210mm deep 5.25" installed, max. 200mm deep PSU supported

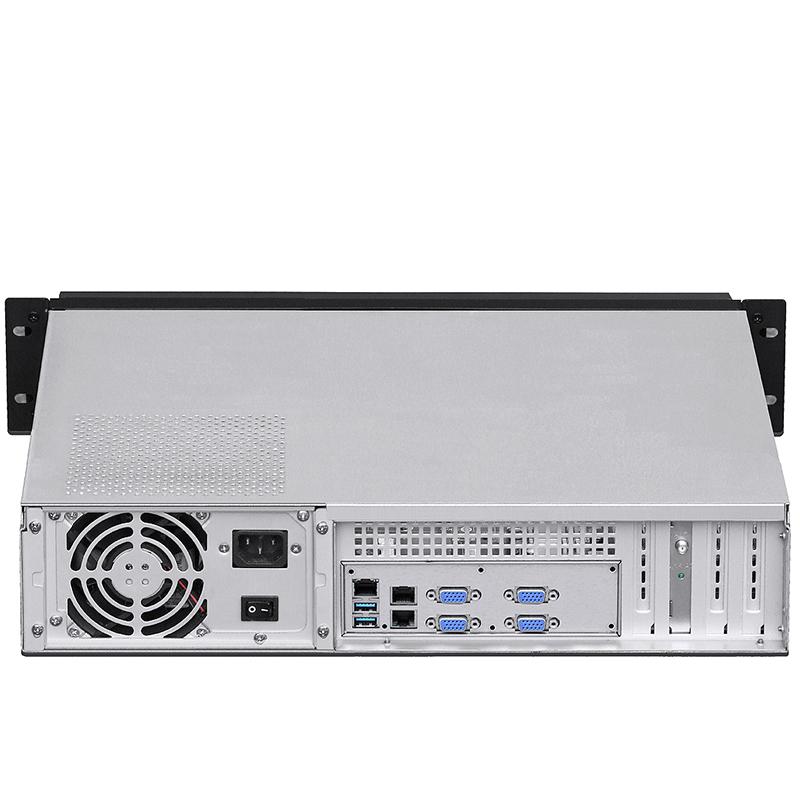

* 8cm or 12-12cm fan version standard PS2 PSU compatible

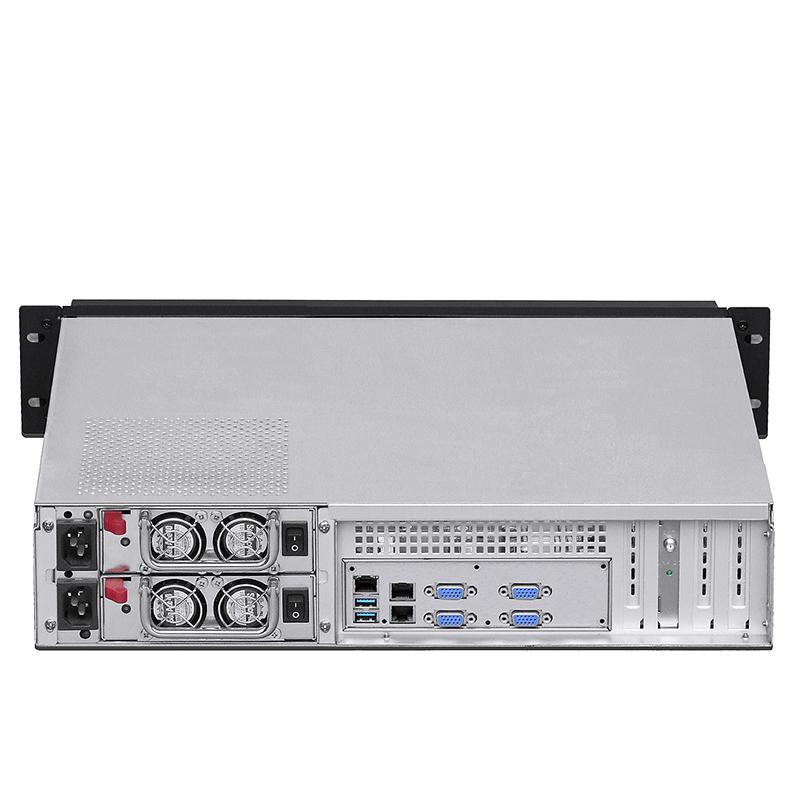

* Support PIST20XX series 400W~500W PS2 Mini Redundant PS (depth 174mm)

* Support PIST10XX series 500W~800W PS2 Mini Redundant PS (depth 199mm)

* Sheet metal by SECC 1.2mm~2.0mm thickness with no burr & sharp corner design

* Standard paint: scratch-resistant black textured at front

* server chassis including fan & electronics in global 3 years warranty

* Chassis dimension: 19" x 2U x 430mm (16.93" deep)

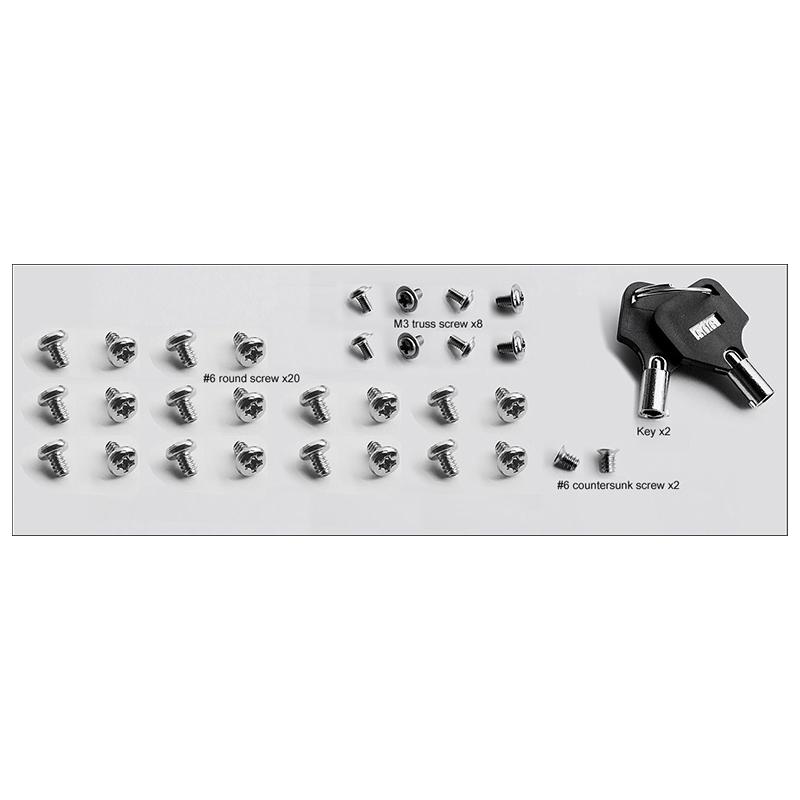

* Accessory #6 round x20, M3 truss x8, #6 countersunk x2, key x2

* Package: NW 5.50 KGM, GW 7.20 KGM, 1.88 CUFT (carton size at 56x56x17cm)

MINI-REDUNDANT

400W x 2 Mini Redundant PSU 80+ (Short Depth)
Part code: PIST2040-EPSH-80

500W x 2 Mini Redundant PSU 80+ (Short Depth)
Part code: PIST2050-EPSH-80-N

500W x 2 Mini Redundant PSU 80+ Silver Power
Part code: PIST1050-EPSH-80-N


600W x 2 Mini Redundant PSU 80+ Silver Power
Part code: PIST1060EPSH-80-N


 700W x 2 Mini Redundant PSU 80+ Silver Power
Part code: PIST1070-EPSH-80-N

800W x 2 Mini Redundant PSU 80+ Silver Power
Part code: PIST1080-EPSH-80-N




SINGLE

500W  Quiet PS2 85+ Bronze PSU with 8cm fan.

Part code: CRS-C2050-85-08

Backplane Modules/Mobile Racks

 2.5" HDD BACKPLANE MODULE (12GB/S)

1 x 3.5" to 2 x 2.5" 12G+6G SAS/SATA Hard Drive Backplane Caddy Trayless Design

Part code: N-20SS

1 x 5.25" to 4 x 2.5" 12G+6G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design

Part code: N-49SS

1 x 5.25" drive bay to 2x2.5" SFF hot swap bays, supporting 2NVMe PCIe SSDs

Part code: N-29NVMe-15

1 x 5.25" drive bay ,supporting 4x2.5" NMVe U.2 HDD(up to 15mm)

Part code: N-49NVMe

2.5" HDD BACKPLANE MODULE (6GB/S)



3.5" HDD MOBILE RACK (12GB/S)

1 x 5.25" to 1 x 3.5" 12G SAS/SATA Hard Drive Backplane Caddy Hot-Swap Tray Design

Part code: N-16TM

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Black)
Part code: ISG-AN-D11-Black

---

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Blue)
Part code: ISG-AN-D11-Blue

---

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Red)
Part code: ISG-AN-D11-Red

---

1 x 5.25" to 1 x 3.5" 6G SAS/SATA Hard Drive Backplane Caddy. * Trayless Design. (Silver)
Part code: ISG-AN-D11-Silver


Bay Convertors


1 x 5.25" Dynamic Conversion Bracket.
Part code: IPC-SDFD135225



---



Data Cables



External 1x SFF-8644 - 1 x SFF-8088 1M

Part code: IPC-SCB-ML22

---

External 1x SFF-8644 - 1 x SFF-8088 2M

Part code: IPC-SCB-ML21



---

External 2x SFF-8644 1M

Part code: IPC-SCB-ML23

---

External 2x SFF-8644 2M

Part code: IPC-SCB-ML20



---

 External SAS cable SFF-8088 x2 50cm

Part code: IPC-SCB-ML13

---

External SAS cable SFF-8470 to SFF-8088 50cm

Part code: IPC-SCB-ML12



---

Internal SAS cable 2 x SFF-8643 50cm

Part code: IPC-SCB-ML24





---

Internal SAS cable 50cm SFF-8087 to SFF-8484

Part code: IPC-SCB-ML11





---

Internal SAS Cable 50cm SFF8087 to 4x 7-pin SATA/SAS (Internal Mini SAS to SATA Reverse Cable)

Part code: IPC-SCB-ML08

---

Internal SAS cable 55cm SFF-8484 to 4x SATA/SAS

Part code: IPC-SCB-ML07









---

Internal SAS/SATA cable 50cm (2x SFF-8087)

Part code: IPC-SCB-ML09

---

 Internal SAS/SATA Cable 50cm 4x SATA/SAS to SFF8087

Part code: IPC-SCB-ML10



---



Heatsinks (Active/Passive)

1U ACTIVE CPU COOLERS

1U Active CPU Cooler (AM2/AM3 Socket)
Part code: CJ-JAC7209C

1U Active CPU Cooler (LGA 1156/1155/1150/1151)
Part code: CJ-JACLL03C

---

1U Active CPU Cooler (LGA1366/1356)
Part code: CJ-JACLB13C

1U Active Heatsink with Fan (Socket 478)
Part code: CJ-CE2QC


1U Active Heatsink With Side Flow Fan (LGA-775)
Part code: CJ-JACL511C


1U Active Heatsink With Side Flow Fan (Socket LGA 2011)
Part code: CJ-JACLR02C-0

1U PASSIVE CPU COOLERS

1U Passive CPU Cooler (K8)
Part code: CJ-JAC0807C

1U Passive CPU Cooler (LGA 1150/1151/1155/1156)
Part code: CJ-BK1156P


1U Passive CPU Cooler (LGA1366/1356)
Part code: CJ-JAC0B04C


1U Passive Heatsink (LGA-775)
Part code: CJ-950918-1


2U ACTIVE CPU COOLERS

2U Multi-Socket Active CPU Cooler (Intel LGA-1366/1356/1151/1150/1155/1156/775 compatible)
Part code: CJ-JYC9L06AGC-A

2U Active CPU Cooler With Side Fan Socket LGA 2011 Narrow
Part code: CJ-JYC1R38ATPTC

2U PASSIVE CPU COOLERS

2U Passive CPU Cooler (LGA 1151/1150/1156/1155)
Part code: CJ-JAC0L11A

2U Passive CPU Cooler (LGA1366/1356)
Part code: CJ-JAC0B40A
