3U Rugged Short Chassis 1 x 5.25" External + 2 x 3.5" External + 2 x 3.5" Internal 1 x Slim Optical.

PCICASE Model No: IPC-C3A-BH
Manufacturer Model No: RMC-3A (AIC SKU: XE1-3A000-01)
UK Stock
Key Features
  • Rugged design to meet most applications.
  • Front access dual USB ports
  • Superior cooling through front air intake - 2 front fans & 2 rear fans
  • 7 x full height expansion slots
  • Short depth design for space critical applications

The IPC-C3A-BH is designed with 17” depth to meet the requirements of Telecom, Military and Appliance Applications. Full length cards are still supported even at shortened depth

Dimensions (W x D x H) (with chassis ears)
• mm : 482.6 x 431.8 x 133.4
• inches : 19 x 17 x 5.3

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SGCC cold-rolled steel

Color
Black

Cooling
• Front : 2 x 60x25mm fans
• Rear : 2 x 60x25mm easy swap fans

Power Supply
Please see Optional Product for details *Industrial PSU Only

Expansion Slots
7

Front Panel
• Power on/off
• System reset
• 2 x USB ports

LED Indicators
• Power
• LAN
• Drive

System Board
Up to 12”(W) x 9.6”(D) ATX compliant MB

Drive Bays
• External : 1 x 5.25”, 2 x 3.5” & 1 x Slim DVD-ROM
• Internal : 2 x 3.5”

Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/o PSU & Rail)
• kgs : 12
• lbs : 26.4

Package Dimension (W x D x H)
• mm : 591 x 598 x 321
• inches : 23.3 x 23.5 x 12.6

Cubic Feet
4

Container Load Quantity
• 20’ : 240
• 40’ : 490
• 40’ H : 590

Mounting
Please see Optional Product for details
* All specifications are subject to change without notice.

Datasheet IPC-C3A-BH Datasheet


 IPC-C3A Datasheet.pdf



Product Images IPC-C3A-BH (Front 45 Degrees)

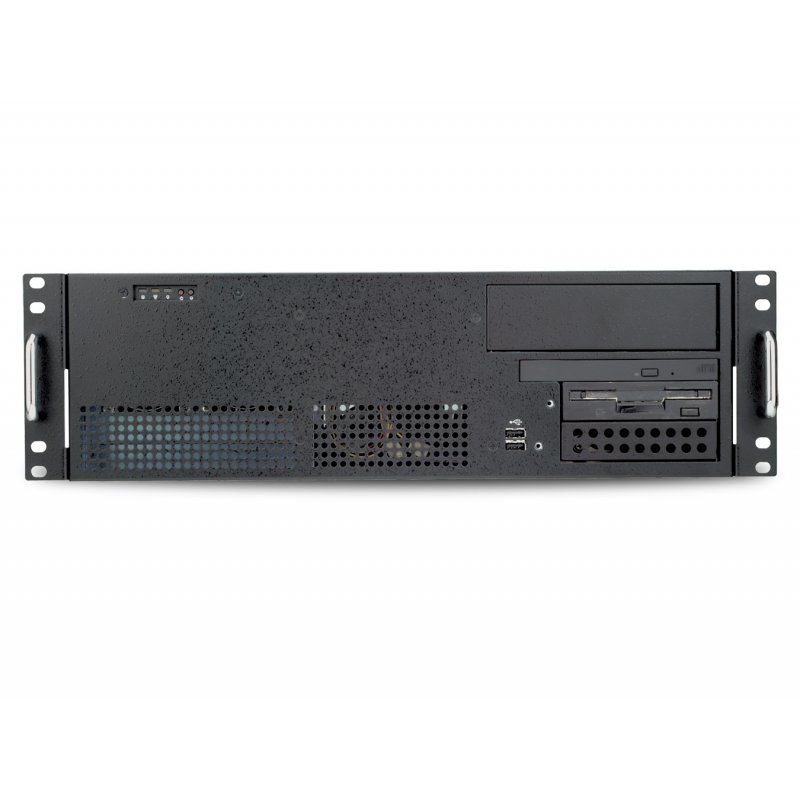

Product Images                                           IPC-C3A-BH (Front)

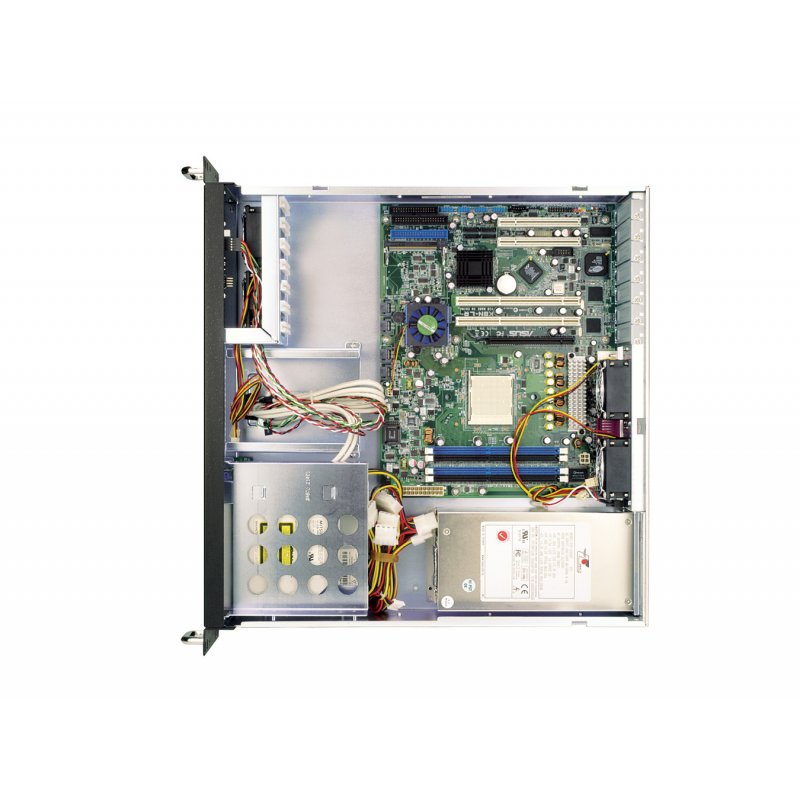

Product Images IPC-C3A-BH (Top)

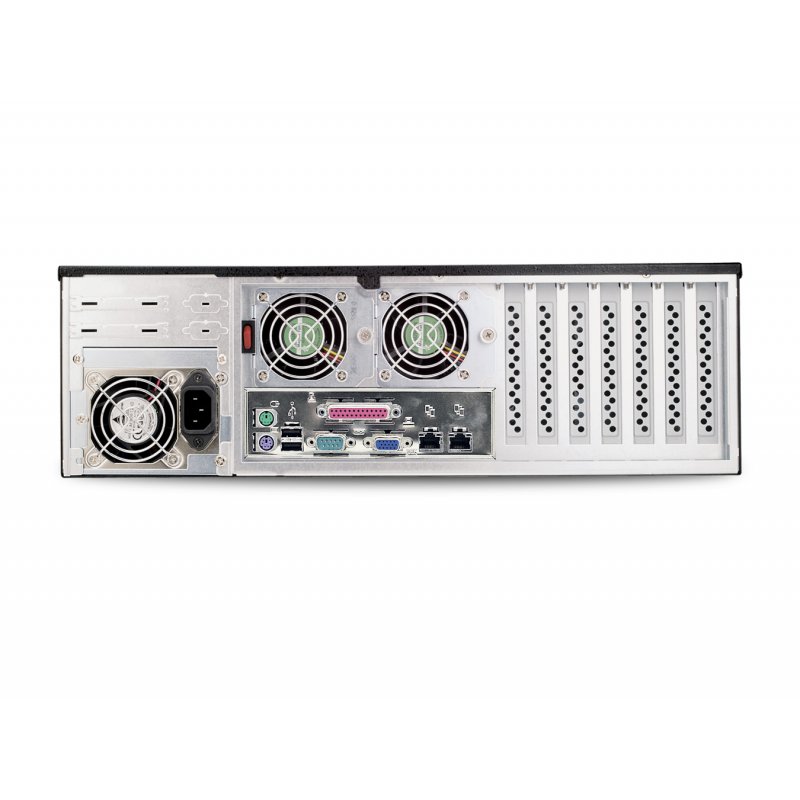

Product Images IPC-C3A-BH (Rear)





RAILS



POWER SUPPLIES



BACKPLANE MODULES/
MOBILE RACKS


BAY CONVERTORS



FRONT PANELS





HEATSINKS








AIC 2U-4U 20inch Slider Rails for Short/Midsize Chassis
Part code: IPC-SY001H



AIC 2U-4U 26inch Slider Rails for Extended Chassis
Part code: IPC-SY002H

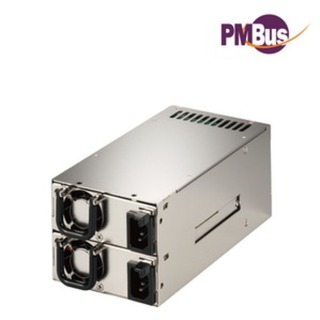

2U/3U INDUSTRIAL REDUNDANT PSU
