1U Short Rugged Rackmount Chassis 1x 3.5" ,2x2.5" Internal (250 Watt PSU Inc.), with Slim ODD Bay

PCICASE Model No: IPC-C1E-BAS25-RH-NODD
UK Stock
Key Features
  • Rugged design to meet most applications.
  • Front ventilation for superior cooling.
  • Front Access Dual USB 3 Port for software maintenance.
  • 1 x 40x40x28 mm (4P) fan standard, 2x optional
  • Short depth design for space critical applications
  • Equipped with 250watt PSU 80+ Gold
  • With Slim ODD
Features & Benefits

The IPC-C1E-BAS25-RH-NODD is an entry-level 1U appliance chassis with 15” depth for space-sensitive applications, such as Network & Security appliance, firewall, VPN, Telephony and military applications. Standard ATX size (9.6” x 12”) motherboard can be populated into this appliance chassis. The IPC-C1E-BAS25-RH-NODD is i a cost-effective appliance chassis that provide lower TCO (total cost of ownership) to IT professionals for higher ROI.

Dimensions (W x D x H) (with chassis ears)
• mm : 482.6 x 381 x 44.4
• inches : 19 x 15 x 1.75

Industry Standard

EIA-RS310D

Material

Heavy-duty preplated SPGC cold-rolled steel

Color

Front Panel : Black

Cooling

Standard :
• Front : 1 x 40x40x28 mm fan ( 4P)
Options :
• 2 x 40x40x28 mm fans (PCICASE SKU: IPC-SF4028-4P)


Power Supply
Standard :

• 250W single Flex ATX PSU, 80+ Gold (PIZ1025S-90-ACB)

Optional:

 400W single Flex ATX PSU, 80+Gold (PIZ1040S-90-ACB)


Expansion Slot

1 x Full Height Via Riser Card (Please See Optional Product For Details)

Front Panel

• Power on/off
• System reset
• 2 x USB 3 ports

LED Indicators

• Power
• LAN
• Drive

System Board

Up to 12”(W) x 9.6”(D) ATX compliant MB

Drive Bays

• Internal : 1x3.5" + 2 x 2.5”

• External : 1 x Slim ODD Bay (image will be updated soon)

Storage Temperature

0°C(32°F) ~ 50°C(122°F)

Humidity

5% ~ 95% non-condensing

Gross Weight (w/ PSU; w/o Rail)

• kgs : 7
• lbs : 15.4

Package Dimension (W x D x H)

• mm : 548 x 574 x 173
• inches : 21.6 x 22.6 x 6.8

Cubic Feet

1.9

Container Load Quantity

• 20’ : 500
• 40’ : 1025
• 40’ H : 1235

Mounting

Slider Rails: PCICASE SKU IPC-SY034-1

(Please See Optional Product For Details)

* All specifications are subject to change without notice.

Datasheet IPC-C1E-BAS25-RH-N1 Datasheet


 IPC-C1E_Datasheet.pdf

IPC-C1E_UserManual.pdf

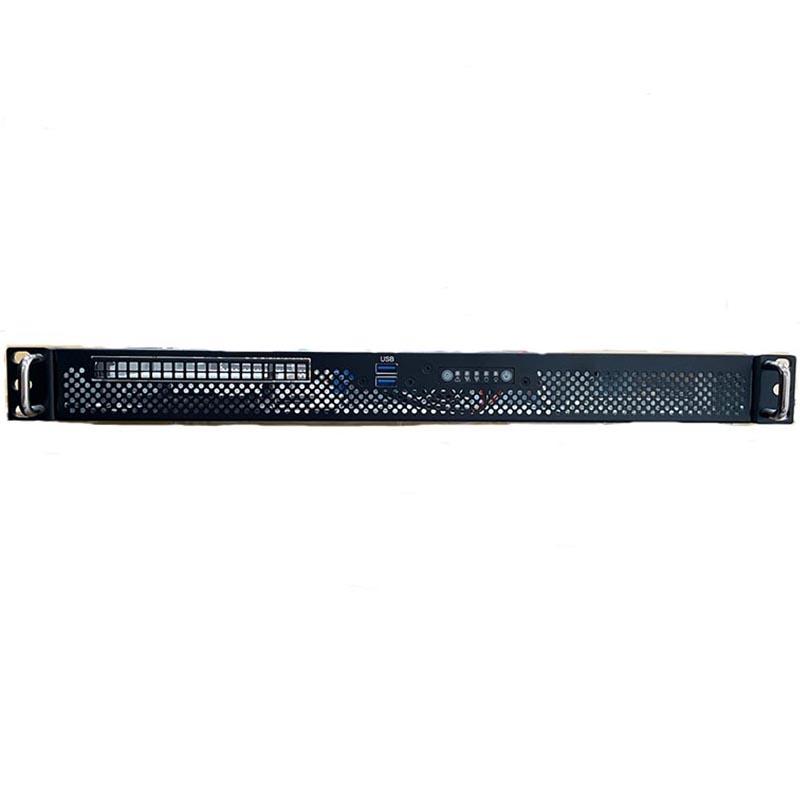

Product Images IPC-C1E-BAS25-RH-N1 (Front )


 IPC-C1E-BAS25-RH-N1_Fr
ont_45_800x800
.jpg



Product Images                                           IPC-C1E-BAS25-RH-N1 (Front 45)


IPC-C1E-BAS25-RH-N1_Fr

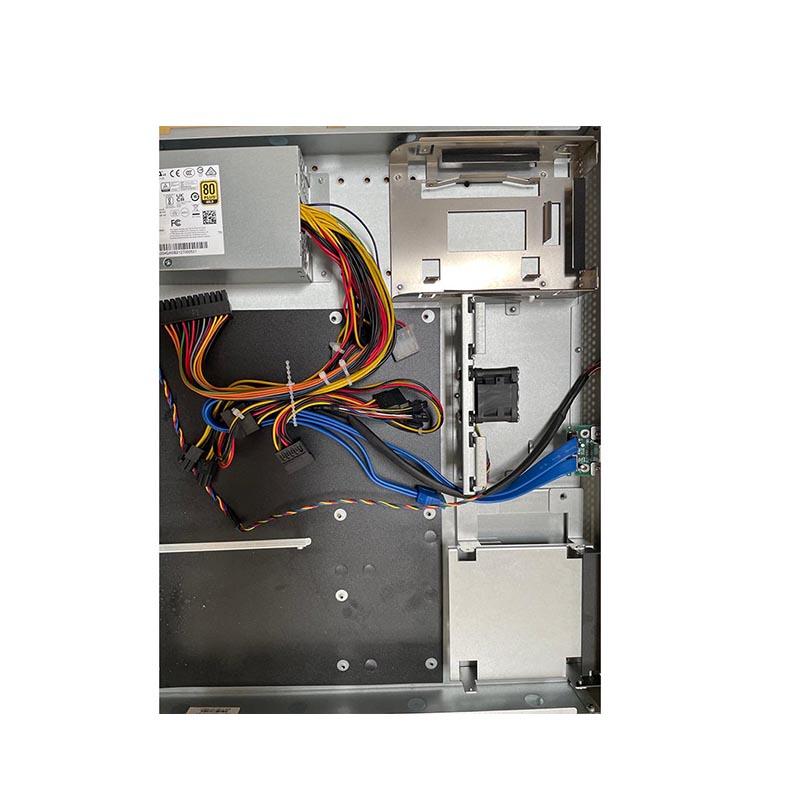

Product Images IPC-C1E-BAS25-RH-N1 (Top)
