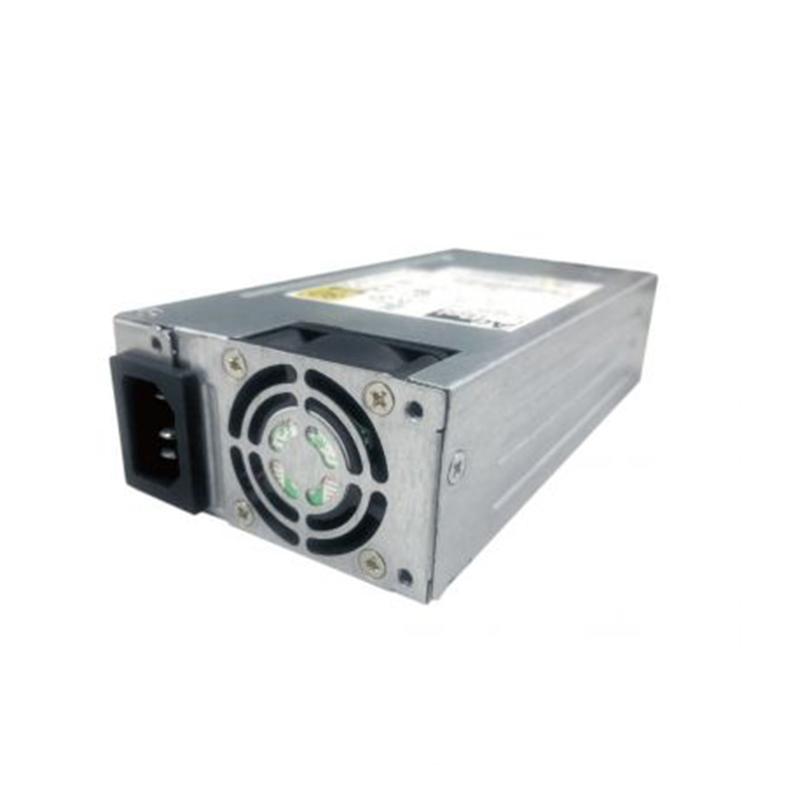

1U Flex ATX 400W 80 Plus Gold

PCICASE Model No: PIZ1040S-90-ACB
Manufacturer Model No: PS-000000085_A01
UK Stock
Key Features
  • 1U Flex ATX 400 watt 80+ Gold PSU
  • Industrial grade components to aid PSU lifespan

Dimensions (D x W x H)

165 x 81.5x 40.5mm

Efficiency
The minimum efficiency of power supply should be over than 87% under the maximum and
20% load and should be over 90% under the half load. Load measurements are performed at
115VAC/230Vac input.
The PF should be over than 0.9 under 20% load at 115VAC.

It is better to meet the 80 plus requirement .as the web site as follow:
http://www.80plus.org/


Environrmental Specificatios
8-1. Operating Temperature Range
Operation ambient : 0 ℃ to + 50℃
Non-operating ambient : -40℃ ~ +70℃
8-2. Thermal Shock (Shipping)
Non-operating : -40 ~ 70℃ (15℃/min≦dT/dt≦30℃/min)
8-3. Altitude
Operating To 5000 m
Non-operating To 15,000 m
8-4. Random Vibration
Sine sweep, 5 Hz~200 Hz , 1g.
Sweep rate : 1 Oct/Min, three axes.
Dwell natural frequency,2G , per point 15 minutes.(non-operating)
8-5. MTBF and Cap Life
100,000 Hours “80% Load at 25℃,115V / 60Hz or 230V / 50Hz” for MTBF.
26,280 Hours “80% Load at 25℃,115V / 60Hz or 230V / 50Hz” for Capacitor life.
8-6. Mechanical Shock
Sqare wave ,50G ; velocity 167 in/s per face three times. (non-operating)

Input Specifications
1-1. Input condition:

Range Select
Nominal
Units
Vin
100 - 240
VAC
Frequency
50 - 60
Hz
AC input current
6A / 115VAC
3A / 230VAC
AMPS


1-2. Inrush Current
Maximum inrush current from power-on (with power on at any point on the AC sine) shall be
limited to the peak surge current of the input line cord, bridge diode, fuse and EMI filter
components according to I2t. Receptive ON/OFF cycling of the AC input voltage shall not
damage the PSU or cause the input fuse to blow.

Output Specifications
Output Voltage and Ripple Noise Requirements

Output  Voltage
MIN
MAX
Regulation (%)
Ripple Max
+5V
4.75
5.25
+5% ~ -5%
50mV
+3.3V
+3.3
3.465
+5% ~ -5%
50mV
+12V
11.4
12.6
+5% ~ -5%
120mV
+5Vs
4.75
5.25
+5% ~ -5%
50mV
-12V
10.8
13.2
+10% ~ -10%
120mV

Note:

1). The output voltage should be measured at output connector terminals.
2). The output Ripple Noise should be tested with 10 F of tantalum and 0.1 F ceramic
disk capacitors to simulate system loading.

Safety

The power supply will have the following safety approvals with most current editions shipping:
9-1. UL/CAN/CSA
9-2. TUV/EN
9-3. IEC/CB
9-4. CE
9-5. FCC
9-6. BSMI
9-7. CCC

Power Supply Approval Sheet   Approval Sheet


PIZ1040S-90-ACB Specification(P)
