3U 12G Storage Chassis 16 x 3.5" Hot-Swap + 2 x 2.5" Rear Hot-Swap with 800W Redundant PSU (Rails Included).

PCICASE Model No: IPC-C3ET-R8-EOB-12G

Manufacturer Model No: RSC-3ET (AIC SKU: XE1-3ET00-01)

3-5 Day Delivery

Key Features
• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
• 12Gb/s SAS expander chip on backplane
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• Comes with a redundant PSU 80+ Platinum
• Two front access USB 3.0 ports

Features & Benefits

IPC-C3ET-R8-EOB-12G is a T series 3U 16-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the RSC-3ET supports quick installation and easy maintenance. This tool-less design solution also features 3 x low-power consumption hot swap fans and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications. (Power supply is included. Motherboard is not included.)

Dimensions (W x D x H)

• mm: 430 x 680 x 133
• inches: 17 x 26.8 x 5.2

Industry Standard

EIA-RS310D

Material

Heavy-duty preplated SPGC cold-rolled steel

Color

Front Panel : Black

Cooling

3 x 80x38mm PWM & low-power consumption hot swap fans

Power Supply

800W 1+1 redundant PSU PMBus 1.2 80+ Platinum

Expansion Slots

Front Panel

• System power on/off
• System reset
• 2 x USB 3.0 port

LED Indicators

• Power
• LAN
• Drive
• Alert

System Board

12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB

Drive Bays

• External: 16 x 3.5” hot swap
Options -
• 6 x 2.5” internal
• 4 x 2.5” internal and 2 x 2.5” hot swap
• 4 x 2.5” internal and 1 x Slim DVD-ROM
• 2 x 2.5” internal, 2 x 2.5” hot swap and 1 x Slim DVD-ROM

Backplane

• 1 x 16-port 12Gb SATA/SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors

Storage Temperature

0°C(32°F) ~ 50°C(122°F)

Humidity

5% ~ 95% non-condensing

Gross Weight (w/ PSU & Rail)

• kgs: 34
• lbs: 75

Package Dimension (W x D x H)

• mm: 645 x 835 x 268
• inches: 25.4 x 32.9 x 10.6

Cubic Feet

6.03

Container Load Quantity

• 20’: 170
• 40’: 355
• 40’ H: 405

Mounting

Standard: 28” tool-less slide rail

* All specifications are subject to change without notice.

Front Bezel

Optional: IPC-FP-C3ET Please call sales

SKU Information	Description
XE1-3ET00-01 (Standard)	3U 16x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS redundant power supply, 4x 2.5" internal SSD top plate, 2x 2.5" hot-swap OS, rail, 3U16 SAS 12G expander controller on backplane (3X series)
XE1-3ET00-02	3U 16x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS redundant power supply, 4x 2.5" internal SSD top plate, 2x 2.5" hot-swap OS, rail, 3U16 SAS 12G passive backplane support 4x NVMe
XE1-3ET00-03	3U 16x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS redundant power supply, 4x 2.5" internal SSD top plate, 2x 2.5" HDD internal OS, rail, 3U16 SAS 12G expander controller on backplane (3X series)
XE1-3ET00-11 (Standard)	3U 16x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS redundant power supply, 4x 2.5" internal SSD top plate, 2x 2.5" hot-swap OS, rail, 3U16 SAS 12G expander controller on backplane (35X series)

FRU Information
Part Number	Description
M03-00151-01	8038 fan module
H5521T200005	28" Tool-less slide rail
BBPJHD30002A	16 bay 12G EOB backplane
PH-A00000095	800W CRPS power supply housing
PM-A00000117	800W CRPS power supply module

M06-00010-42

(Optional)

12G T-series 3U bezel (12pcs in package)

* All specifications are subject to change without notice.

Datasheet	IPC-C3ET-R8-EOB-12G Datasheet
	IPC-C3ET Datasheet.pdf
Product Images	IPC-C3ET-R8-EOB-12G (Front 45 Degrees)

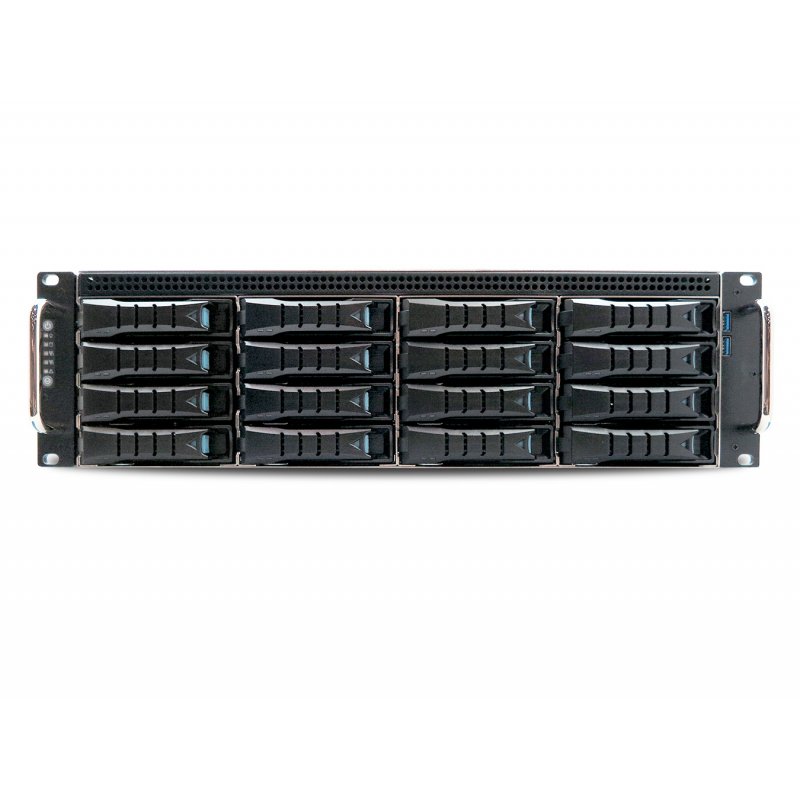

Product Images	IPC-C3ET-R8-EOB-12G (Front)
Product Images	IPC-C3ET-R8-EOB-12G (Top)

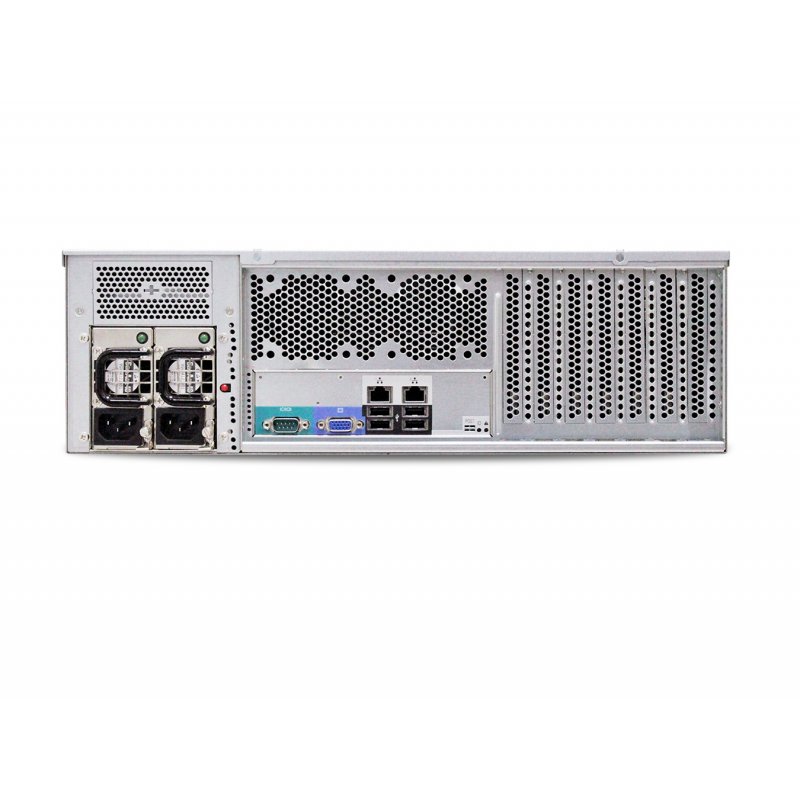

Product Images	IPC-C3ET-R8-EOB-12G (Rear)
User Manual	IPC-C3ET-R8-EOB-12G (User Manual)
	IPC-C3ET-R8-EOB-12G_User Manual.pdf
User Guide	Rear Hot-Swap Setting (User Guide)
	Rear Hot-Swap Settings.pdf
