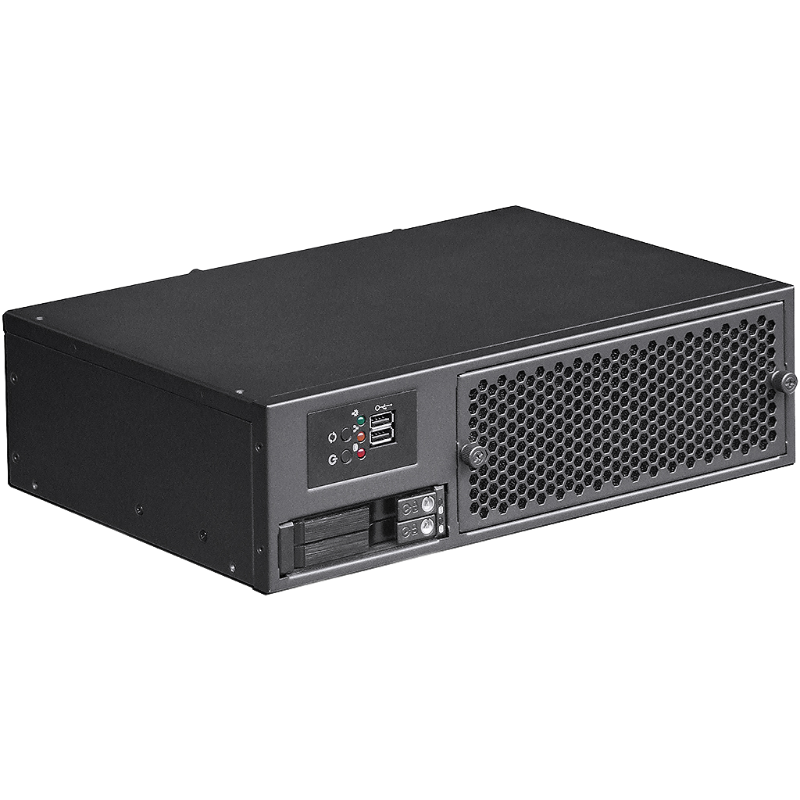

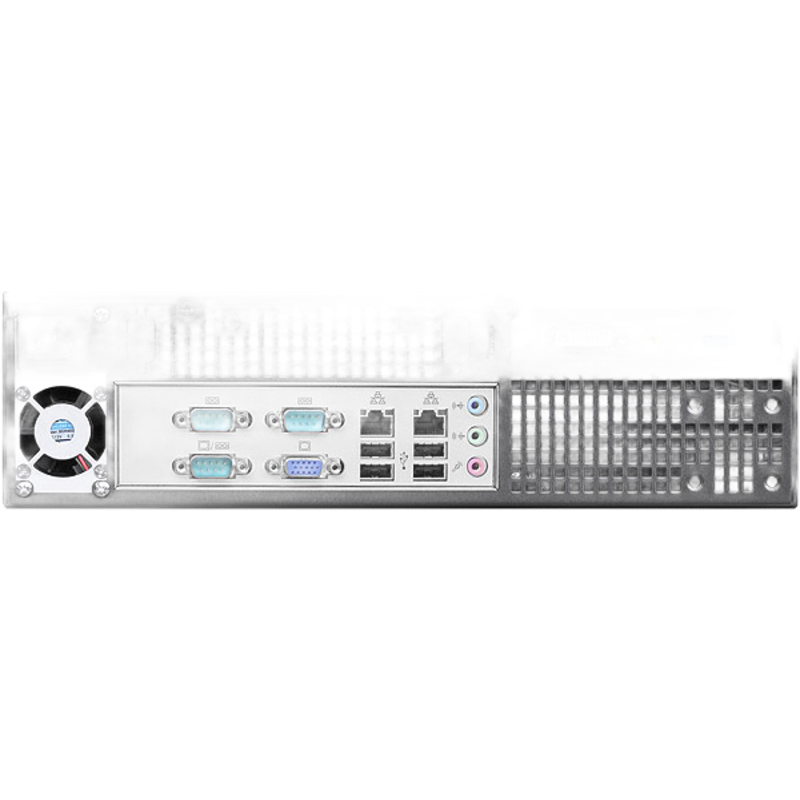

MINI-ITX AI & IoT in the 5G & 6G, smart cities, auto driving, remote medical care
The features of this new Mini-ITX chassis are compliant with 5G LTE-U or high speed WiFi networks and cloud transmission as well as AI & IoT in the
5G & 6G, smart cities, auto driving, remote medical care. It can support maximum two 2.5" hotswap drives and one more 3.5" hard drive with this chassis. This chassis mechanism uses very durable and high end SECC 1.0mm thickness, and the optional wall mount bracket can be installed in harsh industrial environment very well. This chassis also designed with screwless air dust-proof shield to keep away from the dust into the system. Cooling system also equipped with one silent 80mmx25mm fan and one more 80mmx25mm fan and 40mmx20mm fan as option. It supports one expansion card via riser card as well.
* Space: 3.5" HDD x2, or 3.5" FDD x1 & 3.5" HDD x1, or 3.5" FDD x1 & 2.5" SSD x1
* Two USB 2.0 ports and LAN/HDD/Power LED at front bezel (two USB 3.0 as option)
* Screwless top cover design for quick system installation
* Screwless dust-proof air filter shield for quick maintenance

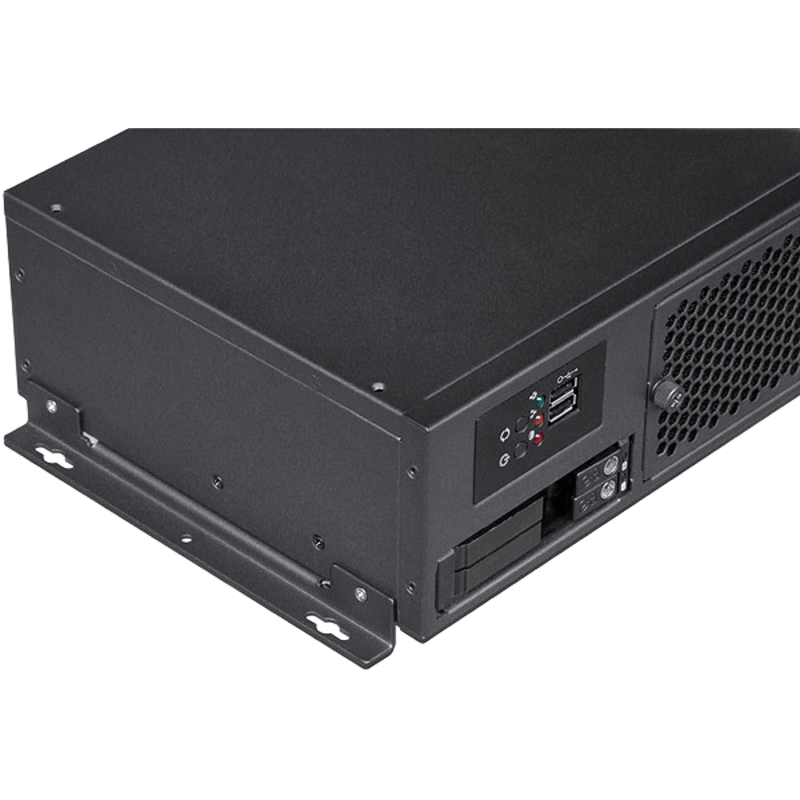

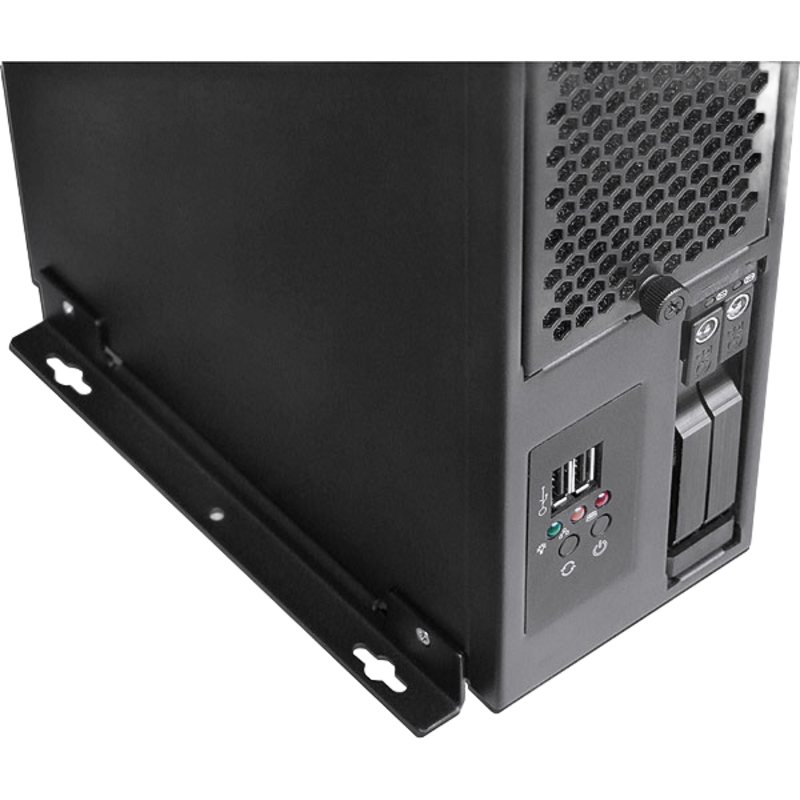

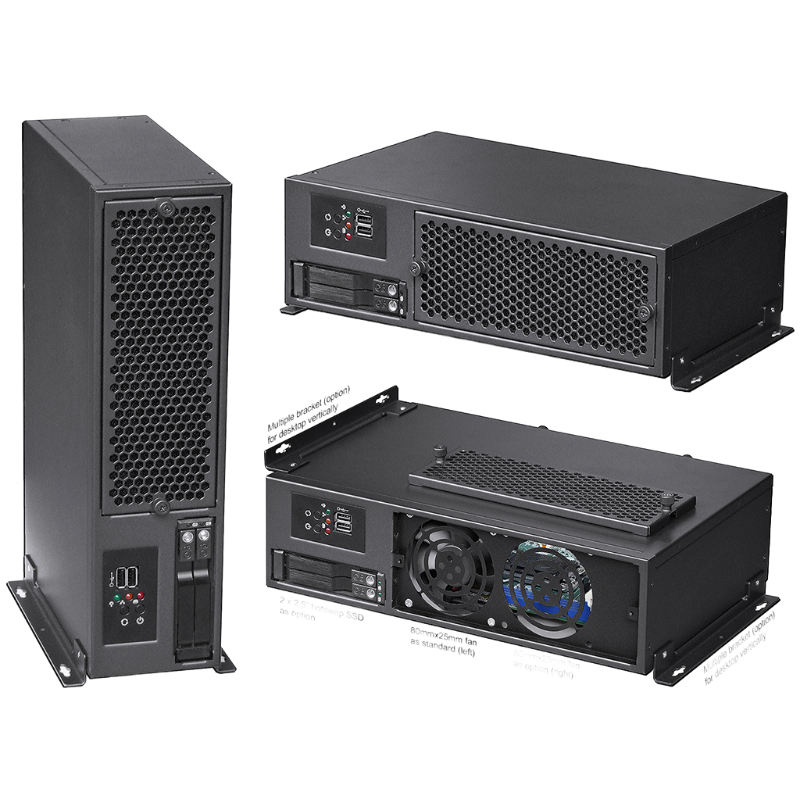

* Multi-functional wallmount bracket for vertical desktop or wallmount platform (option)
* SECC 1.0mm high grade sheet metal as durable mechanism
* Equipped with one 80mmx25mm silent fan (fan part# D80SM-12)
* Support Mini-ITX MB mounting at 6.7" x 6.7" (170mm x 170mm)

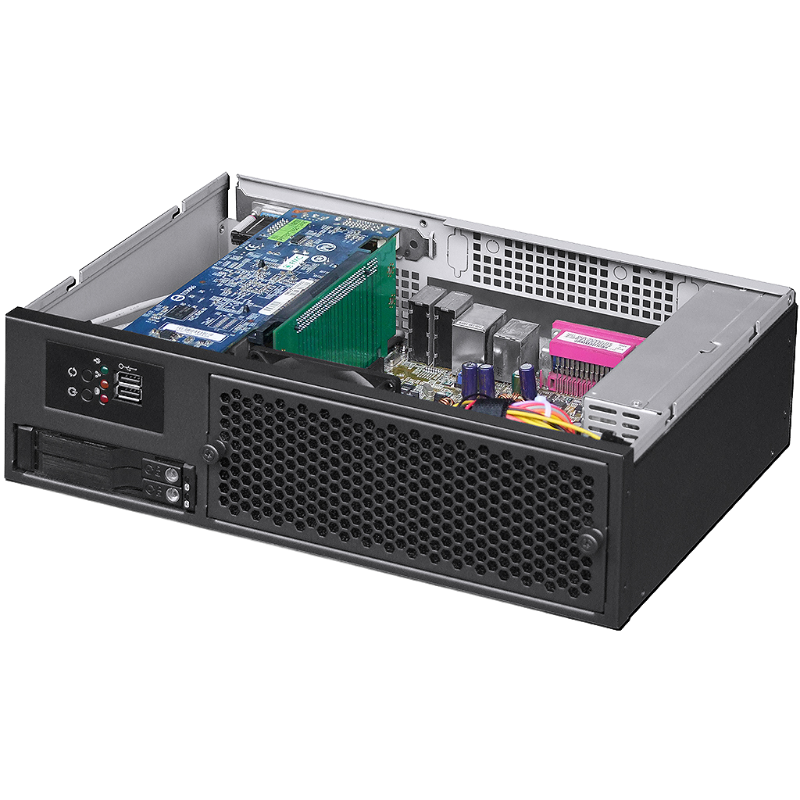

* One expansion card compatible (max. card depth at 185mm via optional riser card)
* Support standard 1U FlexATX 250W power supply (max. psu depth: 150mm)
* Standard paint: scratch-resistant Black textured
* Chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 328mm x 88.7mm x 220.9mm (W x H x D)
* Accessory Pack: M4 countersunk x4, M3 round head with washer x4, #6 round head
x4, #6 countersunk x8, M3 countersunk x8, M4 fan screw x4, M5 fan screw x8
* Package: NW 2.35KG, GW 2.86KG, 0.8 CUFT (carton size at 41x29x19cm)
TSC-M202B-WALL-BK: Black Wallmount bracket kit for TSC-M103B / M202B
1U 250W Flex ATX 80 Plus Gold
Part code: PIZ1025S-90-ACB
1U 400W Flex ATX 80 Plus Gold
Part code: PIZ1040S-90-ACB
