The CB502-NM is a high-performance 5U GPU server. Powered by dual AMD EPYC™ 9004/9005-series processors (Genoa/Turin) and supporting PCIe Gen5 expansions

PCICASE Model No: CB502-NM
Manufacturer Model No: CB502-NM ( XP1-C502NM02)
Please Call Sales

Key Features
• 5U 8 GPU server supports maximum 8 dual-slot GPU cards with up to 600W each
• Supports dual AMD EPYC™ 9004/9005 SP5 CPU
• Supports 12 x DDR5 memory DIMM per processor
• 16000W(5+1 3200W modules) Titanium redundant power supply

CB502-NM

Features & Benefits

The CB502-NM is a high-performance 5U GPU server. Powered by dual AMD EPYC™ 9004/9005-series processors (Genoa/Turin) and supporting up to 24 DDR5 memory modules and PCIe Gen5 expansions, it delivers exceptional computing efficiency and scalability. The system provides 12 tri-mode storage bays for flexible data configurations and accommodates up to eight dual-slot GPUs. With up to 16000W(5+1 3200W modules) Titanium redundant power supply options, the CB502-NM ensures stable, reliable performance for enterprise-level deployments.

Key Features
• 5U 8 GPU server supports maximum 8 dual-slot GPU cards with up to 600W each
• Supports dual AMD EPYC™ 9004/9005 SP5 CPU
• Supports 12 x DDR5 memory DIMM per processor
• 16000W(5+1 3200W modules) Titanium redundant power supply

Dimensions (W x D x H)
• mm : 435 x 831 x 218
• inches : 17.1 x 32.7 x 8.6
Motherboard
AIC Server Board Norma
Processor
Processor Support :
• Dual AMD EPYC™ 9004/9005-series processor - Genoa/Turin
• Supports CPU TDP 400W
*Please contact AIC Technical Support for more info/details about optimized
QPI Speed : 32 GT/s xGMI
Socket Type : SP5
System Memory
• DDR5 4800 MT/s(1DPC) by Genoa; DDR5 6000 MT/s(1DPC) by Turin
• Total 24 memory slots; 12 channel per CPU (1DPC)
Front Panel
System power on/off, System reset, ID button
LEDs
Power status, Drive activity, LAN activity, System alert, System ID
Drive Bays
External : 3.5" hot swap x 12 Tri-mode
Expansion Slots
Rear PCIe 5.0 :
• 9 x16 FHFL, (21 slots space)
• (Cable CEM is flexibly applied depending on the dual slots or triple slots)
System BIOS
BIOS Type :
AMI UEFI BIOS
BIOS Features :
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hotplug
On-board Devices
SATA : 2 x SATA 7-pin
IPMI :
Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• HTML5
• Redfish
Network Controllers :
• Realtek RTL8211FS 1GbE for BMC dedicated management port
• Broadcom BCM5720 dual port 1GbE (NCSI for share NIC)
Graphics :
• Integrated VGA support by ASPEED AST2600
• Resolution up to 1920x1200 @60Hz 32bpp

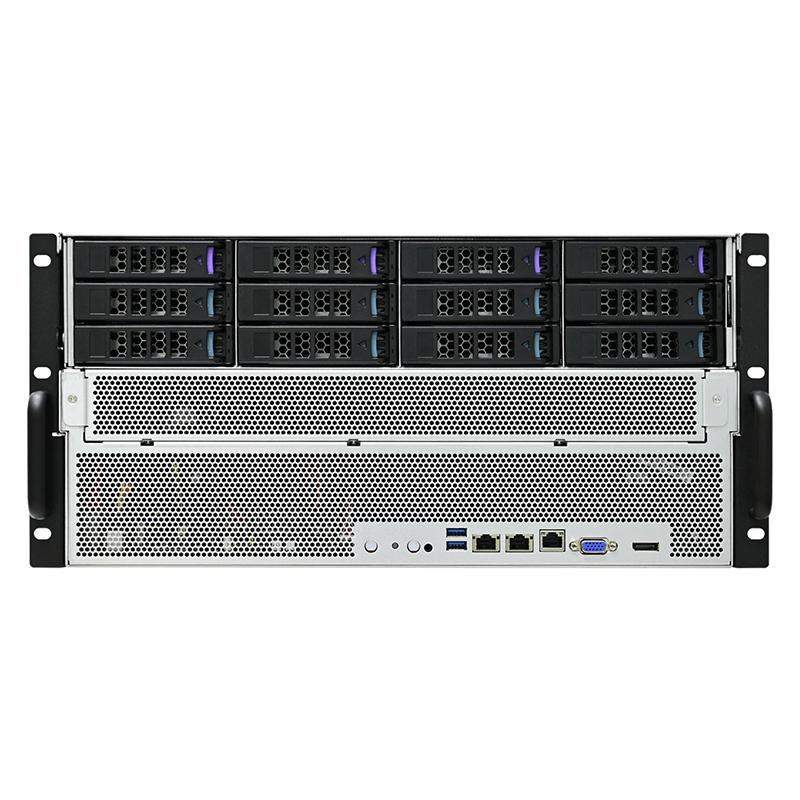

Front I/O
LAN:
• 1 x RJ45 GbE connector for BMC dedicate management port
• 2 x RJ45 1GbE connectors
USB:
2 x USB 3.1 Gen1 Type-A
Video Output:
• 1 x DB-15 VGA connector
• 1 x Mini display port
Serial Port:
1 x COM connector (Audio Jack)
Others:

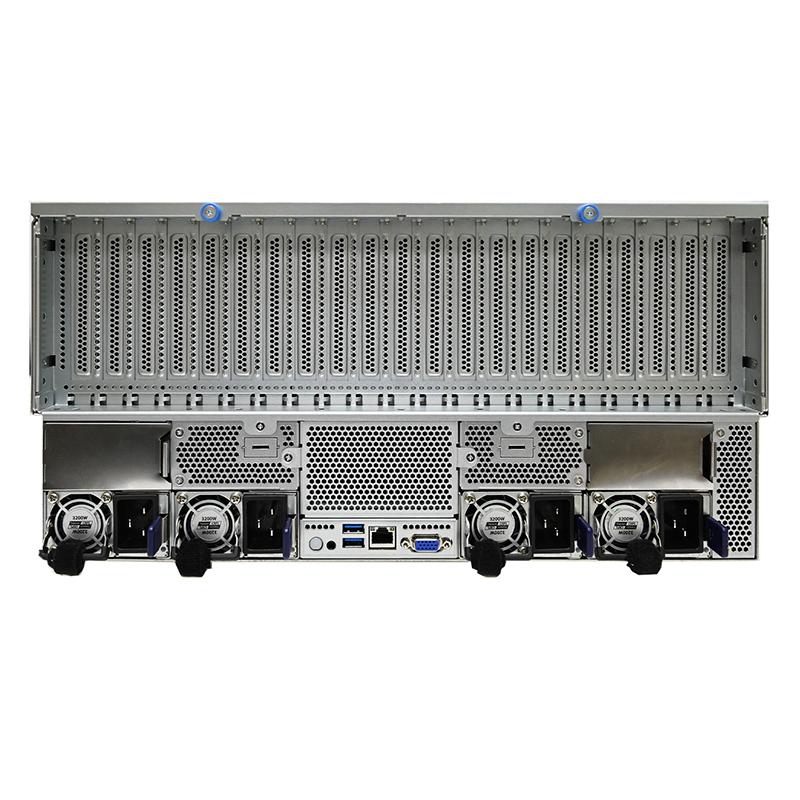

Rear IO:
• 1 x DB-15 VGA connector
• 2 x RJ45 1GbE connectors
• 2 x USB 3.0 Type-A connectors
• 1 x COM connector (Audio Jack)
Power Supply
16000W(5+1 3200W modules) Titanium redundant power supply
System Cooling
10 x 8056mm hot swap fans
System Management
• IPMI 2.0
• KVM over IP
• Media redirection
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID / System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• SNMP support
Environmental Specifications
• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)
• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
• Storage operating humidity : 5%~95% non-condensing
Gross Weight (w/PSU & Rail)
• kgs : 51.85
• lbs : 114.3
Packaging Dimensions (W x D x H)
• mm : 625 x 1130 x 430
• inches : 24.6 x 44.5 x 17
Mounting
Standard : 37” tool-less slide rail

* All specifications are subject to change without notice.
