Key Features
• High-density storage server chassis
• Tool-less design for easy maintenance
- Tool-less top cover
• 60 tool-less top-loading 3.5” drive trays with built-in light pipe for drive status LED
• Hot-swap cooling fans and 80+ redundant power supply
• Supports up to 2/4/6/8 x 2.5” hot swap drives for OS
• Flexible Motherboard plate design for E-ATX form factor in the market

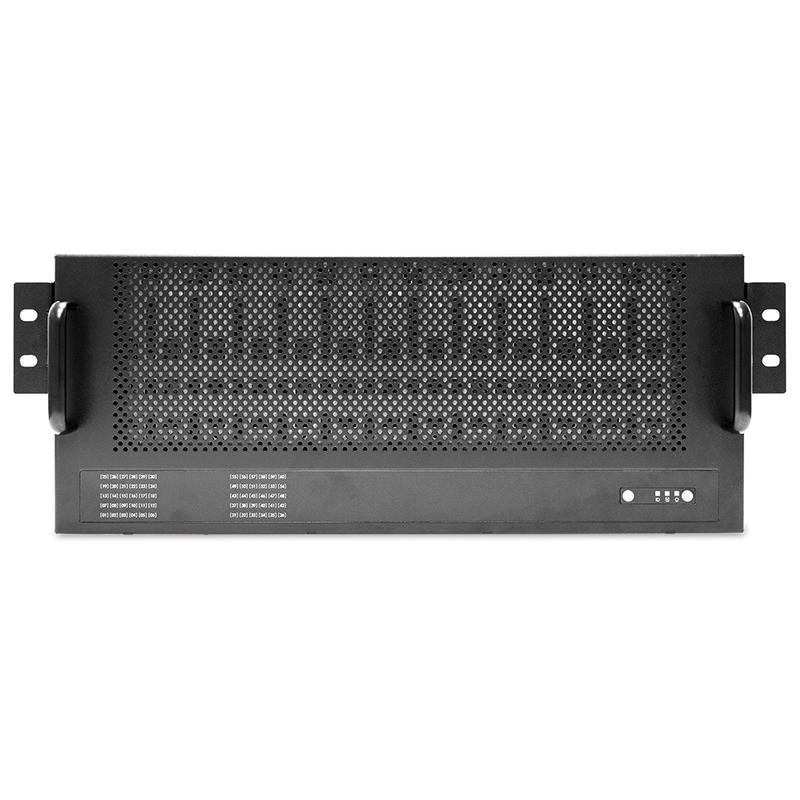

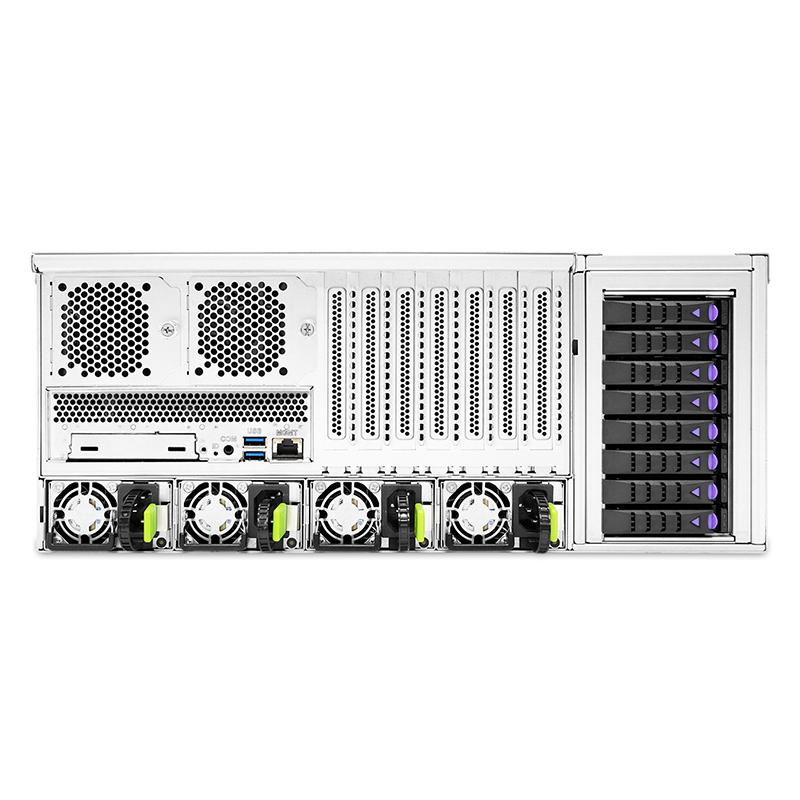

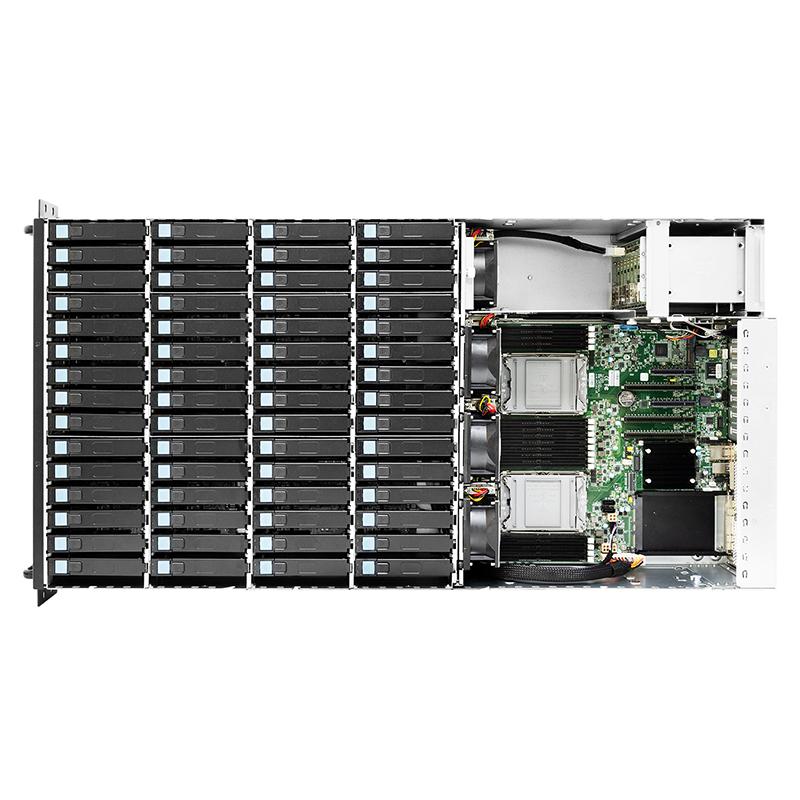

RSC-4H1 is a new 4U 60-Bay high-density storage server chassis with tool-less design features. Unlike typical 4U server chassis which accommodate 24 or 36 drives, RSC-4H1 supports 60 top-loading 3.5” drive trays to save rack space, and option in 2/4/6/8 bay 2.5” SATA/SAS or 8bay 2.5” NVMe for OS or cache. It is suitable for cold storage which requires the capacity for vast amount of data but allows slower data retrieval and response time. Some suitable applications include media storage, medical imaging, email archiving, public or private cloud storage and data warehousing. Tool-less features on drive trays, top cover and sliding mechanism make assembly and maintenance quick and easy. (Power supply is included. Motherboard is not included.)
Key Features
• High-density storage server chassis
• Tool-less design for easy maintenance
- Tool-less top cover
• 60 tool-less top-loading 3.5” drive trays with built-in light pipe for drive status LED
• Hot-swap cooling fans and 80+ redundant power supply
• Supports up to 2/4/6/8 x 2.5” hot swap drives for OS
• Flexible Motherboard plate design for E-ATX form factor in the market
| Dimensions (W x D x H) |
| • mm : 434 x 853 x 176 • inches : 17.1 x 33.5 x 6.9 |
| Industry Standard |
| EIA-RS310D |
| Material |
| Heavy-duty preplated SGCC cold-rolled steel |
| Color |
| Front Panel : Black |
| Cooling |
| Standard : • Middle : 4 x 80x38mm hot-swap fans • Optional : up to 2 x 60x38mm easy-swap fans |
| Power Supply |
| Option(s) : • 800W 2+2 redundant • 1600W 1+1 redundant |
| Expansion Slots |
| 7 full height |
| Front Panel |
| System power on/off, System reset |
| LED Indicators |
| Power, ID, Drive |
| System Board |
| 12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB |
| Drive Bays |
| External : 2/4/6/8 x 2.5” hot-swap Internal : 60 x 3.5” hot-swap |
| Backplanes |
| • 2 x 30-port 12G SAS backplanes with 40-PHY expander • 2 x 30-port 24G SAS backplanes with 40-PHY expander (TBD) |
| Storage Temperature |
| 0ºC(32ºF) ~ 50ºC(122ºF) |
| Humidity |
| 5%~95% non-condensing |
| Gross Weight (w/ PSU & Rail) (excluding pallet) |
| • kgs : 45 • lbs : 99.2 |
| Package Dimension (W x D x H) |
| • mm : 586 x 1110 x 400 • inches : 23 x 43.7 x 15.7 |
| Cubic Feet |
| 9.25 |
| Container Load Quantity |
| • 20’ : 100 • 40’ : 212 • 40’ H : 255 |
| Mounting |
| Standard : 37” tool-less slide rail Option : Cable Management Kit |
* All specifications are subject to change without notice.
