| Model | CS-M50 |
| M/B Form Factor | Mini-ITX |

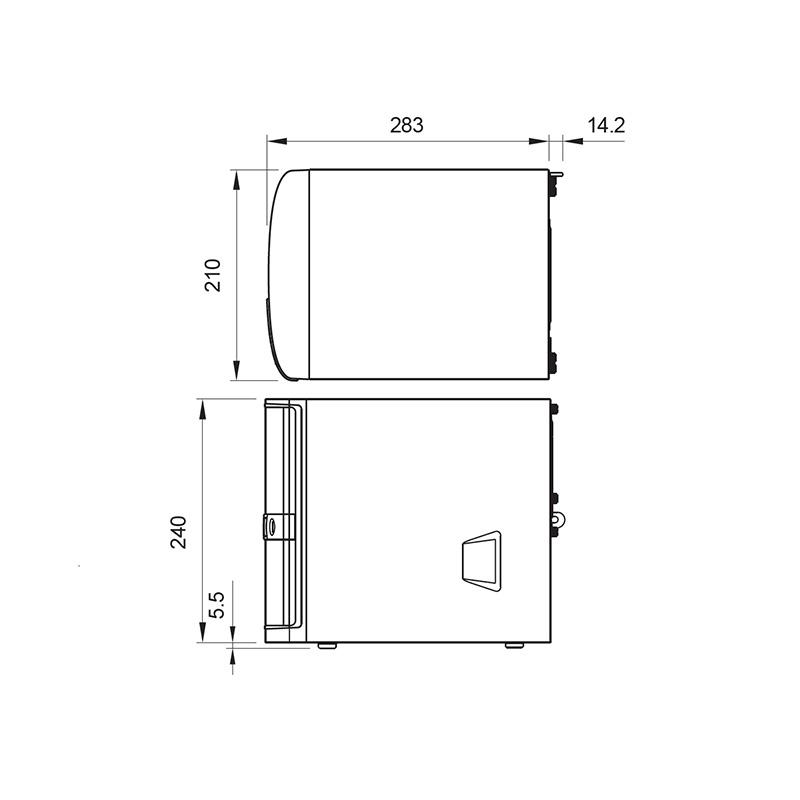

| Dimensions (W x D x H) | 210 x 280 x 240mm (8.27" x 11" x 9.45") |
| Color | Black C |
| Processor Support | TDP < 95W |

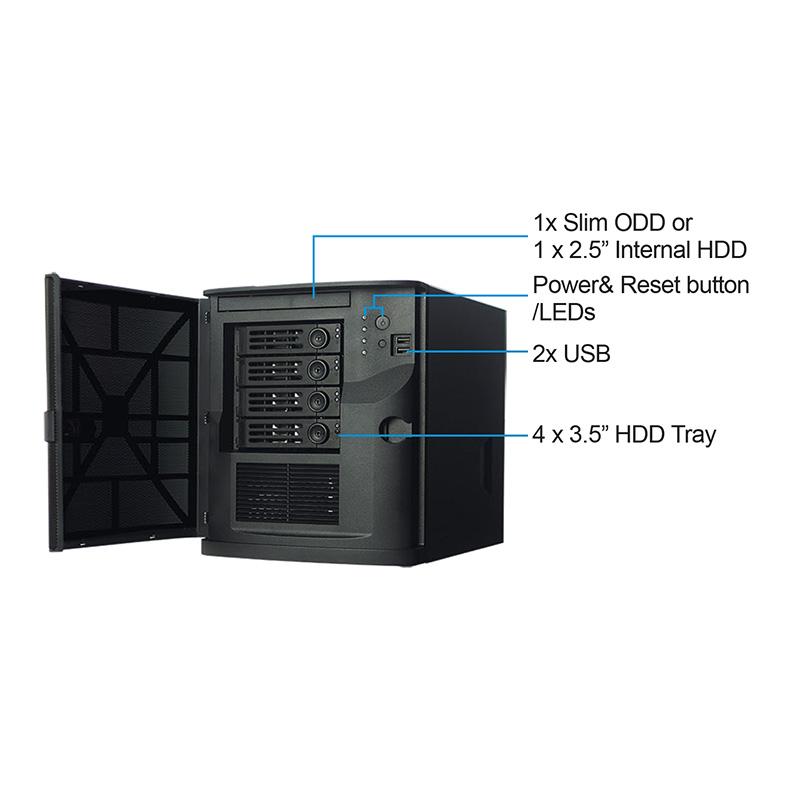

| Drive Bay | up to 2 x 2.5" internal HDD bays (Default 1pcs) 4 x 3.5" swappable HDD bays |
| Peripheral Bay | 1 x Slim ODD Bay |
| HDD Backplane | 4-port 6Gbps SAS/SATA to SATA HDD |
| Expansion Slot | 1 x Low Profile/Half-Length |
| System Cooling | 1 x 120mm PWM Fan |
| Front Panel | Input / Output 2 x USB 2.0 or 3.0 Button 1 x Power Button 1 x Reset Button LED 1 x Power LED 1 x HDD Activity LED 1 x Overheat LED 1 x System Fail LED |
| Physical Secure | Intrusion Switch and Front Door Key Lock Kensington Lock Design |
| Power Supply | 250W Flex-ATX Power Supply(D150 x W82 x H40mm) |
| Environment | Operating Temperature: 10° ~ 35°C (50° ~ 95°F) Storage Temperature: -40° ~ 70°C (-40° ~ 158°F) Operating Humidity: 5% ~ 90% RH (Non-Condensing) Storage Humidity: 5% ~ 95% RH (Non-Condensing) |
