3U 12G Short Storage Server Chassis 16 x 3.5" Hot-Swap + 2 x 2.5" Rear Hot-Swap with 800W 1+1 Redundant PSU (Rails Included) * Expander On Board

PCICASE Model No: IPC-C3ETS-R8-EOB-12G

Manufacturer Model No: RSC-3ETS (XE1-3ETS0-02)

3-5 Day Delivery

Key Features
• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
• 12Gb/s SAS expander chip on backplane
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• Comes with a redundant PSU 80+ Platinum
• Two front access USB 3.0 ports

Features & Benefits

IPC-C3ETS-R8-EOB-12G is a T series 3U 16-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the IPC-C3ETS-R8-EOB-12G supports quick installation and easy maintenance. This tool-less design solution also features 3 x low-power consumption hot swap fans and shorter depth dimension, offering a cost-effective solution ideally suited for a broad range of applications. (Power supply is included. Motherboard is not included.)

Dimensions (W x D x H)

• mm: 430 x 560 x 133
• inches: 17 x 22 x 5.2

Industry Standard

EIA-RS310D

Material

Heavy-duty preplated SPGC cold-rolled steel

Color

Front Panel: Black

Cooling

3 x 80x38mm PWM & low-power consumption hot swap fans

Power Supply

800W 1+1 redundant PSU PMBus 1.2 80+ Platinum

Expansion Slots

Front Panel

• System power on/off
• System reset
• 2 x USB 3.0 ports

LED Indicators

• Power
• LAN
• Drive
• Alert

System Board

12”(W) x 9.6”(D) ATX

Drive Bays

• External: 16 x 3.5” hot swap
Options -
• 5 x 2.5” internal
• 4 x 2.5” internal and 2 x 2.5” hot swap
• 3 x 2.5” internal and 1 x Slim DVD-ROM
• 2 x 2.5” internal, 2 x 2.5” hot swap and 1 x Slim DVD-ROM

Backplane

1 x 16-port 12Gb SATA/SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors

Storage Temperature

0°C(32°F) ~ 50°C(122°F)

Humidity

5% ~ 95% non-condensing

Gross Weight (w/ PSU & Rail)

• kgs: 26.2
• lbs: 57.8

Package Dimension (W x D x H)

• mm: 645 x 835 x 268
• inches: 25.4 x 32.9 x 10.6

Cubic Feet

6.03

Container Load Quantity

• 20’: 170
• 40’: 355
• 40’ H: 405

Mounting

Standard: 28” tool-less slide rail

SKU Information	Description
XE1-3ETS0-01	3U 16x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS redundant power supply, 2x 2.5" internal SSD top plate + CD-ROM plate, 2x 2.5" hot-swap OS, rail, 3U16 SAS 12G passive backplane support 4x NVMe
XE1-3ETS0-02 (Standard)	3U 16x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS redundant power supply, 2x 2.5" internal SSD top plate + CD-ROM plate, 2x 2.5" hot-swap OS, rail, 3U16 SAS 12G expander controller on backplane (3X series)
XE1-3ETS0-03	3U 16x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS redundant power supply, 2x 2.5" internal SSD top plate + CD-ROM plate, 1x 15mm 2.5" HDD internal OS, rail, 3U16 SAS 12G passive backplane support 4x NVMe
XE1-3ETS0-04 (Standard)	3U 16x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS redundant power supply, 2x 2.5" internal SSD top plate +CD-ROM plate, 2x 2.5" hot-swap OS, rail, 3U16 SAS 12G expander controller on backplane (35X series)

FRU Information
Part Number	Description
M03-00151-01	8038 fan module
H5521T200007	26" Tool-less slide rail
BBP-HD30001A	16 bay 12G backplane
BBPJHD30002A	16 bay 12G EOB backplane
PH-000000095	800W CRPS power supply housing
PM-000000084	800W CRPS power supply module
M06-00151-21 (Optional)	Suitable for RSC-3ET/RSC-3ETS

* All specifications are subject to change without notice.

Datasheet	IPC-C3ETS-R8-EOB-12G Datasheet
	IPC-C3ETS-R8-EOB-12G Datasheet.pdf
Product Images	IPC-C3ETS-R8-EOB-12G (45 degree)
	IPC-C3ETS-R8-EOB-12G (45 degree).jpg
Product Images	IPC-C3ETS-R8-EOB-12G (Front)
	IPC-C3ETS-R8-EOB-12G (Front).jpg
Product Images	IPC-C3ETS-R8-EOB-12G (Top Open)
	IPC-C3ETS-R8-EOB-12G (Top Open).jpg
Product Images	IPC-C3ETS-R8-EOB-12G (Rear)

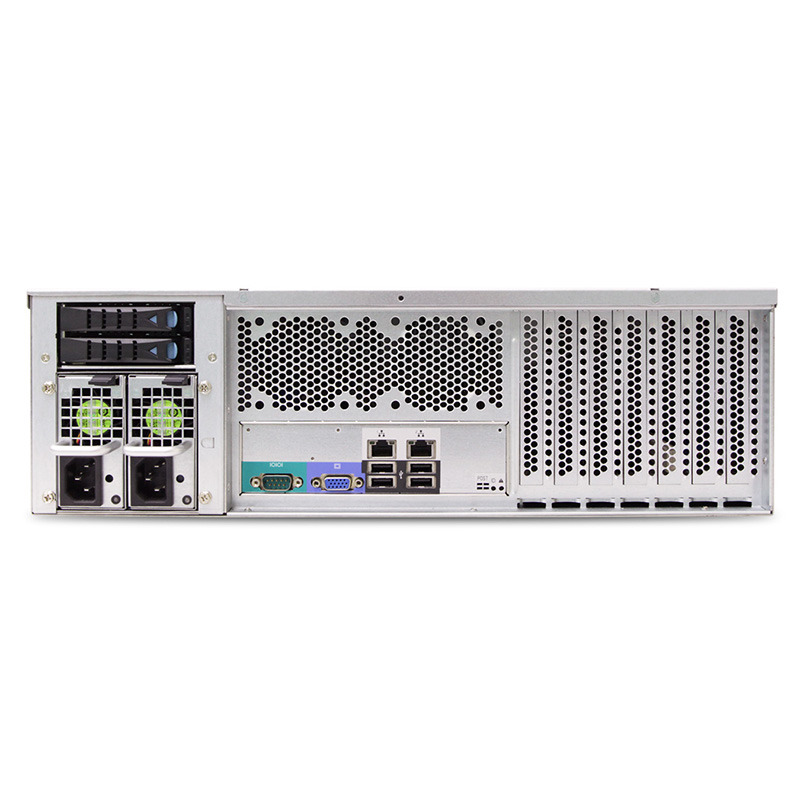

	IPC-C3ETS-R8-EOB-12G (Rear).jpg
User Manual / Firmware	IPC-C3ETS-R8-EOB-12G
	RSC-3ETS_User's Manual SAS12G Expander on Backplane(EOB)only Firmware SAS12G Expander on Backplane(EOB)only MFG SAS12G Expander on Backplane(EOB)only FW/MFG release note
