Black M-ATX Desktop/Mini-Tower, Wallmount, E-Short 2U Rackmount Chassis

MODEL: TSC-M103B

(with TSC-M103B-19KIT for your application)

BLACK MICRO-ATX DESKTOP / MINITOWER, WALLMOUNT, 2U RACKMOUNT CHASSIS

Specification:

* Drive Bays: Std: Ext’ 1x slim ODD, Int’ 4x 2.5" SSD

Options: 1x Int 1x 3.5 or 2.5” repl’ Ext’ 1x slim ODD & Int’ 2x 3.5 repl’ Int’ 4x 2.5" SSD (mini-ITX MB only)

* Compatible Motherboard: Micro-ATX (9.6"x9.6"), Mini-ITX (6.7"x6.7")

* PCI Slots: 4x LP - cards up to max 280mm deep

* PSU: Supports 1U Flex-ATX format.

* Cooling: 2x 80 x 25mm fans

* Control Panel: 2x USB 3.0 ports & LAN/HDD/Power LED

* Configs:         Standard: Desktop, Mini-Tower,

Options: Wallmount, or 2U Rackmount.

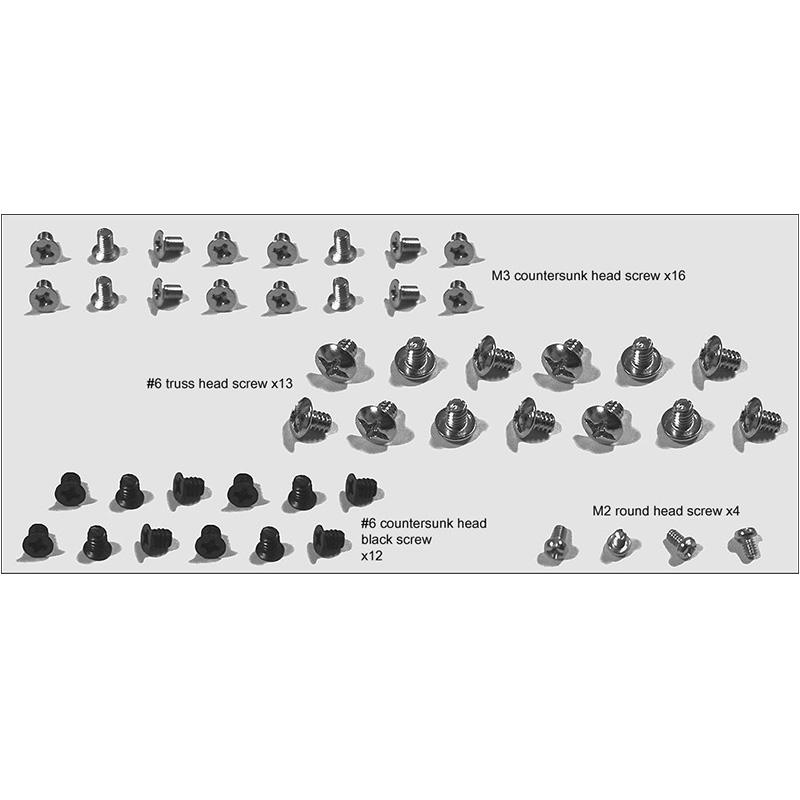

* Accessory pack: M3 countersunk x16, #6 truss x13, M2 x4pcs, #6 countersunk x12

* Chassis dimension: 355 x 350 x 88.2mm (D x W x H)

* Package: NW 3.0KG, GW 4.2KG, 1.19 CUFT (carton size: 440 x 425 x 180mm)

TSC-M103B-19-KIT : 2U-19”Rack Kit (1 Pair) 2U black ears & handles for TSC-M103B

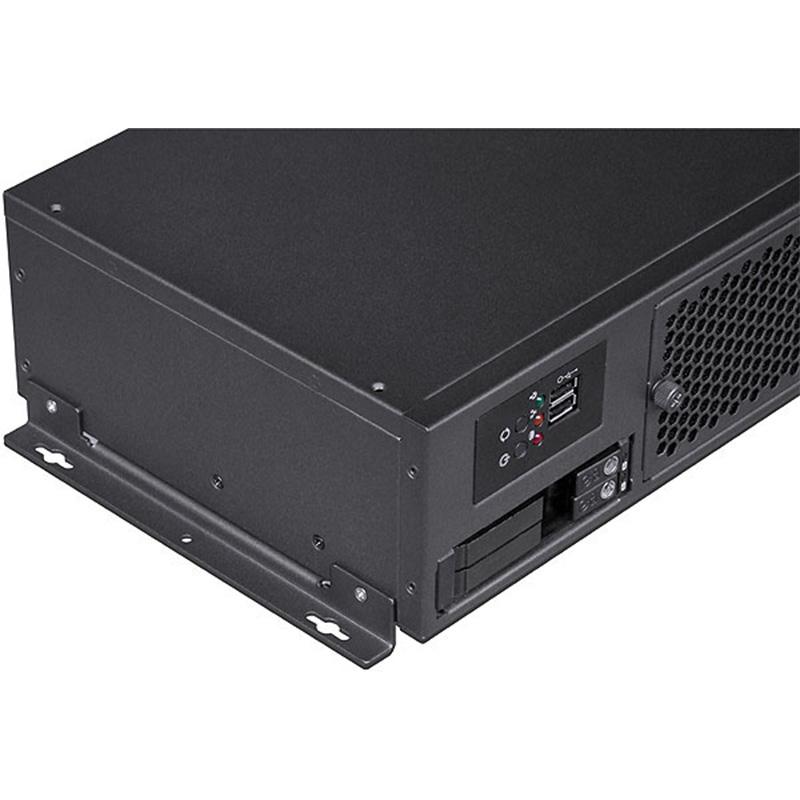

TSC-M202B-WALL-BK: Black Wallmount bracket kit for TSC-M103B / M202B

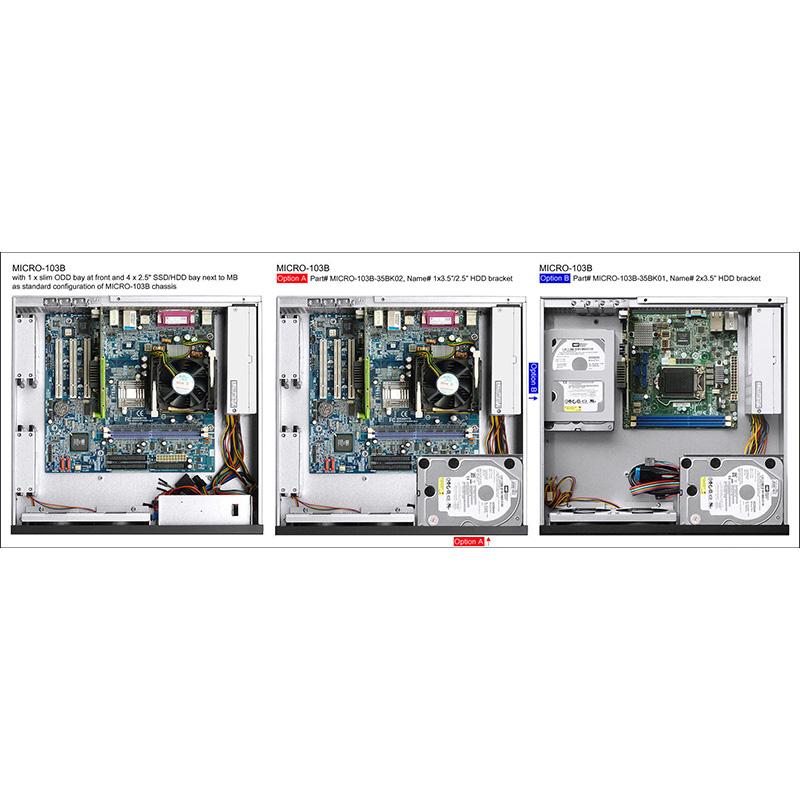

TSC-M103B-35BK02: 1x 3.5” 2.5” Bracket (repl’ ODD) for TSC-M103B (HDD Option A)

TSC-M103B-35BK01: 2x 3.5” Bracket (repl’ 4x 2.5”) for TSC-M103B (HDD Option B)

1U 250W Flex ATX 80 Plus Gold

Part code: PIZ1025S-90-ACB

1U 400W Flex ATX 80 Plus Gold

Part code: PIZ1040S-90-ACB
