2U 4-Node 12G 24 x 2.5" NVMe HCI Barebone Storage Chassis with AIC Auriga Motherboard (AMD)

PCICASE Model No: HP201-AG
Manufacturer Model No: HP201-AG(AIC SKU: XP1-P201AG01)
7-28 Day Delivery
Key Features
  • 2U 4-Node hybrid storage server solution with 24 x 2.5” NVMe/SAS/SATA SSD bays
  • Supports AMD EPYC™ 7000 processor product family
  • Maximizing the use of the numbers of memory, add-on cards and drives in one single system
  • Onboard Baseboard Management Controller for system management and IPMI control
  • 3 x PCIe x16 extensions on each node
  • Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
  • Customizable to meet your requirements​

Features & Benefits

HP201-AG is a 2U 4-Node hybrid storage server solution with 24x 2.5” NVMe/SAS/SATA + 8x 2.5” SATA bays. It comes with 4x AIC Auriga MB supports single AMD® EPYC® 7003/7002/7001 processor (Milan/Rome/Naples) family. Up to 3x PCIe X16 add-on cards for Network/HBA/RAID… features expansion. It has the optimized design for Hyper-Converged applications. Flexible Deployment/scale out one node at a time and transferring legacy software into cloud service easily.

Dimensions (W x D x H)
• mm: 438 x 780 x 87.5
• inches: 17.2 x 30.7 x 3.5
Motherboard
AIC Server Board Auriga
Processor
Processor Support:
• AMD EPYC™ 7000 series
• Supports CPU TDP up to 180W (TDP 225W, BTO)
Socket Type: MCM socket LGA (Socket SP3)
Chipset Support
AMD EPYC™ SOC
System Memory

• 8 DIMM slots across 8 memory channels
• Up to 1024GB DDR4 2400/2666 RDIMM/LRDIMM 8Rx4
• Supports NVDIMMs
Front Panel
System power on/off
LEDs
• Node power status
• System ID
• BMC alert
Drive Bays
External: 24 x 2.5" hot swap  (6 x NVMe per node)
Internal: 8 x 2.5" hot swap (2 x SATA per node)
Backplane
1 x 24-port NVMe/SAS/SATA backplane with high density connectors to bridge riser board
Expansion Slots (PCIe 3.0)
• 2 x16 slots (LP)
• 1 x16 OCP Mezzanine V2.0
Riser Card (included)
• RC-PE1U02-Z2: 1 x16 PCIe slot
• RC-PE1U18-TY: 1 x16 PCIe slot
System BIOS
BIOS Type:
• Insyde UEFI BIOS
• SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features:
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS interface
• SMBIOS
• Serial console redirection
• BIOS Booth Specification
• BIOS Recovery Mode
• SRIOV
• iSCSI
• TPM
• PCIe Hotplug
On-board Devices
SATA/NVMe:
• 2 x SATA 6.0 Gb/s
• 2 x SATA 6.0 Gb/s by M.2 (M-key)
supports up to 22110 (can be confirgured as 2 x PCIe x1 M.2)
BMC:
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
Graphics :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

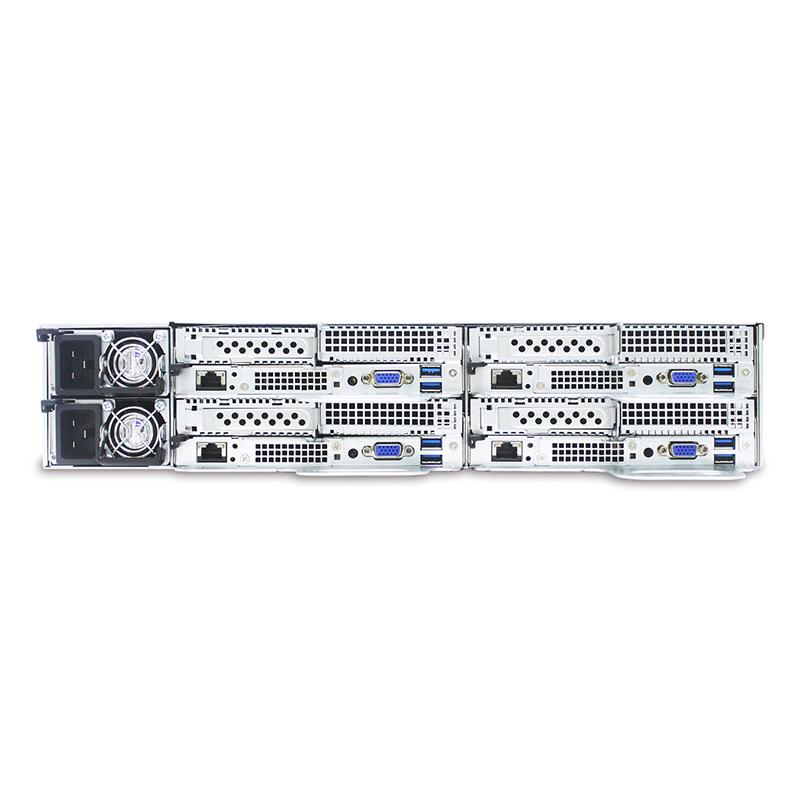

Rear I/O
LAN:
1 x RJ45 dedicated to BMC management
USB: 2 x USB 3.0
VGA: 1 x external DB-15 VGA port
Others:
• Power on/off
• System ID
• BMC alert LED
Power Supply
1600W 1+1 redundant power supply
System Cooling
4 x 60x56mm dual rotor fans + 1 x 60x38mm dual rotor fans
System Management
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
Environmental Specifications
• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
• Storage operating humidity : 5%~95% non-condensing
Gross Weight (w/PSU & Rail)
• kgs: 36
• lbs: 79.4
Packaging Dimensions (W x D x H)
• mm: 590 x 1100 x 330
• inches: 23.2 x 43.3 x 13
SKU Information Description

XP1-P201AG01

(Standard)

24x 2.5” tray, 24x 2.5” HDD backplane, internal 8x 2.5" OS kit/ cables, 4x  System Fan 6056, 1x System Fan 6038, 2000W 1+1 redundant 80+ Platinum, 4x Auriga, 8x PCIe card riser, 4x BP connection riser (SATA/NVMe), 4x Power connection riser, 4x Socket SP3 EPYC heatsink, 4x Slimline cables (SATA), 16x Slimline cables (NVMe), slide rail, w/o bezel, with OS kit

XP1-P201AG02

(Optional)

 24x 2.5” tray, 24x 2.5” HDD backplane, 4x System Fan 6056, 1x System Fan 6038, 2000W 1+1 redundant 80+ Platinum, 4x Auriga, 8x PCIe card riser, 4x BP connection riser (SATA/NVMe), 4x Power connection riser, 4x Socket SP3 EPYC heatsink, 4x Slimline cables (SATA), 16x Slimline cables (NVMe), slide rail, w/o bezel, w/o OS kit

XP1-P201AG03

(Optional)

 24x 2.5” tray, 24x 2.5” HDD backplane, internal 8x 2.5" OS kit/ cables, 4x System Fan 6056, 1x System Fan 6038, 1600W 1+1 redundant 80+ Platinum, 4x Auriga, 8x PCIe card riser, 4x BP connection riser (SATA/NVMe), 4x Power connection riser, 4x Socket SP3 EPYC heatsink, 4x Slimline cables (SATA), 16x Slimline cables (NVMe), slide rail, w/o bezel, with OS kit

XP1-P201AG04

(Optional)

 24x 2.5” tray, 24x 2.5” HDD backplane, 4x System Fan 6056, 1x System Fan 6038, 1600W 1+1 redundant 80+ Platinum, 4x Auriga, 8x PCIe card riser, 4x BP connection riser (SATA/NVMe), 4x Power connection riser, 4x Socket SP3 EPYC heatsink, 4x Slimline cables (SATA), 16x Slimline cables (NVMe), slide rail, w/o bezel, w/o OS kit
FRU Information
Standard Parts List Part Number Description
Fan FC-000000344 6056 fan module
Fan FC-000000343 6038 fan module
Power Supply PM-A00000103 2000W CRPS platinum redundant power supply module
Power Supply PM-A00000104 1600W CRPS platinum redundant power supply module
Rail H5541T100008 28" tool-less slide rail

* All specifications are subject to change without notice.



HP201-AG_Datasheet Size : 1 MB  Download
HP201-AG_Front 45 Size : 318 KB  Download

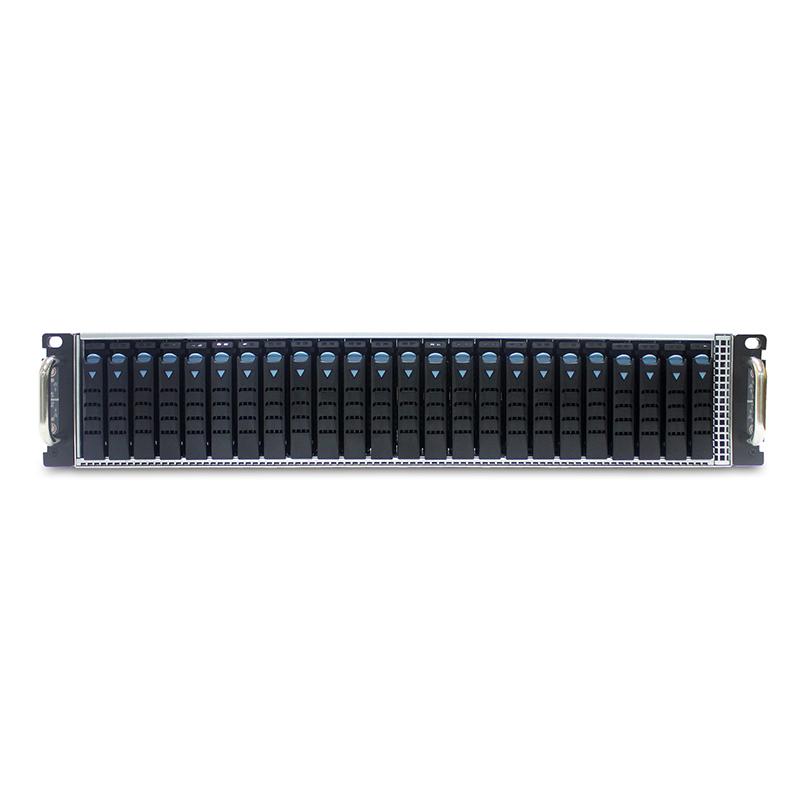

HP201-AG_Front Size : 387 KB  Download
HP201-AG_Rear Size : 233 KB  Download

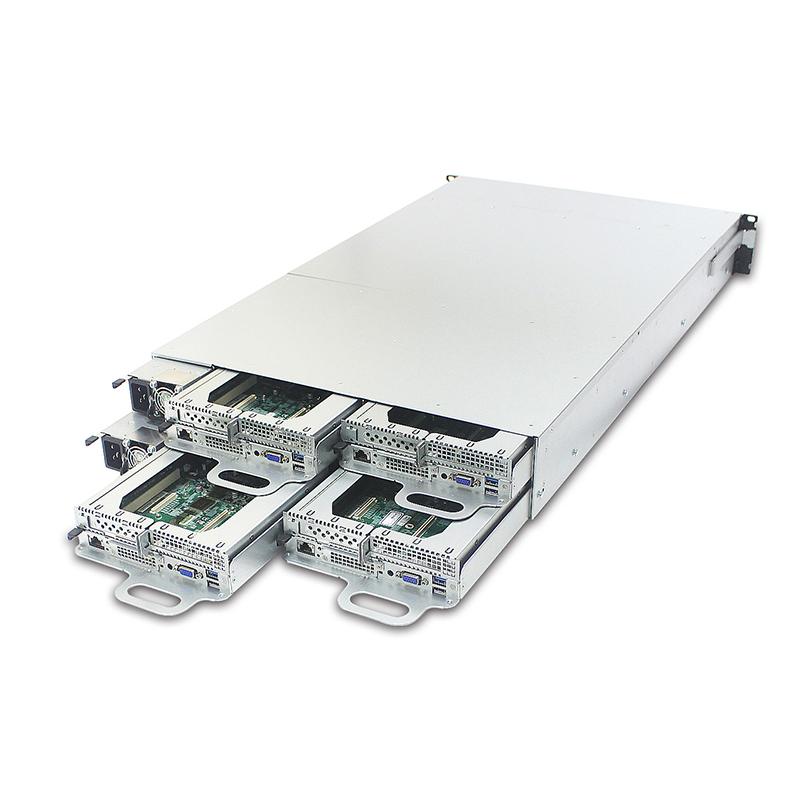

HP201-AG_Rear 45 Size : 293 KB  Download

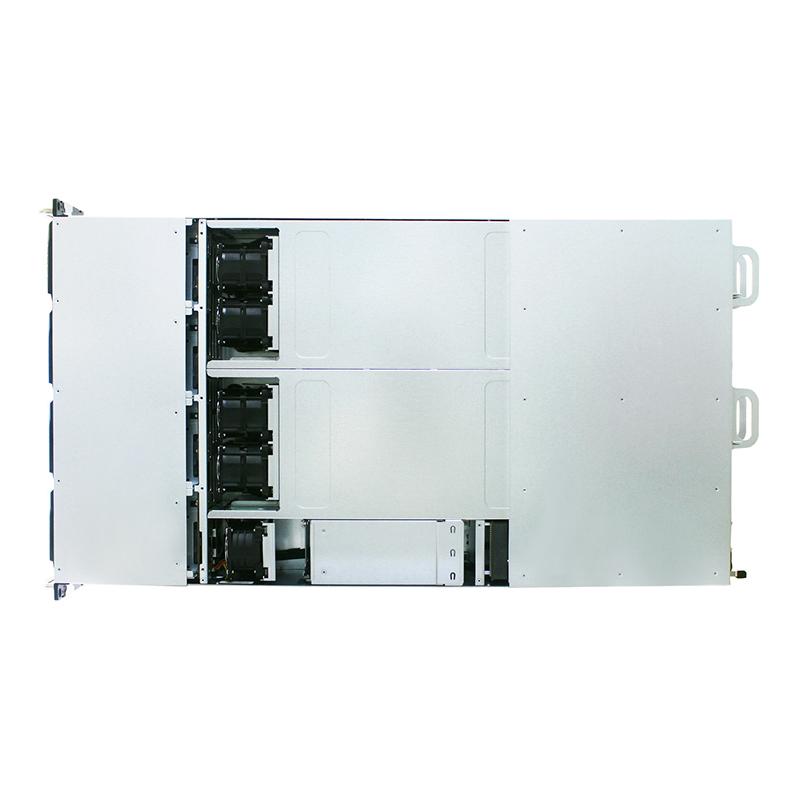

HP201-AG_Top Open Size : 457 KB  Download
