2U 2-Node high-availability storage server supports 24 hot swap 2.5” SAS drive bays

PCICASE Model No: HA201-PV

Manufacturer Model No: HA201-PV(XP1-A201PVXX)

Key Features
• 2U 2-Node high-availability storage server supports 24 hot swap 2.5” SAS drive bays
• Optimized for mission-critical, enterprise-level storage applications
• Fully redundant, fault-tolerant system supporting hot swappable controller nodes and storage drives
• Supports 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake Refresh/Cascade Lake/Skylake)
• Option for PCIe NTB line between nodes for communication and fail-over
• Build-in Broadcom SAS3x36R SAS expander per node

Features & Benefits

HA201-PV is a 2U 24-SFF-Bay Cluster-in-a-box solution that provides high-availability in an active-active configuration. It comes with two AIC PAVO Server Boards (one board per node), each supporting dual Intel® Xeon® Scalable/2nd Gen Scalable processors product family. Both nodes process I/Os and provide simultaneous and balanced access to the logical devices, which increases overall cluster performance significantly. When failover occurs, the secondary node automatically takes over the devices, client connections, and all processes/services of the system. It provides protection from loss of revenue when access to data resources and critical business applications are disrupted. The HA201-PV eliminates SPOFs (single point of failures). Its support on SSDs (SAS/Nearline-SAS) allows faster access to data. It is optimized for mission-critical, enterprise-level storage applications.

Dimensions (W x D x H)

• mm : 435 x 816.85 x 87.9
• inches : 17.1 x 32.1 x 3.4

Motherboard (per node)

Code Name - Pavo

Processor (per node)

• Intel® Xeon® Scalable Processors (Cascade Lake Refresh/Cascade Lake/Skylake)
• Supports CPU TDP up to 165W
*Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.

UPI Speeds : 10.4 GT/s, 9.6 GT/s

Socket Type : Socket P0 (LGA-3647 Socket)

Chipset Support (per node)

Intel® Lewisburg C620 series PCH

System Memory (per node)

• 6 x memory channels per CPU, 2 channels with 2DPC + 4 channels with 1DPC
• 16 x DIMM slots support: DDR4 2933/2666/2400MHz
• Intel® Optane™ DC Persistent Memory (Apache Pass) support

Front Panel

System power on/off

LEDs

A :
• Power (Secondary)
• Warning

B :
• Power (Primary)
• Warning

Drive Bays

External : 24 x 2.5" hot swap
Internal: 2 per node x 2.5"

Backplane

1 x 24-port 12Gb SAS dual-loop

Expansion Slots (PCIe 3.0) (per node)

• 3 x8 slots (2 LP, 1 internal LP)
• 1 x OCP Mezzanine card V2.0
*Notification: About OCP card, please contact AIC Technical Support for additional info/details.

Expander Boards (per node)

1 x 36-port 12Gb SAS expander board with 3 SFF-8643 connectors

Riser Card (included) (per node)

• RC-PE2U04-TY : 3 x8 PCIe slots

System BIOS

BIOS Type :
Insyde UEFI BIOS

BIOS Features :
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• BIOS Boot Specification
• BIOS Recovery Mode
• SRIOV
• iSCSI
• TPM
• PCIe Hotplug

On-board Devices

SATA
Intel® Lewisburg PCH on-chip solution
• 4 x SATA 6.0 Gb/s (by 1 x mini-SAS HD)
• 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin)
• 5 x SATA 6.0 Gb/s (by Max I/O®)
• RAID 0, 1, 5, 10 support by Intel RSTe

BMC
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish

Network Controllers
• Intel® PCH (Lewisburg) Integrated 10GbE LAN controller with dual SFP+ rear connectors
• Intel® I350 dual-port GbE RJ45 rear connectors
• Realtek RTL8211E for BMC dedicated management port

Graphics
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

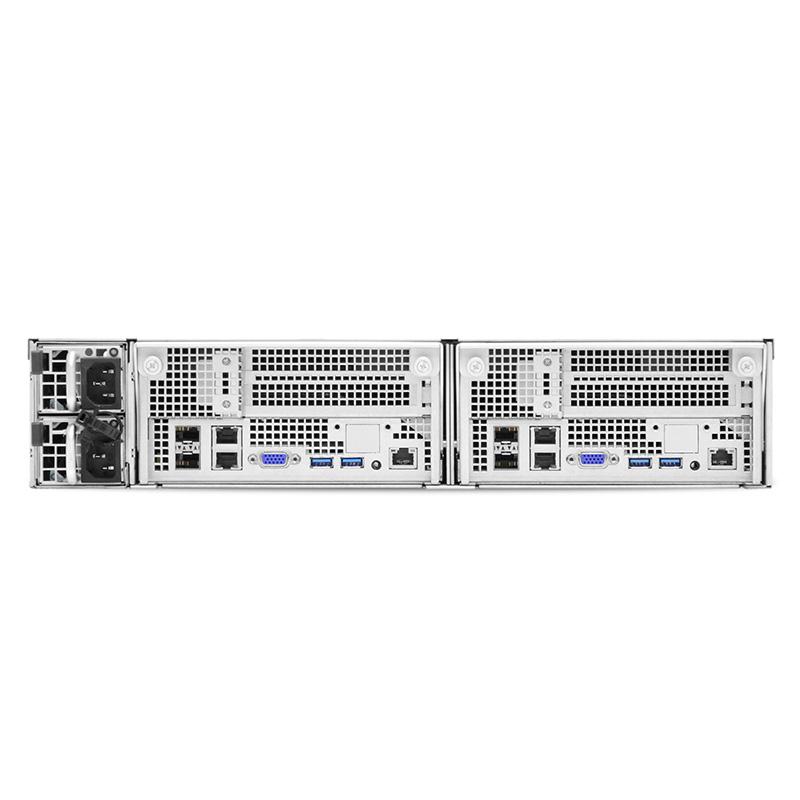

Rear I/O (per node)

LAN:
• 2 x 10GbE SFP+
• 2 x GbE RJ45
• 1 x GbE RJ45 dedicated to BMC management

USB:
• 2 x USB 3.0 Type A

VGA:
• 1 x external DB-15 VGA port

Serial Port:
• 1 x audio jack for COM port

TPM Support

2.0 onboard

Power Supply

1300W 1+1 redundant power supply 80+ Platinum
• AC INPUT : 100-120V,50/60Hz,12A
• DC OUTPUT : 900W
• AC INPUT : 200-240V,50/60Hz,8A
• DC OUTPUT : 1300W

System Cooling (per node)

2 x 60x56mm easy swap fans

Server Management

• IPMI 2.0
• KVM over IP
• Media redirection
• Temperature
• System temperature
• System ID
• Remote Power
• SEL message
• SNMP support
• Intel NM
• HTML5
• Redfish

Environmental Specifications

• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)
• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
• Storage operating humidity : 5%~95% non-condensing

Gross Weight (w/PSU & Rail)

• kgs : 41
• lbs : 19

Packaging Dimensions (W x D x H)

• mm : 605 x 1060 x 323
• inches : 23.6 x 41.34 x 12.6

Mounting

Standard : 28" tool-less slide rail

SKU Information

Description

XP1-A201PVXX

(Standard)

2U 24-bay high availability storage server, 2x canisters, 2x AIC Pavo motherboard(one board per node), 1x backplane(24x SATA backplane), 1300W redundant power supply, 2x riser card, 4x 6056 fans, 4x 1U passive heatsink, 28" slide rail, w/o bezel


Part Number	Description
DE-000000002	BBU/BATTERY BACKUP UNIT BU03612/REV.1/FOR HA4U-12G (1pc per one server node)

Datasheet	HA201-PV Datasheet
	HA201-PV_Datasheet
Product Images	HA201-PV (Front 45 Degrees)
Product Images	HA201-PV (Front)

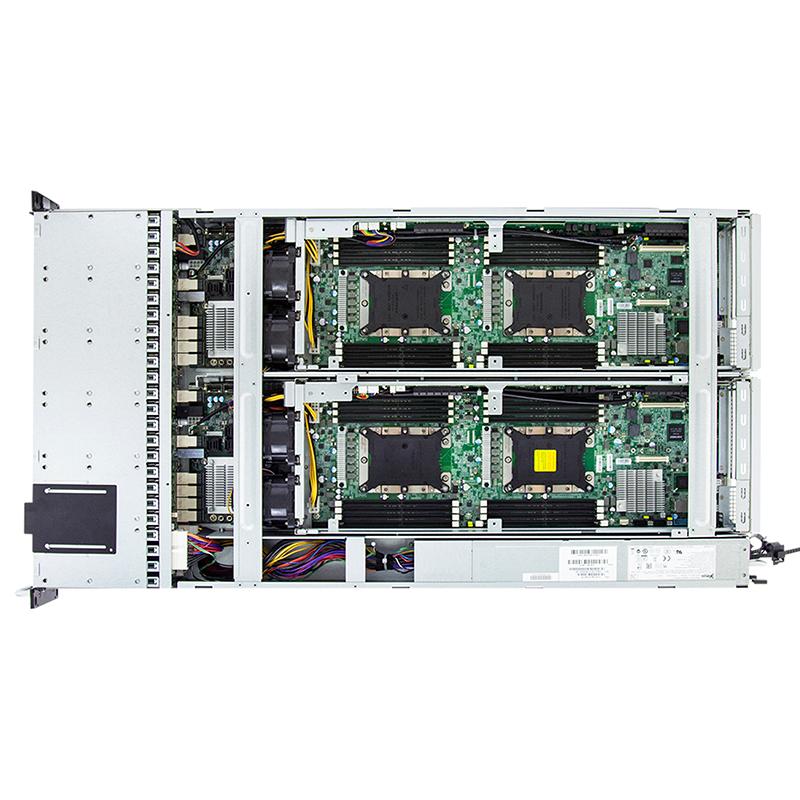

Product Images	HA201-PV (Top&Rear)
	HA201-PV_Topopen.jpg HA201-PV_Rear.jpg
User Manual/AVL/Firmware	HA201-PV
	HA201-PV_User's Manual HA202-PV_MB AVL HA202-PV_BIOS_PAVH1040 HA202-PV_BMC_HA202PV030000
