2U 12G Storage Chassis 24 x 2.5" Hot-Swap + 2 x 2.5" Internal and an 800W Redundant PSU (Rails Included) * 7 x Low Profile PCI Slots

PCICASE Model No: IPC-C2AT-R8-EOB-12G
Manufacturer Model No: RSC-2AT
UK Stock
Key Features
  • Tool-less design supports quick installation and easy maintenance:
  • Tool-less 2.5” drive trays
  • Tool-less top covers
  • Tool-less backplane
  • Tool-less slide rails
  • Lockable Front Bezel
  • 12Gb/s SAS expander chip on backplane
  • Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
  • 80+ Platinum redundant PSU
Features And Benefits

IPC-C2AT-R8-EOB-12G is a T series 2U 24-bay SAS/SATA storage server chassis. With its tool-less 2.5" hard drive/SSD carriers, top covers and backplane, the IPC-C2AT-R8-EOB-12G supports quick installation and easy maintenance. This tool-less design solution also features 3 x low-power consumption hot swap fans and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications.

Dimensions (W x D x H) (with chassis ears)
mm : 483 x 680 x 88
inches : 19 x 26.8 x 3.5

Industry Standard
EIA-RS310D

Material
Heavy-duty preplated SPGC cold-rolled steel

Front Panel
Black

Cooling
Standard : Middle : 3 x 80x38mm PWM & low-power consumption hot swap fans

Power Supply
800W 1+1 redundant PSU PMBus 1.2 80+ Platinum

Expansion Slots
7 x Low-profile

Front Panel
Power on/off
System reset
1 x USB 3.0 port

LED Indicators
Power
LAN
Drive
Alert

System Board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB

Drive Bays
External : 24 x 2.5” hot swap
Internal : 2 x 2.5”

Backplane

Standard: 1 x 24-port 12Gb SAS backplane with a 36-PHY expander chip and 3 x SFF-8643 connectors

Option: 1 x 24-port 12Gb SAS backplane with 6 x SFF-8643 connectors


Storage Temperature
0°C(32°F) ~ 50°C(122°F)

Humidity
5% ~ 95% non-condensing

Gross Weight (w/ PSU & Rail)
kgs : 24.5
lbs : 54

Package Dimension (W x D x H)
mm : 590 x 850 x 290
inches : 23.2 x 33.5 x 11.4
Cubic Feet: 5.14

Container Load Quantity
• 20’ : 185
• 40’ : 380
• 40’ H : 457

Mounting
Standard : 28” tool-less slide rail

* All specifications are subject to change without notice.

Datasheet IPC-C2AT-R8-EOB-12G Datasheet


 IPC-C2AT-R8-EOB-12G Datasheet.pdf



User Manual IPC-C2AT-R8-EOB-12G User Manual


 IPC-C2AT-R8-EOB-12G User Manual.pdf



Product Images IPC-C2AT-R8-EOB-12G (Front 45 Degrees)

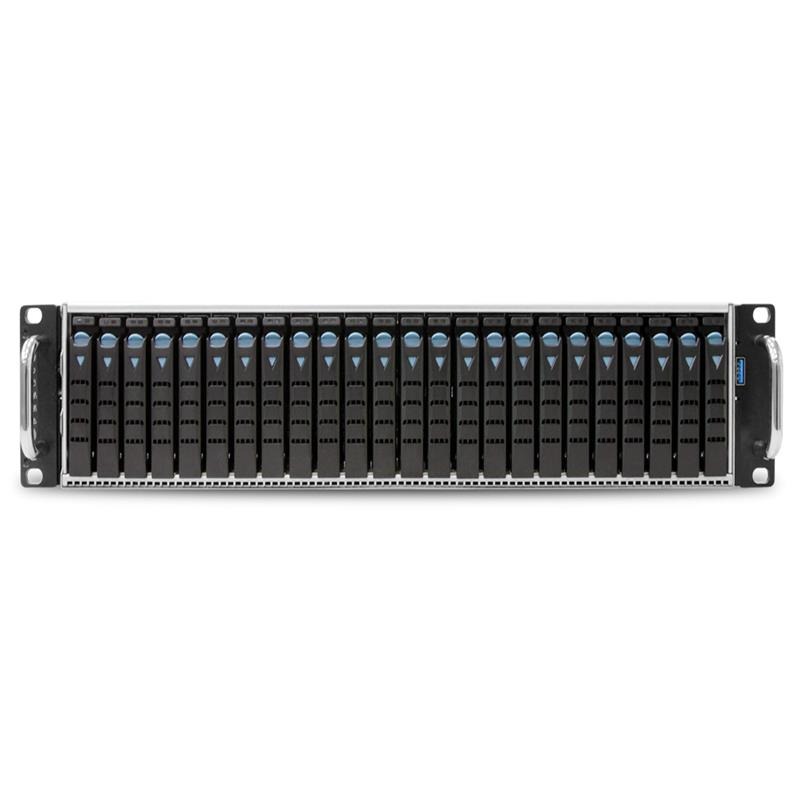

Product Images                                           IPC-C2AT-R8-EOB-12G (Front)

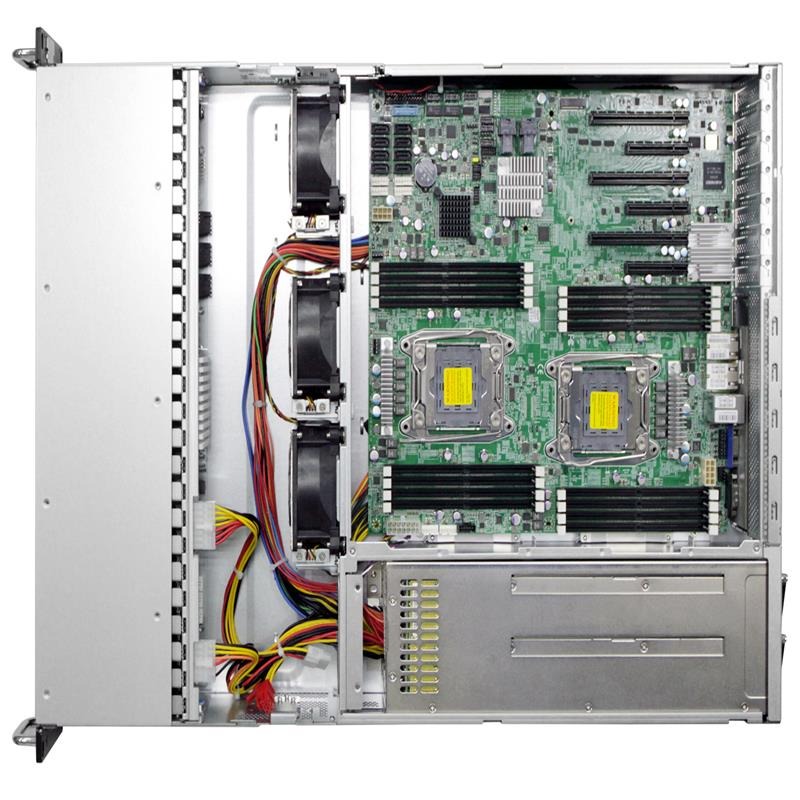

Product Images IPC-C2AT-R8-EOB-12G (Top)

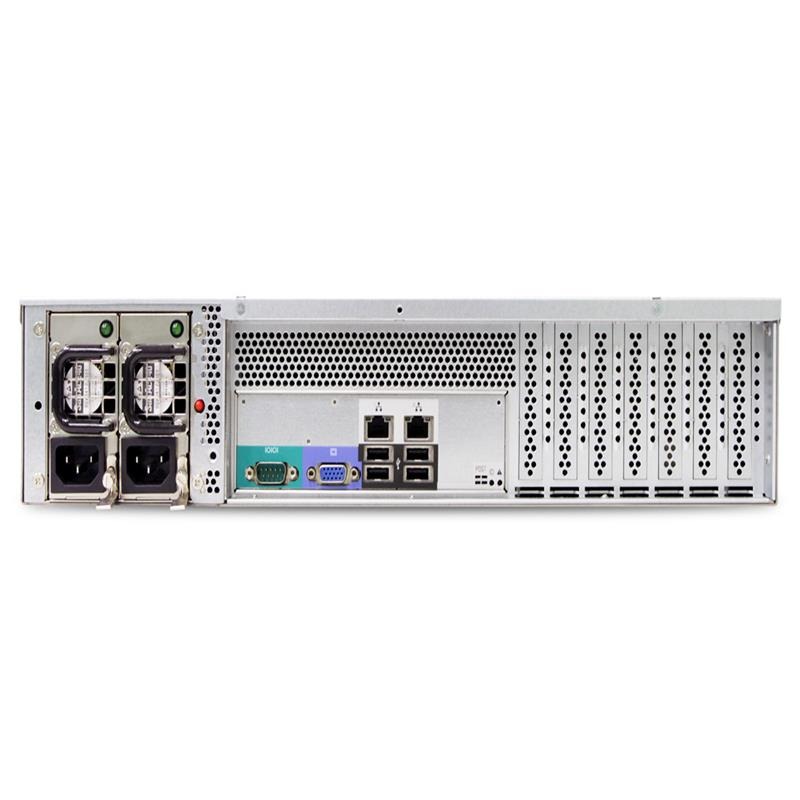

Product Images IPC-C2AT-R8-EOB-12G  (Rear)
