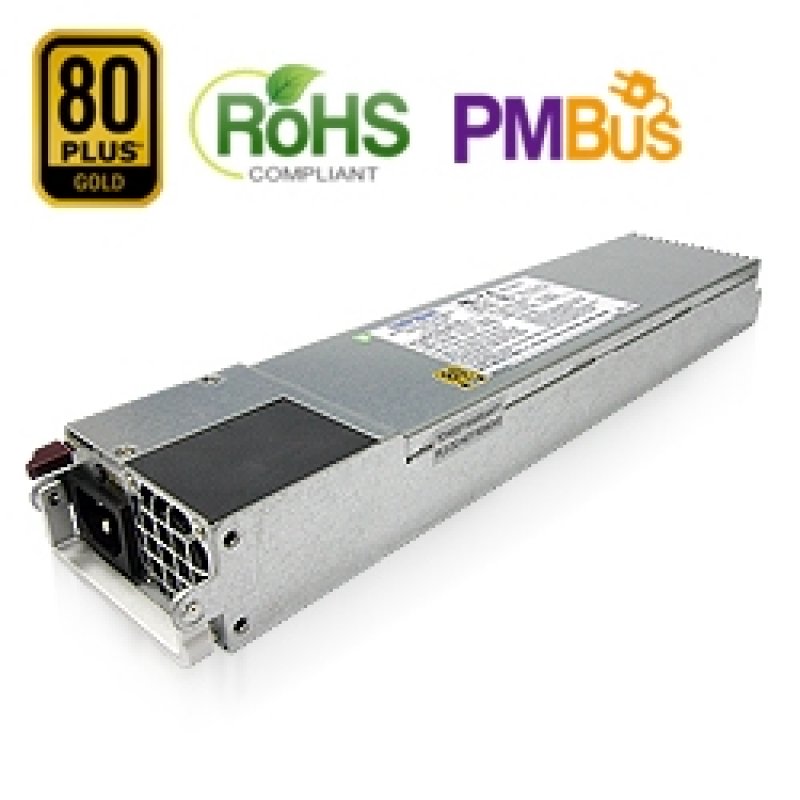

1U 1200W OEM Fitted Redundant Module

PCICASE Model No: CPR-1221-1M2LF
Manufacturer Model No: CPR-1221-1M2LF
Build To Order
Key Features
  • 80 PLUS Gold
  • Support PMBus 1.1
  • Internal ORing
  • N+1 Redundant
  • High Power Density 20 W/in3
  • Highest efficiency 92.4%
  • Active Power Factor Correction
  • RoHS compliant for all six substances
  • Application for Server , Storage , PowerBank


Total Max Power: 1000W @ 85 ~ 140Vac
1200W @ 180 ~ 264Vac
Input Voltage:85 V to 264 V
Outputs:Single-output
Dimension (D x W x H):346 x 76 x 40 mm

GENERAL SPECIFICATIONS
Hold-up time 17ms @ 75% Load
Efficiency at least 92% @ 50% Load
MTBF 150,000 hours at 25 degree C

ENVIRONMENTAL SPECIFICATIONS
Temperature 0 to 50 degree C Operating
Altitude 10,000 feet Operating
Relative humidity 20% to 90% RH Operating

INPUT SPECIFICATIONS
Input voltage 85- 264 V
Input frequency 47 - 63 Hz
Input current 13.0 - 4.0 A

OUTPUT SPECIFICATIONS
Voltage Regulation Max Load Ripple & Noise
+12V ± 5% 83A 85 to 140V) /
100A (180 to 264V) 120mV
+5Vsb ± 5% 4.0 A max 50mV
Note:
1. The total output power can not exceed 1000W continuously for 85 to 140VAC input,
  and 1200W continuously for 180 to 264 VAC input
2. During load changes from minimum to maximum or maximum to minimum or no load the unit must not shut down or damage
3.Please call for PDB(Power Distribution Board) model & price for your application,refer to attached Building Block Instruction

Power Supply Datasheet   Datasheet


 CPR-1221-1M2LF Datasheet.pdf



Power Supply Technical Drawing  Drawing


 CPR-1221-1M2LF Drawing.pdf



Power Supply Test Report Test Report


 CPR-1221-1M2LF Test Report.pdf


CompuWare Building Blocks           Building Block Application


 Compuware Building Block Application.pdf
