Key Features
• Tool-less 2.5” drive trays
• 2 x 4-port 6G SATA/12G SAS/PCIe Gen4 NVMe + 1 x 2-port 6G SATA/12G SAS Supported drives will be different according to the 4 backplane options
• Supports redundant power supplies
• Supports 1 full height expansion slot
• Two front access USB 3.0 ports

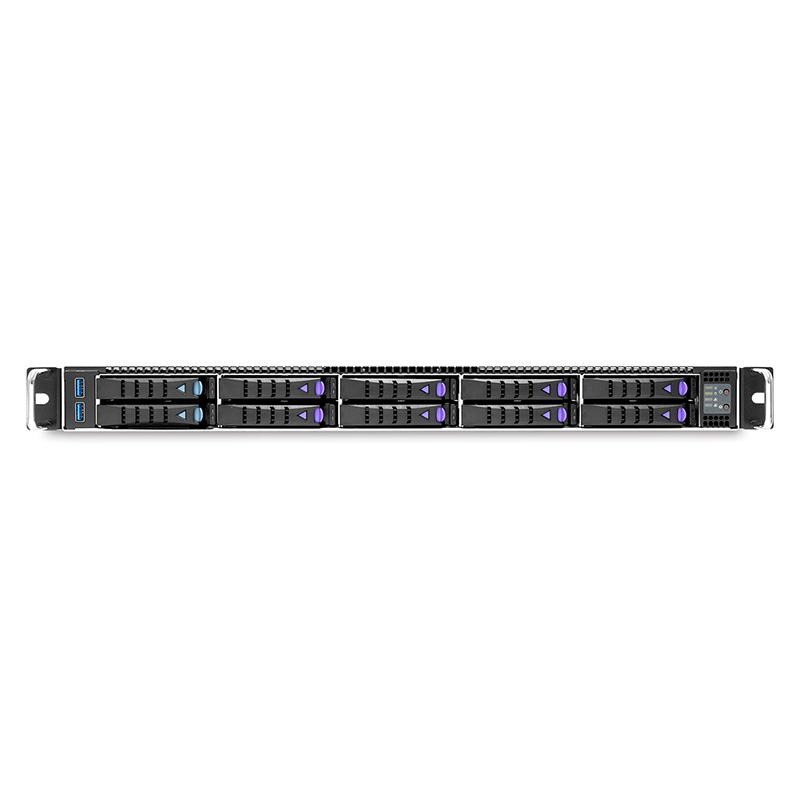

RSC-1AT3 is a T-series 1U Trimode storage server chassis supports 8 x 2.5" tri-mode hot-swap bay and 2 x 2.5" SATA SAS hot-swap bay.
Key Features
• Tool-less 2.5” drive trays
• 2 x 4-port 6G SATA/12G SAS/PCIe Gen4 NVMe + 1 x 2-port 6G SATA/12G SAS Supported drives will be different according to the 4 backplane options
• Supports redundant power supplies
• Supports 1 full height expansion slot
• Two front access USB 3.0 ports
| Dimensions (W x D x H) |
| • mm: 438 x 680 x 43.5 • inches: 17 x 26.8 x 1.72 |
| Industry Standard |
| EIA-RS310D |
| Material |
| SGCC |
| Color |
| Front Panel: Black |
| Cooling |
| 6 x 40x56mm PWM easy swap fans |
| Power Supply |
| 750W 1+1 redundant power supply |
| Expansion Slot |
| 1 full height |
| Front Panel |
| System power on/off and system reset, 2 x USB 3.0 ports |
| LED Indicators |
| Power, LAN, Drive and Alert |
| System Board |
| Up to 12”(W) x 13”(D) EATX MB |
| Drive Bays |
| External: 2.5" hot swap x 10 |
| Backplanes |
| • SKU1: 2 x 4-port 6G SATA/12G SAS +1 x 2-port 6G SATA • SKU2: 1 x 4-port 6G SATA/12G SAS/PCIe Gen4 NVMe + 1 x 4-port 6G SATA/12G SAS + 1 x 2-port 6G SATA • SKU3: 2 x 4-port 6G SATA/12G SAS/PCIe Gen4 NVMe + 1 x 2-port 6G SATA • SKU4: 2 x 4-port 6G SATA/12G SAS + 1 x 2-port PCIe Gen4 NVMe |
| Storage Temperature |
| 0ºC(32ºF) ~ 50ºC(122ºF) |
| Humidity |
| 5% ~ 95% non-condensing |
| Gross Weight (w/ PSU & Rail) |
| • kgs: 16 • lbs: 35.3 |
| Package Dimension (W x D x H) |
| • mm: 645 x 890 x 180 • inches: 25.3 x 35 x 7.1 |
| Mounting |
| Standard: 28” tool-less slide rail |
* All specifications are subject to change without notice.
| RSC-1AT3_Datasheet | Size : 2 MB | Download |
| RSC-1AT3_User's Manual | Size : 37 MB | Download |
| SKU Information | Description |
| XE1-1AT02-01 | 1U 8x 2.5" SAS/SATA hot-swap, 2x 2.5" SATA hot-swap, 6x 4056 FAN, Acbel 750W redundant power supply Platinum, CPU TDP 195W (extra air duct not include), 28" slide rail, PCIe Gen.4 16x RC, w/o bezel |
| XE1-1AT02-02 | 1U 4x 2.5" tri-mode PCIe Gen.4 hot-swap, 4x 2.5" SAS/SATA hot-swap, 2x 2.5" SATA hot-swap, 6x 4056 FAN, Acbel 750W redundant power supply Platinum, CPU TDP 195W (extra air duct not include), 28" slide rail, PCIe Gen.4 16x RC, w/o bezel |
|
XE1-1AT02-03 (standard) |
1U 8x 2.5" tri-mode PCIe Gen.4 hot-swap, 2x 2.5" SATA hot-swap, 6x 4056 FAN, Acbel 750W redundant power supply Platinum, CPU TDP 195W (extra air duct not include), 28" slide rail, PCIe Gen.4 16x RC, w/o bezel |
| XE1-1AT02-04 | 1U 8x 2.5" SAS/SATA hot-swap, 2x 2.5" NVMe PCIe Gen.4 hot-swap, 6x 4056 FAN, Acbel 750W redundant power supply Platinum, CPU TDP 195W (extra air duct not include), 28" slide rail, PCIe Gen.4 16x RC, w/o bezel |
