PCICase UK Ltd Introduce The Short Depth Chassis Series

Posted: 05 Sep 2018



IPC-C1DTS-BAR3-12G

1U 12G storage server chassis supports external 4 x 12G 3.5" hot swap and internal 4 x 2.5" (9mm) drive bays, with 300W redundant PSU (rails included)

Key Features

• Tool-less design supports quick installation and easy maintenance:
- Tool-less 2.5" drive trays
- Tool-less slide rail
• Supports 4 x 12G 3.5" hot swap drive bays
• Includs 300W redundant power supply
• Support 1 full height expansion slot
• One front access USB 3.0 port

IPC-C1DTS is a T-series 1U SAS/SATA storage server chassis supports external 4 x 12G 3.5" hot swap and internal 4 x 2.5" (9mm) drive bays. This environmentally friendly solution features high-efficiency power supply, SGCC pre-plated steel, tool-less ball-bearing mounting rail, easy-swap PWM fans, and overall short depth, offering a cost-effective solution ideally suited for a broad range of applications, and especially space-concerned users. (Power supply is included. Motherboard is not included.)

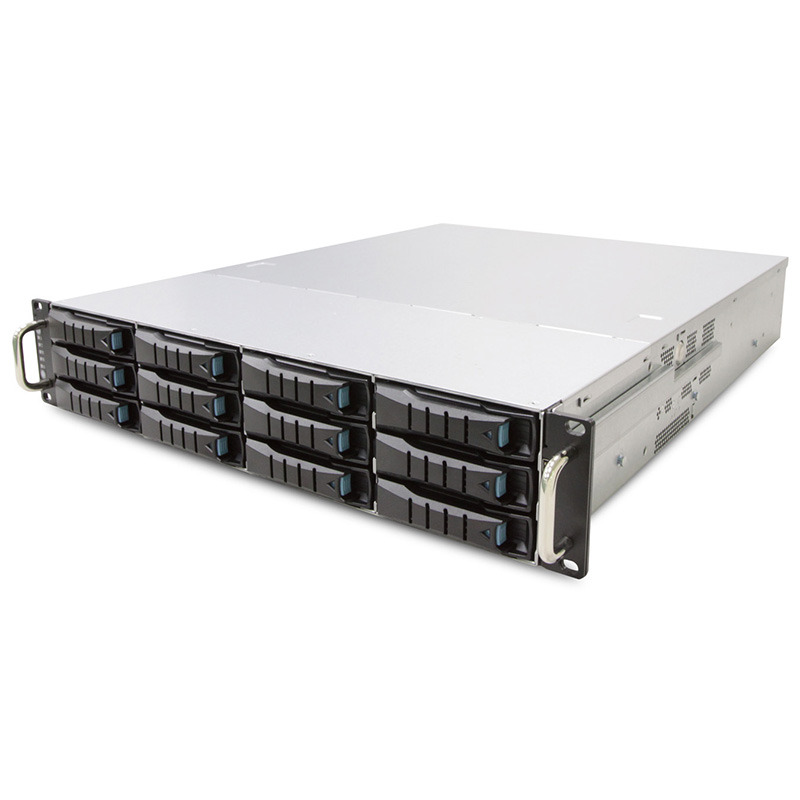

IPC-C2ETS-R55-EOB-12G-LP111

2U 12G Short Storage Chassis 12 x 3.5" Hot-Swap + 2 x 7mm 2.5" rear hot swap and a 550W x2 redundant PSU (Rails Included) *7 x Low Profile


Key Features

• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2 x 7mm Rear OS drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
• 12Gb/s SAS expander chip on backplane
• Supports power cycling on single drive
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• One front access USB 3.0 port
• Comes with an 80+ Platinum redundant PSU

The IPC-C2ETS-R55-EOB-12G-LP is a T series 2U 12-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the IPC-C2ETS-R55- EOB-12G supports quick installation and easy maintenance. This tool-less design solution also features 3 x low-power consumption hot swap fans and shorter depth dimension, offering a cost-effective solution ideally suited for a broad range of applications.

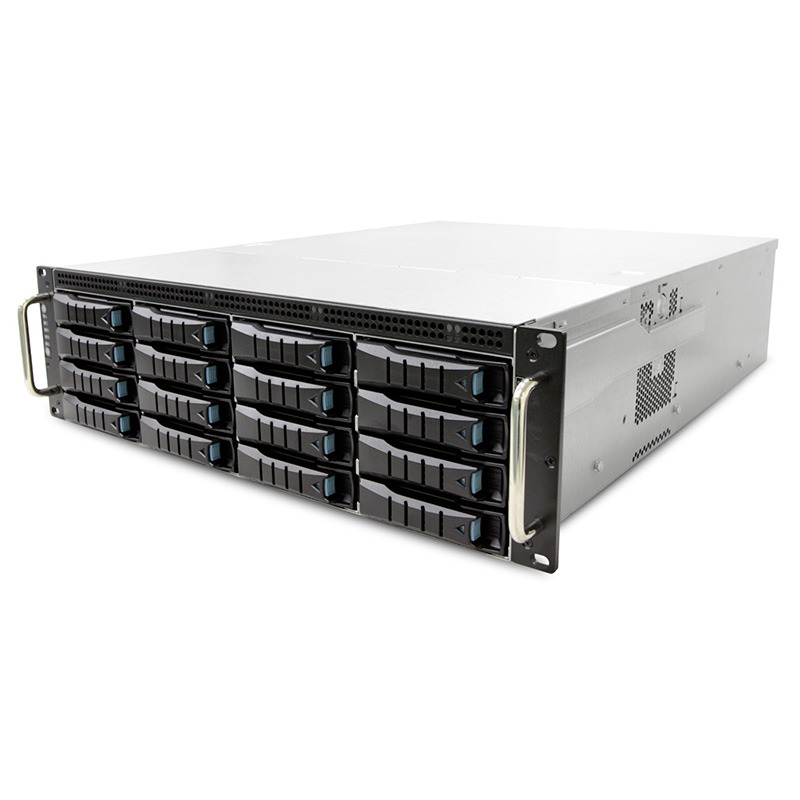

IPC-C3ETS-R8-EOB-12G

3U 12G Short Storage Chassis 16 x 3.5" Hot-Swap + 2 x 2.5" Rear Hot-Swap with 800W Redundant PSU (Rails Included).


Key Features

• Tool-less design supports quick installation and easy maintenance:
- Tool-less Hot-Swap
- 16 x 3.5”drive trays
- 2 x 2.5” drive trays (Rear OS)
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
Internal HDD 4 x 2.5” drive trays (Front)
• 12Gb/s SAS expander chip on backplane
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• Two front access USB 3.0 port
• Comes with a 80+ Platinum redundant PSU

The IPC-C3ETS-R8-EOB-12G is a T series 3U 16-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the IPC-C3ETS-R7-EOB-12G supports quick installation and easy maintenance. This tool-less design solution also features 3 x low-power consumption hot swap fans and shorter depth dimension, offering a cost-effective solution ideally suited for a broad range of applications.

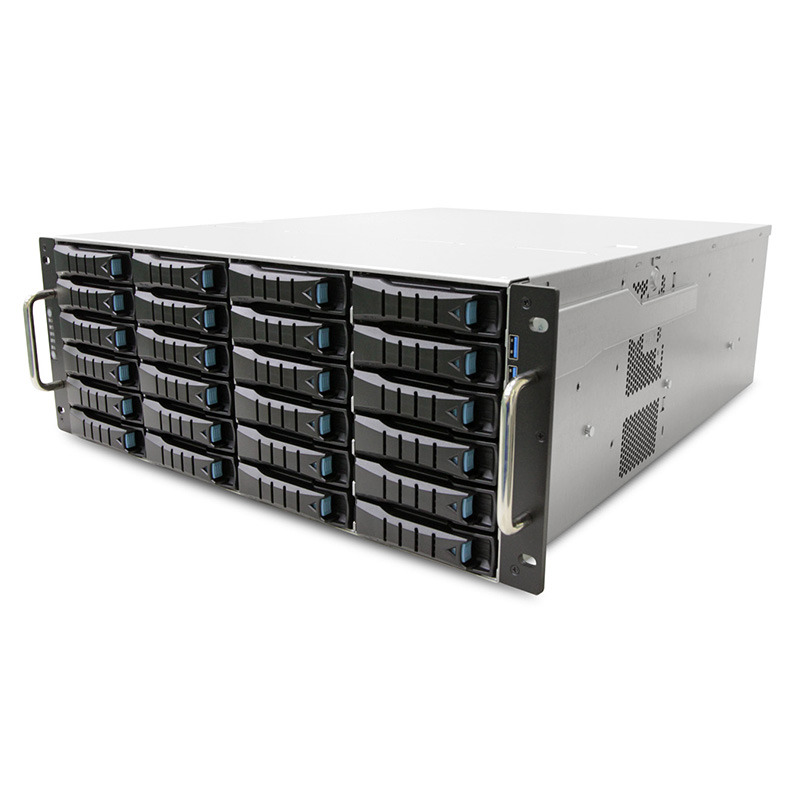

IPC-C4ETS-R8-EOB-12G

4U 12G Short Enterprise Storage Server Chassis 24 x 3.5" + 2 x 2.5" Rear Hot-Swap with 800W Redundant PSU (Rails Included) * Expander On Board




Key Features

• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
• 12Gb/s SAS expander chip on backplane
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• Two front access USB 3.0 port
• Comes with a 80+ Platinum redundant PSU
• Short depth design to meet special requirement

The IPC-C4ETS-R8-EOB-12G is a T series 4U 24-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the IPC-C4ETS-R8-EOB-12G supports quick installation and easy maintenance. This tool-less design solution also features 3 x hot swap fans designed to minimize rotational vibration and shorter depth dimension, offering a cost-effective solution ideally suited for a broad range of applications.
