2U 12G Storage Chassis 12 x 3.5" Tool-Less Hot-Swap + 2 x 7mm 2.5" rear hot-swap and an 800W Redundant PSU (Rails Included) * 7 x Low Profile

PCICASE Model No: IPC-C2ET-R8-EOB-12G-LP
Manufacturer Model No: RSC-2ET (AIC SKU: XE1-2ET00-02)
UK Stock
Key Features
  • Tool-less design supports quick installation and easy maintenance:
  • Tool-less 3.5” & 2.5” drive trays
  • Tool-less top covers
  • Tool-less backplane
  • Lockable Front Bezel - Optional
  • 3 x easy swap middle fans for superior cooling
  • 12Gb/s SAS expander chip on backplane
  • Hot swap system fans designed to minimize rotational vibration while providing superior cooling
  • 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
Features And Benefits

The IPC-C2ET-R8-EOB-12G-LP is a T series 2U 12-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the IPC-C2ET supports quick installation and easy maintenance. This tool-less design solution also features 3 x low-power consumption hot swap fans and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications.

Key Features
• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
• 12Gb/s SAS expander chip on backplane
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive
• Comes with a redundant PSU 80+ Platinum
• One front access USB 3.0 port

Dimensions (W x D x H)
• mm: 430 x 680 x 88
• inches: 17 x 26.8 x 3.5
Industry Standard
EIA-RS310D
Material
Heavy-duty preplated SPGC cold-rolled steel
Color
Front Panel: Black
Cooling
3 x 80x38mm PWM & low-power consumption hot swap fans
Power Supply
800W 1+1 redundant PSU PMBus 1.2 80+ Platinum
Expansion Slots
7 low profile
Front Panel

• System power on/off
• System ID
• System reset
• 1 x USB 3.0 port

LED Indicators
• Power
• LAN
• Drive
• Alert
• ID
System Board
12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Drive Bays
External :
• 12 x 3.5” hot swap
Options :
• 2 x 2.5” (7mm) hot swap
• 2 x 2.5” (15mm) internal
Backplane
Options :
• 1 x 12-port 12Gb SATA/SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors
• 1 x 12-port SATA/SAS backplane with 3 x SFF-8643 connectors
Storage Temperature
0°C(32°F) ~ 50°C(122°F)
Humidity
5% ~ 95% non-condensing
Gross Weight (w/ PSU & Rail)
• kgs: 23.5
• lbs: 51.8
Package Dimension (W x D x H)
• mm: 645 x 835 x 224
• inches: 25.4 x 32.9 x 8.8
Cubic Feet
5.38
Container Load Quantity
 20’: 200
 40’: 420
 40’ H: 450
Mounting
Standard: 28” tool-less slide rail

Optional : IPC-FP-C2ET - Please call sales

SKU Information Description

XE1-2ET00-01

2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 550W CRPS redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G expander controller on backplane (3X series)

XE1-2ET00-02

(Standard)

2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G expander controller on backplane (3X series)
XE1-2ET00-03 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G passive backplane support 4x NVMe
XE1-2ET00-04 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 550W CRPS redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G passive backplane
XE1-2ET00-05 2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD Tray, 800W CRPS redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G passive backplane

XE1-2ET00-18

(Standard)

2U 12x 3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 800W CRPS redundant power supply, 2x 7mm 2.5" hot-swap OS, low profile rear panel, rail, 2U12 SAS 12G expander controller on backplane (35X series)
FRU Information
Part Number Description
FC-000000093 8038 fan module
H5521T200005 28" Tool-less slide rail
BBPJHD20002A 12 bay 12G EOB Backplane
PH-000000060 550W CRPS Power Supply Housing
PM-000000083 550W CRPS Power Supply Module
PH-A00000095 800W CRPS Power Supply Housing
PM-A00000117 800W CRPS Power Supply Module
M06-00128-33 Suitable for RSC-2AT & RSC-2ET/RSC-2ETS(2ET DOOR ASS,Y)
Datasheet IPC-C2ET-R8-EOB-12G Datasheet


 IPC-C2ET-R8-EOB-12G Datasheet.pdf



Product Images IPC-C2ET-R8-EOB-12G (Front 45 Degrees)





Product Images                                          IPC-C2ET-R8-EOB-12G (Front)





Product Images IPC-C2ET-R8-EOB-12G (Top)

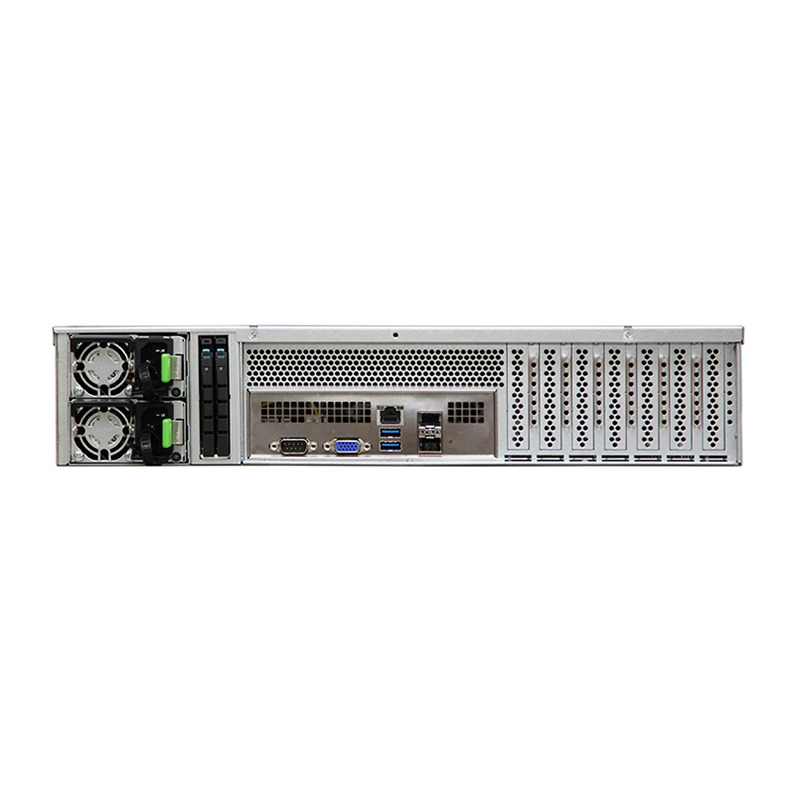

Product Images IPC-C2ET-R8-EOB-12G (Rear)


User Manual IPC-C2ET-R8-EOB-12G (User Manual)


 IPC-C2ET-R8-EOB-12G_User Manual.pdf
