Features:
• Supports AMD EPYC™ 8000-series processor Siena based on the AMD "Zen4", future support Sorano (Zen5) microarchitecture for highest server performance
• Supports 6 DDR5 DIMM slots for maximum memory performance
• Supports 3 PCIe Gen5 x16 slots
• Supports four MCIO x8 total 32 PCI Express Gen5 lanes
• Onboard Baseboard Management Controller for system management and IPMI control
• Embedded components for 5+ year long life
Zelus
Features & Benefits

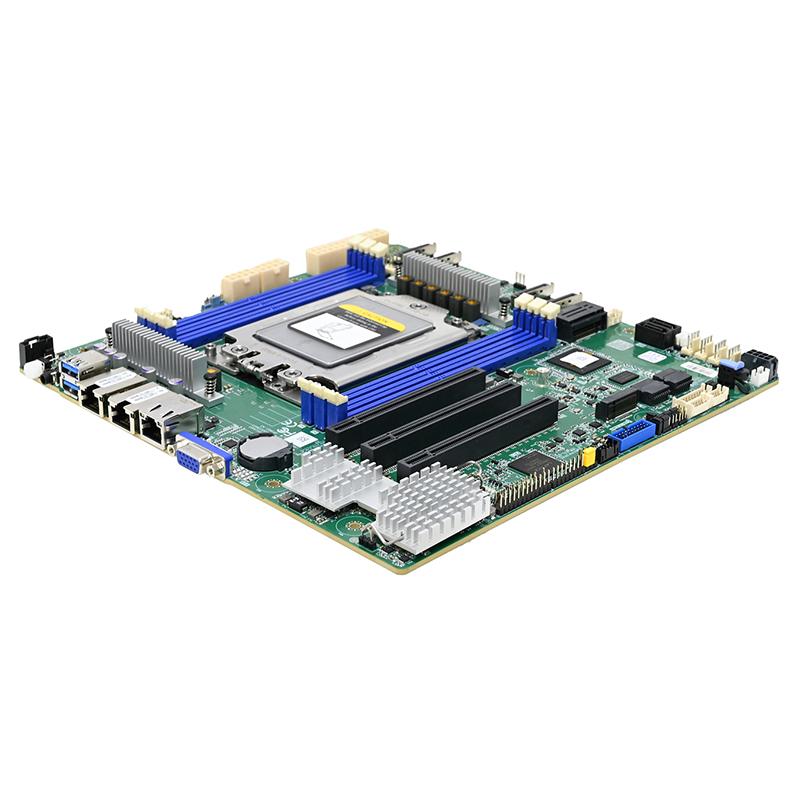

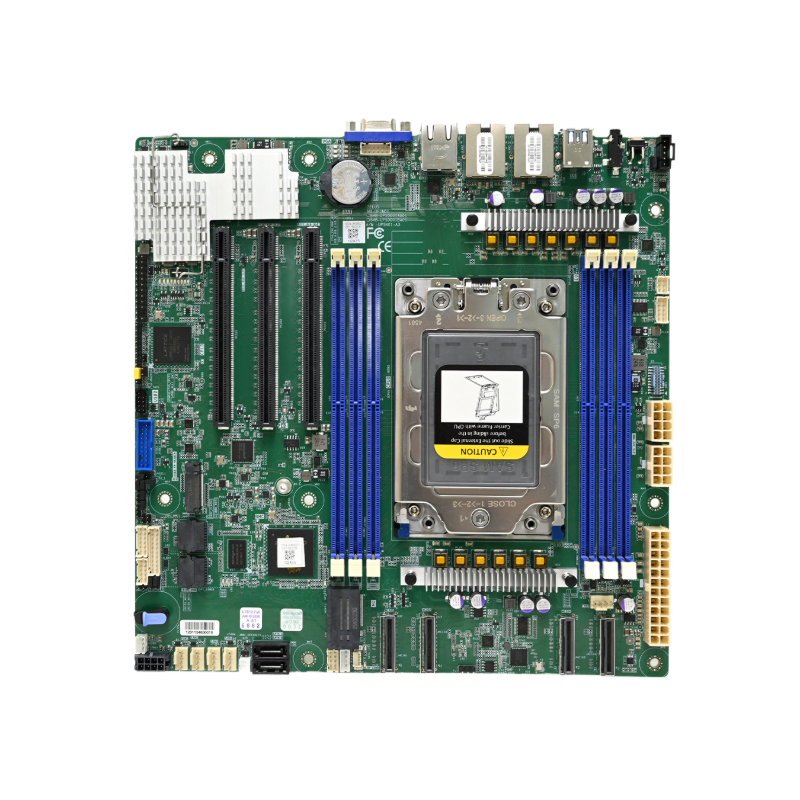

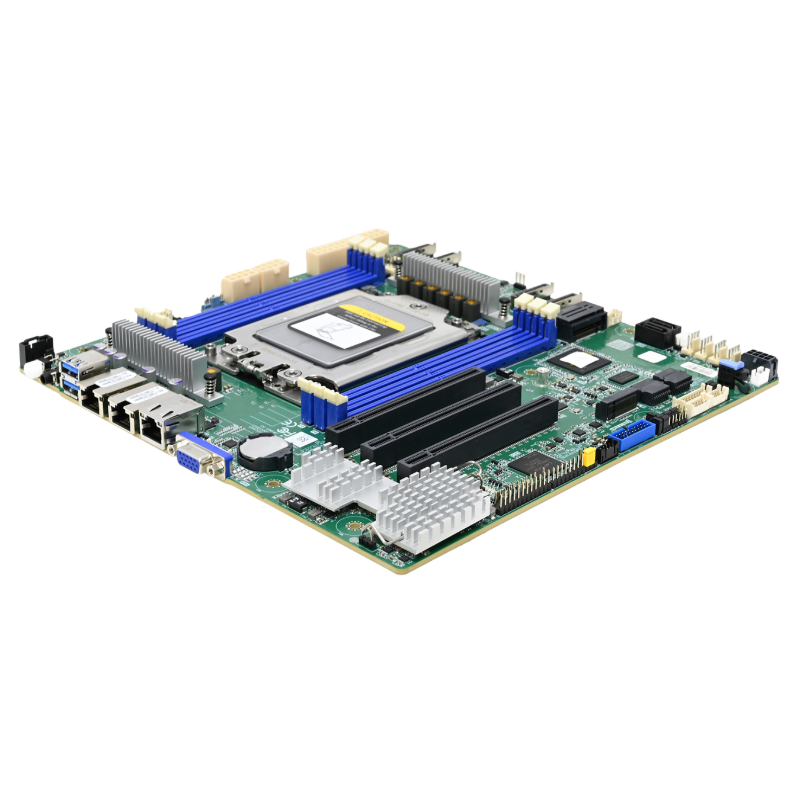

The Zelus server board offers the latest AMD EPYC™ SoC technology with efficiency core/power in an x86-architecture with EPYC™ 8000-series processor, 6x DDR5 memory channels and 96x PCIe Gen5 bandwidth with balanced I/O bandwidth that matches the capability of the CPU cores to move data to and from the network, spinning disks, NVMe storage, and graphics acceleration devices.
Features:
• Supports AMD EPYC™ 8000-series processor Siena based on the AMD "Zen4", future support Sorano (Zen5) microarchitecture for highest server performance
• Supports 6 DDR5 DIMM slots for maximum memory performance
• Supports 3 PCIe Gen5 x16 slots
• Supports four MCIO x8 total 32 PCI Express Gen5 lanes
• Onboard Baseboard Management Controller for system management and IPMI control
• Embedded components for 5+ year long life
| System | ||||
| Dimensions: • mm : 243.84 x 243.84 • inches : 9.6 x 9.6 |
||||
| Processor Support: Single AMD EPYC™ 8000-series Processors |
||||
| CPU TDP : 225W | ||||
| Socket Type : Socket SP6 | ||||
| System Memory: • DDR5 4800MHz RDIMM • Total 6 memory slots |
||||
|
||||
| On-board Devices | ||||
| SATA: 2 x SATA 7-pin connectors with ASM1062R SATA 6Gbps Controller (Support RAID 0, RAID1, SPAN) |
||||
| BMC: Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • SMASH support • HTML5 • Redfish |
||||
| Network Controller: • Realtek RTL8211FS GbE for BMC dedicate management port (NCSI shared NIC - reserved for Broadcom NIC) • Broadcom BCM57416/BCM5720L co-design supports 2 x 10G Base-T/1GbE |
||||
| Graphics: Integrated VGA support by ASPEED AST2600 Resolution up to 1920x1200 @60Hz 32bpp |
||||
| Input/Output | ||||
| SATA: 2 x SATA 7-pin connectors with ASM1062R SATA 6Gbps Controller (Support RAID 0, RAID1, SPAN) |
||||

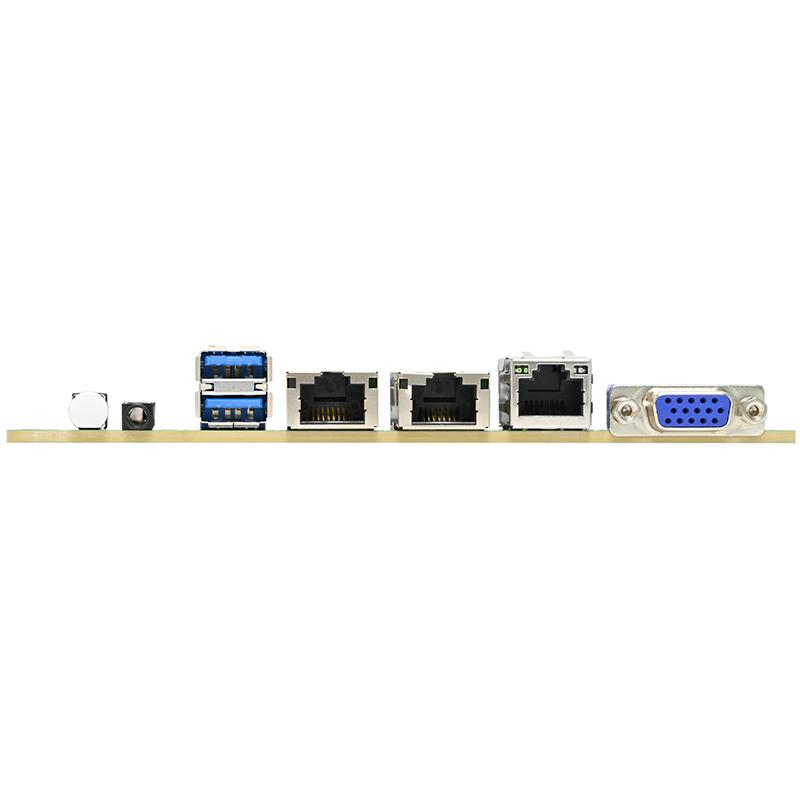

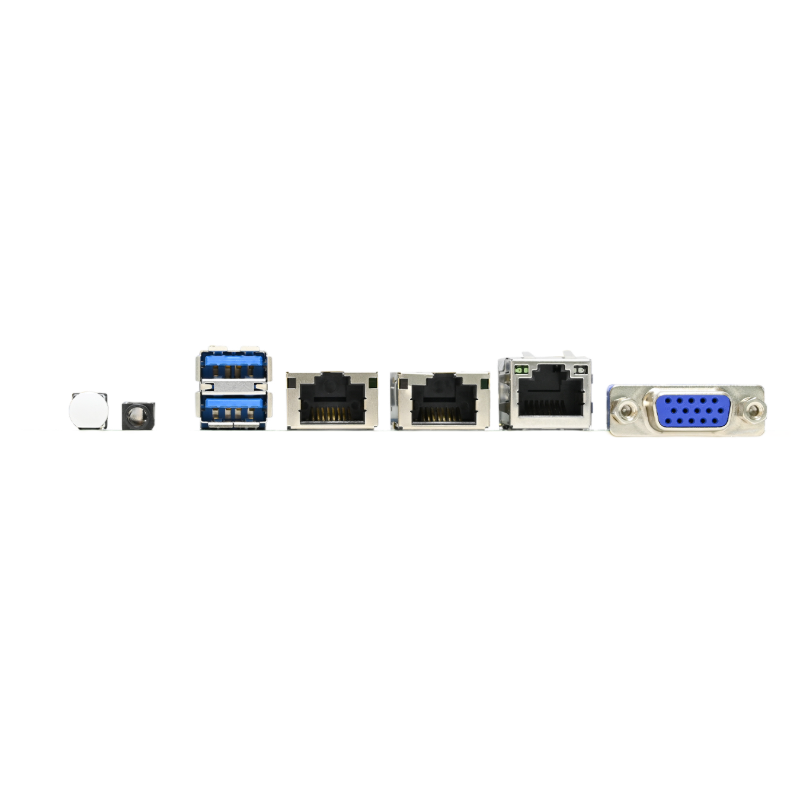

| LAN: • 2 x RJ45 connectors for dual port 10GbE/GbE • 1 x RJ45 connector (for BMC management port) |
||||
| USB: • 2 x USB 3.0 double-stack Type-A connectors • 2 x USB pin headers support 4 x USB 3.0/2.0 |
||||
| VGA: 1 x external VGA port |
||||
| Serial Port: • 1 x external COM port • 1 x internal COM box header |
||||
| Others: Security: • 1 x M.2 connector available for PFR extension (Optional) • TPM 2.0 onboard |
||||
* All specifications are subject to change without notice.
