Features:
• Supports Intel® Xeon® 6 Scalable Processors for highest performance and improved power efficiency
• Supports 8 DDR5 DIMM slots up to 6400GT/s
• Supports Compute Express Link (CXL2.0)
• Supports MCR DIMMs (8000MTs)
• Supports three PCIe5.0x16 slots and four MCIO PCIe5.0 x8, total 80 PCIe 5.0 lanes
• Supports two RJ45 10GBase-T connectors

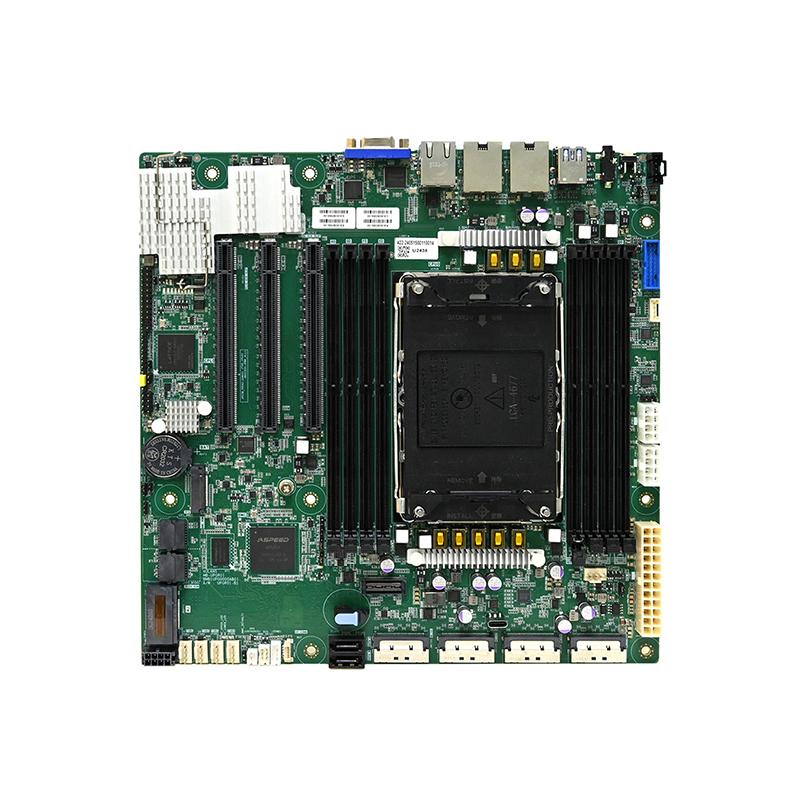

Volans supports single Intel® Xeon 6 processors 6500/6700 series with up to 144 CPU cores and TDP up to 350W. It supports up to 2TB DDR5 3DS RDIMMs with 8 memory slots and memory speeds up to 6400GTs. The high-speed expansion I/O includes 3 x16 PCIe5.0 slots, 4 MCIO x8 PCIe5.0, 2 M.2 2280 SATA3, 2 SATA3.0 7pin connectors (support RAID 0, RAID1, SPAN), 2 USB3 ports on rear, 1 internal USB3.0 header (support 2 USB3.0), and two ports RJ45 10GBase-T connectors. Security features include TPM2.0 and PFR by optional.
Features:
• Supports Intel® Xeon® 6 Scalable Processors for highest performance and improved power efficiency
• Supports 8 DDR5 DIMM slots up to 6400GT/s
• Supports Compute Express Link (CXL2.0)
• Supports MCR DIMMs (8000MTs)
• Supports three PCIe5.0x16 slots and four MCIO PCIe5.0 x8, total 80 PCIe 5.0 lanes
• Supports two RJ45 10GBase-T connectors
| System | ||||
| Dimensions: • mm : 244 x 244 • inches : 9.6 x 9.6 |
||||
| Processor Support: Single Intel® Xeon 6 processors 6500/6700 series CPU |
||||
| CPU TDP : 350W | ||||
| Socket Type : Socket E2 (LGA 4710 Socket) | ||||
| System Memory: • DDR5 • 6400MHz (1DPC RDIMM) • 8000MHz (1DPC MCR) • Total 8 memory slots; 8 channel per CPU (1DPC) • Supports up to 2TB (3DS RDIMM) |
||||
|
||||
| On-board Devices | ||||
| SATA: • ASMedia ASM1062R SATA(6Gbs) Raid Controller (Support RAID 0, RAID1, SPAN) supports two SATA ports • ASMedia ASM1061 SATA (6Gbs) Controller supports two M.2 SATA Gen3 (6Gbps) with Module Type 2280-D5-M (not support RAID mode) |
||||
| BMC: ASPEED AST2600 |
||||
| Network Controller: • Broadcom BCM57416 • Support two ports RJ45 10GBase-T |
||||
| Graphics: • Integrated VGA support by ASPEED AST2600 • Resolution up to 1920x1200 @60Hz 32bpp |
||||
| Additional Information: TPM 2.0 - NCPT760AABYX (option) |
||||

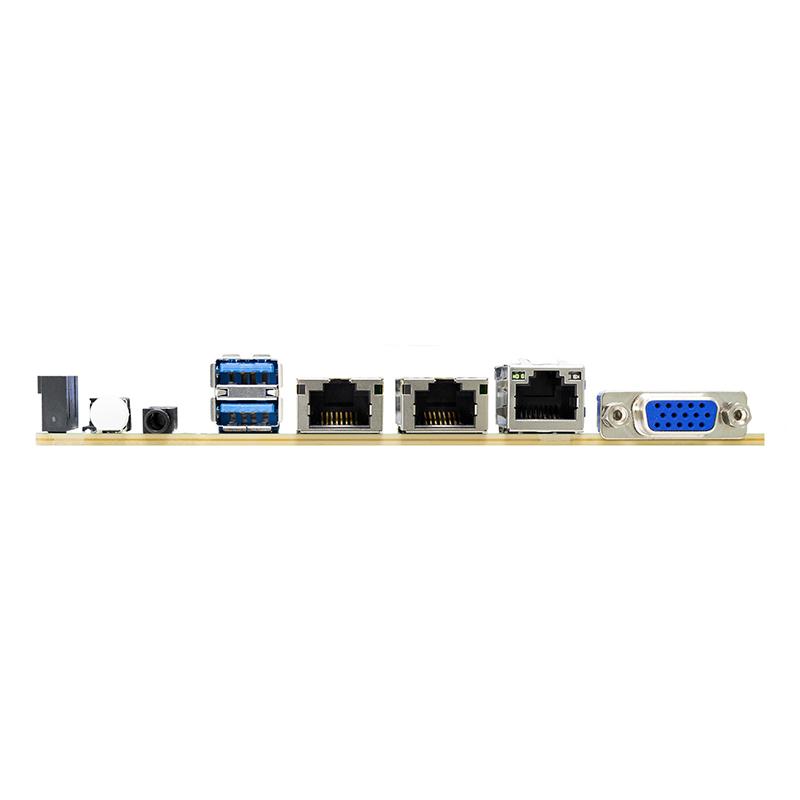

| Input/Output | ||||
| SATA: • 2 x SATA 7pin connector with ASM1062R SATA3 (6Gbs) Controller (Support RAID 0, RAID1, SPAN) • 2 x M.2 SATA3 (6Gbs) with Module Type 2280-D5-M (not support RAID mode) support by ASM1061 |
||||
| LAN: • 2 x RJ45 connector for dual port 10 GbE • 1 x RJ45 connector (for BMC management port) |
||||
| USB: ASMedia ASM1074 USB3.0 HUB • 1 x USB 3.0 double-stack Type-A connector supports two USB3.0 devices • 1 x USB pin header support two USB 3.0 |
||||
| VGA: 1 x DB-15 VGA connector |
||||
| Serial Port: 1 x COM connector (Audio Jack) |
||||
| Others: • PCIe slots 3 x16 PCIe5.0 • MCIO 4 x MCIO x8 PCIe5.0 |
||||
| Additional Information: Security: • 1 x M.2 Connector available for PFR extension (option) • TPM 2.0 on-board |
||||
* All specifications are subject to change without notice.
