Features:
• Supports 4th/5th Gen Intel® Xeon® Scalable Processors for highest every performance and improved power efficiency
• Supports 16DDR5 DIMM slots for maximum memory performance
• Supports Compute Express Link (CXL1.1)
• Six PCIe slots can support three FHFL PCIe5.0 x16 add-in cards
• Supports three MCIO x8, total 24 PCIe5.0 lanes

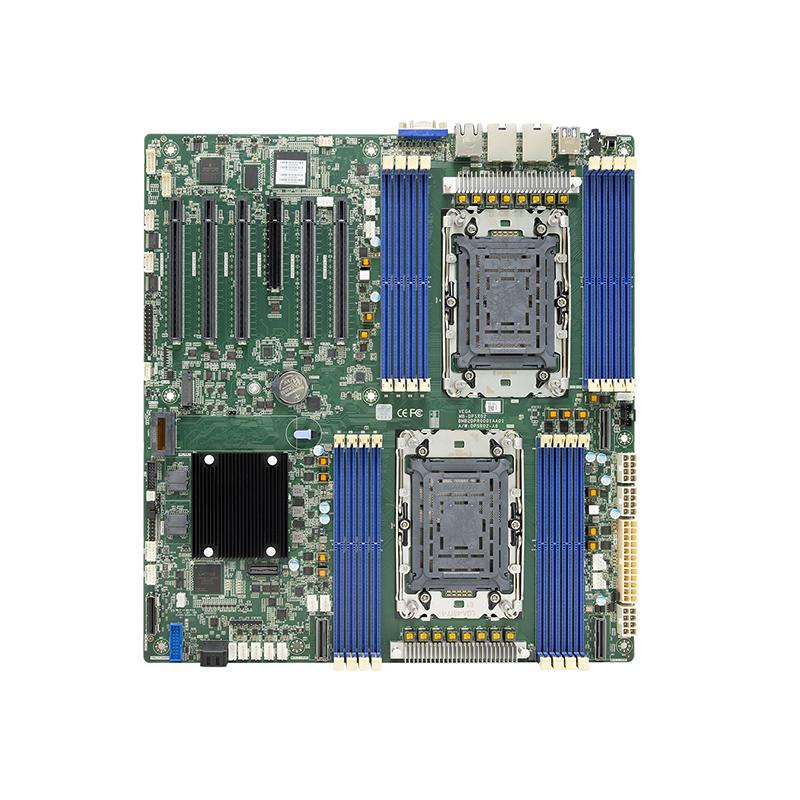

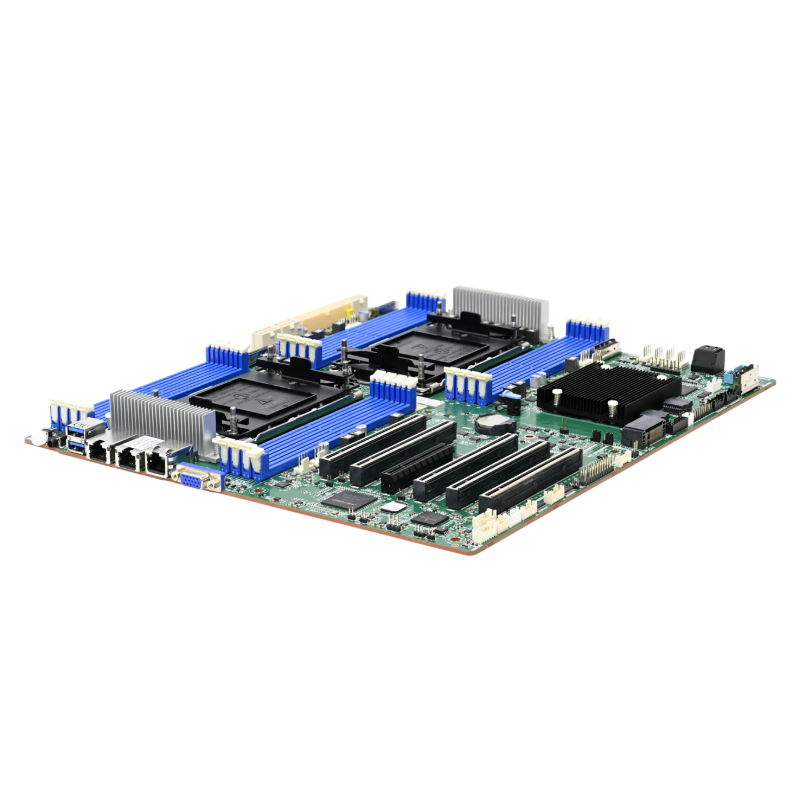

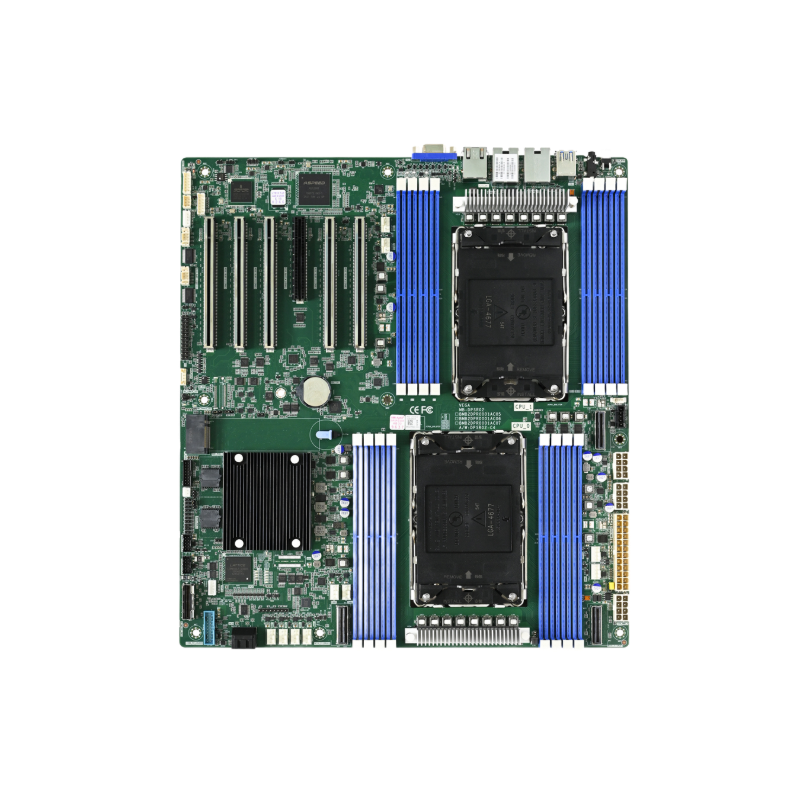

Vega supports dual 4th/5th Generation Intel® Xeon® Scalable Processors with 3 UPIs (up to 20GTs), per CPU cores up to 60, and TDP up to 350W. With builtin Intel® C741, it supports up to 4TB DDR5 3DS RDIMM with 16 memory slots and memory speeds up to 5600MHz. The high speed expansion I/O includes 5 x16 PCIe5.0/CXL1.1 slots, 1 x8 PCIe5.0 slot, 3 MCIO x8 PCIe5.0, 2 M.2 2280 PCIe4.0 x4, 2 SATA3.0 7pin connectors (6 Gb/s), and 1 slimline connector (up to 8 SATA). Security features include TPM 2.0 and PFR (both default: N/A; optional by SKU), and TCM 2.0 interface for extension.
Features:
• Supports 4th/5th Gen Intel® Xeon® Scalable Processors for highest every performance and improved power efficiency
• Supports 16DDR5 DIMM slots for maximum memory performance
• Supports Compute Express Link (CXL1.1)
• Six PCIe slots can support three FHFL PCIe5.0 x16 add-in cards
• Supports three MCIO x8, total 24 PCIe5.0 lanes
| System | ||||
| Dimensions: • mm : 304.8 x 332.7 • inches : 12 x 13 |
||||
| Processor Support: Dual Intel® Sapphire Rapids / Emerald Rapids CPU |
||||
| CPU TDP : 350W | ||||
| UPI Speeds : 16/20GTs | ||||
| Socket Type : Socket E1 (LGA-4677-X) | ||||
| System Memory: • DDR5 5600/4800MHz RDIMM (1DPC) • Total 16 memory slots; 8 slots per CPU (1DPC) • Support up to 4TB (3DS RDIMM) |
||||
|
||||
| On-board Devices | ||||
| SATA: Emmitsburg PCH on-chip solution • 2 x SATA3.0 (6 Gb/s) 7pin connectors • 1 x Slimline connector (up to 8 SATA ports) |
||||
| BMC: ASPEED AST2600 |
||||
| Network Controller: • Realtek RTL8211FS 1GbE for BMC dedicated management port • Broadcom BCM5720 dual port 1GbE (NCSI for share NIC) |
||||
| Graphics: • Integrated VGA support by ASPEED AST2600 • Resolution up to 1920x1200 @60Hz 32bpp |
||||
| Additional Information: TPM 2.0 - NUVOTON NPCT760AABYX (circuit reserve only) |
||||

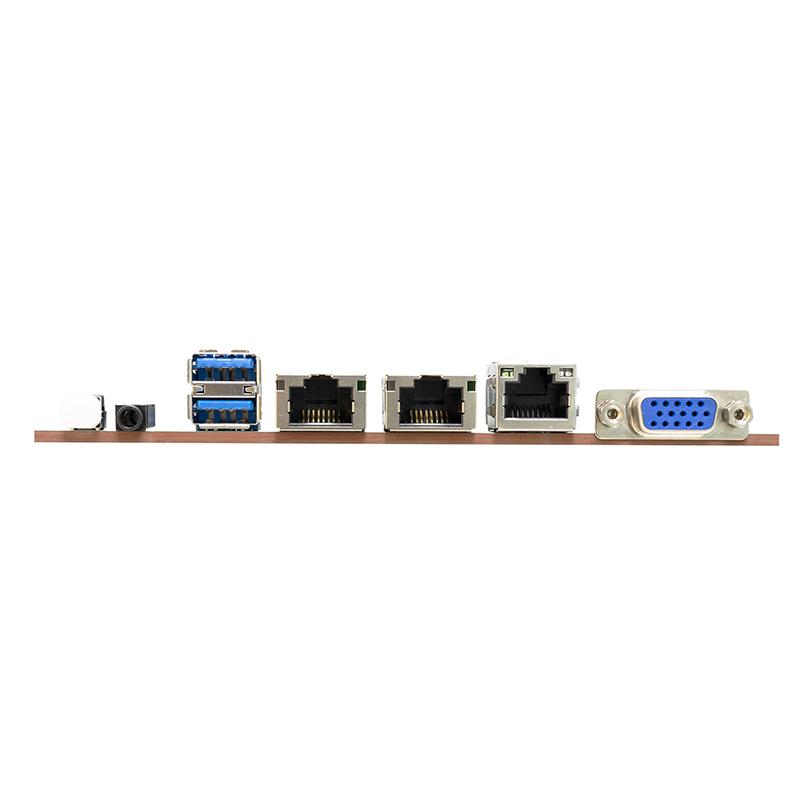

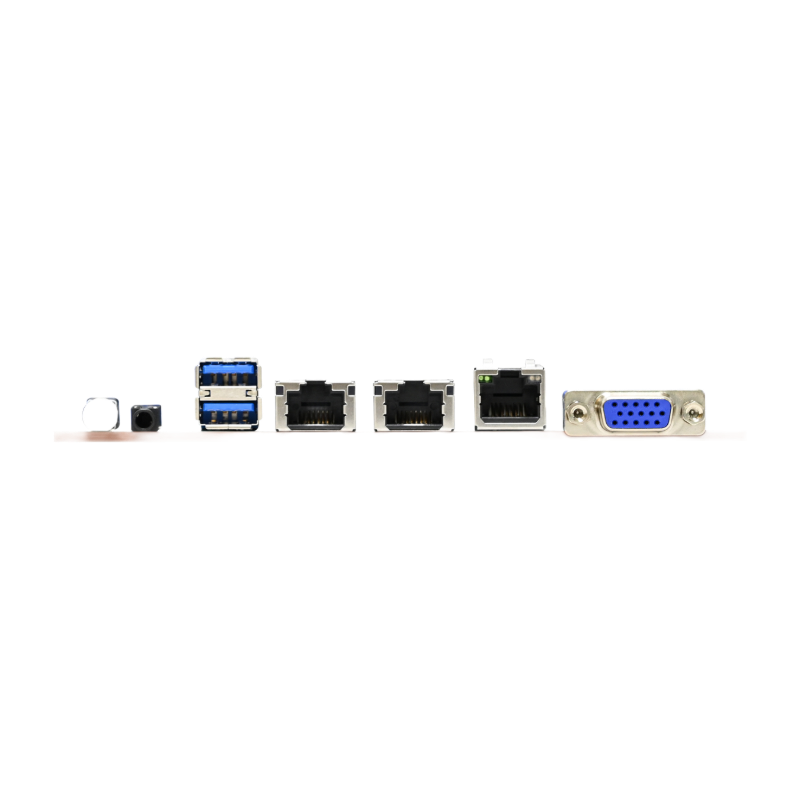

| Input/Output | ||||
| SATA: • 2 x SATA3.0 12Gb/s (by 7pin ) • 1 x Slimline connector supports 8 x SATA |
||||
| LAN: • 1 x RJ45 GbE connector for BMC dedicate management port • 2 x RJ45 1GbE connectors |
||||
| USB: • USB3 - 2 x USB3.1 Gen1 double stack type-A connector at rear I/O - 1 x USB3 pin header supports two USB3.1 Gen1 • USB2 - 2 x USB2.0 pin headers support two USB2.0 |
||||
| VGA: 1 x DB-15 VGA connector |
||||
| Serial Port: 1 x COM connector (Audio Jack) |
||||
| Others: 1 x external UID/switch button |
||||
| Additional Information: Security: • TCM 2.0 interface for extension • TPM 2.0 onboard (Default: N/A; optional by SKU) • PFR interface for extension (Default: N/A; optional by SKU) |
||||
* All specifications are subject to change without notice.
