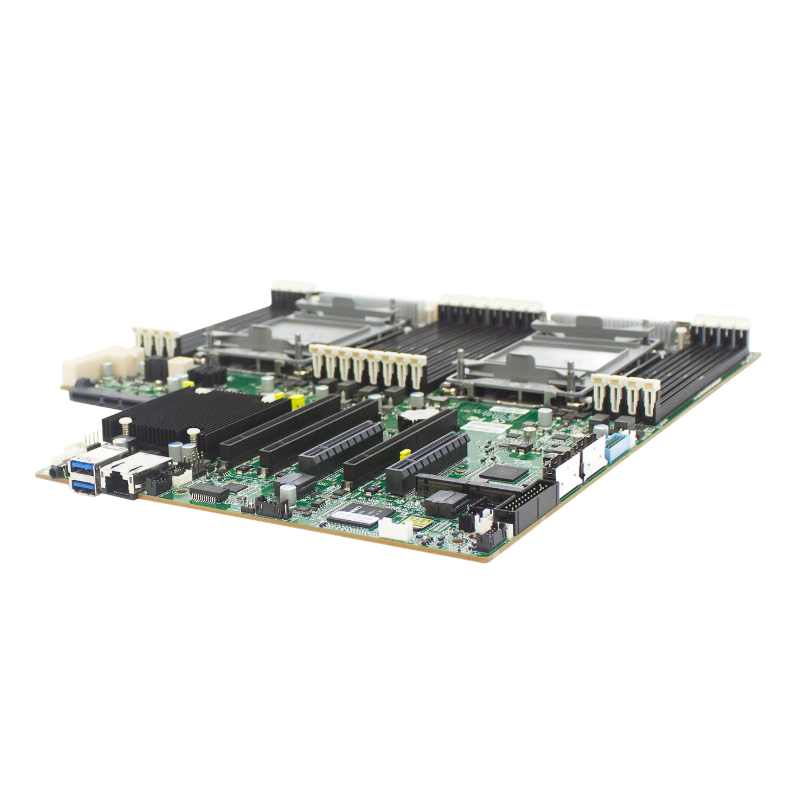

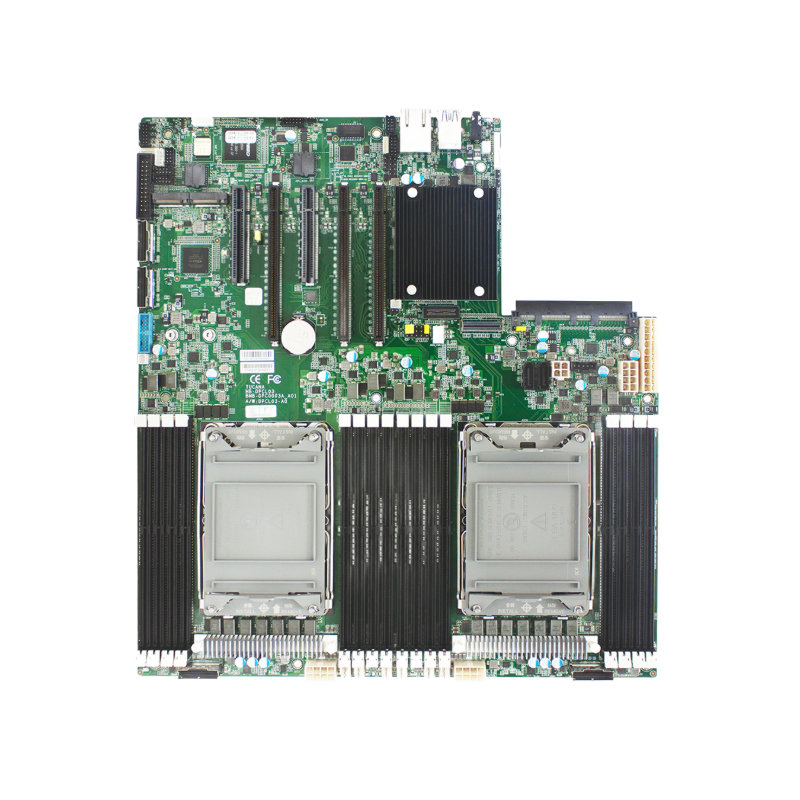

The Scutum server board offers Xeon® Scalable Processors technology solutions with compelling performance and provides premium power efficiency, which is optimized for efficient performance platforms (storage, security and communications infrastructure)

System
Dimensions
• mm : 304.8 x 330.2
• inches : 12 x 13
Processor-Support
3rd Gen Intel® Xeon® Scalable Processors (Ice lake CPU)
CPU-TDP
270W
UPI-Speeds
10.4 / 11.2 GT/s
Socket-Type
Socket P+ (LGA-4189)
System-Memory
• 8 x memory channels per CPU (1DPC)
• 16 x DIMM slots support:
DDR4 3200/2933MHz RDIMM/LRDIMM
- up to 512GB RDIMM SRx4 (16Gb)
- up to 1024GB RDIMM DRx4 (16Gb)
- up to 4096GB RDIMM 3DS 8Rx4 (16Gb)
- up to 2048GB LRDIMM QRx4 (16Gb)
- up to 4096GB LRDIMM 3DS 8Rx4 (16Gb)
• Intel® Optane™ DC Persistent Memory (Barlow Pass) support
Expansion-Slots
• CPU0: 2 x PCIe Gen4 x16 slots + 2 x slimline x8
• CPU1:
1 x PCIe Gen4 x16 slot
2 x PCIe Gen4 x8
3 x slimline x8

System-BIOS
BIOS-Type
AMI UEFI BIOS
BIOS-Features
• ACPI
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe Hotplug

On-board-Devices
SATA
Lewisburg PCH on-chip solution supports 12 x SATA 6.0 Gb/s
• 2 x SATA 7pin + 8 x SATA by slimline + 2 x SATA
by M.2 (supports both SATA/PCIe by PCH HSIO)
BMC
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish
Network-Controller
• Realtek RTL8211E GbE for BMC dedicate management port
• Intel I210 GbE
• Broadcom BCM57416/57417 co-design to support 10GBase-T/10G SFP+ / 25G SFP28 (by BOM option)
(NCSI shared NIC - reserved for BCM57416 & I210 by jumper setting)
Graphics
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp
Additional Information

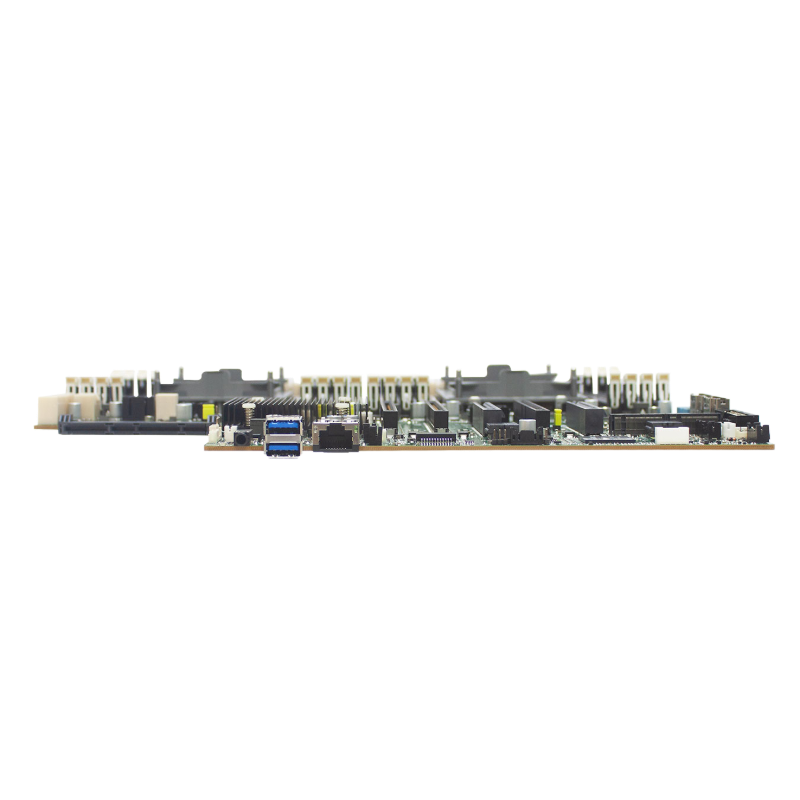

Input-Output
SATA
Lewisburg PCH on-chip solution supports 12 x SATA 6.0 Gb/s
• 2 x SATA 7pin + 8 x SATA by slimline + 2 x SATA by M.2 (supports both SATA/PCIe by PCH HSIO)
LAN
• 1 x GbE RJ45 dedicated to BMC management
• Dual port of RJ45 10G / SFP+ 10G / SFP28 25G (by BOM option)
USB
• 2 x USB 3.0 double-stake type A connectors
• 2 x USB pin headers support USB3.0/2.0
Display
1 x internal VGA pin-header
Serial-Port
• 1 x external COM port by audio jack
• 1 x COM2 box header
• 1 x COM1 box header share with rear IO audio jack
Others
1 x TPM2.0 onboard option (designed reserved, BTO only)

Additional-Information
Security

* All specifications are subject to change without notice.
