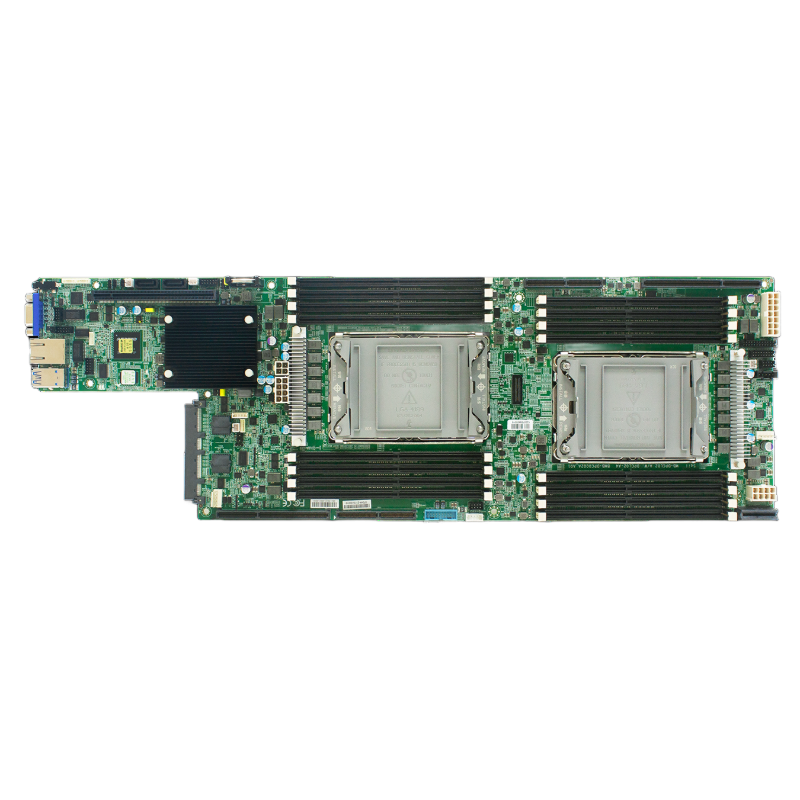

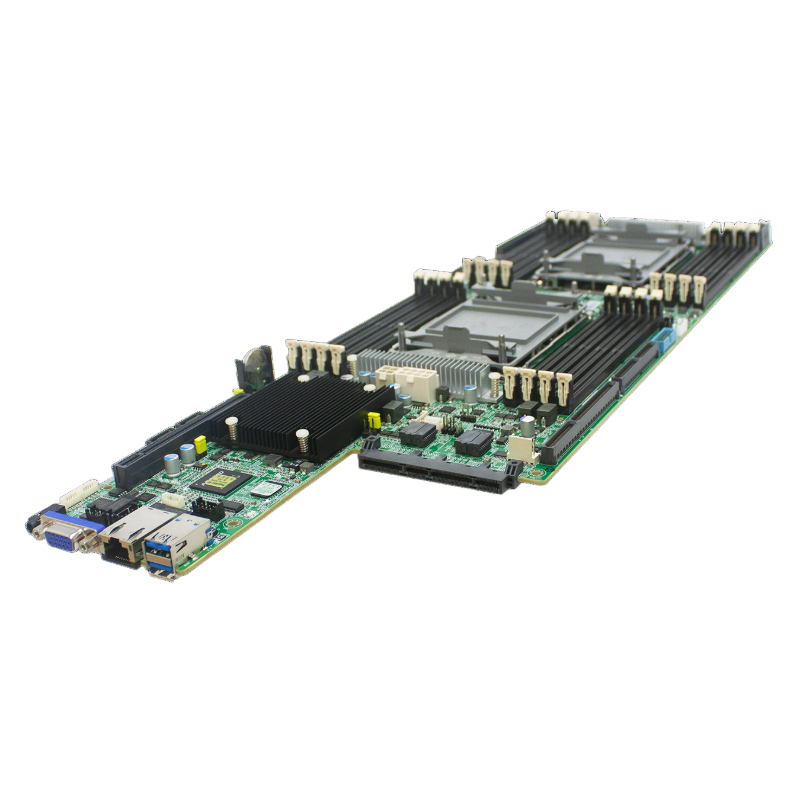

The Sail server board offers the latest Xeon® Scalable Processors technology solutions with compelling performance and provides premium power efficiency, which is optimized for efficient performance platforms (storage, security and communications infrast

System
Dimensions
• mm : 530 x 172.7
• inches : 21 x 6.8
Processor-Support
3rd Gen Intel® Xeon® Scalable Processors (Ice lake CPU)
CPU-TDP
250W
UPI-Speeds
10.4 / 11.2 GT/s
Socket-Type
Socket P+ (LGA-4189)
System-Memory
• 8 x memory channels per CPU(1DPC)
• 16 x DIMM slots support:
DDR4 3200/2933MHz RDIMM/LRDIMM
- up to 512GB RDIMM SRx4 (16Gb)
- up to 1024GB RDIMM DRx4 (16Gb)
- up to 4096GB RDIMM 3DS 8Rx4 (16Gb)
- up to 2048GB LRDIMM QRx4 (16Gb)
- up to 4096GB LRDIMM 3DS 8Rx4 (16Gb)
• Intel® Optane™ DC Persistent Memory (Barlow Pass) support
Expansion-Slots
• CPU0: 1 x PCIe Gen4 x16 slot + 1 x OCP V3.0 + 2 x Gen4 x16 by High-Density Conn.
• CPU1: PCIe Gen4 total 32 lanes @ MAX I/O

System-BIOS
BIOS-Type
AMI UEFI BIOS
BIOS-Features
• ACPI
• PXE
• AC loss recovery
• IPMI KCS interface
• SMBIOS
• Serial console redirection
• SRIOV
• TPM
• PCIe Hotplug

On-board-Devices
SATA
Intel® Lewisburg PCH C621A on-chip solution
• 2 x SATA/PCIe Gen3 x2 co-design from PCH HSIO by High-Density Conn.
• 2 x SATA 6.0 Gb/s (by 7pin SATA Conn.) 8 x SATA 6.0 Gb/s (by MAX I/O)
BMC
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish
Network-Controller
• Intel I210-AT for BMC. Share NIC management port by onboard connector
• Realtek RTL8211E GbE Ethernet for BMC dedicated management port
Graphics
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp
Additional Information

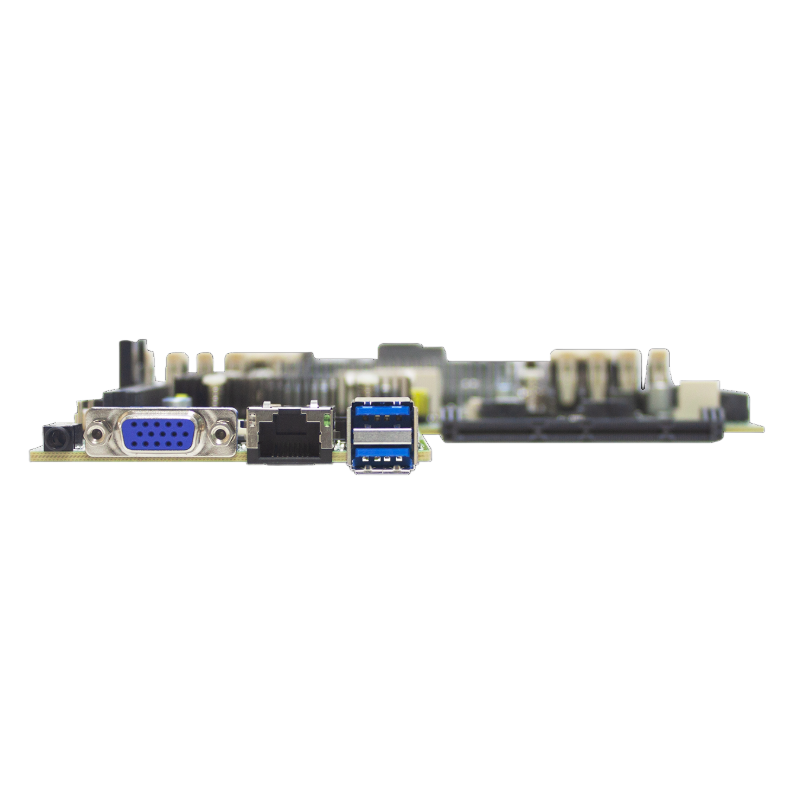

Input-Output
SATA
SATA/PCIe:

12 x SATA 6.0 Gb/s ports
• 2 x SATA 6.0 Gb/s
• 8 x SATA 6.0 Gb/s by MAX I/O
2 x SATA/PCIE 6.0 Gb/s by High-Density Conn. for extension
LAN
• 1 x GbE RJ45 dedicated to BMC management
• 1 x GbE by onboard pin header
USB
• 2 x USB 3.0 Type A connectors
• 2 x USB pin headers support USB3.0/2.0
Display
• 1 x external VGA port
Serial-Port
• 1 x external COM port by Audio Jack
• 1 x internal COM2 pin-header
• 1 x internal COM1 box header share with rear IO (Audio Jack)
Others
• 1 x TPM 2.0 onboard

Additional-Information
Security

* All specifications are subject to change without notice.
