Features:
• Supports Intel® Xeon® 6 Scalable Processors for highest every performance and improved power efficiency
• Supports 32DDR5 DIMM slots for maximum memory performance
• Supports Compute Express Link (CXL2.0)
• Supports MCR DIMMs (8000MHz)
• Supports twelve MCIO x8, total 96 PCIe 5.0 lanes
• Supports one OCP3.0 Mezzanine PCIe 5.0 x16 extension
• Supports two Gen-Z 4C PCIe 5.0 x16, total 32 PCIe 5.0 lanes
• Supports three mini-SAS HD 4i connectors up to twelve SATA3 devices

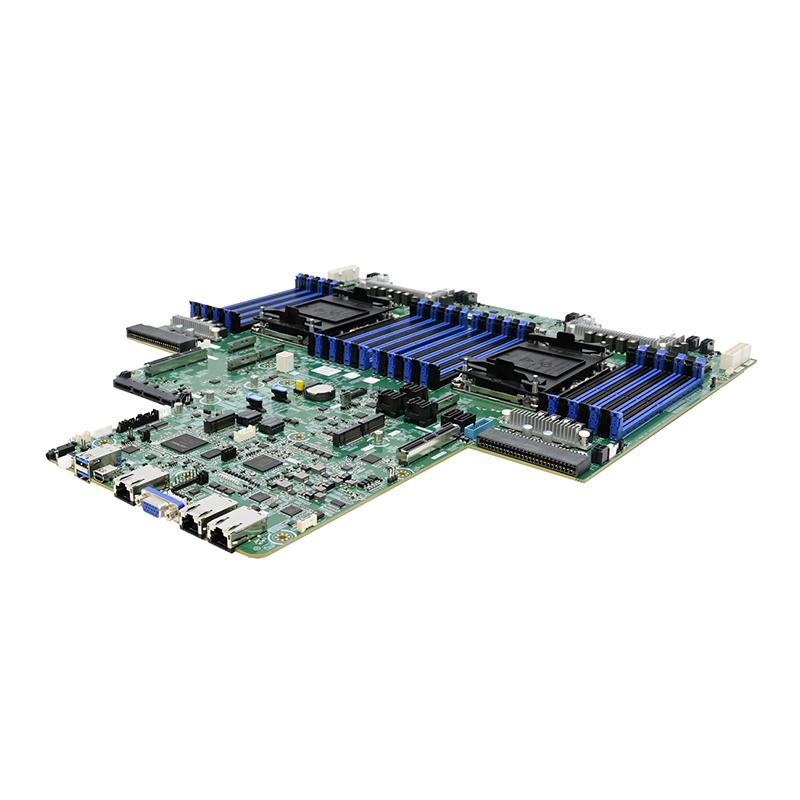

Sirius supports dual Intel® Xeon 6 processors 6500/6700 series with up to 144 CPU cores and TDP up to 350W. It supports up to 8TB DDR5 3DS RDIMMs with 32 memory slots and memory speeds up to 6400MHz. The high-speed expansion I/O includes 2 Gen-Z 4C x16 PCIe5.0/CXL, 1 OCP3.0 x16 PCIe5.0/CXL, 12 MCIO x8 PCIe5.0/CXL, 2 M.2 22110 x4 PCIe5.0/CXL, 2 SATA3.0 7pin connectors (support RAID 0, RAID1, SPAN), 3 mini-SAS HD 4i connectors (support 12 SATA3 devices), 2 USB3 ports on rear, and 1 internal USB3 header (support 2 USB3). Security features include TPM2.0 and PFR by optional.
Features:
• Supports Intel® Xeon® 6 Scalable Processors for highest every performance and improved power efficiency
• Supports 32DDR5 DIMM slots for maximum memory performance
• Supports Compute Express Link (CXL2.0)
• Supports MCR DIMMs (8000MHz)
• Supports twelve MCIO x8, total 96 PCIe 5.0 lanes
• Supports one OCP3.0 Mezzanine PCIe 5.0 x16 extension
• Supports two Gen-Z 4C PCIe 5.0 x16, total 32 PCIe 5.0 lanes
• Supports three mini-SAS HD 4i connectors up to twelve SATA3 devices
| System | ||||
| Dimensions: • mm : 427 x 479 • inches : 16.8 x 18.8 |
||||
| Processor Support: Dual Intel® Xeon 6 processors 6500/6700 series CPU |
||||
| CPU TDP : 350W | ||||
| UPI Speeds : 24GTs | ||||
| Socket Type : Socket E2 (LGA 4710 Socket) | ||||
| System Memory: • DDR5 • 6400MHz (1DPC RDIMM) ; 5200MHz (2DPC RDIMM) • 8000MHz (1DPC MCR) • Total 32 memory slots; 8 channel per CPU (2DPC) • Support up to 8TB (3DS RDIMM) |
||||
|
||||
| On-board Devices | ||||
| SATA: ASMedia ASM1062R SATA(6Gbs) Raid Controller(Support RAID 0, RAID1, SPAN) supports 2 SATA ports 3 ASMedia ASM1164 SATA(6Gbps) Controller) support 12 SATA ports |
||||
| BMC: ASPEED AST2600 |
||||
| Network Controller: 2 x Intel® I210 GbE Ethernet Controller |
||||
| Graphics: • Integrated VGA support by ASPEED AST2600 • Resolution up to 1920x1200 @60Hz 32bpp |
||||
| Additional Information: TPM 2.0 - NUVOTON NPCT760AABYX |
||||

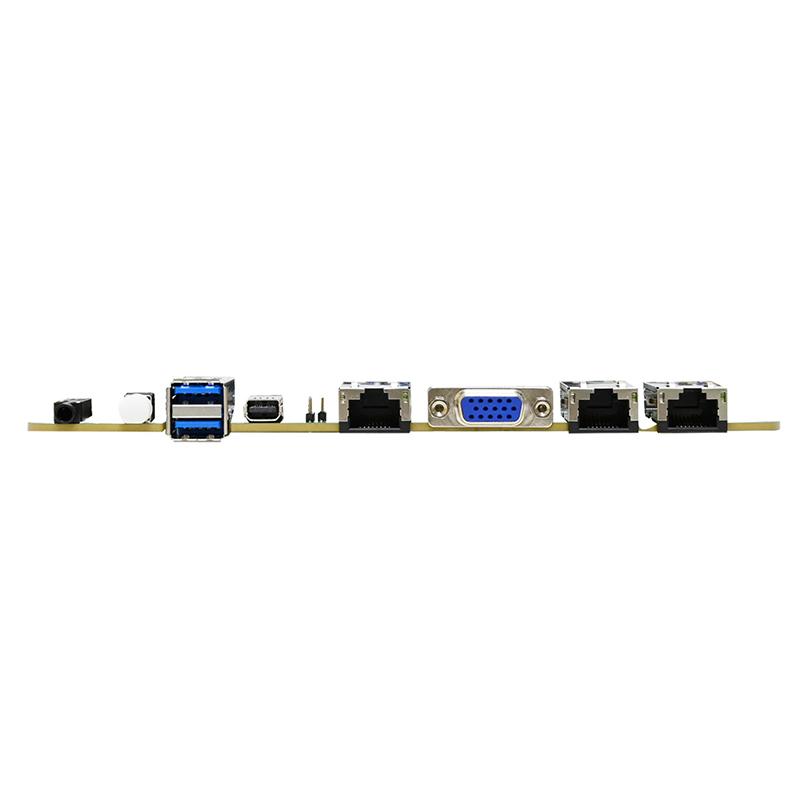

| Input/Output | ||||
| SATA: • 2 x SATA3 7pin by ASM1026R (supports RAID 0/1) • 12 x SATA3 with 3 x mini-SAS conn. by 3 ASM1164 |
||||
| LAN: • 2 x RJ45 connector for dual port GbE • 1 x RJ45 connector (for BMC management port) |
||||
| USB: • 1 x USB3.0 double-stake Type A connector supports two USB3.0 ports • 1 x USB pin headers supports USB3.0 |
||||
| Display: • 1 x DB-15 VGA connector • 1 x mini-display port |
||||
| Serial Port: 1 x COM connector (Audio Jack) |
||||
| Others: • 2 x Gen-Z 4C PCIe5.0/CXL x16 • 1 x OCP 3.0 PCIe5.0/CXL x16 • 12 x MCIO x8 support PCIe5.0/CXL (5 from CPU0 + 7 from CPU1) • 2 x M.2 each support PCIe5.0 x4 |
||||
| Additional Information: Security: • 1 x M.2 Connector available for PFR extension (option) • TPM 2.0 on-board |
||||
* All specifications are subject to change without notice.
