SB204-ZL is a high-performance, enterprise-grade storage server that supports the AMD EPYC™ 8000-series processor. It features Tri-mode drive bays with tool-less HDD/SSD installation, allowing effortless drive upgrades and maintenance

PCICASE Model No: SB204-ZL
Manufacturer Model No: XP1-S204ZLXX

Key Features

  • FEATURE
  • Short-depth design to fit in standard 1M rack cabinet
  • Titanium level high efficiency redundant power supply
  • 3 x PCIe Gen5 X16 slot expansions, 2 x 10GbE plus BMC management ports
  • Built in AIC Zelus server grade AMD EPYC™ 8000-series processor Siena/Sorano (Zen5) MB
  • 24 x 3.5” + 4 x 2.5” Tri-mode drive bay tool-less HDD/SSD drive design

SB204-ZL is a high-performance, enterprise-grade storage server that supports the AMD EPYC™ 8000-series processor. It features Tri-mode drive bays with tool-less HDD/SSD installation, allowing effortless drive upgrades and maintenance. Equipped with titanium-level high-efficiency redundant power supplies, the SB204-ZL ensures reliable operation while saving energy. Its compact, short-depth design fits standard 1-meter rack cabinets, making it ideal for high-density data centers with limited space.

Dimensions

  • mm: 438 x 838 x 88
  • inches: 17.2 x 33 x 3.46

Motherboard

  • AIC Server Board Zelus

Processor

  • Processor Support: AMD EPYC™ 8000-series processor Siena (Zen4) / Sorano (Zen5) microarchitecture; (Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system)
  • Socket Type: Socket SP6

System Memory

  • DDR5 4800MT/s RDIMM; Total 6 memory slots

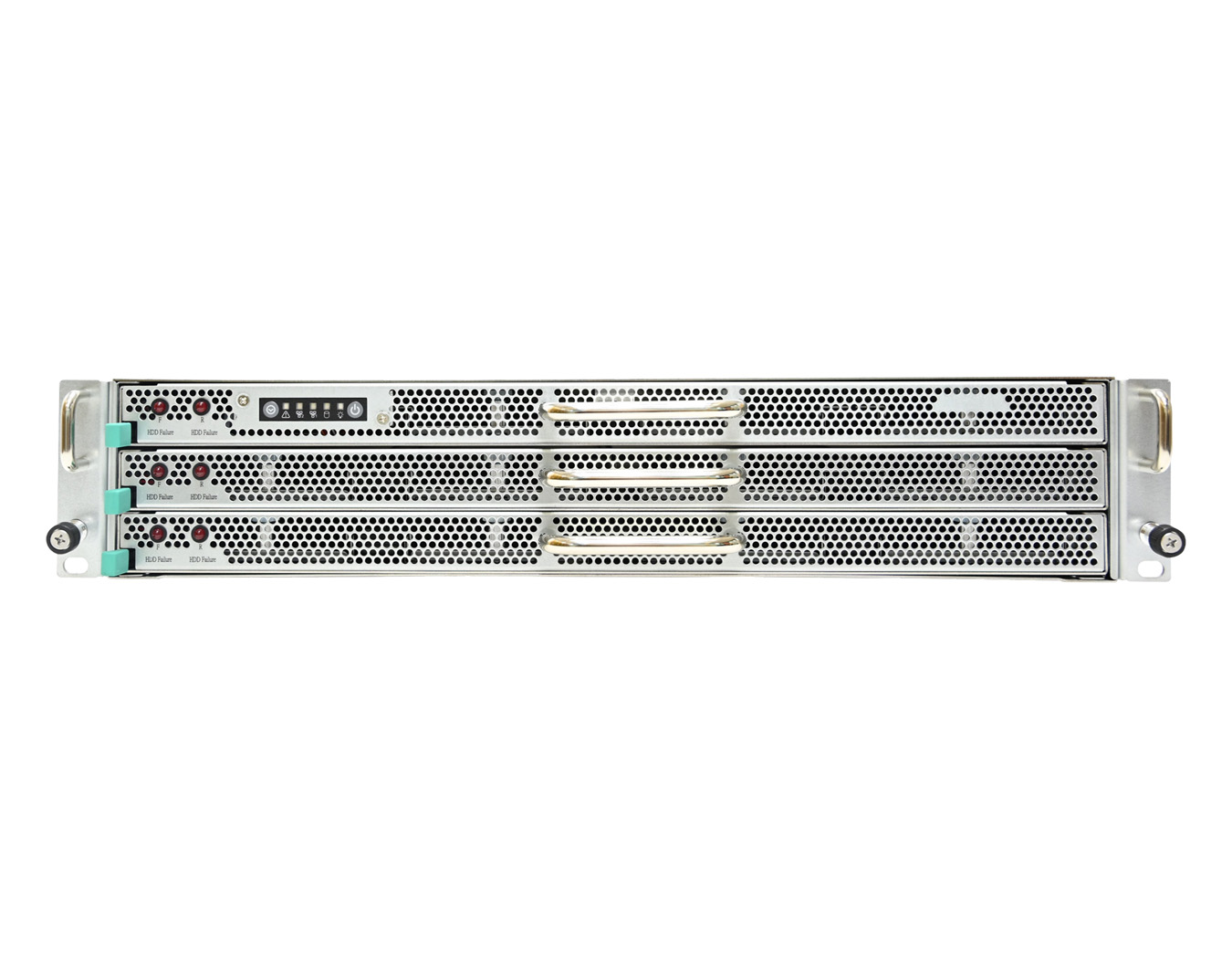

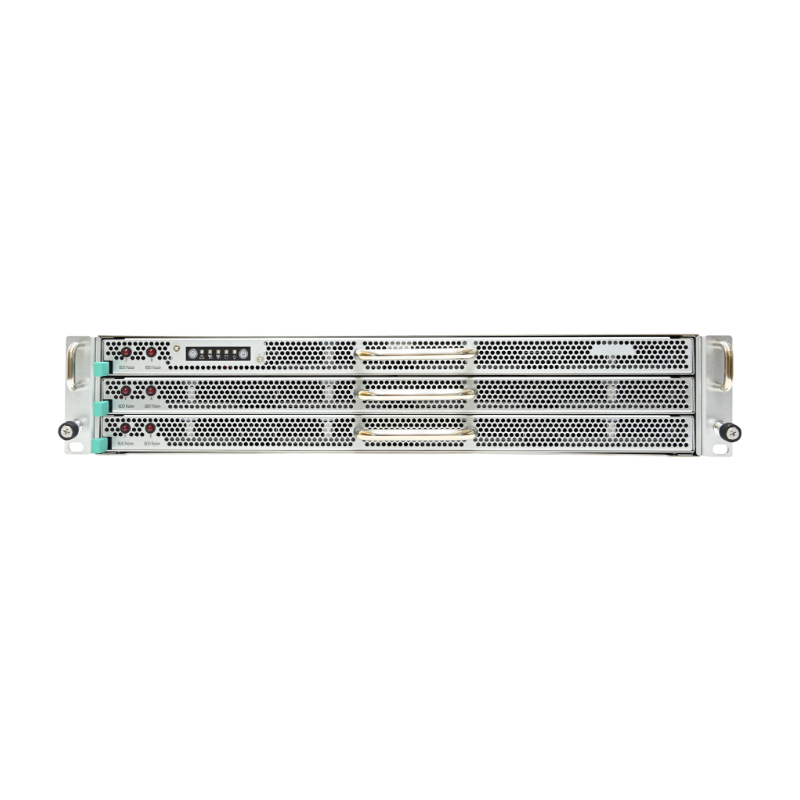

Front Panel

  • System power, system reset and UID switch

LEDs

  • System power; HDD; LAN 1; LAN 2; UID; Warning

Drive Bays

  • External: 4 x 2.5" hot-swap
  • Internal: 24 x 3.5" hot-swap

Expansion Slots

  • 3 x PCIe Gen5 X16 slots

Expander Board

  • 12G EOB expander card (35X) DB-EXPD28-TY with internal 4 x Slimline 8i connectors and 2 x 8644 connectors

System Bios

  • Bios Type: AMI UEFI BIOS
  • Bios Features: ACPI; PXE; AC loss recovery; IPMI KCS interface; SMBIOS; Serial console redirection; SRIOV; TPM; PCIe hotplug

On Board

  • Devices: SATA :; 2 x SATA 7-pin connectors with ASM1062R SATA 6Gbps controller (Supports RAID 0, RAID 1, SPAN)
  • Devices BMC: Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor
  • Devices Network Controllers: Realtek RTL8211FS GbE for BMC dedicate management port (NCSI shared NIC - reserved for Broadcom NIC); Broadcom BCM57416/BCM5720L co-design supports 2 x 10G Base-T/1GbE
  • Devices Graphics: Integrated VGA support by ASPEED AST2600 Resolution up to 1920x1200 @60Hz 32bpp

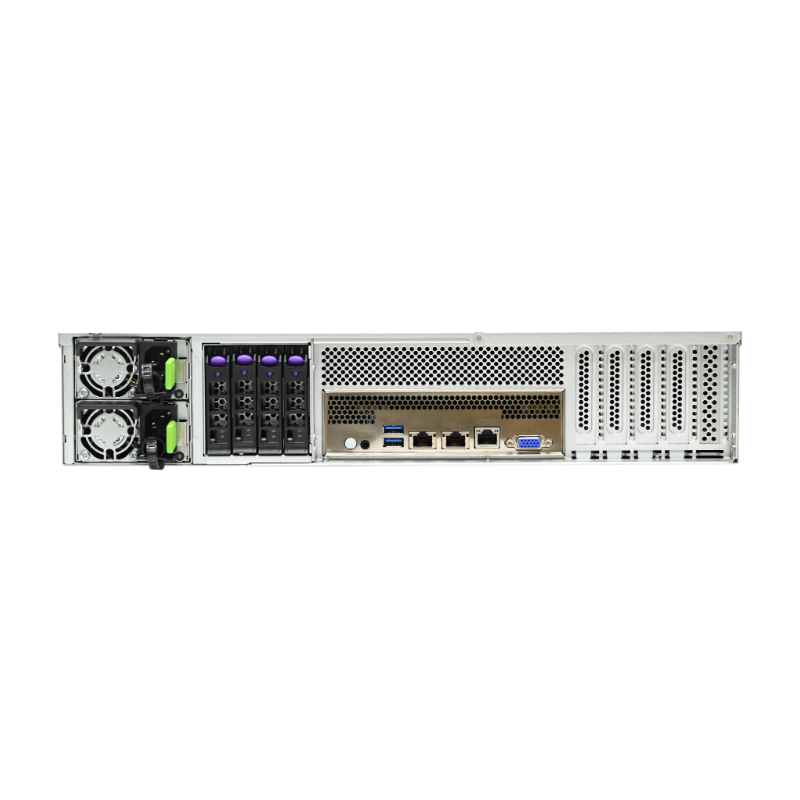

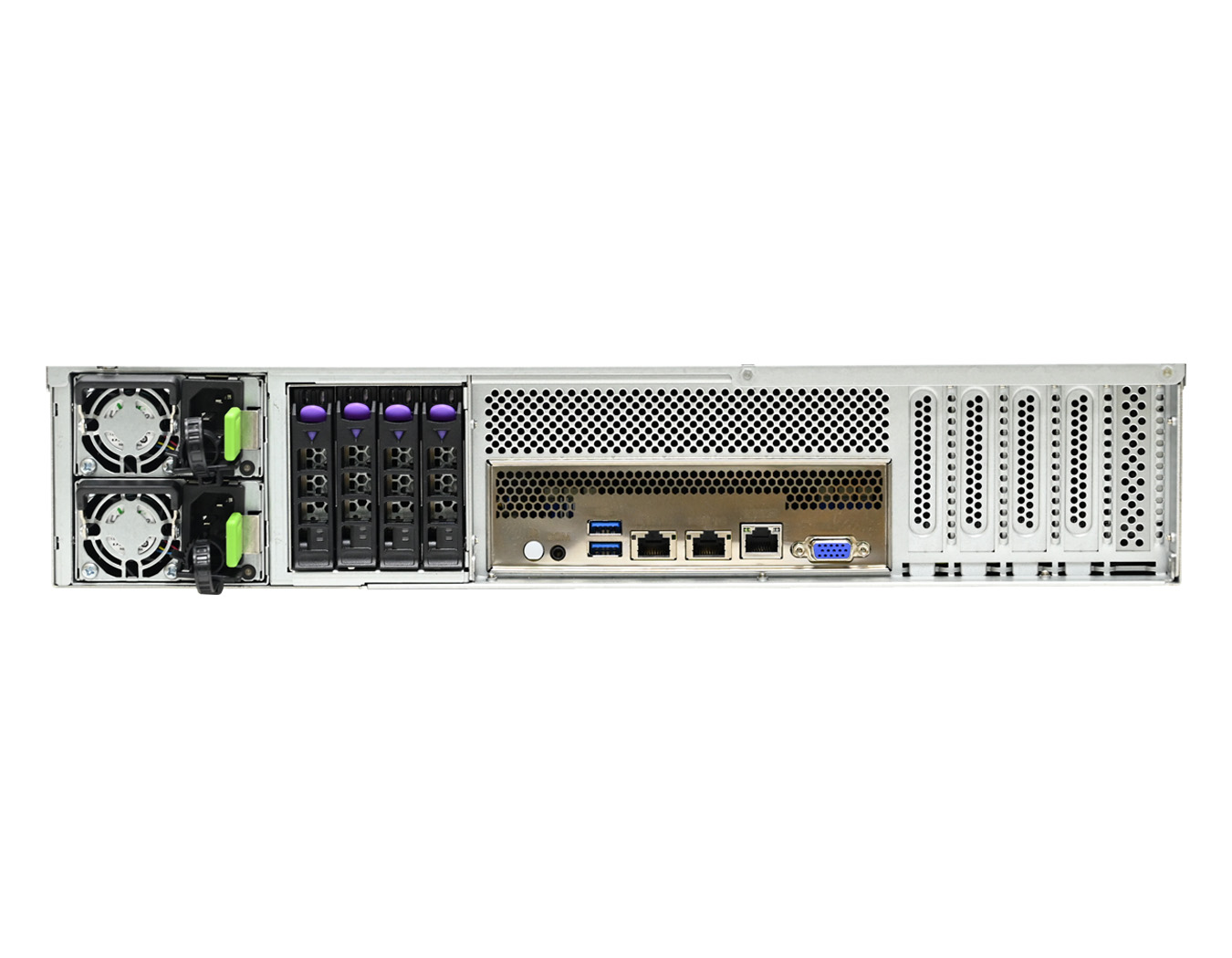

Rear I/O

  • LAN: 2 x RJ45 connectors for dual port 10GbE/GbE; 1 x RJ45 connector (for BMC management port)
  • USB: 2 x USB 3.2 Gen 1 double-stack Type A connectors
  • Video Output: 1 x external VGA port
  • Serial Port: 1 x external COM port
  • Other(s): 1 x UID switch + LED

Power Supply

  • 1200W 1+1 redundant PSU PMBus 1.2 80+ Titanium

System Cooling

  • 4 x 60x38mm PWM fans

System Management

  • Baseboard Management Controller; Intelligent Platform Interface 2.0 (IPMI 2.0); iKVM, Media Redirection, IPMI over LAN, Serial over LAN; SMASH support; HTML5; Redfish

Environmental Specifications

  • Storage temperature: -10°C(14°F) ~ 60°C(140°F); Operating temperature: 0°C(32°F) ~ 35°C(95°F); Storage operating humidity: 5%~95% non-condensing

Gross Weight (W/PSU& Rail)

  • kgs: 36
  • lbs: 79.4

Packaging Dimensions (W x D x H)

  • mm: 584 x 1015 x 254
  • inches: 23 x 39.9 x 10

Datasheet

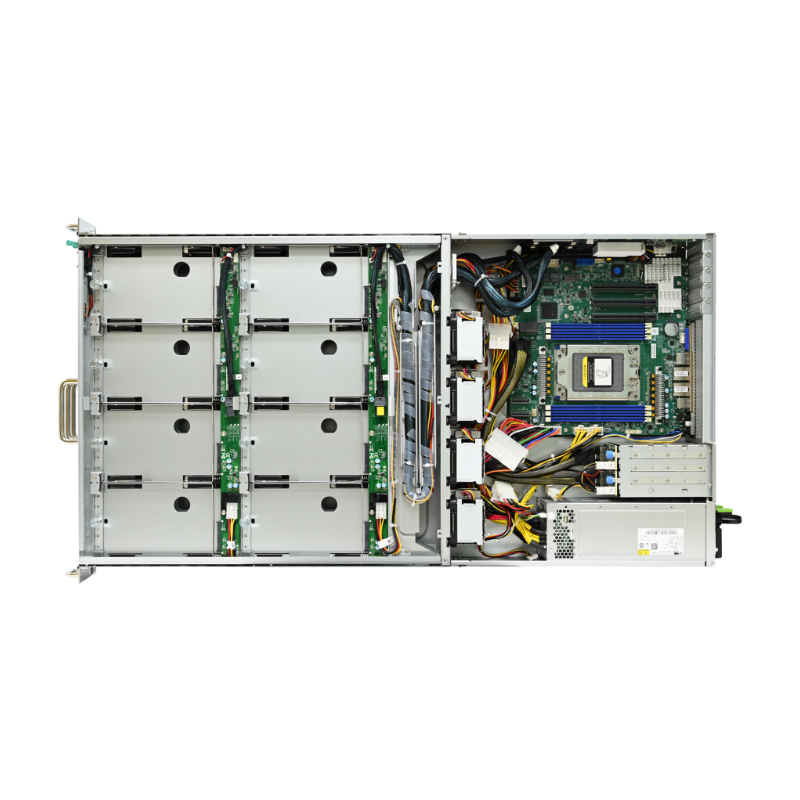

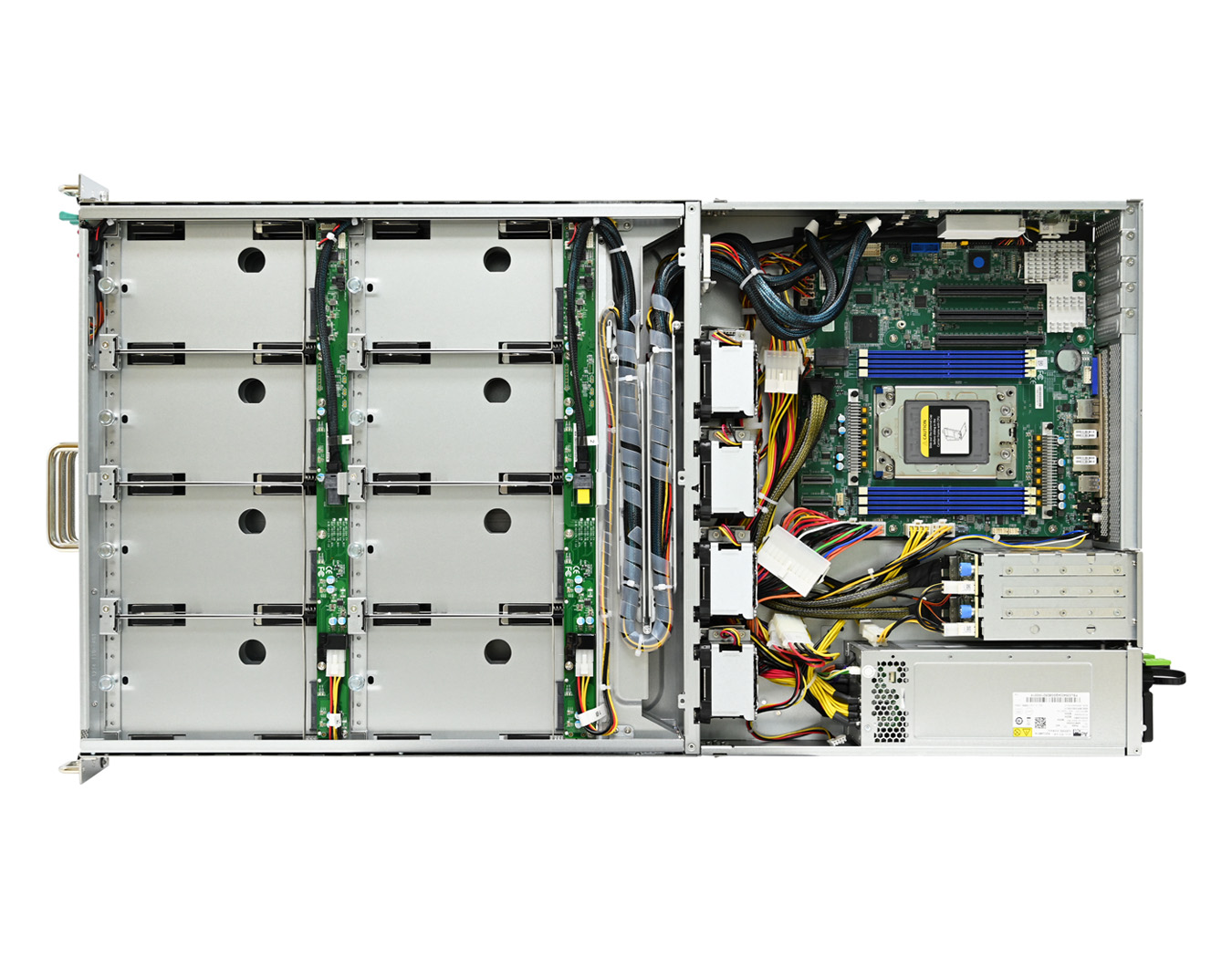

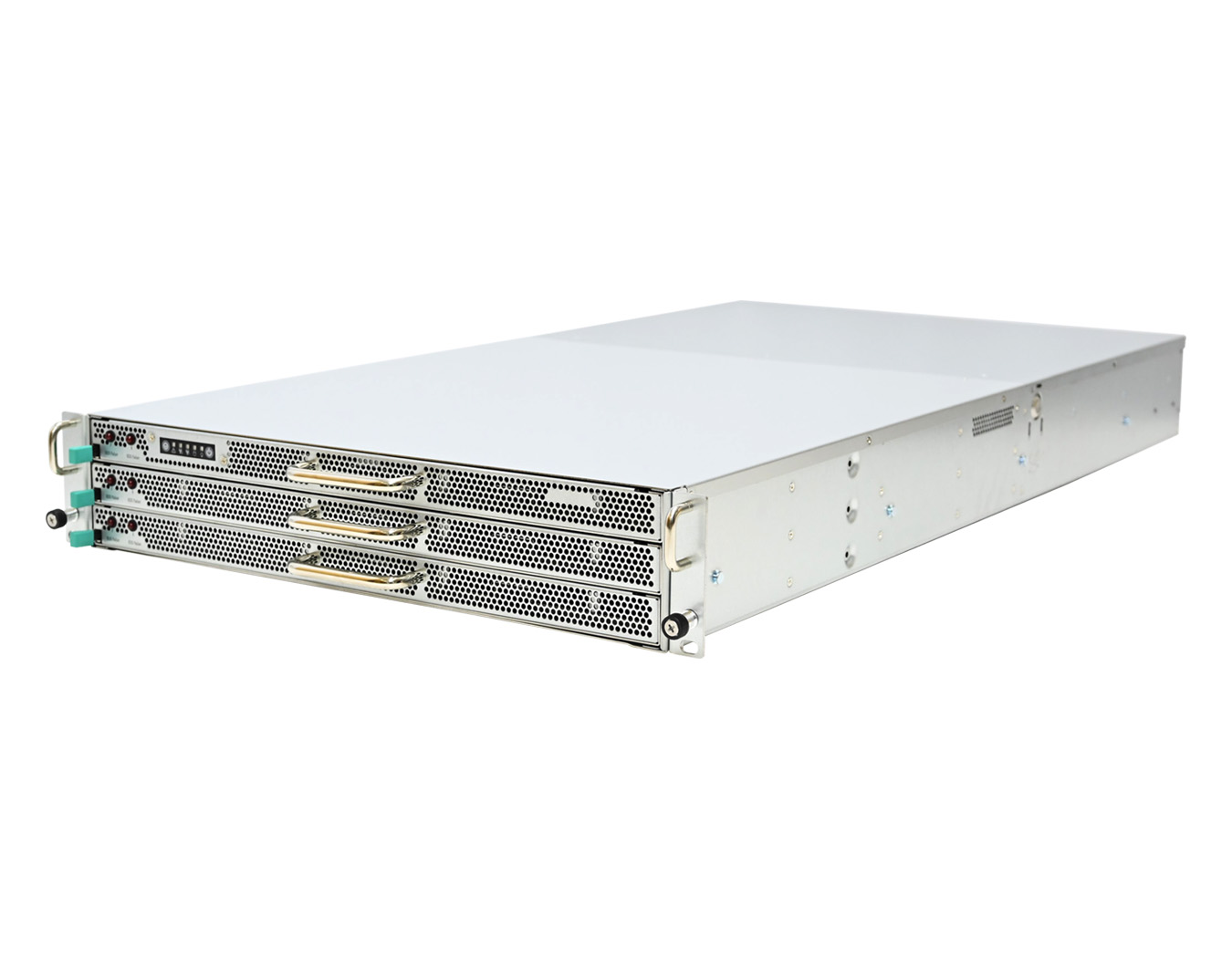

Product Images

SKU: XP1-S204ZLXX

24x 3.5” plus 4x 2.5” Tri-Mode drive bay,2MS + Zelus (AMD EPYC™ 8000-series processor Siena/Sorano),3x PCIe GEN5 X16 slot expansions,800W Titanium level high efficiency redundant power supply
