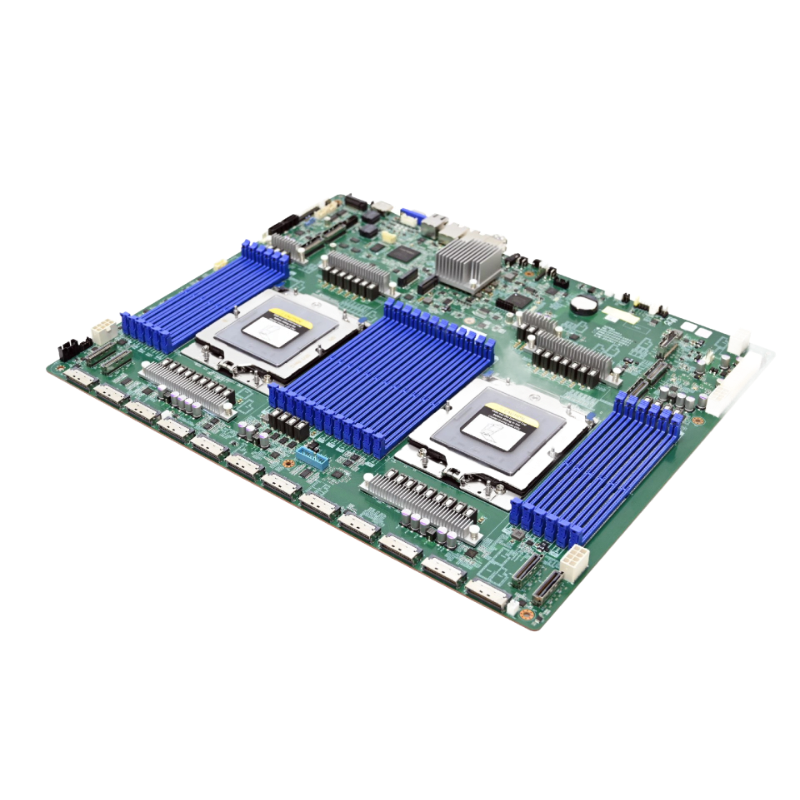

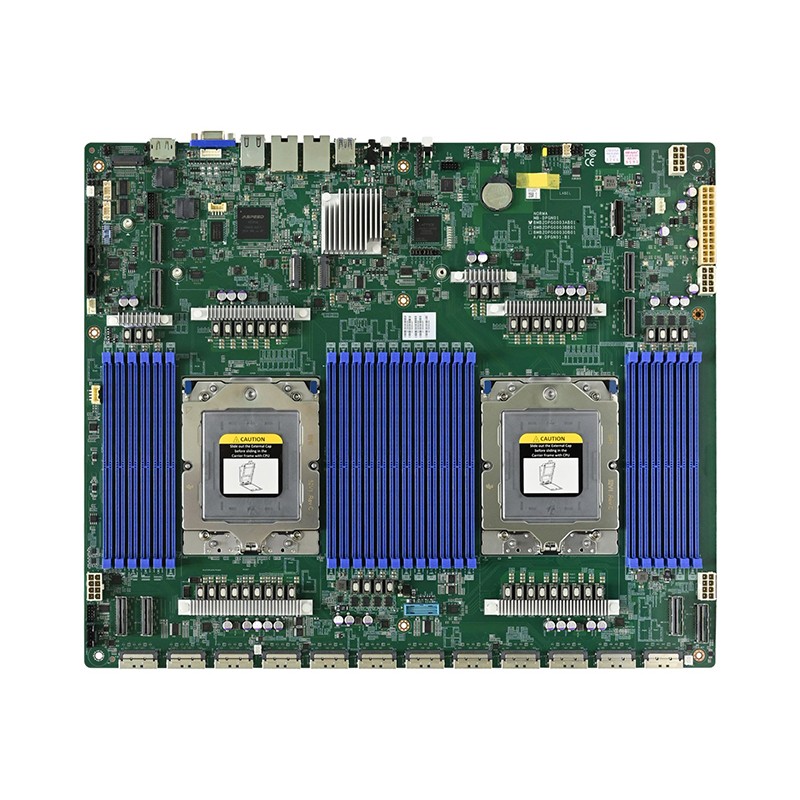

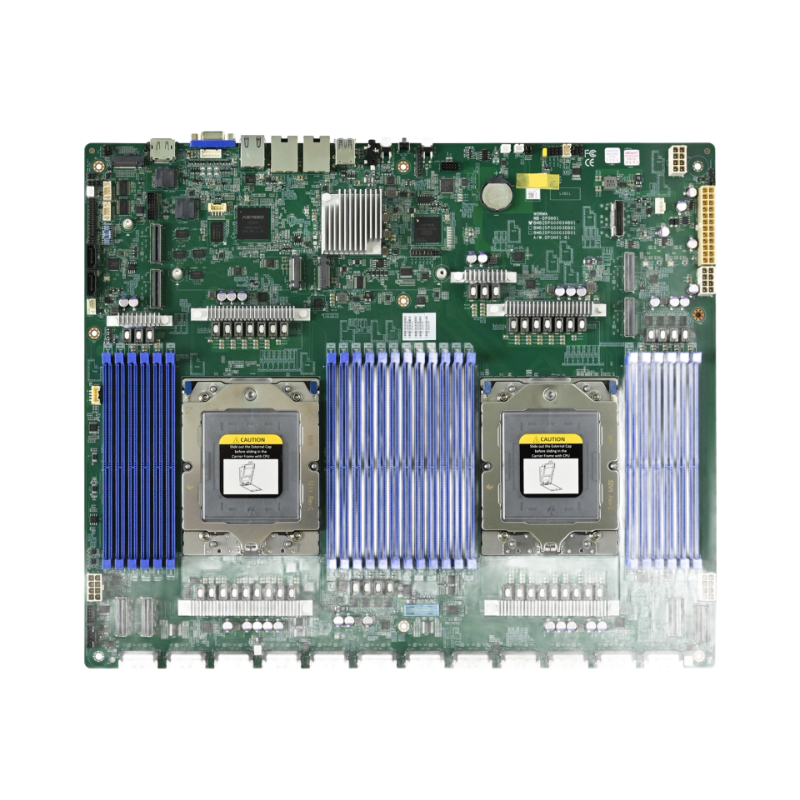

Norma supports dual AMD EPYC™ 9004/9005-series processors with up to 128 CPU cores and TDP up to 400W

System
Dimensions
• mm : 425 x 350.35
• inches : 16.7 x 13.8
Processor-Support
Dual AMD EPYC™ 9004/9005-series processor
CPU-TDP
400W
UPI-Speeds
Socket-Type
Socket SP5 (LGA 6096)
System-Memory
DDR5 with ECC
• 6000MHz (1DPC RDIMM by Turin)
• 4800MHz (1DPC RDIMM by Genoa) Total 24 memory slots; 12 slots per CPU (1DPC) Supports up to 6TB (3DS RDIMM)
 Expansion-Slots
Total support 160 lanes of PCIe5.0
• PCIe expansion
- 20 x MCIO PCIe Gen5 x8 lanes
• M.2
(option with above PCIe expansion, default: MCIO)
- 2 x M.2 NVMe PCIe Gen5
• 1 x USB 3.0 double-stack Type-A connector
• 1 x USB pin header supports two USB 3.0 Gen1
• 1 x USB pin header supports two USB 2.0

System-BIOS
BIOS-Type
AMI UEFI BIOS (64M ROM size)
BIOS-Features
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hot plug

On-board-Devices
SATA
• 1 x ASMedia ASM1062R SATA (6Gbs) RAID controller (Support RAID 0, RAID 1, SPAN) supports 2 SATA ports
• 2 x ASMedia ASM1164 SATA (6Gbs) controller supports 8 SATA ports
BMC
ASPEED AST2600
Network-Controller
Intel® I210 GbE Ethernet Controller
Graphics
• Integrated VGA support by ASPEED AST2600
• Resolution up to 1920 x 1200 @60Hz 32bpp
Additional-Information
• TPM 2.0 - NUVOTON NPCT760AABYX
• TCM 2.0 interface for extension
• PFR interface for extension (Default: N/A; optional by SKU)

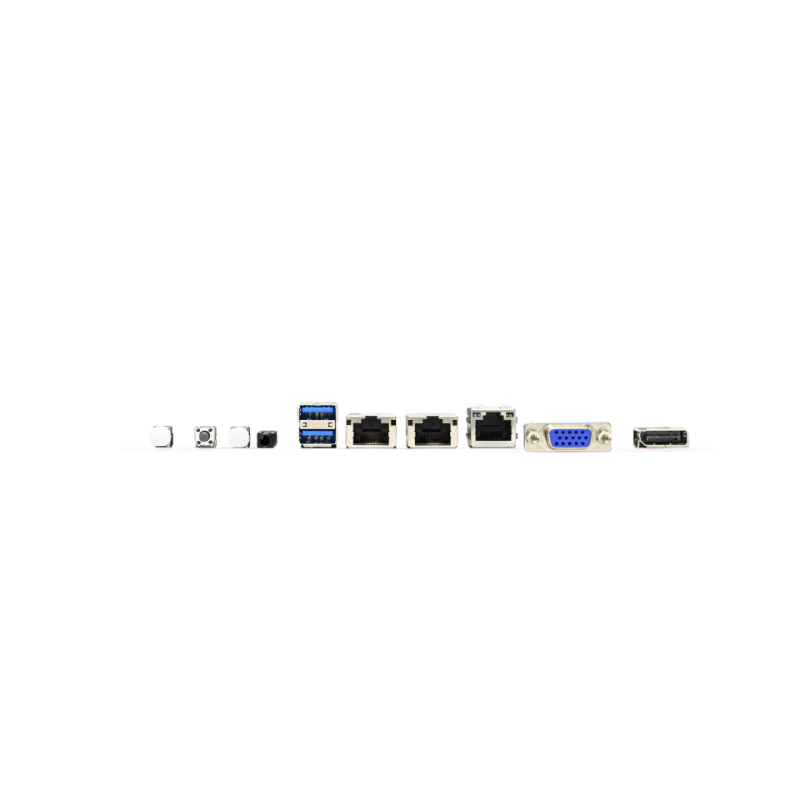

Input-Output
SATA
• 2 x SATA3.0 7-pin by ASM1062R (supports RAID 0/1)
• 1 x Slimline connector (up to 8 SATA ports) by ASM1164
LAN
• 2 x RJ45 10GbE connectors
• 1 x RJ45 1GbE connector (for BMC management port)
USB
• 1 x USB 3.0 double-stack Type-A connector
• 1 x USB pin header supports two USB 3.0 Gen1
• 1 x USB pin header supports two USB 2.0
Display
1 x VGA connector
Serial-Port
1 x COM connector (phone jack)
Others
Total support 160 lanes of PCIe5.0
• PCIe expansion
- 20 x MCIO PCIe Gen5 x8 lanes
• M.2 (option with above PCIe expansion, default: MCIO)
- 2 x M.2 NVMe PCIe Gen5

Additional-Information
Security
• Security
- 1 x M.2 connector available for PFR extension
- TPM 2.0 onboard
- TCM 2.0 with 2x8 connector (optional)
* All specifications are subject to change without notice.
