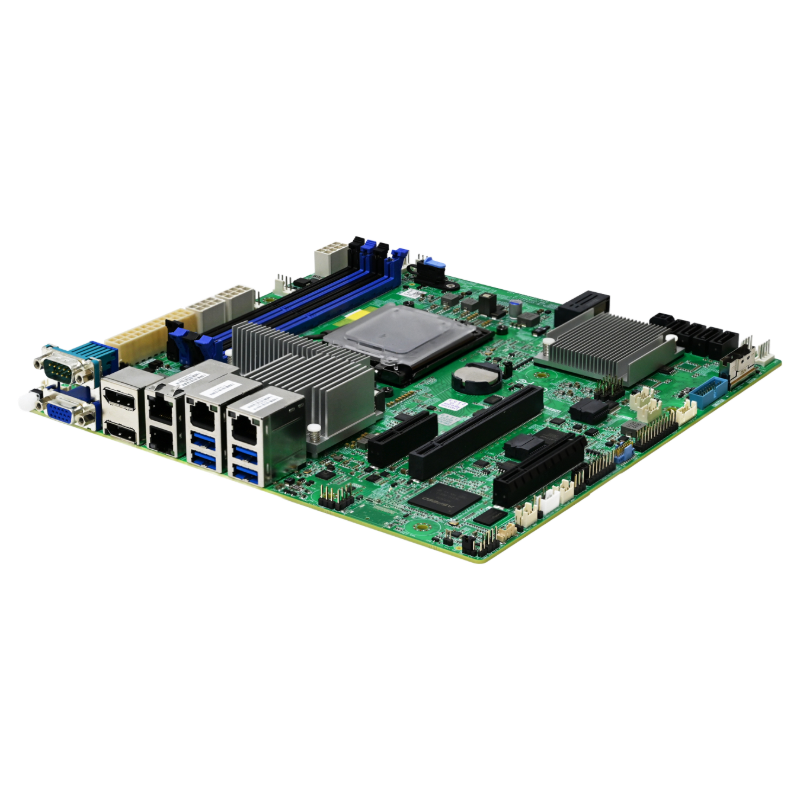

Merak supports single AMD EPYC™ 4005 and Ryzen™ 7000/8000/9000 Series processors with TDP up to 170W.

PCICASE Model No: IPC-MB-Merak
Manufacturer Model No: BMB2UPA0001A/B
Please Call Sales

Features
• Supports AMD EPYC™ 4005/4004 Series / and Ryzen™
7000/8000/9000 Series processors with up to 170W TDP
• Supports 4 x DDR5 UDIMM slots up to 256GB (4x64GB)
• Supports DDR5 ECC/Non-ECC UDIMMs (5600MHz)
• Supports AMD B650E/B850 chipset
• Supports up to 20 lanes of PCIe Gen5 from CPU,
including 1 x16 or 2 x8 + 1 x4 slots
• SKU A: Supports dual-port 10GbE Base-T + 8 x SATA3
(SFF-8654 8i) + 4 x SATA3 onboard
• SKU B: Supports dual-port 1GbE Base-T + 8 x SATA3
(SFF-8654 8i) + 4 x SATA3 onboard
• Supports 1 x 2.5GbE Ethernet + 1 x dedicated GbE BMC
management port
• Supports TPM 2.0 onboard

Merak supports single AMD EPYC™ 4005 and Ryzen™ 7000/8000/9000 Series processors with TDP up to 170W. It supports up to 256GB DDR5 ECC/Non-ECC UDIMMs with four memory slots and memory speeds up to 5600MT/s (1DPC).
The high-speed expansion I/O includes 1 × PCIe Gen5 x16 or 2 × PCIe Gen5 x8 (via PCIe Mux), 1 × PCIe Gen5 x4, 2 × M.2 M-Key PCIe Gen4 x2 2280 slots, 8 × SATA3 ports via SFF-8654 8i and 4 × SATA3 onboard 7P connectors. It also features with dual-port 10GbE or 1GbE Base-T networking (depending on SKU), 1 × 2.5GbE Ethernet, a dedicated GbE BMC management port, dual DisplayPort++, VGA, RS232, USB 3.2 Gen2, TPM 2.0, and AST2600 BMC support.

System

Dimensions
• mm : 245 x 245
• inches : 9.6 X 9.6
Processor-Support
AMD EPYC 4005 Series Processor
CPU Interconnection
Single Socket (1P)
Socket-Type
Socket AM5 (LGA1718)
System-Memory
• DDR5 ECC/non-ECC UDIMM
- Up to 5600MHz (1DPC) /5200MHz (2DPC)
• Total 4 memory slots
Expansion-Slots
• PCIe slots
- 1 x PCIe Gen5 x16 or 2 x PCIe Gen5 x8
- 1 x PCIe Gen5 x4
• M.2 2280 support
- 2 x M.2 M-Key PCIe Gen4 x2 2280 (B650E/B850)

System-BIOS
BIOS-Type
AMI UEFI BIOS
BIOS-Features
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hotplug
• TPM 2.0 Support

On-board-Devices
SATA
• 8 x SATA3.0 (by 2xJMB585, Slimline 8i connector)
• 4 x SATA3.0 (by FCH, SATA 7P on board)
IPMI
Aspeed AST2600
Network-Controller
• Realtek RTL8211 GbE PHY for dedicated BMC management port
• Dual 10GbE/1GbE Base-T by Broadcom 57416/5720L (depending on SKU, NCSI Shared NIC)
• Intel® I226-LM Ethernet Controller for single-port 2.5GbE (WOL support)
Graphics
• 1x VGA in pin header

Input-Output
SATA
• 8 x SATA3.0 (by 2xJMB585, Slimline 8i connector)
• 4 x SATA3.0 (by FCH, SATA 7P on board)
LAN
• 2 x RJ45 10GbE or 1GbE (by SKU, Data/BMC MGMT Shared)
• 1 x RJ45 2.5GbE
• 1 x RJ45 GbE dedicated for BMC management
USB
• 2 x USB3.2 double-stack Type-A connectors
VGA
• 1 x DB-15 VGA connector
• 2 x DisplayPort++ (Dual-Mode DisplayPort)
Serial-Port
• 1 x RS232 D-Sub connector

Additional Information
• PCIe slots
- 1 x PCIe Gen5 x16 or 2 x PCIe Gen5 x8
- 1 x PCIe Gen5 x4
• M.2 support
- 2 x M.2 M-Key PCIe Gen4 x2 2280
* All specifications are subject to change without notice.

Merak_Datasheet Size : 1 MB  Download

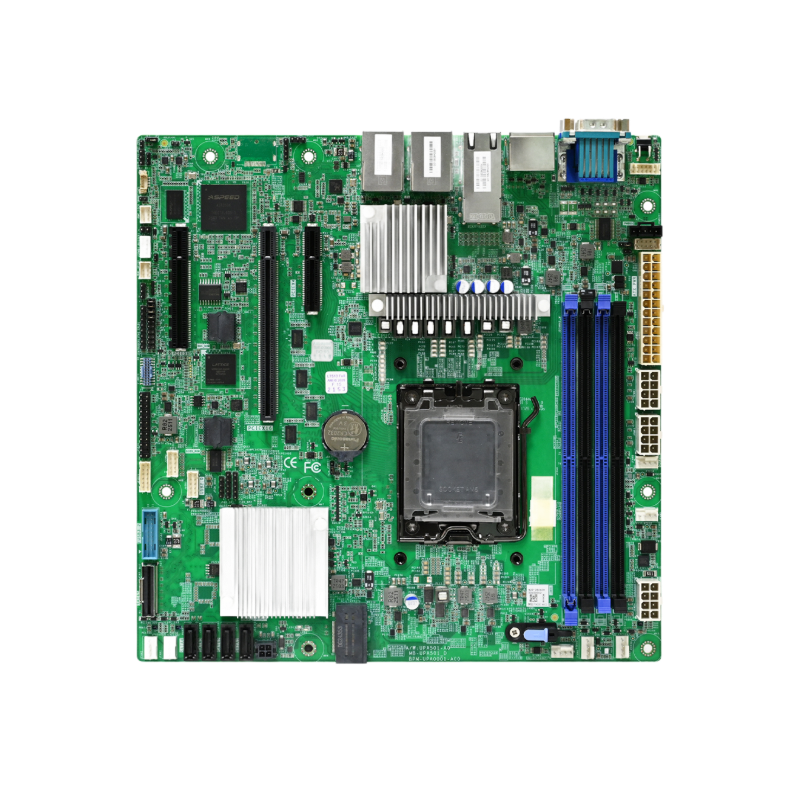

Merak_Top Size : 1000 KB  Download
Merak_Rear45 Size : 420 KB  Download

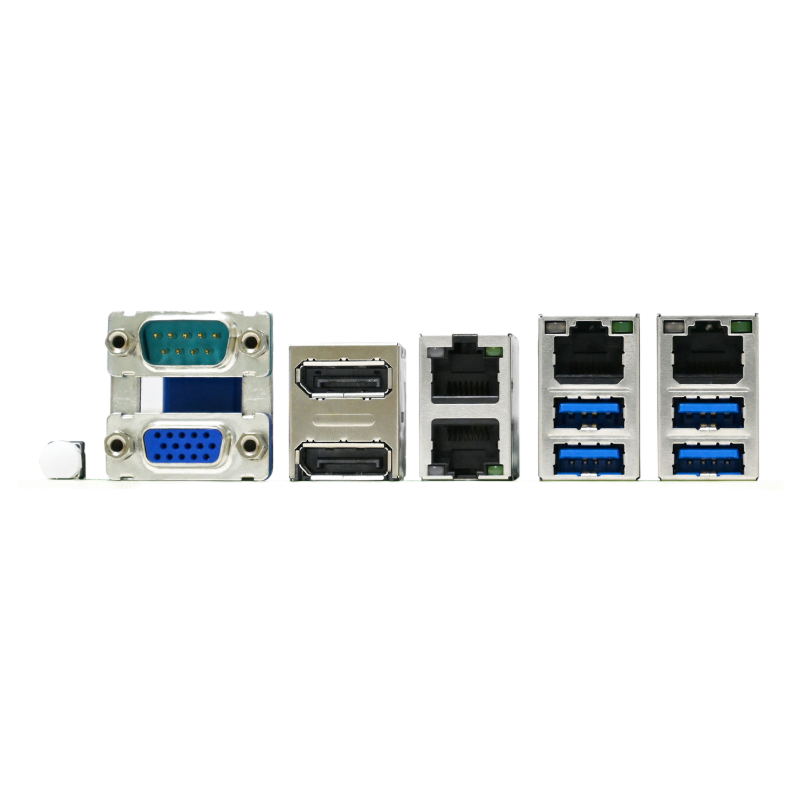

Merak_Rear I/O Size : 225 KB  Download
