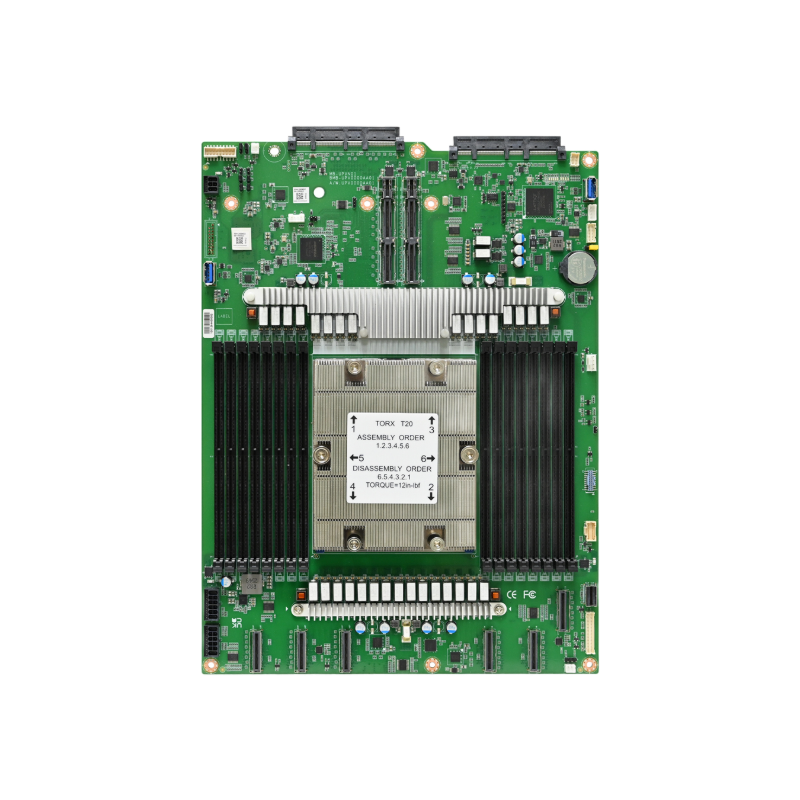

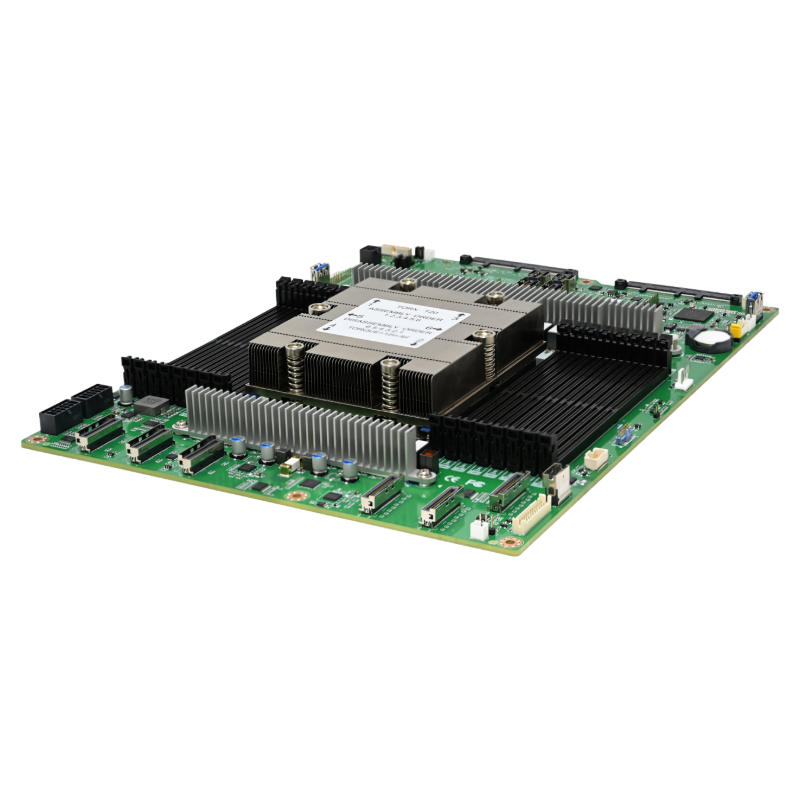

Jupiter is a M-DNO B335 formfactor that designed as a high-performance, with AMD EPYC™ 9006-series processor, single socket up to processor TDP 600W supported motherboard.

System
Dimensions
• mm : 250 x 335
• inches : 13.2 x 9.8
Processor-Support
Single AMD EPYC™ 9006 platform
CPU-TDP
• Supports CPU TDP (600W)
UPI-Speeds
N/A
Socket-Type
LGA 7536 SP7 Socket
System-Memory
• DDR5 up to 8000MHz RDIMM (1DPC); MRDIMM up to 12,800MHz
• 16-channel memory per processor
Expansion-Slots
• 6 x PCIe Gen6 x8 MCIO connectors
• 2 x PCIe Gen6 x16 multi-track connectors
• 1 x PCIe Gen6 x16 OCP3.0 slot
• 1 x PCIe Gen4 x4 Slimline connector

System-BIOS
BIOS-Type
Insyde UEFI BIOS
BIOS-Features
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hotplug

On-board-Devices
SATA
N/A
BMC
From DC-SCM Module
Aspeed AST2700 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN,
Serial over LAN
• HTML5
• Redfish
Network-Controller
From DC-SCM Module
Realtek RTL8211FS 1GbE for BMC dedicated management port
• Intel® I210 single port 1GbE (with NCSI BMC)
Graphics
From DC-SCM Module
• Mini-DP port supported by ASPEED AST2700
• Resolution up to 1920x1200 @60Hz 32bpp
Additional-Information
N/A

Input-Output
SATA
N/A
LAN
From DC-SCM Module
• 1 x RJ45 GbE connector for BMC dedicated management port
• 1 x RJ45 1GbE port (from I210 with NCSI BMC)
USB
2 x USB 3.2 Gen1 Type-A
Display
N/A
Serial-Port
N/A
Others
N/A

Additional-Information
Security
TPM 2.0 on board
* All specifications are subject to change without notice.
