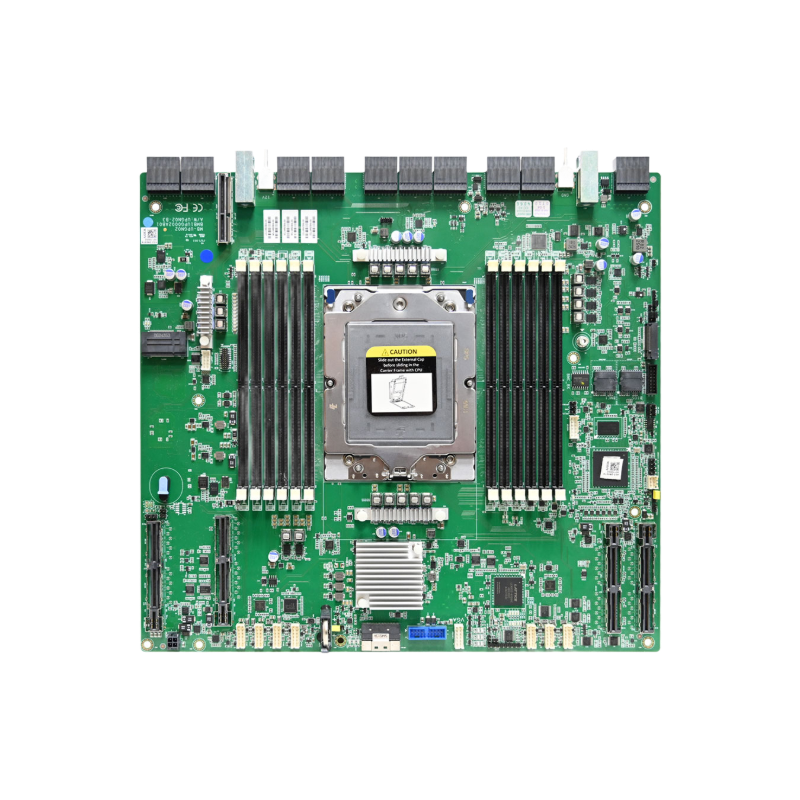

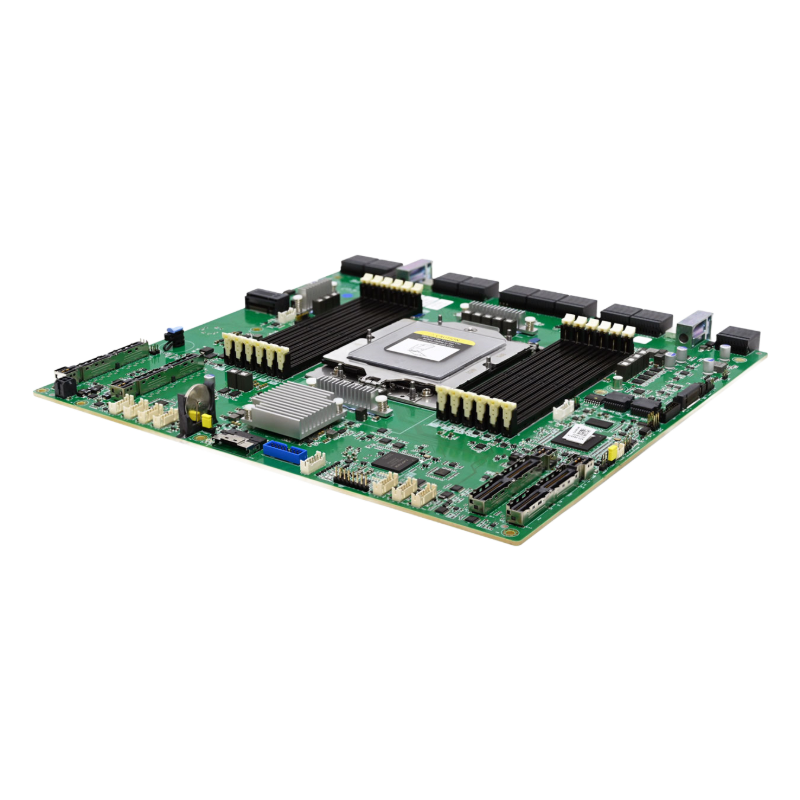

Hercules supports single AMD EPYC™ 9004/9005-series processors with up to 128 CPU cores and TDP up to 400W

System
Dimensions
mm : 317.8 x 293
inches : 12.5 x 11.5
Processor-Support
Single AMD EPYC™ 9004/9005-series processor
CPU-TDP
400W
UPI-Speeds
Socket-Type
Socket SP5
System-Memory
DDR5 with ECC
• 6000MHz (1DPC RDIMM by Turin)
• 4800MHz (1DPC RDIMM by Genoa) Total 12 memory slots Supports up to 3TB (3DS RDIMM)
Expansion-Slots
Total support 128 lanes of PCIe5.0
• PCIe slots
- 10 x ExaMax connectors to backplane, total 64 x PCIe Gen5 lanes
- 3 x Multi-trak connectors PCIe Gen5/CXL x16 lanes for PCIe slots
- 1 x Multi-trak connector PCIe Gen5 x16 lanes for AIC design internal Ethernet module (2 x 100GbE)
• M.2
- 2 x M.2 2280 PCIe Gen3

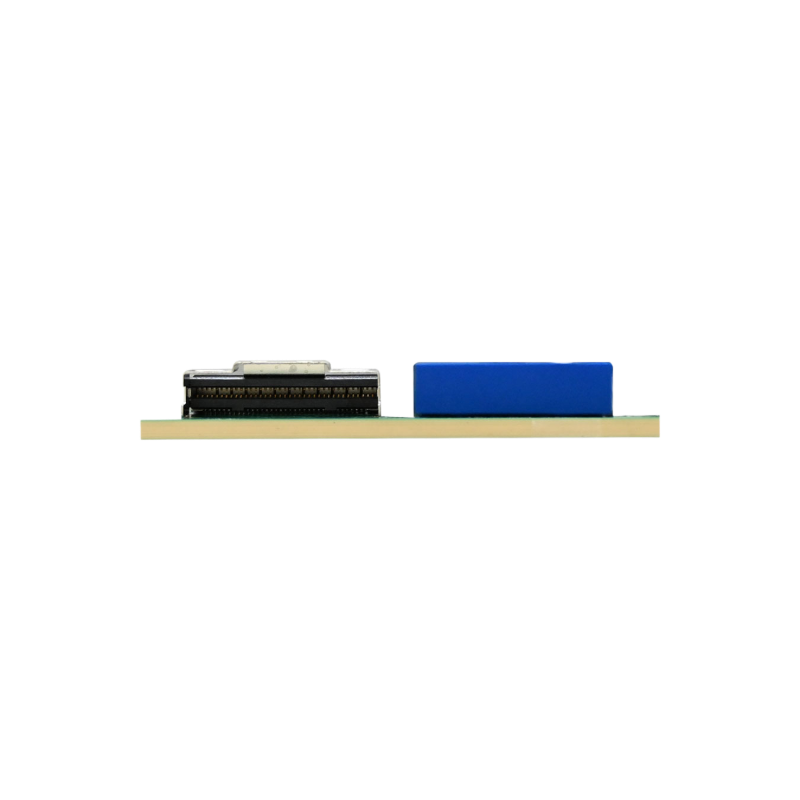

• Rear IO
- 2 x USB 3.1 Type A connectors

System-BIOS
BIOS-Type
AMI UEFI BIOS (64M ROM size)
BIOS-Features
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hot plug

On-board-Devices
SATA
BMC
ASPEED AST2600
Network-Controller
Intel® I210 GbE Ethernet Controller
Graphics
• Integrated VGA support by ASPEED AST2600
• Resolution up to 1920 x 1200 @60Hz 32bpp
Additional-Information
TPM 2.0 - NUVOTON NPCT760AABYX

Input-Output
SATA
LAN
• 2 x RJ45 connectors for dual port 10GbE
• 1 x RJ45 connector (for BMC management port)
USB
2 x USB 3.2 Gen1
Display
1 x VGA connector
Serial-Port
1 x SFF-8654 Slimline connector (for rear I/O board connection)
Others
• PCIe slots
- 10 x ExaMax connectors to backplane, total 64x PCIe Gen5 lanes
- 3 x Multi-trak connectors PCIe Gen5/CXL x16 lanes for PCIe slots
- 1 x Multi-trak connector PCIe Gen5 x16 lanes for AIC design internal Ethernet module (2 x 100GbE)
• M.2
- 2 x M.2 2280 PCIe Gen3

Additional-Information
Security
• Security
- 1 x M.2 connector available for PFR extension (Optional)
- TCM 2.0 with 2x8 connector
- TPM 2.0 onboard
* All specifications are subject to change without notice.
