Key Features
• 2U high-availability support 26 x hot swap Gen5 U.2 dual port drives
• Broadcom 89144 PCIe Gen5 switch base bridge board
• Supports dual controllers up to 8 x PCIe Gen5 x16 slots
• Designed for low latency and high performance applications
• PCIe Gen5 interface to support NVMe over fabrics (3rd party cards)
• Fully redundant, fault-tolerant system supporting hot swap design for easy maintence and management
• Intelligent Enclosure Managment with IPMI 2.0 compliance
• Tool-less tray design

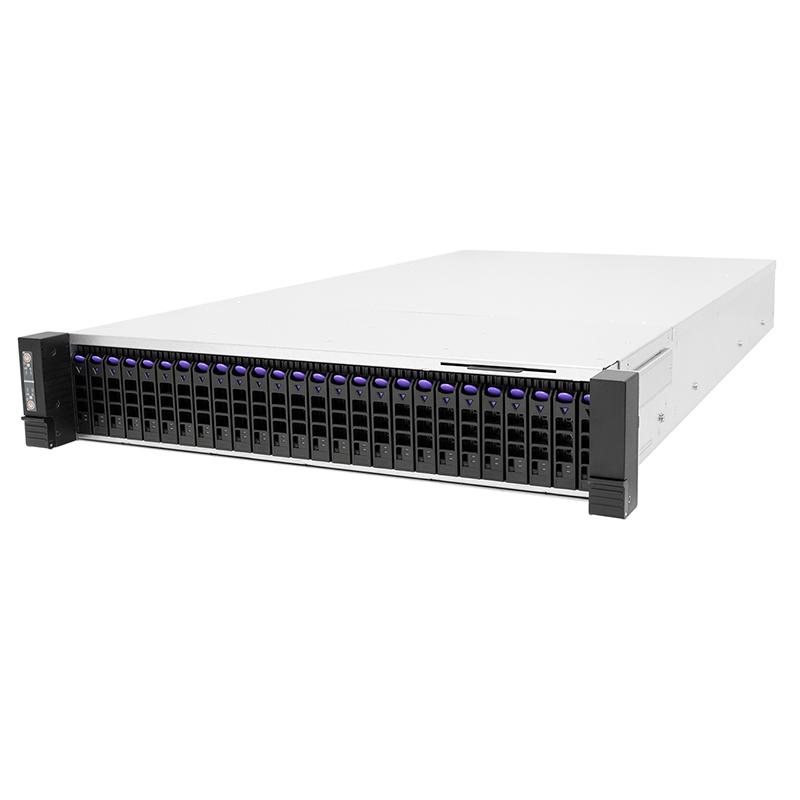

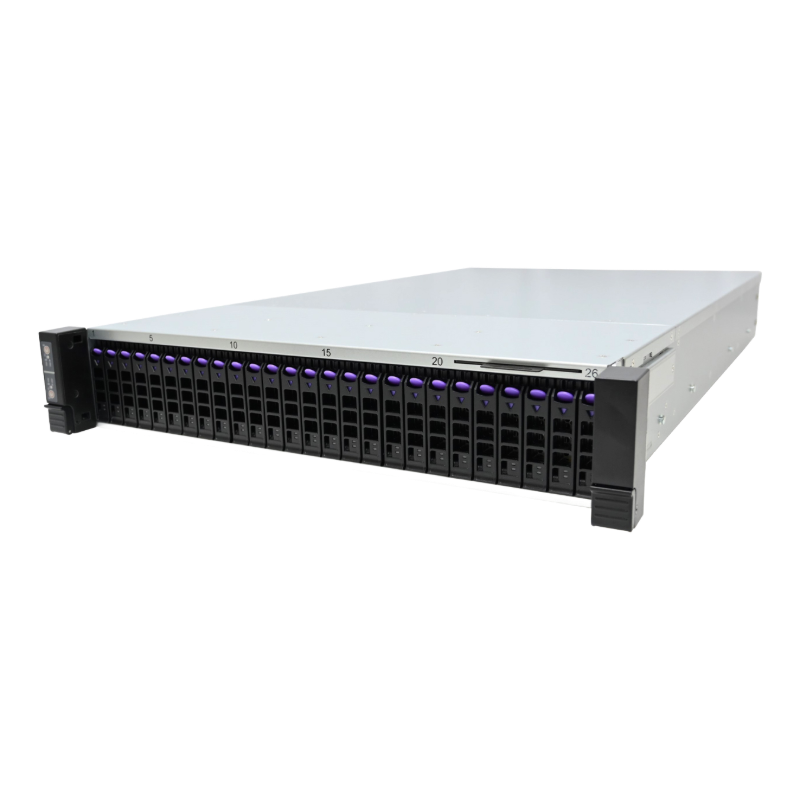

F2026-01-G5 is an innovative 2U26 JBOF that integrates 2.5" NVMe drive, Broadcom Atlas 2 PCIe Gen5 Switch chip 89144, and board-to-board connection design into a compact and stable system with exceeding productivity.
Key Features
• 2U high-availability support 26 x hot swap Gen5 U.2 dual port drives
• Broadcom 89144 PCIe Gen5 switch base bridge board
• Supports dual controllers up to 8 x PCIe Gen5 x16 slots
• Designed for low latency and high performance applications
• PCIe Gen5 interface to support NVMe over fabrics (3rd party cards)
• Fully redundant, fault-tolerant system supporting hot swap design for easy maintence and management
• Intelligent Enclosure Managment with IPMI 2.0 compliance
• Tool-less tray design
| General |
| Number of Controller: 2 |
| PCIe Switch: Broadcom PEX 89144 |
| Host/Expansion Interface: • 4 x PCIe Gen5 x16 per canister • 8 x PCIe Gen5 x16 per system • Supports up to 4 DPUs |
| Drives Supported |
| Drive Interface: SFF-8639 |
| Form Factor: U.2 |
| Administration / Management |
| Admin/Firmware Upgrade: BMC with IPMI 2.0 compliance |
| LED Indicators: Yes |
| Hot swap & Redundancy |
| Disk Drive: 26 |
| Cooling: • 7 x 4056 PWM fans per canister • Total 14 fans |
| Power Supply: 3200W 1+1 hot swap redundant 80+ Titanium |
| Power Entry: Dual AC Inlet |
| Controller: Dual |
| Electrical & Environment |
| Universal A/C Input: • 100~240V AC Full Range |
| Operating Environment: • Temperature 0ºC to 35ºC • Relative humidity 20% to 80% |
| Non-operating Environment: • Storage temperature : -20° to 60°C • System relative humidity : 10% to 90% |
| Physical Specification |
| Dimensions (W x D x H): • mm: 438 x 750 x 88 • inches: 17.2 x 29.5 x 3.5 |
| Gross Weight (w/ PSU, Rail and Pallet; w/o Disks): • kgs: 38 • lbs: 83.8 |
| Packaging Dimension (W x D x H): • mm: 605 x 1060 x 294 • inches: 23.8 x 41.7 x 11.6 |
| Mounting: • Standard: 36” tool-less rail |
* All specifications are subject to change without notice.
