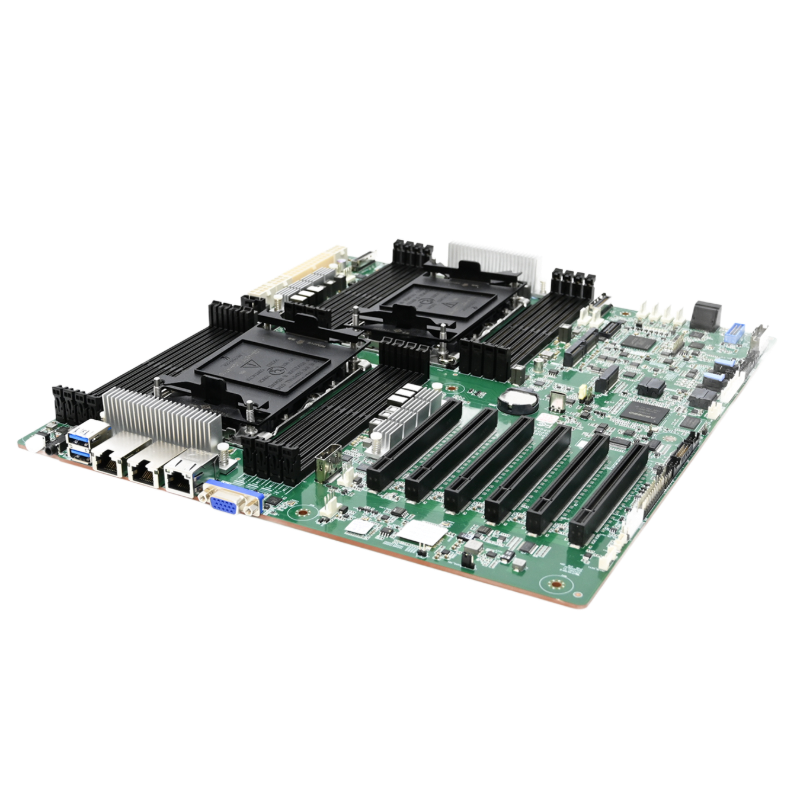

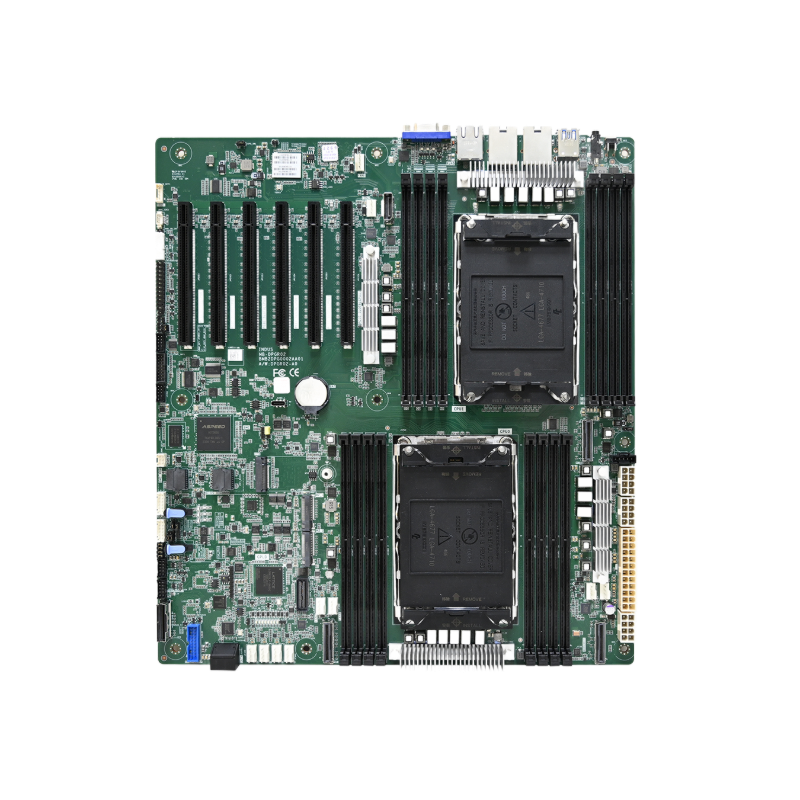

Indus supports dual Intel® Xeon® 6 processors 6500/6700 series with up to 144 CPU cores and 350W TDP

System
Dimensions
• mm : 304.8 x 334.05
• inches : 12 x 13
Processor-Support
Dual Intel® Xeon® 6 processors 6500/6700 series CPU
 CPU-TDP
350W
UPI-Speeds
16/20/24 GTs
Socket-Type
Socket E2 (LGA 4710 Socket)
System-Memory
• DDR5
- 6400MHz (1DPC RDIMM)
- 8000MHz (1DPC MCR)
• Total 16 memory slots; 8 slots per CPU (1DPC)
• Supports up to 4TB (3DS RDIMM)
Expansion-Slots
Total support 128 lanes of PCIe5.0
• PCIe slots
- 3 x16 PCIe5.0/CXL2 (CPU0)
- 3 x16 PCIe5.0/CXL2 (CPU1)
• MCIO
- 3 MCIO x8 PCIe5.0/CXL2
(2 from CPU0+1 from CPU1)
• M.2
- 2 M.2 2280 PCIe Gen5.0 x4
• 2 SATA3.0 (6Gb/s) 7-pin connectors
• 1 Slimline 8i connector (support 8 SATA3.0 ports)
• 1 USB double-stack Type-A connector supports two USB 3.0 devices
• 1 USB pin header supports two USB 3.0 devices
• 2 USB pin headers support four USB 2.0 devices

System-BIOS
BIOS-Type
AMI UEFI BIOS(64M ROM size)
BIOS-Features
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS mode interface
• SRIOV
• SMBIOS
• TPM
• Serial console redirection
• PCIe hotplug

On-board-Devices
SATA
• 1 ASMedia ASM1062R SATA (6Gbs) Raid Controller (Support RAID 0, RAID 1, SPAN) supports 2 SATA ports
• 2 ASMedia ASM1164 SATA(6Gbps) Controller support 8 SATA ports
BMC
ASPEED AST2600
Network-Controller
Broadcom BCM5720 for dual port 1GbE (NCSI for share NIC)
Graphics
• Integrated VGA support by ASPEED AST2600
• Resolution up to 1920x1200 @60Hz 32bpp
Additional Information
TPM 2.0 - NUVOTON NPCT760AABY

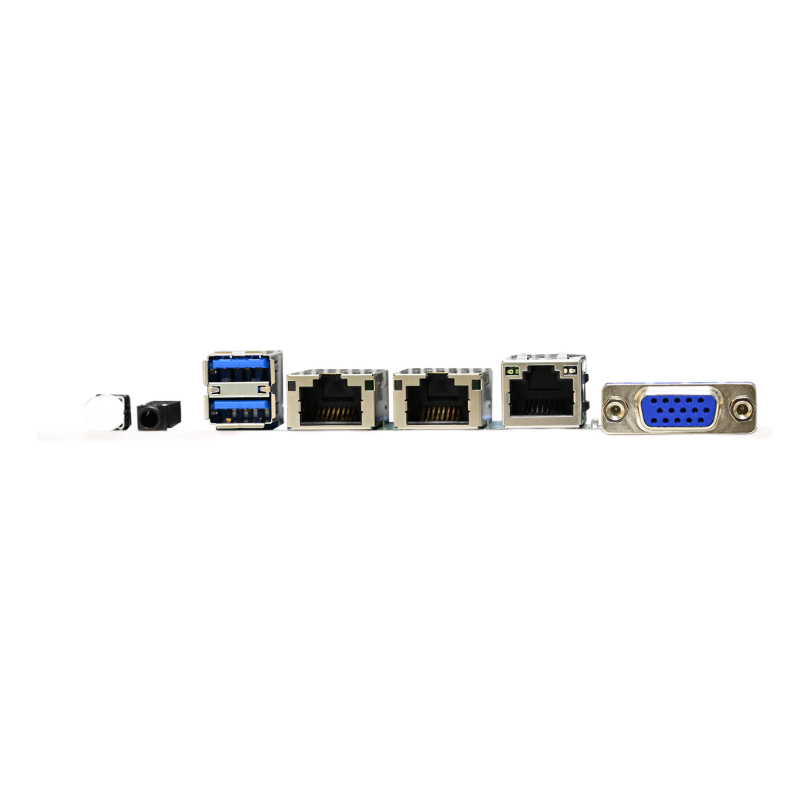

Input-Output
SATA
• 2 x SATA3.0 7-pin by ASM1062R (supports RAID 0/1)
• 8 x SATA3.0 with 1 Slimline 8i connector by 2 ASM1164
LAN
• 2 x RJ45 1GbE connectors
• 1 x RJ45 1GbE connector (for BMC management port)
USB
• 1 x USB 3.0 double-stack Type-A connector supports two USB 3.0 ports
• 1 x USB pin header supports USB 3.0
• 2 x USB pin headers support USB 2.0
Display
• 1 x DB-15 VGA connector
• 1 x Display port
Serial-Port
1 x COM connector (Audio Jack)
Others
• PCIe slots
- 3 x16 PCIe5.0/CXL2 (CPU0)
- 3 x16 PCIe5.0/CXL2 (CPU1)
• 3 MCIO x8 PCIe5.0/CXL2 (2 from CPU0 + 1 from CPU1)
• 2 M.2 2280 PCIe Gen5.0 x4

Additional-Information
Security
•TCM 2.0 with 2x8 connector
•TPM 2.0 onboard
* All specifications are subject to change without notice.
