8x3.5" Hot Swappable Trays Mini-Tower Chassis

PCICASE Model No: TSC-CS-T80
Manufacturer Model No: CS-T80
Coming Soon
  • Supports Mini-ITX motherboard

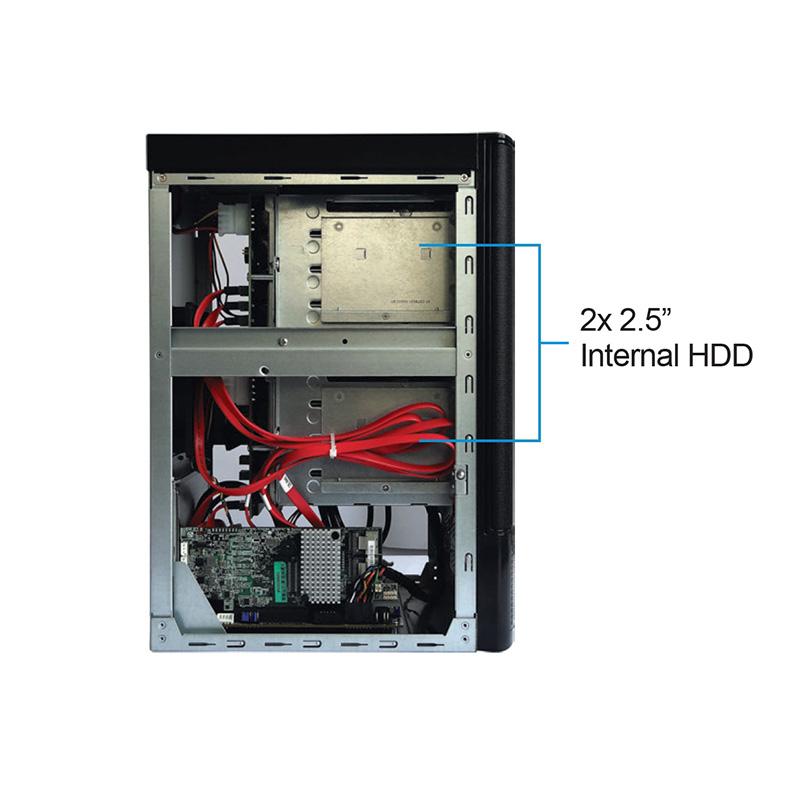

  • Up to 3 x 2.5" internal HDD bays (default 2pcs)

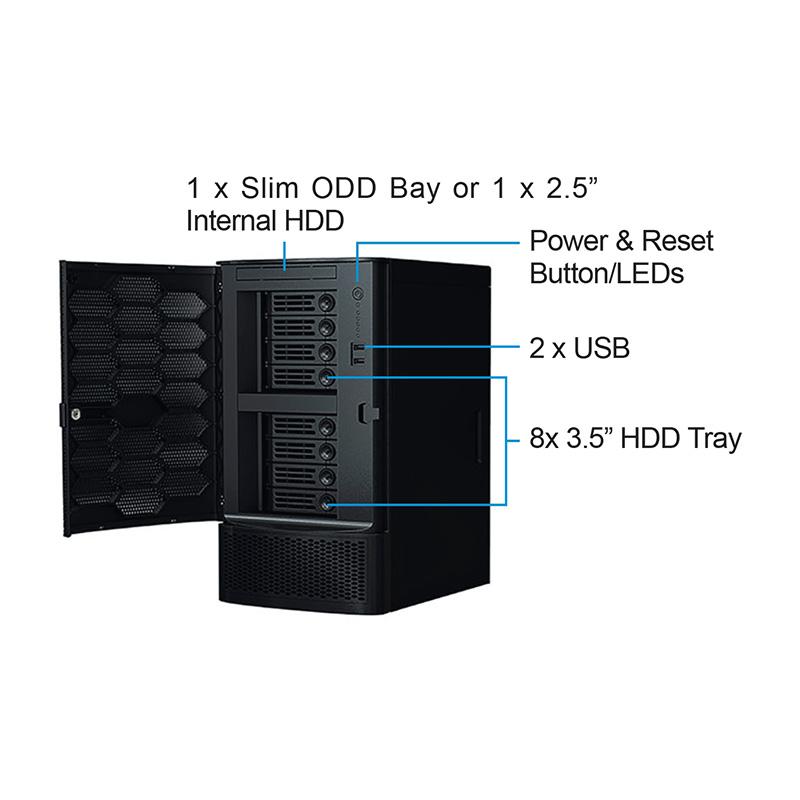

  • 8 x 3.5” swappable HDD trays
  • 1 x Full-Height/Half-Length expansion slot
  • Support 250w Flex-ATX power supply
Model CS-T80
M/B Form Factor Mini-ITX

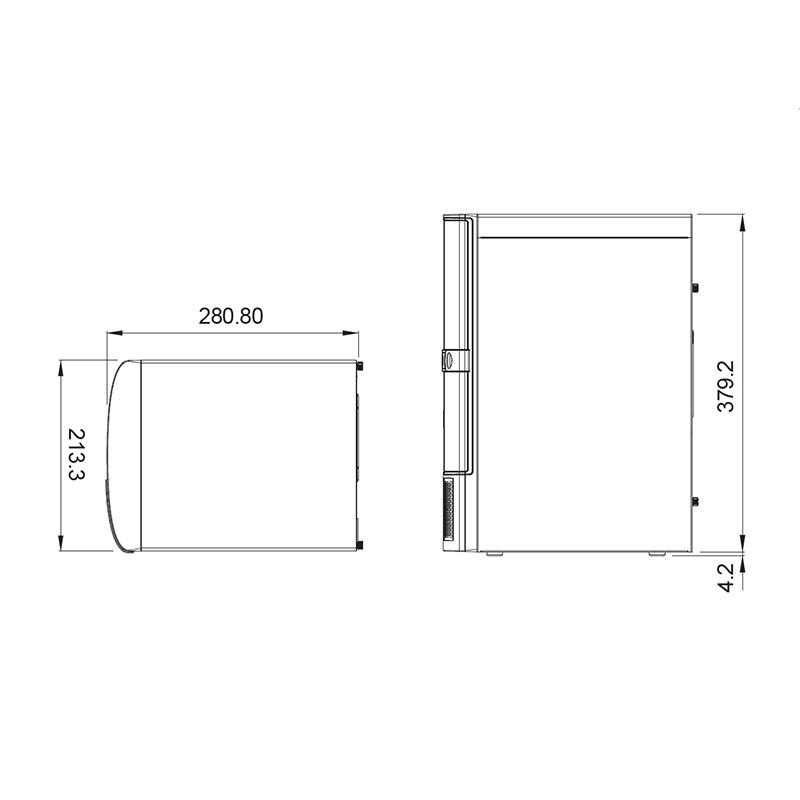

Dimensions (W x D x H) 210 x 280 x 379 mm (8.39” x 11.02” x 14.92")
Color Black C
Processor Support TDP < 95W
Drive Bay Up to 3 x 2.5" Internal HDD Bays (Default 2pcs)
8 x 3.5” Swappable HDD Trays
Peripheral Bay 1 x Slim ODD Bay
HDD Backplane 2 x 4-Port 6 Gbps SAS/ SATA to SATA HDD
Expansion Slot 1 x Fall-Height / Half-Length
System Cooling 1 x 120mm PWM fan
2 x 60mm PWM fan (optional)
Front Panel Input / Output
2 x USB 2.0 or 3.0
Button
1 x Power Button
1 x Reset Button
LED
1 x Power LED
1 x HDD Activity LED
2 x Network Activity LEDs
1 x Overheat LED
Physical Secure Intrusion Switch and Front Door Key Lock
Power Supply 250W Flex-ATX Power Supply: D150 x W82 x H40mm
Environment Operating Temperature: 10° ~ 35°C (50° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F)
Operating Humidity: 5% ~ 90% RH (Non-Condensing)
Storage Humidity: 5% ~ 95% RH (Non-Condensing)
