5x3.5" Hot Swappable Mini-Tower Chassis

PCICASE Model No: TSC-CS-M55
Manufacturer Model No: CS-M55
Coming Soon
  • Supports Mini-ITX motherboard
  • 2 x 2.5” Swappable HDD trays(Optional)
  • 5 x 3.5” Swappable HDD trays
  • 1 x Full-Height/Half-Length expansion slots
  • Support 250W Flex-ATX Power Supply
Model CS-M55
M/B Form Factor Mini-ITX

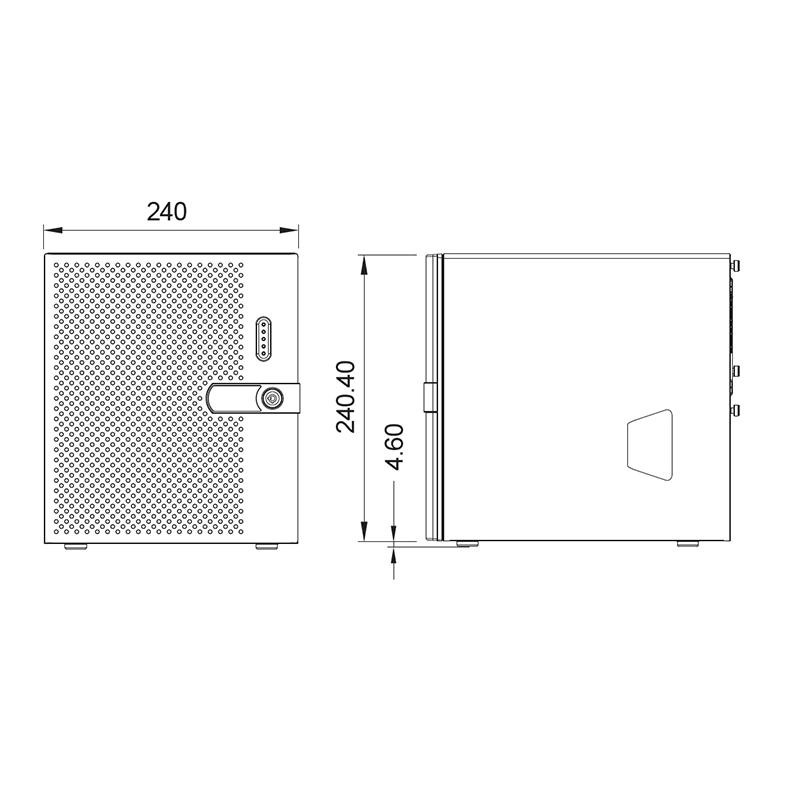

Dimensions (W x D x H) 210 x 254 x 240 mm (8.27” x 10” x 9.45”)
Color Black C
Processor Support TDP < 65W (With 1U Active Heatsink)

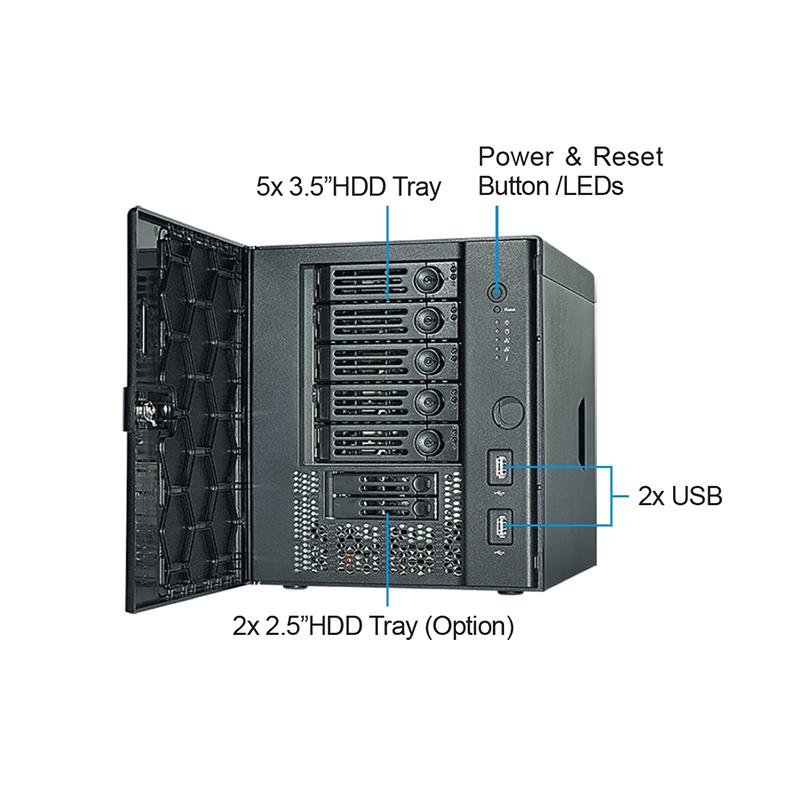

Drive Bay 2 x 2.5” Swappable HDD Trays (Optional)
5 x 3.5” Swappable HDD Trays
Peripheral Bay N/A
HDD Backplane 3.5”: 5-port 12 Gbps SAS/ SATA to SATA HDD
2.5”: 2-port 6 Gbps SAS/ SATA to SATA HDD with SGPIO (Optional)
Expansion Slot 1 x Fall-Height / Half-length
System Cooling 1 x 120mm PWM Fan

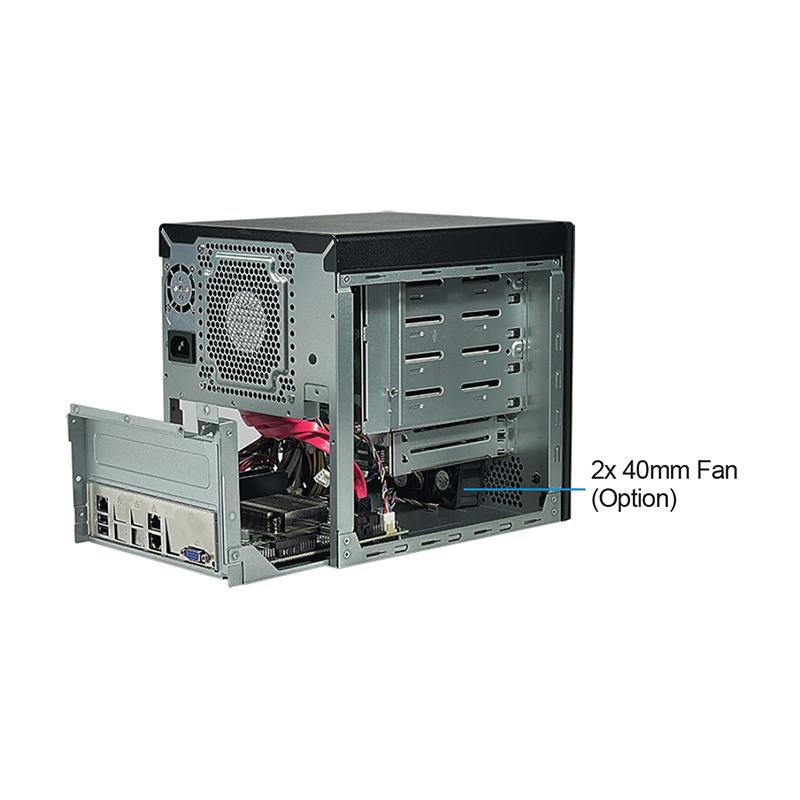

2 x 40mm PWM Fan (Front: optional)
Front Panel Input / Output
2 x USB 2.0 or 3.0
Button
1 x Power Button
1 x Reset Button
LED
1 x Power LED
1 x HDD Activity LED
2 x Network Activity LEDs
1 x Overheat LED
Physical Secure Intrusion Switch and Front Door Key Lock

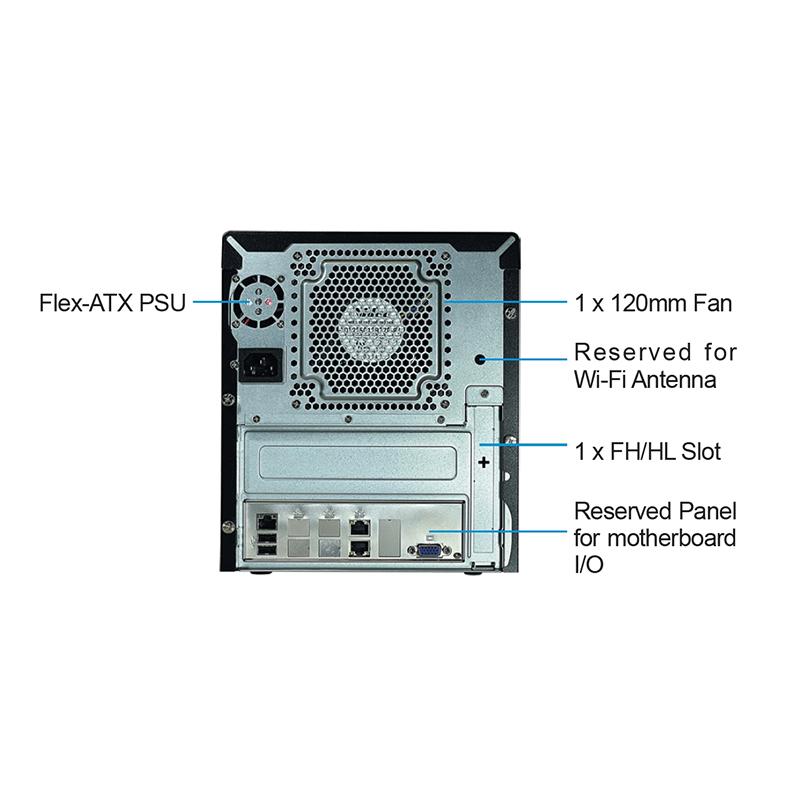

Power Supply 250W Flex-ATX Power Supply: D150 x W82 x H40mm
Environment Operating Temperature: 10° ~ 35°C (50° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F)
Operating Humidity: 5% ~ 85% RH (non-condensing)
Storage Humidity: 5% ~ 95% RH (non-condensing)
