4U GPU Tower / Rack-Mountable Chassis with 8 x 3.5” swappable SAS/SATA HDD Tray

PCICASE Model No: TSC-CS-G47A
Manufacturer Model No: CS-G47A
Coming Soon
  • Supports Tower and Rackmount Type
  • Supports to E-ATX & proprietary 15.2” x 13.2" motherboard
  • 8 x 3.5” swappable SAS/SATA HDD Tray
  • 7 x Full-Height/Full-Length expansion slots optimized for 3 x double width GPU solution
  • Supports ATX PS/2 Power Supply
Model TSC-CS-G47A
M/B Form Factor Proprietary motherboard up to 15.2” X 13.2”,
EE-ATX, E-ATX, ATX, Micro-ATX, Mini-ATX

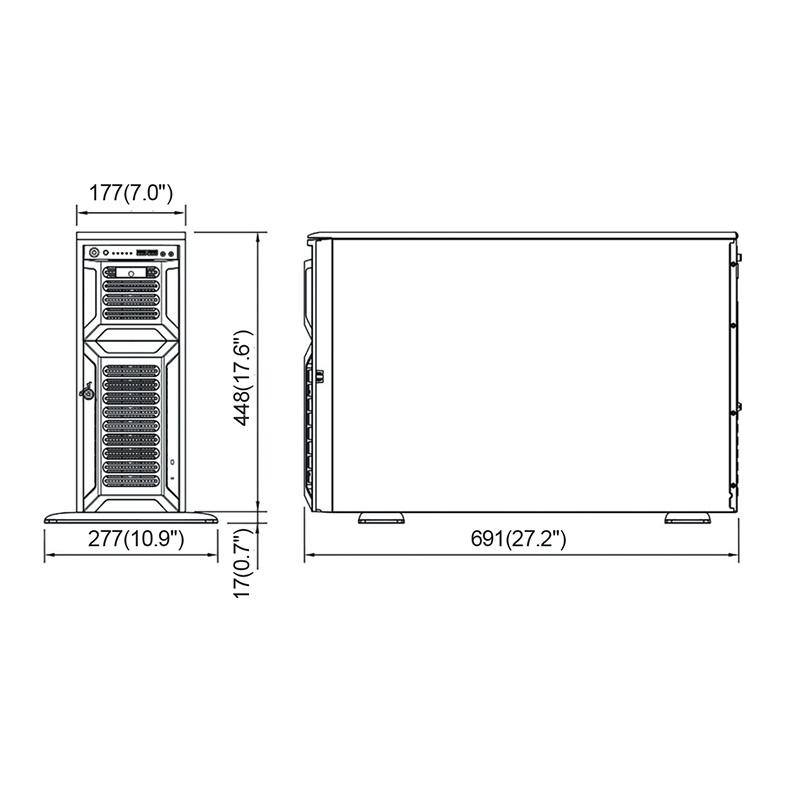

Dimensions (W x D x H) 177 x 691 x 465 mm (7.0” x 27.2” x 18.4”)
Color Black C
Processor Support Single and Dual Intel/AMD Processors

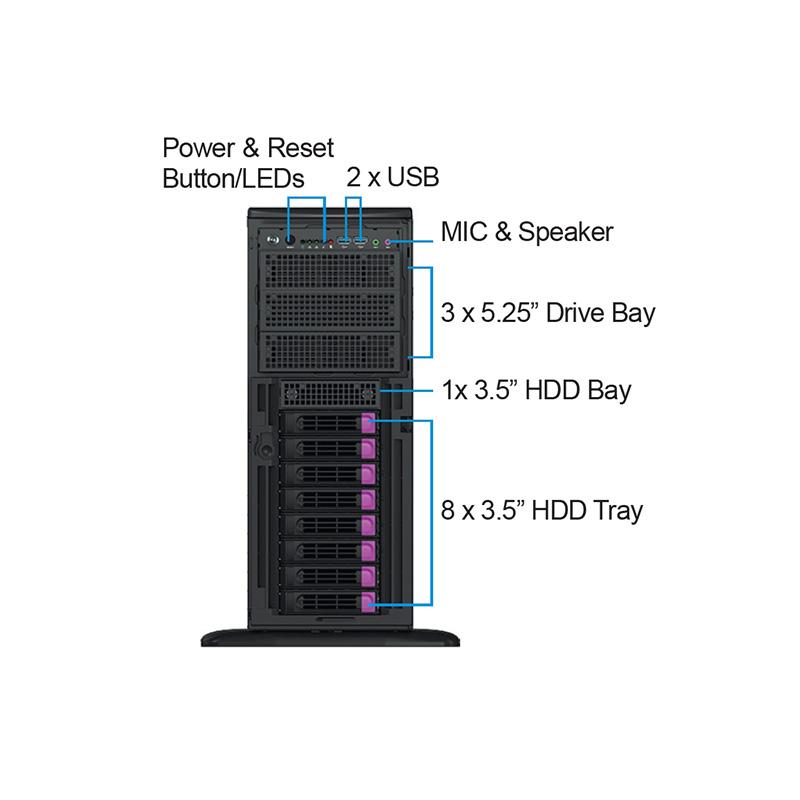

Drive Bay 8 x 3.5” Swappable HDD Trays
3 x 5.25” Drive Bays(90° Rotatable Drive Cage)
1 x 3.5” Internal HDD Bay
Peripheral Bay N/A
HDD Backplane 8-port 12 Gbps SAS/ SATA to 2-port Mini-SAS HD

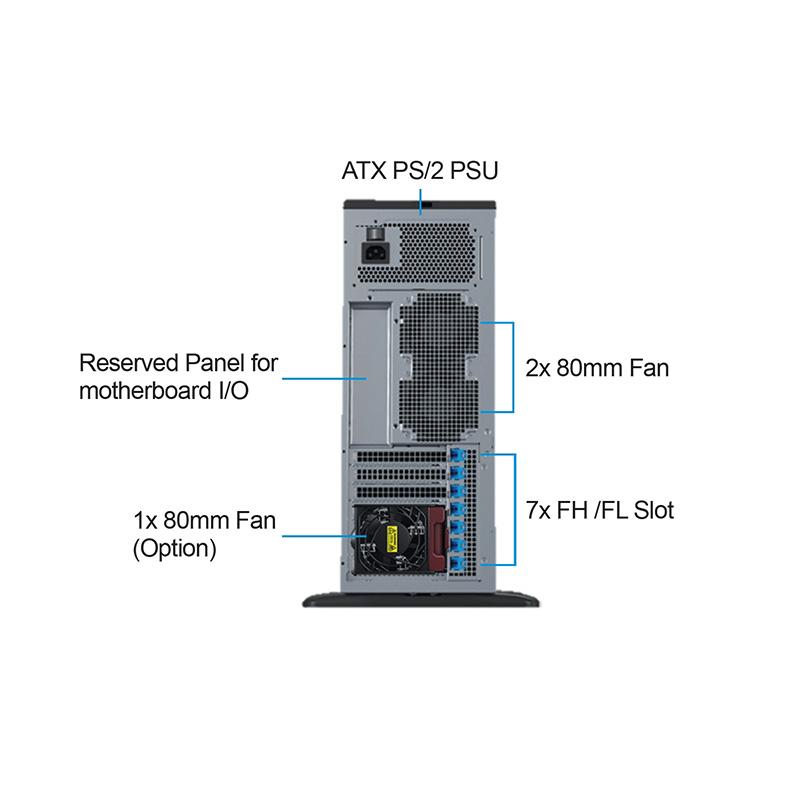

Expansion Slot 7 x Full-Height/ Full-Length

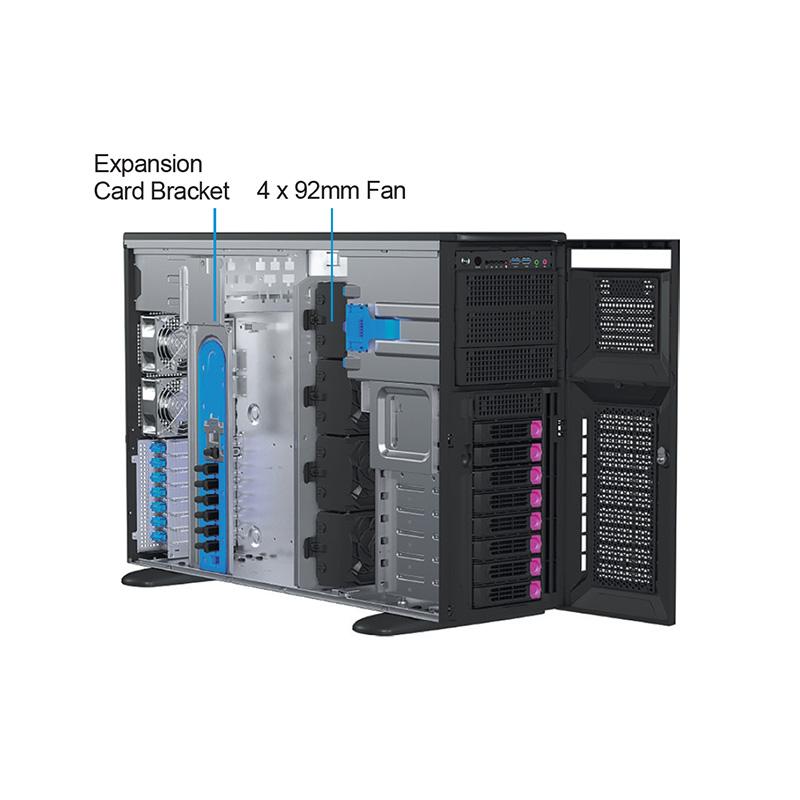

System Cooling 4 x 92mm Swappable PWM Fans (Middle)
2 x 80mm Swappable PWM Fans (Rear)
1 x 80mm Swappable PWM Fans (Outer: Optional)
Front Panel Input / Output
2 x USB 3.0
USB 2.0 (Optional)
Button
1 x Power Button
1 x Reset Button
LED
1 x Power LED
1 x HDD Activity LED
2 x Network LEDs
1 x Overheat LED
1 x System Fail LED
Physical Secure Intrusion Switch, Front Door Key Lock
Power Supply ATX PS/2: L200 x W150 x H86mm (Optional)
Environment Operating Temperature: 5° ~ 35°C (41° ~ 95°F)
Storage Temperature: -40° ~ 70°C (-40° ~ 158°F)
Operating Humidity: 8% ~ 90% RH (non-condensing)
Storage Humidity: 5% ~ 95% RH (non-condensing)
