Key Features
• Intelligent Enclosure Management
• Individual drive power management
• Hot swap design for easy maintenance and management
• Enclosure Cable Management Kit
• Tool-less drive trays
• Designed for 1000mm depth rackmount server cabinet

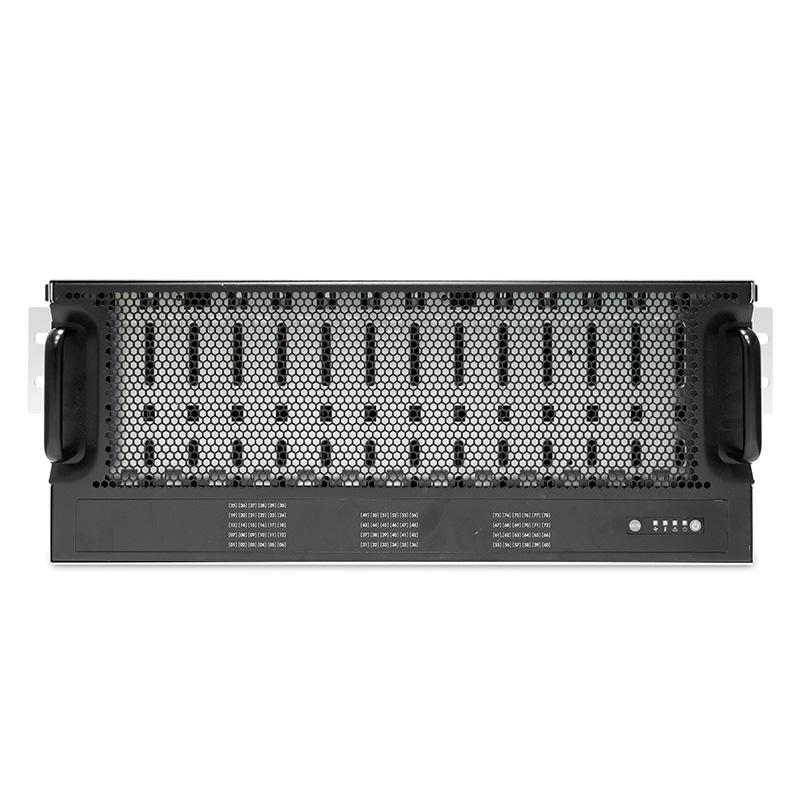

J4078-02-04X, a 4U 78-Bay 24Gb/s SAS JBOD, ideal for high-availability storage and high-performance appliance.

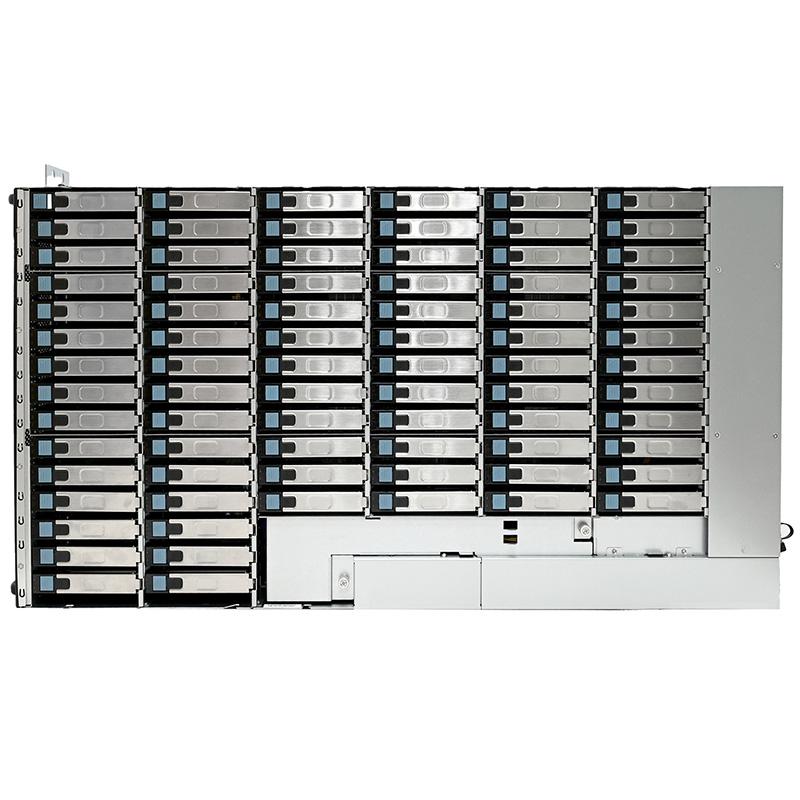

This 4U 24Gb/s SAS JBOD enclosure with single or dual expanders supports 78 x 3.5” drives. (Support 2.5” with optional kit)
Key Features
• Intelligent Enclosure Management
• Individual drive power management
• Hot swap design for easy maintenance and management
• Enclosure Cable Management Kit
• Tool-less drive trays
• Designed for 1000mm depth rackmount server cabinet
| General |
| Number of Expander:Single |
| Expander Chip: • Hub: SAS4x48 • Edge: SAS35x40 & SAS35x36 |
| Host/Expansion Interface: 4 x Mini SAS HD (SFF-8674) per expander module (backward compatible with SFF-8644 SAS12G) |
| Drives Supported |
| Drive Interface : 12Gb & 6Gb SAS if using dual expanders 12Gb & 6Gb SAS/SATA if using single expander |
| Form Factor: 3.5” / 2.5” (with optional kit) |
| Administration / Management |
| Admin/Firmware Upgrade: In-band & IEM port |
| LED Indicators, Audible Alarm: Yes |
| Hot swap & Redundancy |
| Drive Bays: 78 |

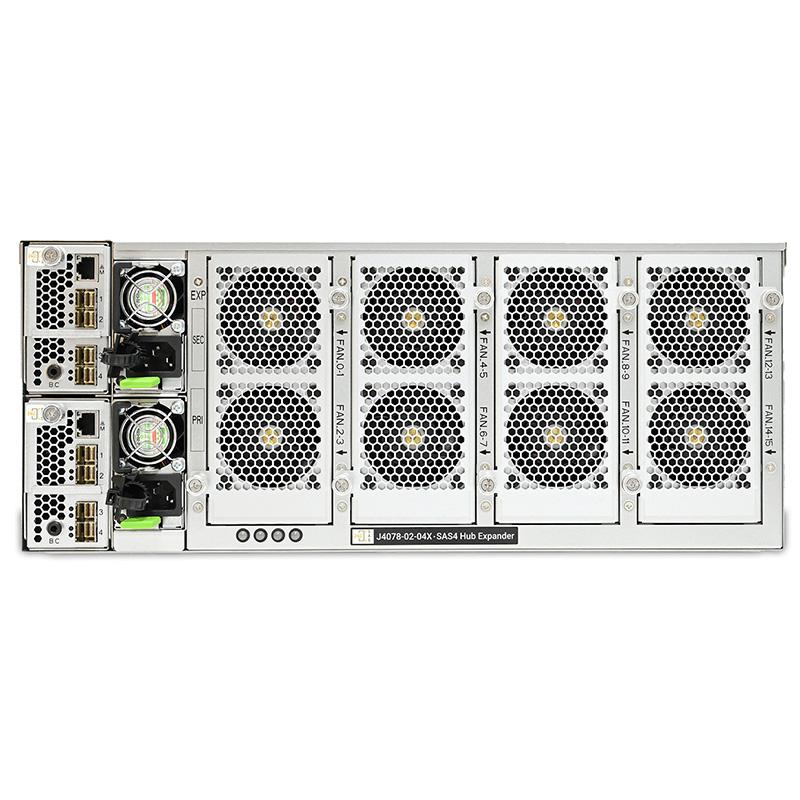

| Cooling: • 8 x 60x56mm hot swap fans • 1 x 40x56mm fan per expander module |
| Power Supply: 1600W 1+1 hot swap redundant 80+ Titanium |
| Power Entry: Dual AC Inlet |
| Expander Modules: Dual SAS topology (Optional) |
| Electrical & Environment |
| AC Input: • 200~240V,50/60Hz,12A (except China/Taiwan) • 200-240V,50/60Hz,10A (for China/Taiwan) |
| Operating Environment: Temperature: 0ºC to 35ºC Relative humidity: 20% to 80% |
| Non-operating Environment: Temperature: -20ºC to 60ºC Relative humidity: 10% to 90% |
| Physical Specification |
| Dimensions (W x D x H): • mm: 434 x 810.5 x 176 434 x 974.7 x 176 (with CMA) • inches: 17 x 31.9 x 7 17 x 38.4 x 7 (with CMA) |
| Gross Weight (w/ PSU, Rail and Pallet; w/o Disks): • kgs: 57.67 • lbs: 127.1 |
| Packaging Dimension (W x D x H): • mm: 675 x 1120 x 536 • inches: 26.6 x 44.1 x 21.1 |
| Mounting: • Standard: 31” fixed rail • Option: Cable Management Kit |
| J4078-02-04X_Datasheet | Size : 1 MB | Download |
| J4078-02-04X_AVL | Size : 47 KB | Download |
| J4078-02-04X_BMC_4202JBD002203(AST2520) | Size : 31 MB | Download |
| J4078-02-04X_Hub_fw4A1_v1.24.1.58 | Size : 305 KB | Download |
| J4078-02-04X_Hub_mfg4A1.0_4U78_4U108_v1.1.0.60 | Size : 3 KB | Download |
| J4078-02-04X_Edge_24bays_fw4A5_v1.24.5.55 | Size : 296 KB | Download |
| J4078-02-04X_Edge_24bays_mfg4A5.0_4U78_4U108_v1.5.0.52 | Size : 3 KB | Download |
| J4078-02-04X_Edge_30bays_fw4A4_v1.24.4.54 | Size : 296 KB | Download |
| J4078-02-04X_Edge_30bays_mfg4A4.0_4U78_4U108_v1.4.0.52 | Size : 2 KB | Download |
| J4078-02-04X_User's Manual | Size : 32 MB | Download |
