Key Features
• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays, top covers, backplane & slide rails
• 12Gb/s SAS expander chip on backplane
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive & 2x 2.5” SATA H/W on rear panel
• Comes with a redundant PSU 80+ Platinum
• Two front-access USB 3.0 ports

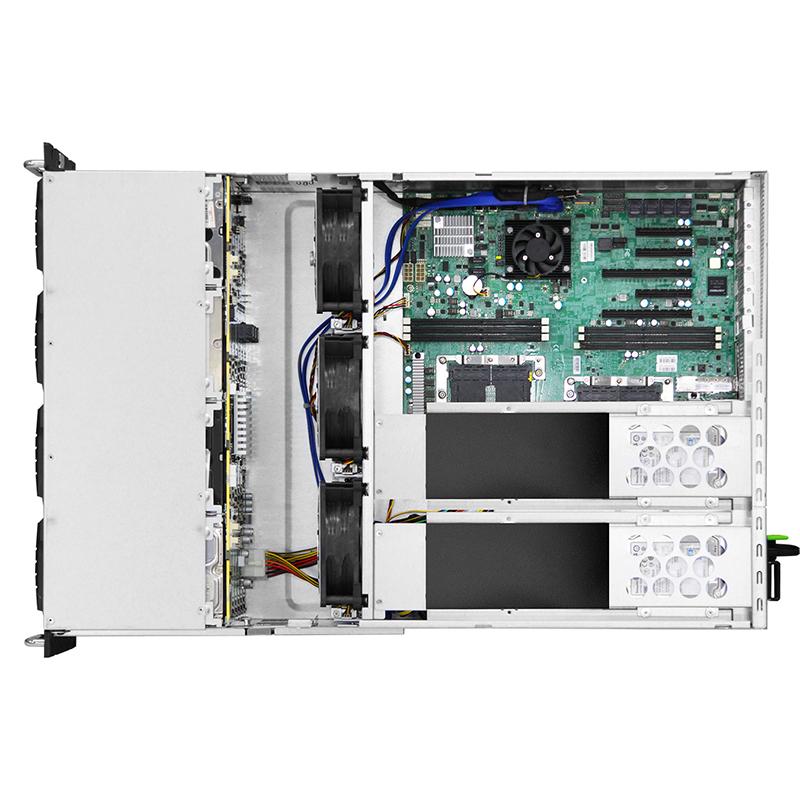

RSC-4ET3 is a T series 4U 24-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the RSC-4ET3 supports quick installation and easy maintenance. This tool-less design solution also features 3 x hot swap fans designed to minimize rotational vibration and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications. (Power supply is included. Motherboard is not included.)

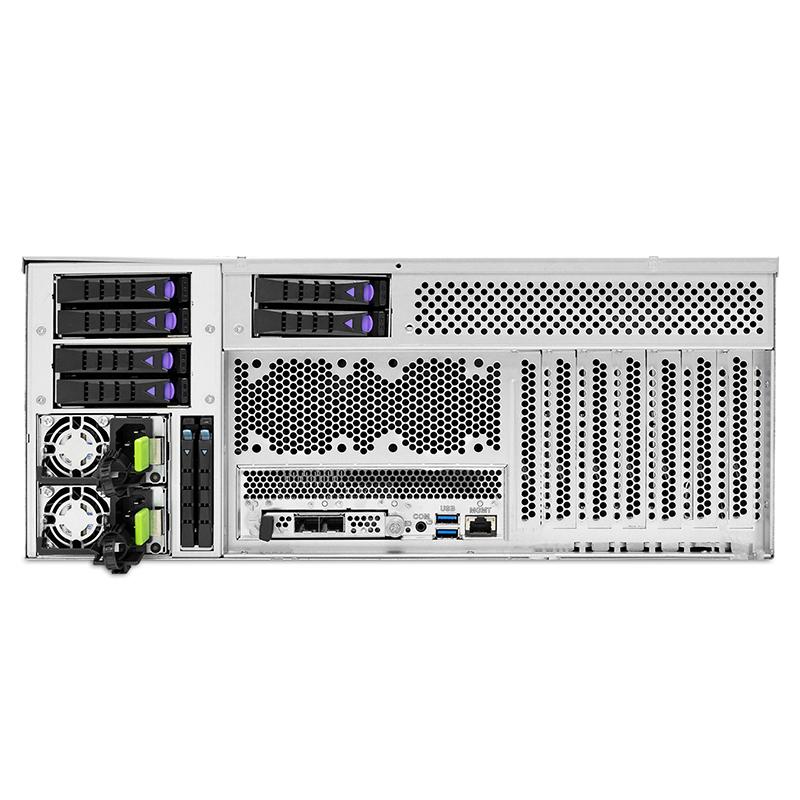

Provide an additional solution. Add 6x 2.5” (NVMe) passive + 2x 2.5” SATA H/W on rear panel.
Key Features
• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays, top covers, backplane & slide rails
• 12Gb/s SAS expander chip on backplane
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive & 2x 2.5” SATA H/W on rear panel
• Comes with a redundant PSU 80+ Platinum
• Two front-access USB 3.0 ports
| Dimensions (W x D x H) |
| • mm: 430 x 680 x 174.3 • inches: 16.9 x 26.8 x 6.9 |
| Industry Standard |
| EIA-RS310D |
| Material |
| Heavy-duty preplated SPGC cold-rolled steel |
| Color |
| Front Panel: Black |
| Cooling |
| 3 x 120x38mm PWM hot swap fans |
| Power Supply |
| 1300W 1+1 redundant PSU PMBus 1.2 80+ Titanium |
| Expansion Slots |
| 7 full height |
| Front Panel |
| System power on/off, System reset, System ID, 2 x USB 3.0 ports |
| LED Indicators |
| Power, LAN, Drive, ID and Alert |
| System Board |
| 12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB |
| Drive Bays |
| • External: - 24 x 3.5” hot swap - 2 x 2.5” hot swap (option) • Internal: 2 x 2.5” (option) |
| Backplane |
| 1 x 24-port 12Gb SATA/SAS backplane with 36-PHY expander chip and 3 x SFF-8643 connectors |
| Storage Temperature |
| 0°C(32°F) ~ 50°C(122°F) |
| Humidity |
| 5% ~ 95% non-condensing |
| Gross Weight (w/ PSU & Rail) |
| • kgs: 37 • lbs: 81.6 |
| Package Dimension (W x D x H) |
| • mm: 645 x 835 x 310 • inches: 25.4 x 32.9 x 12.2 |
| Cubic Feet |
| 8.3 |
| Container Load Quantity |
| • 20’: 150 • 40’: 315 • 40’ H: 345 |
| Mounting |
| Standard: 28” tool-less slide rail |
* All specifications are subject to change without notice.
| RSC-4ET3_Datasheet | Size : 1 MB | Download |
| RSC-4ET3_User's Manual | Size : 16 MB | Download |
| SKU Information | Description |
| XE1-4ET01-01 | 4U 24x3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1200W CRPS redundant power supply, 6x PCIe Gen.4 NVMe 15mm & 2x 2.5" 7mm SATA OS hot-swap, 3x 12038 FAN, 28" tool-less rail, 4U24 SAS 12G expander controller on backplane (35X series) |
|
XE1-4ET01-03 (Standard) |
4U 24x3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1300W CRPS redundant power supply Titanium, 6x PCIe Gen.4 NVMe 15mm & 2x 2.5" 7mm SATA OS hot-swap, 3x 12038 FAN, 28" tool-less rail, 4U24 SAS 12G expander controller on backplane (35X series) |
| FRU Information | |
| Part Number | Description |
| G3-000000122 | SFF-8643 to SFF-8643 mini SAS HD cable L800MM for RAID/HBA card |
| G3-A00001169 | Slimline SAS 8i (SFF-8654) PCIe Gen.4 to Slimline SAS 4i*2 (SFF-8654) SAS cable L850MM for RAID/HBA card |
| G3-A00001114 | Slimline SAS 8i (SFF-8654) PCIe Gen.4 to SFF-8643*2 mini SAS HD cable L750MM for RAID/HBA card |
| G3-A00000721 | Slimline SAS 8i (SFF-8654) PCIe Gen.4 to Slimline SAS 8i (SFF-8654) cable L850MM for RAID/HBA card |
| G3-A00001307 | MCIO 8i (SFF-TA-1016) PCIe Gen.5 to mini SAS HD (SFF-8643)*2 cable L850MM for RAID/HBA card |
| G3-A00001319 | MCIO 8i (SFF-TA-1016) PCIe Gen.5 to Slimline SAS 8i (SFF-8654) cable L900MM |
| BBP-HD40022A | 24-bay 12G EOB backplane (35X) BP-HD4E02-TY |
| BBP-FB10007A | 2.5" 15mm 2 port PCIe Gen 4 NVMe backplane (BP-FB1U04-TY) /SLIMLINEx8*1 |
| M03-1542-002 | 12038 fan L60MM assembly (with screw) |
