Key Features
• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays, top covers, backplane & slide rails
• 12Gb/s SAS expander chip on backplane
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive & 2x 2.5” SATA H/W on rear panel

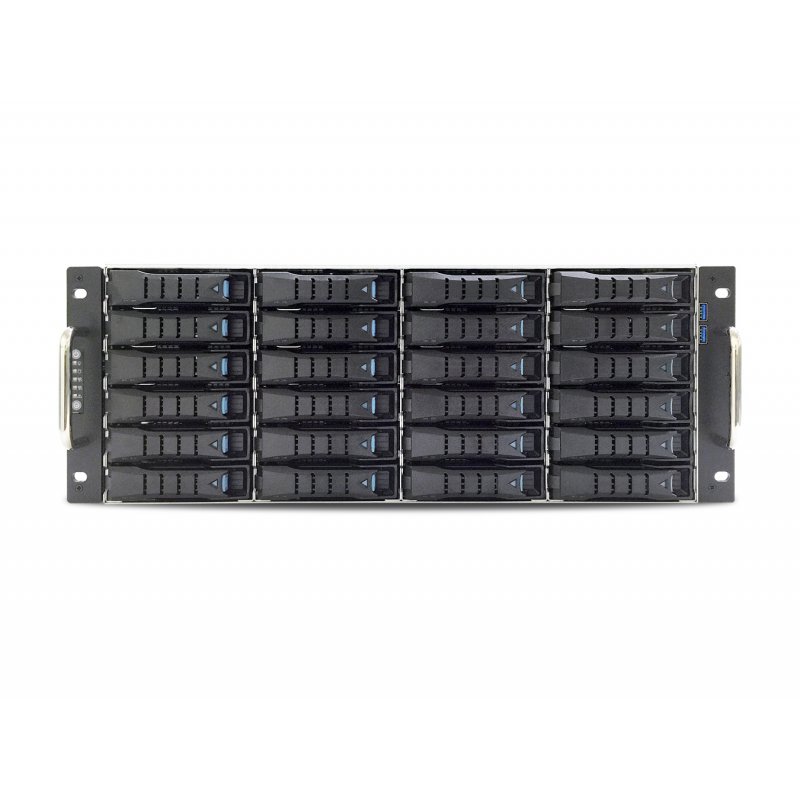

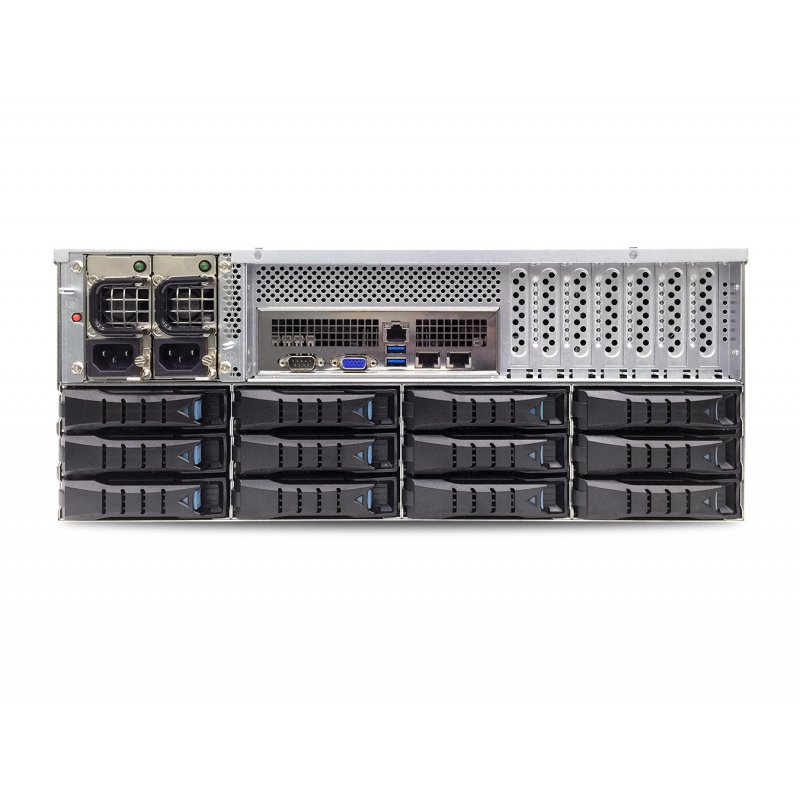

• 36 (24 front + 12 rear) bays to provide high-density storage in a 4U server chassis, 12x rear bays can change + 8x 3.5”/2.5” tri-mode (NVMe/12G SAS/SATA) passive + 4x 3.5”/2.5” (12G SAS/SATA) passive + 2x 2.5” SATA (7mm)
• Comes with a redundant PSU 80+ Platinum
• Two front access USB 3.0 ports

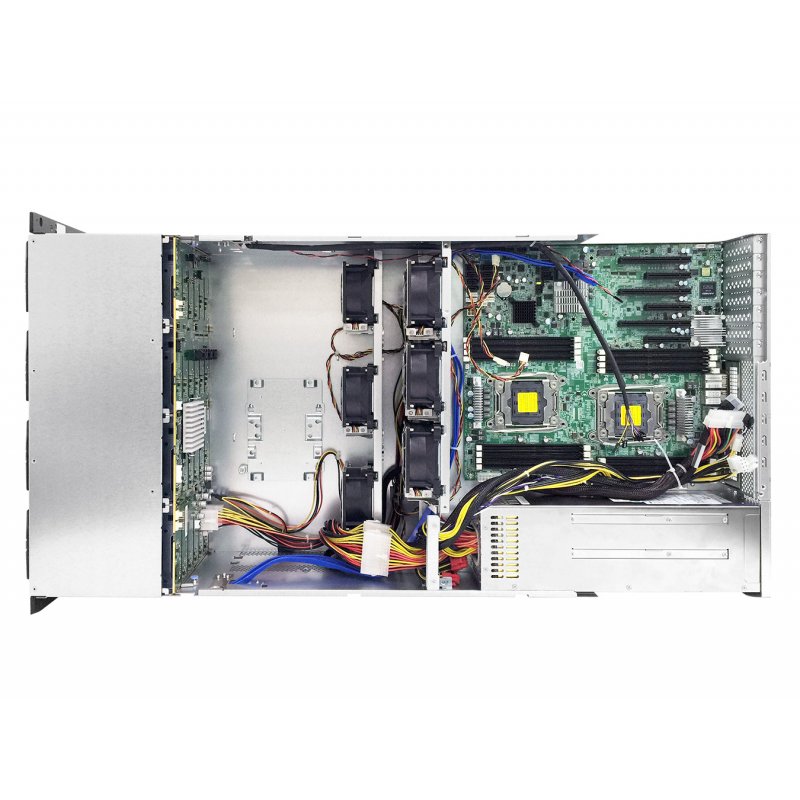

RSC-4BT3 is a T series 4U 36-bay SAS/SATA storage server chassis. With its tool-less 3.5" and 2.5" hard drive carriers, top covers and backplane, the RSC-4BT3 supports quick installation and easy maintenance. This tool-less design solution also features 6 x low-power consumption hot swap fans and SPGC pre-plated steel with minimal paint, offering a cost-effective solution ideally suited for a broad range of applications. (Power supply is included. Motherboard is not included.)
Key Features
• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays, top covers, backplane & slide rails
• 12Gb/s SAS expander chip on backplane
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5” drive tray comes with 4 screw holes to adapt to 2.5” drive & 2x 2.5” SATA H/W on rear panel
• 36 (24 front + 12 rear) bays to provide high-density storage in a 4U server chassis, 12x rear bays can change + 8x 3.5”/2.5” tri-mode (NVMe/12G SAS/SATA) passive + 4x 3.5”/2.5” (12G SAS/SATA) passive + 2x 2.5” SATA (7mm)
• Comes with a redundant PSU 80+ Platinum
• Two front access USB 3.0 ports
| Dimensions (W x D x H) |
| • mm: 430 x 680 x 177 • inches: 17 x 26.8 x 7 |
| Industry Standard |
| EIA-RS310D |
| Material |
| Heavy-duty preplated SPGC cold-rolled steel |
| Color |
| Front Panel: Black |
| Cooling |
| Middle: 6 x 80x38mm PWM & low-power consumption hot swap fans |
| Power Supply |
| 1300W 1+1 redundant PSU PMBus 1.2 80+ Titanium |
| Expansion Slots |
| 7 low profle |
| Front Panel |
| System power on/off, System reset, System ID and 2 x USB 3.0 ports |
| LED Indicators |
| Power, LAN, Drive, ID and Alert |
| System Board |
| 12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB |
| Drive Bays |
| • External: - 36 x 3.5” hot swap - 2 x 2.5” hot swap (option) • Internal: - 2 x 2.5" (option) |
| Backplane |
| 1 x 24-port 12Gb SATA/SAS backplane with 36-PHY expander chip and 3 SFF-8643 connectors • 8x 3.5”/2.5” tri-mode (NVMe/12G SAS/SATA) passive + 4x 3.5”/2.5” (12G SAS/SATA) passive |
| Storage Temperature |
| 0ºC(32ºF) ~ 50ºC(122ºF) |
| Humidity |
| 5%~95% non-condensing |
| Gross Weight (w/ PSU & Rail) |
| • kgs: 40.4 • lbs: 89 |
| Package Dimension (W x D x H) |
| • mm : 626 x 931 x 413 • inches : 24.6 x 36.7 x 16.3 |
| Cubic Feet |
| 8.3 |
| Container Load Quantity |
| • 20’: 120 • 40’: 245 • 40’ H: 285 |
| Mounting |
| Standard: 28” tool-less slide rail |
* All specifications are subject to change without notice.
| RSC-4BT3_Datasheet | Size : 1 MB | Download |
| RSC-4BT3_User's Manual | Size : 20 MB | Download |
| SKU Information | Description |
|
XE1-4BT02-01 |
4U 36x3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1200W CRPS redundant power supply Platinum, 2x 2.5" 7mm SATA OS hot-swap, 6x 8038 FAN, 28" tool-less rail, 4U24 SAS 12G expander controller on backplane (35X series) +rear 8x 3.5"/2.5" SAS/SATA/NVMe + 4x 3.5"/2.5" SAS/SATA hot-swap (Passive BP) |
|
XE1-4BT02-02 (Standard) |
4U 36x3.5" hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 1300W CRPS redundant power supply Titanium, 2x 2.5" 7mm SATA OS hot-swap, 6x 8038 FAN, 28" tool-less rail, 4U24 SAS 12G expander controller on backplane (35X series) +rear 8x 3.5"/2.5" SAS/SATA/NVMe + 4x 3.5"/2.5" SAS/SATA hot-swap (Passive BP) |
