• Intelligent Enclosure Management
• Individual drive power management
• Hot swap design for easy maintenance and management
• Enclosure Cable Management Kit
• Tool-less drive trays
• Design for 1000mm depth rackmount server cabinet
J4078-01, a 4U 78-Bay 12Gb/s SAS JBOD, ideal for high-availability storage and high performance appliance. This 4U 12Gb/s SAS JBOD enclosure with single or dual expanders supports 78 x 3.5” drives.
https://www.aicipc.com/image/images/support/Lab-report-aic-dual-expander-jbod-j4078-01.pdf
| General |
| Number of Expander: Dual |
| Expander Chip: Broadcom SAS35x48 |
| Host/Expansion Interface: 4 x Mini SAS HD (SFF-8644) per expander module |
| Drives Supported |
| Drive Interface : 12Gb & 6Gb SAS if using dual expanders 12Gb & 6Gb SAS/SATA if using single expander |
| Form Factor: SFF 3.5” |
| Administration / Management |
| Admin/Firmware Upgrade: In-band & Serial port Interface IEM port |
| LED Indicators, Audible Alarm: Yes |
| Hot swap & Redundancy |
| Disk Drive: 78 Drive Bays |
|
Cooling: |
| Power Supply: 1600W 1+1 hot swap redundant 80+ Platinum |
| Power Entry: Dual AC Inlet |
| Expander: Dual expanders with BMC |
| Electrical & Environment |
| Universal A/C Input: 100~240V AC full range |
| Operating Environment: • Temperature 0ºC to 35ºC • Relative humidity 20% to 80% |
| Non-operating Environment: • Temperature -20ºC to 60ºC • Relative humidity 10% to 90% |
| Physical Specification |
| Dimensions (W x D x H): • mm: 434 x 810.5 x 176 • inches: 17 x 31.9 x 7 |
| Gross Weight (w/ PSU; w/o Rail & Disks): • kgs: 31.5 • lbs: 70 |
| Packaging Dimension (W x D x H): • mm: 616 x 1090 x 468 • inches: 24.3 x 42.9 x 18.4 |
| Mounting Options •Tool-less slide rail--standard •Cable Management Kit |
SKU Information:
|
XJ1-40781-02 (Standard) |
4U 78 x 3.5" hot-swap bays, hot-swap JBOD with Dual SAS 12G expander controller, dual BMC, Tool-less HDD tray, 1600W 1+1 hot-swap redundant 80+ Platinum, Toolless Rail Kit |
* All specifications are subject to change without notice.
| Datasheet | J4078-01 Datasheet |
|
|
|

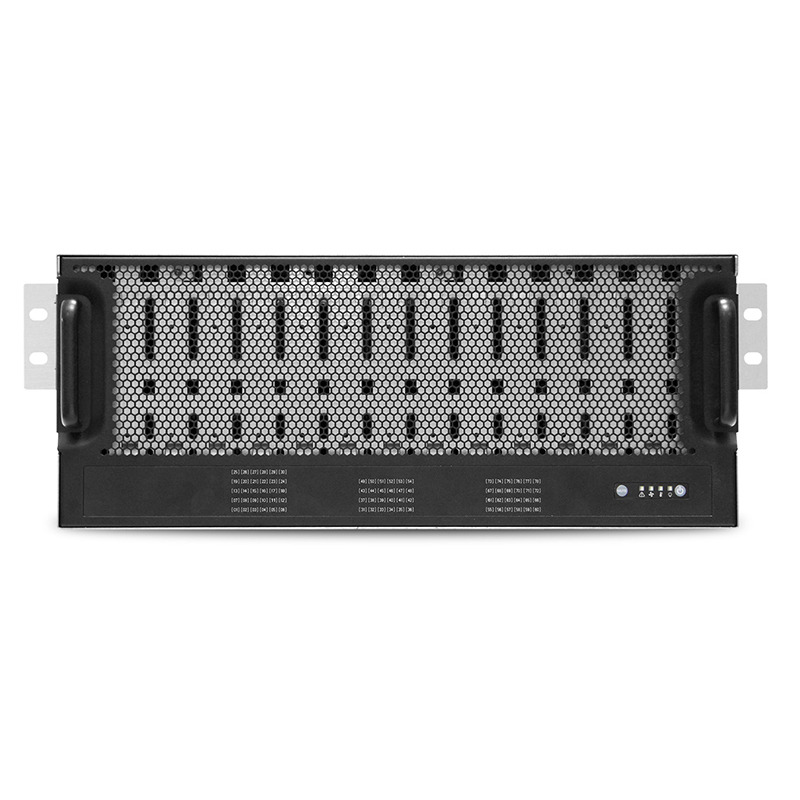

| Product Images | J4078-01 (Front 45 Degrees) |
|
|
|

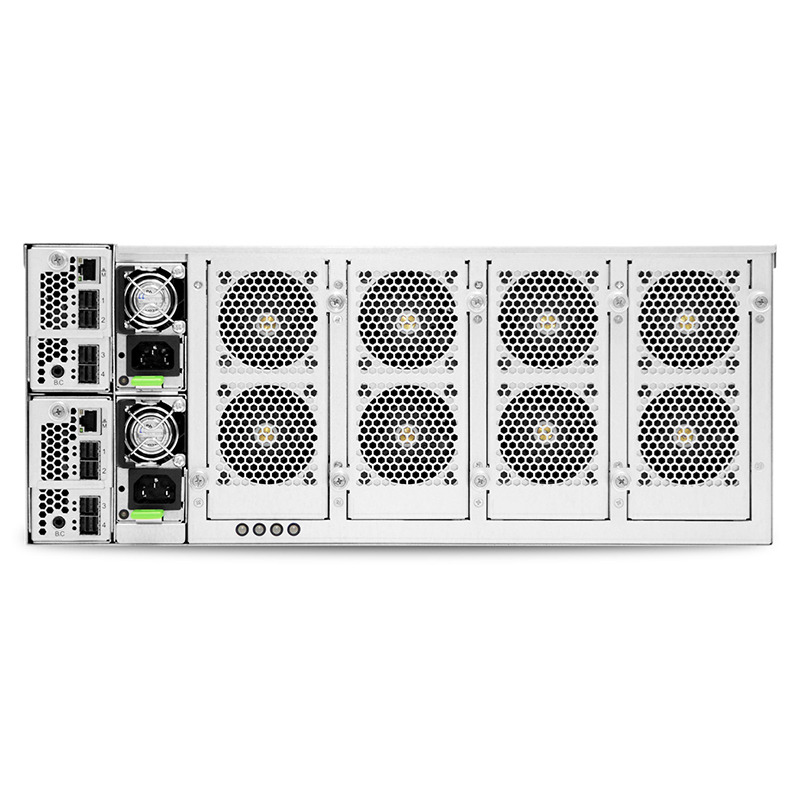

| Product Images | J4078-01 (Front/Rear) |
| Manual/BMC/Firmware/HDDTest Report | J4078-01 |
|
|
Ordering Information
XJ1-40781-01
4U 78x 3.5" hot-swap bays, hot-swap JBOD with single SAS 12G expander controller, single BMC, tool-less HDD tray, 1600W 1+1 hot-swap redundant 80+ Platinum (C14 inlet), tool-less rail kit (35X series)
XJ1-40781-02
4U 78x 3.5" hot-swap bays, hot-swap JBOD with dual SAS 12G expander controller, dual BMC, tool-less HDD tray, 1600W 1+1 hot-swap redundant 80+ Platinum (C14 inlet), tool-less rail kit (35X series)
XJ1-40781-04
4U 78x 3.5" hot-swap bays, hot-swap JBOD with single SAS 12G expander controller, single BMC, tool-less HDD tray, 1600W 1+1 hot-swap redundant 80+ Titanium (C14 inlet), tool-less rail kit (35X series)
XJ1-40781-05
4U 78x 3.5" hot-swap bays, hot-swap JBOD with dual SAS 12G expander controller, dual BMC, tool-less HDD tray, 1600W 1+1 hot-swap redundant 80+ Titanium (C14 inlet), tool-less rail kit (35X series)
FRU Parts
H5532T100002
Tool-less Slide Rail
H54-00010-34
Cable arm/2BA7-363 (for J4060-04/J4078-01/J4078-02)
M06-00395-15
3.5" tray assy
M06-00628-15
J4078/J4108/RSC-4H1/SB407-TU FRU parts- 3.5" tray to 2.5" device adapter (32pc in package)
H18-00628B01
2.5 BKT only
BBP-HHD40013B
30-bay SAS35X backplane w/ single expander chip
BBP-HHD40014B
24-bay SAS35X backplane w/ single expander chip
BBP-HHD40013A
30-bay SAS35X backplane w/ dual expander chip
BBP-HHD40014A
24-bay SAS35X backplane w/ dual expander chip
BDB-PWR0010A
Power distribution board
BDB-MCU0001A
MCU module
BDB-EXP0016A
J4078/J4108-01 12G Expander board (hub)
PM-E00000010
1600W Platinum PSU CRPS module
PM-A00000136
1600W Titanium PSU CRPS module
M06-00395-14
6056 fan module set with 6056 FAN (L150mm) *1 + 6056 FAN (L80mm) *1, with packing (16 sets in packing)
G8-000000018
8644-8644 cable - 1M
G8-000000019
8644-8644 cable - 2M
G8-000000037
8644-8644 cable - 3M
