Key Features
• 4U high-density storage server supports 60 hot-swap 3.5” SAS drive bays
• Supports dual 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids CPU)
• Supports dual 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids CPU)
• Supports DDR5 RDIMM and PCIe Gen5 extensions
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
SB407-VA, a 4U high-density server, supports two Intel® Xeon® Scalable Processors. Equipped with front-to-back airflow and hot-swap redundant fans to provide optimal thermal conditions.
Key Features
• 4U high-density storage server supports 60 hot-swap 3.5” SAS drive bays
• Supports dual 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids CPU)
• Supports dual 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids CPU)
• Supports DDR5 RDIMM and PCIe Gen5 extensions
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
| Dimensions (W x D x H) | |||
| • mm : 434 x 853 x 176 • inches : 17.1 x 33.6 x 7 |
|||
| Motherboard | |||
| AIC Server Board Vega | |||
| Processor | |||
| Processor Support : • Dual 5th Gen Intel® Xeon® Scalable Processors (Emerald Rapids CPU) • Dual 4th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids CPU) *Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system. |
|||
| CPU Interconnection: 16/20GTs | |||
| Socket Type : Socket E1 (LGA-4677-X) | |||
| Chipset Support | |||
| Intel® C741 | |||
| System Memory | |||
| • DDR5 5600/4800MHz RDIMM (1DPC) • Total 16 memory slots; 8 slots per CPU (1DPC) • Supports up to 4TB (3DS RDIMM) |
|||

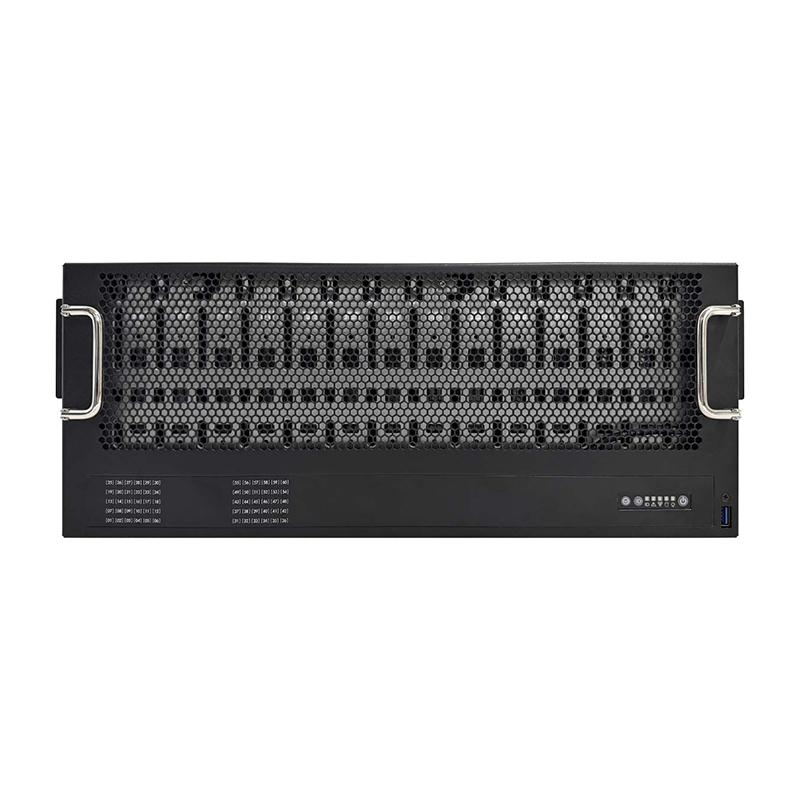

| Front Panel | |||
| System power on/off, System reset, 1x USB3.0 Type-A | |||
| LEDs | |||
| Power status, System alert, LAN activity, Drive activity, System ID | |||

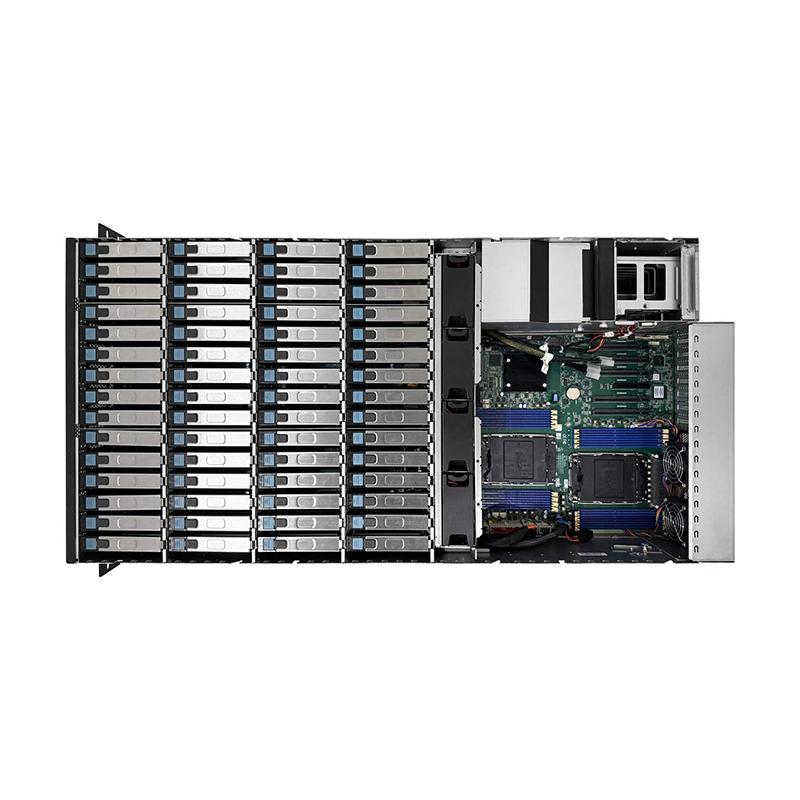

| Drive Bays | |||
| External : • 60 x 3.5” hot swap (SATA/SAS) 8 x 2.5” hot swap (6 NVMe Gen4 + 2 SATA ) Internal : • 2 x M.2/M-Key/2280 (PCIe Gen4) |
|||
| Backplane | |||
| Top-load : • 2 x 30-port 12G SAS BP with 40-PHY expander Rear : • 8-bay Gen5 Tri-mode config as 6 NVMe + 2 SATA |
|||
| Expansion Slots (PCIe 5.0) | |||
| • 5 x PCIe x16 slots (FHHL) • 1 x PCIe x8 slot (FHHL) |
|||
| System BIOS | |||
|
BIOS Type : |
|||
| BIOS Features : • ACPI • PXE • WOL • AC loss recovery • IPMI 2.0 KCS mode interface • SRIOV • SMBIOS • TPM • Serial console redirection • PCIe hotplug |
|||
| On-board Devices | |||
| SATA : Emmitsburg PCH on-chip solution • 2 x SATA3.0 (6 Gb/s) 7-pin connectors • 1 x Slimline connector (up to 8 SATA ports) |
|||
| IPMI : Aspeed AST2600 Advanced PCIe Graphics & Remote Management Processor • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • HTML5 • Redfish |
|||
| Network Controllers : • Realtek RTL8211FS 1GbE for BMC dedicated management port • Broadcom BCM5720 dual port 1GbE (NCSI for share NIC) |
|||
| Graphics : • Integrated VGA support by ASPEED AST2600 • Resolution up to 1920x1200 @60Hz 32bpp |
|||

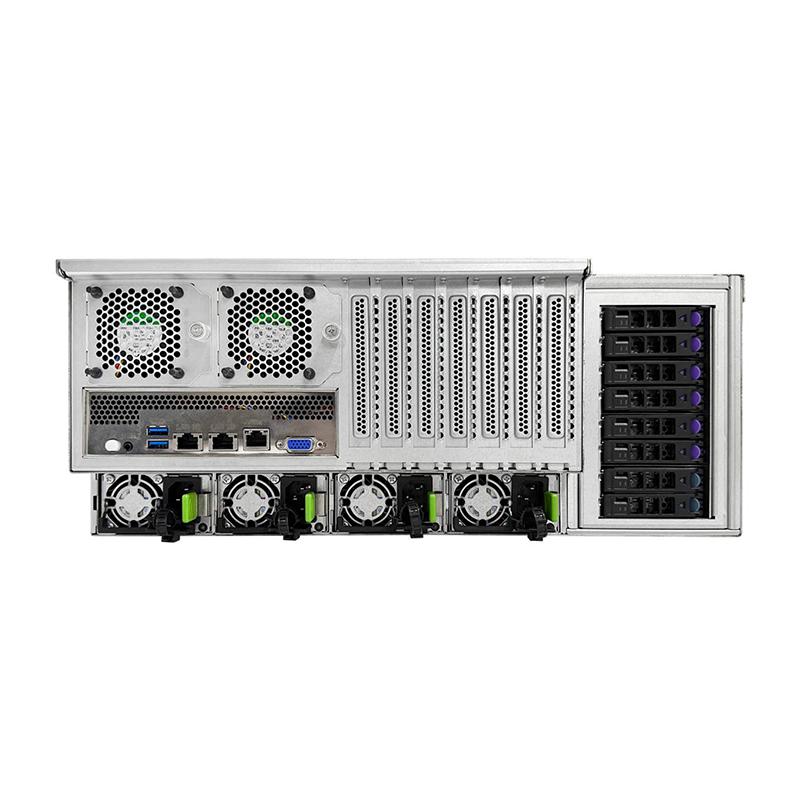

| Rear I/O | |||
|
|||
| Power Supply | |||
| 800W 2+2 redundant power supply PMBus 1.2 80+ Platinum/Titanium | |||
| System Cooling | |||
| Middle : 4 x 80x38mm hot swap fans | |||
| System Management | |||
| • IPMI 2.0 • KVM over IP • Media redirection • Temperature, fan, voltage, PSU sensor monitor • System temperature • System ID / System fail indicator • Remote power on/off/reset • SEL message alarm through mail • SNMP support |
|||
| Environmental Specifications | |||
| • Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF) • Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF) • Storage operating humidity : 5%~95% non-condensing |
|||
| Gross Weight (w/PSU & Rail) | |||
| • kgs : 80 • lbs : 176 |
|||
| Packaging Dimensions (W x D x H) | |||
| • mm : 586 x 1110 x 400 • inches : 23 x 43.7 x 15.7 |
|||
| Mounting | |||
| Options : • 40” tool-less slide rail • 37” tool-less slide rail • Cable management kit |
* All specifications are subject to change without notice.
