Key Features
• 4U high-density storage server supports 60 hot-swap 3.5” SAS drive bays
• Supports 3rd generation Intel® Xeon® Scalable Processor (Ice Lake)
• Intel® C621A chipset to provide 5+ years product life cycle
• Onboard Baseboard Management Controller for system management and IPMI control
• Dedicated BMC management port
• Front-to-back airflow and hot-swap redundant fans to provide optimal thermal conditions
SB407-TU, a 4U high-density server, supports Intel® Xeon® Scalable Processor. Equipped with front-to-back airflow and hot-swap redundant fans to provide optimal thermal conditions.
Key Features
• 4U high-density storage server supports 60 hot-swap 3.5” SAS drive bays
• Supports 3rd generation Intel® Xeon® Scalable Processor (Ice Lake)
• Intel® C621A chipset to provide 5+ years product life cycle
• Onboard Baseboard Management Controller for system management and IPMI control
• Dedicated BMC management port
• Front-to-back airflow and hot-swap redundant fans to provide optimal thermal conditions
| Dimensions (W x D x H) | ||||
| • mm : 434 x 853 x 176 • inches : 17.1 x 35 x 7 |
||||
| Motherboard | ||||
| Code Name - Tucana | ||||
| Processor | ||||
| Processor Support : • Intel® 3rd Gen Xeon® Scalable Processors (Ice Lake) *Please contact AIC Technical Support for more info/details about optimized CPUs and specialized system. |
||||
| CPU Interconnection: 11.2 GT/s | ||||
| Socket Type : Socket P+ (LGA-4189) | ||||
| Chipset Support | ||||
| Intel® Lewisburg-R C621A PCH | ||||
| System Memory | ||||
| • 8 x memory channels per CPU, 1 x DIMM per channel • 16 x DIMM slots support 3200/2933/2666 MT/S • Intel® Optane™ Persistent Memory 200 (Barlow pass) support |
||||
| Front Panel | ||||
| System power on/off, System reset, 2 x USB 3.0 Type A | ||||
| LEDs | ||||
| Power status, System alert, LAN activity, Drive activity, System ID • Power (Secondary) • Warning B : • Power (Primary) • Warning |
||||
| Drive Bays | ||||
| Top-load : • 60 x 3.5" hot swap (SATA/SAS) Rear: • 8 x 2.5” hot swap (NVMe/SATA/SAS) Internal : • 2 x M.2(NGFF)/M-Key/2280 |
||||
| Expansion Slots (PCIe 4.0) | ||||
| • 3 x PCIe X16 slots (FHHL) • 2 x PCIe X8 slots (FHHL) • 1 x PCIe X16 OCP (hot-swappable) |
||||
| System BIOS | ||||
|
BIOS Type: |
||||
| BIOS Features : • ACPI • PXE • WOL • AC loss recovery • IPMI 2.0 KCS interface • SMBIOS • Serial console redirection • BIOS Boot Specification • BIOS Recovery Mode • SRIOV • iSCSI • TPM • PCIe Hotplug |
||||
| On-board Devices | ||||
| SATA : Intel® Lewisburg-R on-chip solution • 8 x SATA 6.0 Gb/s (by 1 x Slimine 8i) • 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin) • RAID 0, 1, 5, 10 support by Intel RSTe |
||||
| IPMI : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • SMASH Support • HTML5 • Redfish |
||||
| Network Controllers : • Realtek RTL8211E 10/100/1000 Mbps Ethernet for BMC dedicated management port • Reserve NC-SI to OCP bay for optional shared-NIC module |
||||
| Graphics : Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor • PCIe VGA/2D Controller • 1920x1200 • 60Hz 32bpp |
||||
| Rear I/O | ||||
|
||||
| Power Supply | ||||
| Standard: 1600W redundant PSU PMBus 1.2 80+ Titanium Options: • 800W 2+2 redundant • 1200W 1+1 redundant • 1600W 1+1 redundant |
||||
| System Cooling | ||||
| Middle : 4 x 80x38mm hot swap fans | ||||
| System Management | ||||
| • Baseboard Management Controller • Intelligent Platform Interface 2.0 (IPMI 2.0) • iKVM, Media Redirection, IPMI over LAN, Serial over LAN • SMASH Support • HTML5 • Redfish |
||||
| Environmental Specifications | ||||
| • Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF) • Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF) • Storage operating humidity : 5%~95% non-condensing |
||||
| Gross Weight (w/PSU & Rail) | ||||
| • kgs : 80 • lbs : 176 |
||||
| Packaging Dimensions (W x D x H) | ||||
| • mm : 586 x 1110 x 400 • inches : 23 x 43.7 x 15.7 |
||||
| Mounting | ||||
| Standard : 37” tool-less slide rail (SKU01) 40” tool-less slide rail (SKU02) Optional : Cable Management Kit |
| SKU Information | Description |
|---|---|
|
XP1-S407TU01 |
4U 60-bay, 12G (35X) EOB backplane, 8 bay 2.5" hot-swap Tri-mode, CRPS 800W 2+2 Platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 3x PCIe x16 Gen.4, 2x PCIe x8 Gen.4, 1x OCP 3.0 x16 Gen.4, 2x M.2 PCIe/SATA, EATX, 2x CPU heatsink, 37" slide rail (for 1M rack), pallet, w/o bezel |
|
XP1-S407TU02 |
4U 60-bay, 12G (35X) EOB backplane, 8 bay 2.5" hot-swap Tri-mode, CRPS 800W 2+2 Platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 3x PCIe x16 Gen.4, 2x PCIe x8 Gen.4, 1x OCP 3.0 x16 Gen.4, 2x M.2 PCIe/SATA, EATX, 2x CPU heatsink, 40" slide rail (for over 1M rack), pallet, w/o bezel |
| XP1-S407TU03 |
4U 60-bay, 12G (35X) EOB backplane, 2 bay 2.5" hot swap SATA OS, Acbel CRPS 800W 2+2 Platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 3x PCIe x16 Gen.4, 2x PCIe x8 Gen.4, 1x OCP 3.0 x16 Gen.4, 2x M.2 PCIe/SATA, EATX, 2x CPU heatsink, 37" slide rail (for 1M rack), pallet, w/o bezel |
| XP1-S407TU04 |
4U 60-bay, 12G (35X) EOB backplane, 2 bay 2.5" hot swap SATA OS, Acbel CRPS 800W 2+2 Platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 3x PCIe x16 Gen.4, 2x PCIe x8 Gen.4, 1x OCP 3.0 x16 Gen.4, 2x M.2 PCIe/SATA, EATX, 2x CPU heatsink, 40" slide rail (for over 1M rack), pallet, w/o bezel |
|
XP1-S407TU05 (standard) |
4U 60-bay, 12G (35X) EOB backplane, 8 bay 2.5" hot-swap Tri-mode, CRPS 1600W 1+1 Titanium, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 3x PCIe x16 Gen.4, 2x PCIe x8 Gen.4, 1x OCP 3.0 x16 Gen.4, 2x M.2 PCIe/SATA, EATX, 2x CPU heatsink, 40" slide rail (for over 1M), pallet, w/o bezel |
| Datasheet | SB407-TU Datasheet |
|
|
|

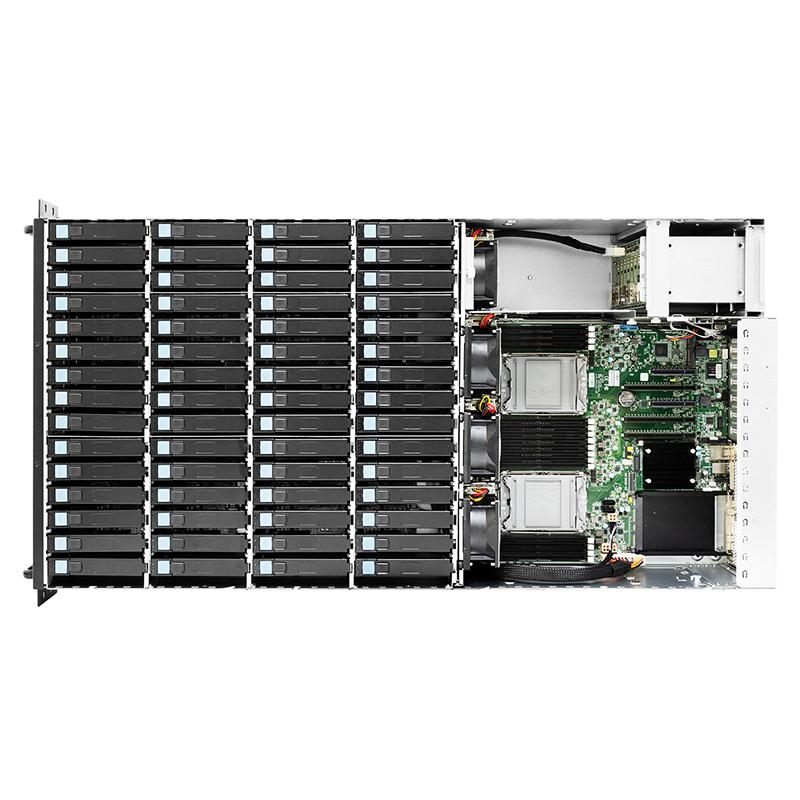

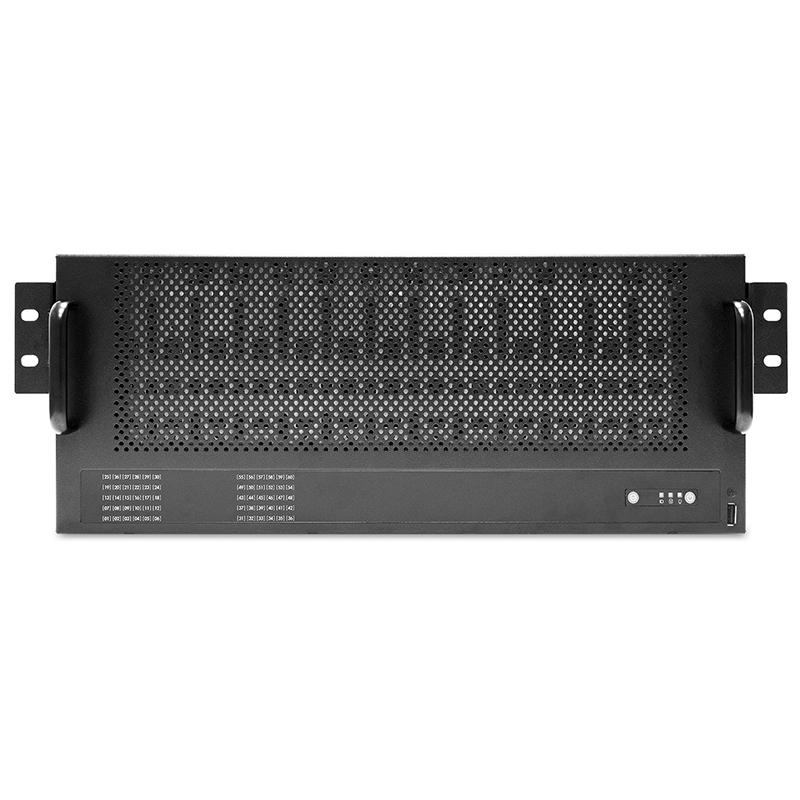

| Product Images | SB407-TU (Front 45 & Front) |

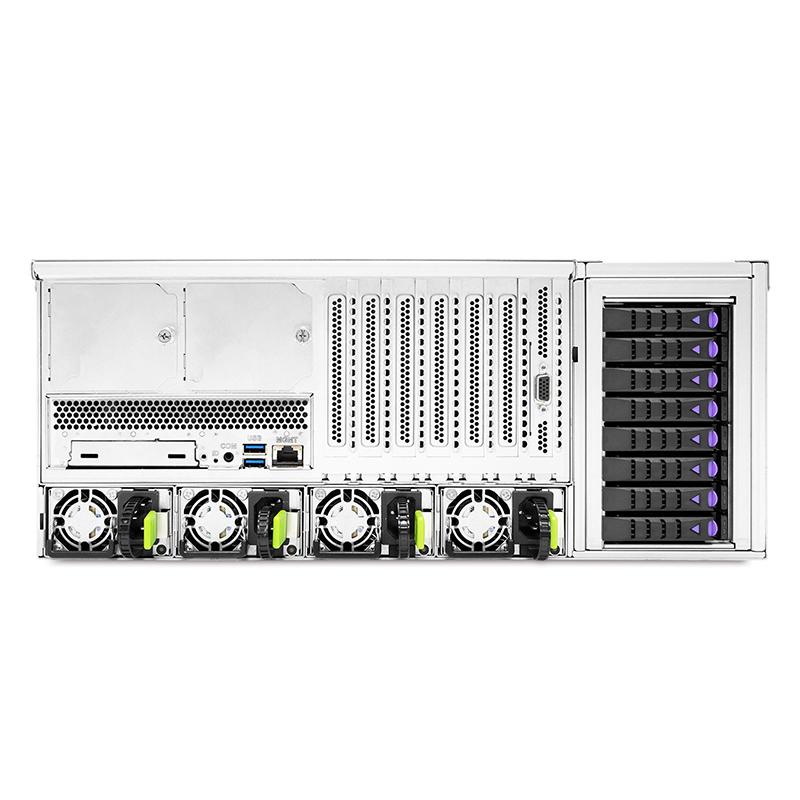

| Product Images | SB407-TU (Top&Rear) |
| SB407-TU | Manual/AVL/Firmware |
|
|
