Purley 4U 12G 36x 3.5” SAS/SATA High-Density Storage Server, supports dual Intel® Xeon® Scalable Processors

PCICASE Model No: SB402-VG
Manufacturer Model No: SB402-VG(XP1-S402VG02)
7-28 Day Delivery
Key Features

• 4U 36-Bay storage server
• Supports two Intel® Xeon® Scalable Processors
• With Intel® Lewisburg C620 series Chipset to provide 5+ years product life cycle.
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions.
• Hot-swappable 36 x 3.5" drives
• Five PCIe 3.0 slots
• Two 10 GbE SFP+ ports



Features & Benefits

SB402-VG, a 4U 36x 3.5” SAS/SATA High-Density Storage Server, supports two Intel® Xeon® Scalable Processors. With 36 x 3.5" hot swap drive bays, five PCIe 3.0 slots, and 1+1 redundant 80+ Platinum power supply, SB402-VG is optimized for both performance and power efficiency.

Key Features
• 4U general purpose storage server supports 36 hot swap 3.5” SAS drive bays on the front and 6 hot swap 3.5 SAS drvie bays on the rear
• Supports 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake Refresh/Cascade Lake/Skylake)
• With Intel® Lewisburg C620 series chipset to provide 5+ years product life cycle
• Onboard Baseboard Management Controller for system management and IPMI control
• Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
• Two 10GbE SFP+ ports plus dedicated BMC management port

Dimensions (W x D x H)
• mm: 430 x 680 x 174.3
• inches: 16.9 x 26.8 x 6.9
Motherboard
Code Name - Virgo
Processor
Processor Support :
• Intel® Xeon® Scalable Processors (Cascade Lake Refresh/Cascade Lake/Skylake)
• Supports CPU TDP up to 140W
*Use over 140W CPU, please contact AIC Technical Support for more info/details about optimized CPUs and specialized system.
QPI Speeds: 10.4 GT/s, 9.6 GT/s
Socket Type: Socket P0 (LGA-3647 Socket)
Chipset Support
Intel® Lewisburg C620 series PCH
System Memory
• 6 x memory channels per CPU, 1 x DIMM per channel
• 12 x DIMM slots support: 2933/2666/2400MHz
• Intel® Optane™ DC Persistent Memory (Apache Pass) support
Front Panel
System power on/off, System reset, System ID and 2 x USB 3.0 ports
LEDs
Power, LAN, Drive, ID and Alert
Drive Bays
• External : 36 x 3.5” hot swap
• External : 2 x 2.5” hot swap (7mm, rear)
Backplane
• 1 x 24-port 12Gb SAS backplane with 36-PHY expander and 3 SFF-8643 connectors
• 1 x 12-port 12Gb SAS backplane with 28-PHY expander and 3 SFF-8643 connectors
Expansion Slots (PCIe 3.0)
• 2 x16 slots (LP)
• 3 x8 slots (LP)
System BIOS
BIOS Type: Insyde UEFI BIOS
BIOS Features :
• ACP
• PXE
• WOL
• AC loss recovery
• SMBIOS
• SRIOV
• Serial console redirection
• BIOS Boot Specification
• BIOS Recovery Mode
• TPM
• PCIe Hotplug
On-board Devices
SATA:
Intel® Lewisburg PCH on-chip solution
• 8 x SATA 6.0 Gb/s (by 2 x mini-SAS)
• 2 x SATA 6.0 Gb/s (by 2 x SATA 7 pin)
• RAID 0, 1, 5, 10 support by Intel RSTe Broadcom SAS IOC SAS3008 supports up to 8 ports 12G SAS via 2 x mini-SAS HD (optional)
BMC:
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
• HTML5
• Redfish

Network Controllers:
• Intel® PCH (Lewisburg) Integrated 10GbE LAN controller with dual 10GbE SFP+
+ 2 x configurable ports support 10GbE (KR/SFI/XFI) or 1GbE (KX) (option)
• Realtek RTL8201EL for BMC dedicated management port

Graphics :
Aspeed AST2500 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp
Rear I/O
LAN:
• 2 x 10GbE SFP+
• 1 x 10/100M RJ45 dedicated to BMC management
USB:
2 x USB 3.0 Type A
VGA:
1 x external DB-15 VGA port
Serial Port:
1 x external DB-9 COM port
TPM Support
2.0 onboard
Power Supply
1200W 1+1 redundant power supply 80+ Platinum
• AC INPUT : 100~127V,50/60Hz,10A
• DC OUTPUT : 800W
• AC INPUT : 200~240V,50/60Hz,8A
• DC OUTPUT : 1200W
System Cooling
6 x 80x38mm hot swap fans
System Management
• IPMI 2.0
• KVM over IP
• Media redirection
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID / System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• SNMP support
• Intel NM
• HTML5
• Redfish
Environmental Specifications
• Storage temperature : -10ºC(14ºF) ~ 60ºC(140ºF)
• Operating temperature : 0ºC(32ºF) ~ 35ºC(95ºF)
• Storage operating humidity : 5%~95% non-condensing
Gross Weight (w/PSU & Rail)
• kgs: 40.4
• lbs: 89
Packaging Dimensions (W x D x H)
• mm: 605 x 926 x 406
• inches: 23.8 x 36.5 x 16
Mounting
Standard: 28" tool-less slide rail

SKU Information Description

XP1-S402VG02

(Standard)

4U 36-bay storage server,12G EOB backplane, Acbel 2U 1200W HRP platinum, 2x 7mm hot-swap OS, Virgo, Intel Purley, ATX PWR, 12x DDR4 RDIMM, Intel PCH C622, 2x 10G SFP,  SAS3008 IOC/EATX, 2x CPU heatsinks, 28" slide rail, w/o bezel

FRU Information
Standard Parts List Part Number Description
Fan FC-000000093 8038 fan module
Backplane BBPJHD20002A 12-port 12Gb SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors (EOB backplane)
Backplane BBP-HD10012A 1U2/ 2x SATA 7P Connector / 2x SAS 29P 6G Connector/ 2x blue+red LED
Power Supply Housing PH-000000008 1200W platinum redundant power supply housing
Slide rail H5521T100002 28" slide rail



All specifications are subject to change without notice.

Datasheet SB402-VG Datasheet


 SB402-VG_Datasheet_082517.pdf



Product Images SB402-VG (Front 45 Degrees)

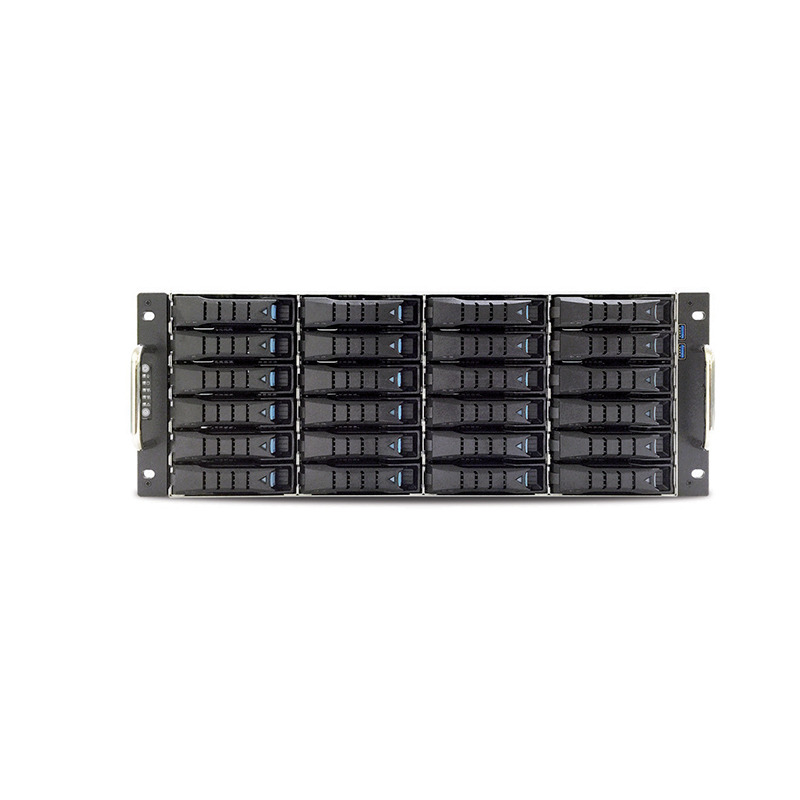

Product Images                                          SB402-VG (Front)

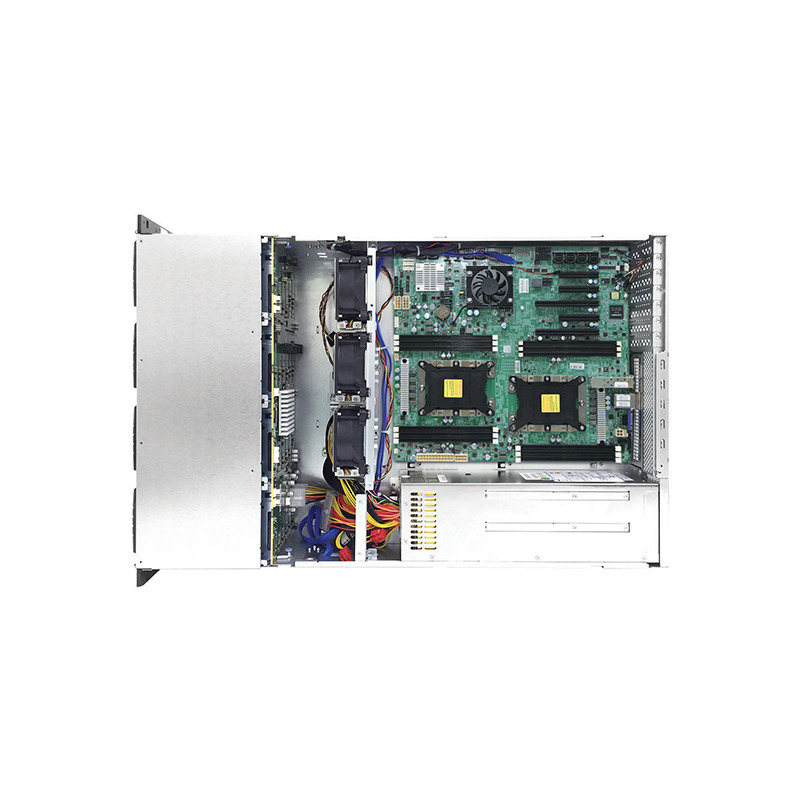

Product Images SB402-VG (Top&Rear)




Product Manual/AVL/Firmware SB402-VG


 SB402-VG_User's Manual

 Virgo_AVL

 SB402-VG_BIOS_VIRG1060

 SB402-VG_BMC_SB402VG010601
