4U 12G 24 x 3.5" Barebone Storage Chassis with AIC Libra Motherboard

PCICASE Model No: SB401-LB
Manufacturer Model No: SB401-LB
Please Call Sales
Key Features
  • 4U 24-Bay storage server with 5+ years life cycle
  • Supports two Intel® Xeon® Processors E5-2600 v3 Product Family
  • With Intel® C612 Series Chipset to provide 5+ years product life cycle
  • Onboard Baseboard Management Controller for system management and IPMI control
  • Front-to-back airflow and hot swap redundant fans to provide optimal thermal conditions
  • Two 10 GbE RJ45 ports
Features And Benefits

SB401-LB, a 4U 24-Bay Storage Server Solution, supports dual Intel® Xeon® Processors E5-2600 v3 Product Family. It has 24 x 3.5” hot swap internal drive bays. SB401-LB supports up to 6 PCIe 3.0 slots utilizing 64 lanes.

Dimensions (W x D x H) (with chassis ears)
• mm : 483 x 645 x 176
• inches : 19 x 25.4 x 6.9

Material
• Heavy-duty preplated SGCC cold-rolled steel

Motherboard

AIC Server Board Libra

Processor
Processor Support : Two Intel® Xeon® Processors E5-2600 v3 Product Family
QPI Speeds : 9.6 GT/s, 8 GT/s, 7.2 GT/s
Socket Type : Socket R3 (FCLGA2011-3)

Chipset
Intel® C612 Chipset

System Memory
• 16 DIMM slots across 8 memory channels
(4 memory channels per CPU; 2DPC)
- 512GB DDR4 2133/1866 RDIMM DRx4
- 128GB DDR4 2133/1866 RDIMM SRx4
- 1024GB DDR4 2133/1866 LRDIMM QRx4
- 2048GB DDR4 2133/1866 LRDIMM 3DS 8Rx4

Front Panel
• Power on/off
• System ID
• System reset
• NMI button
• 2 x USB

LEDs
• Power
• System ID
• Alert
• LAN
• Drive

Drive Bays
• External : 24 x 3.5” hot swap
Choose 1 :
• External : 2 x 2.5” hot swap
• Internal : 2 x 2.5”
Backplane
1 x 24-port 12Gb SAS backplane with 36-PHY expander and 3 SFF-8643 connectors

Expansion Slots (PCIe 3.0)
2 x16 + 1 x16 (x8 mode) + 3 x8 (all LP)

System BIOS
BIOS Type :
• Insyde UEFI BIOS
• SPI (Serial Peripheral Interface) FLASH Interface
BIOS Features :
• ACPI
• PXE
• WOL
• AC loss recovery
• IPMI 2.0 KCS interface
• SMBIOS
• Serial console redirection
• BIOS Boot Specification
• BIOS Recovery Mode
• SRIOV
• iSCSI
• TPM
• PCIe NTB

On-board Devices
SATA :
Built-in SATA controller with RAID support on Intel® C612 Chipset
IPMI :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
• Baseboard Management Controller
• Intelligent Platform Interface 2.0 (IPMI 2.0)
• iKVM, Media Redirection, IPMI over LAN, Serial over LAN
• SMASH Support
Network Controller :
• Intel® Ethernet Controller X540-BT2 dual port 10GbE, 10GBASE-T, PCIe v2.1, x8
• Intel® Ethernet Controller I210-AT, single port GbE controller, PCIe v2.1, 2.5 GT/s, x1
• Intel® Ethernet Network Connection I217-LM, single port GbE, 1Gbps
• Realtek® RTL8201EL single port 10/100 Mbps Ethernet PHYceiver for dedicated BMC port
• Optional : Intel® Ethernet Controller I350-AM2, dual port GbE, PCIe v2.0 (co-lay with Intel® X540-BT2)
Graphics :
Aspeed AST2400 Advanced PCIe Graphics & Remote Management Processor
• PCIe VGA/2D Controller
• 1920x1200@60Hz 32bpp

Rear I/O
• 3 x RJ45 (1 for BMC)
• 2 x USB 3.0
• 1 x VGA
• 1 x Serial
(optional 2 x RJ45)

Power Supply
1200W 1+1 redundant PSU 80+ Gold

System Cooling
Middle : 3 x 120x25 PWM hot swap fans

System Management
• IPMI 2.0
• KVM over IP
• Media redirection
• Temperature, fan, voltage, PSU sensor monitor
• System temperature
• System ID / System fail indicator
• Remote power on/off/reset
• SEL message alarm through mail
• SNMP support
• Intel NM

Environmental Specifications
• Operating temperature : 0° - 35°C
• Operating altitude condition : 0 ~ 10K feet
• Storage temperature : -20° ~ 60°C
• System relative humidity : 5% - 95% (38°C) non-condensing

Gross Weight (w/PSU & Rail)
• kgs : 35
• lbs : 77

Packaging Dimensions (W x D x H)
• mm : 590 x 850 x 373
• inches : 23.2 x 33.5 x 14.7

Mounting
Standard : 28" tool-less slide rail
* All specifications are subject to change without notice.

Datasheet SB401-LB Datasheet


 SB401-LB Datasheet.pdf



User Manual SB401-LB User Manual


 Libra UserManual.pdf



Product Images SB401-LB (Front 45 Degrees)

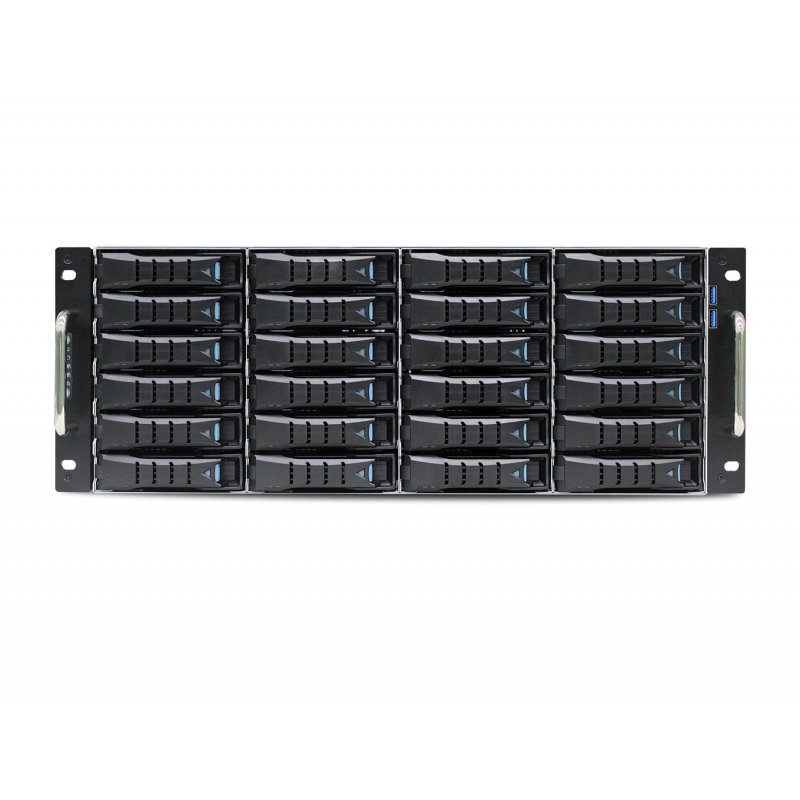

Product Images                                          SB401-LB (Front)

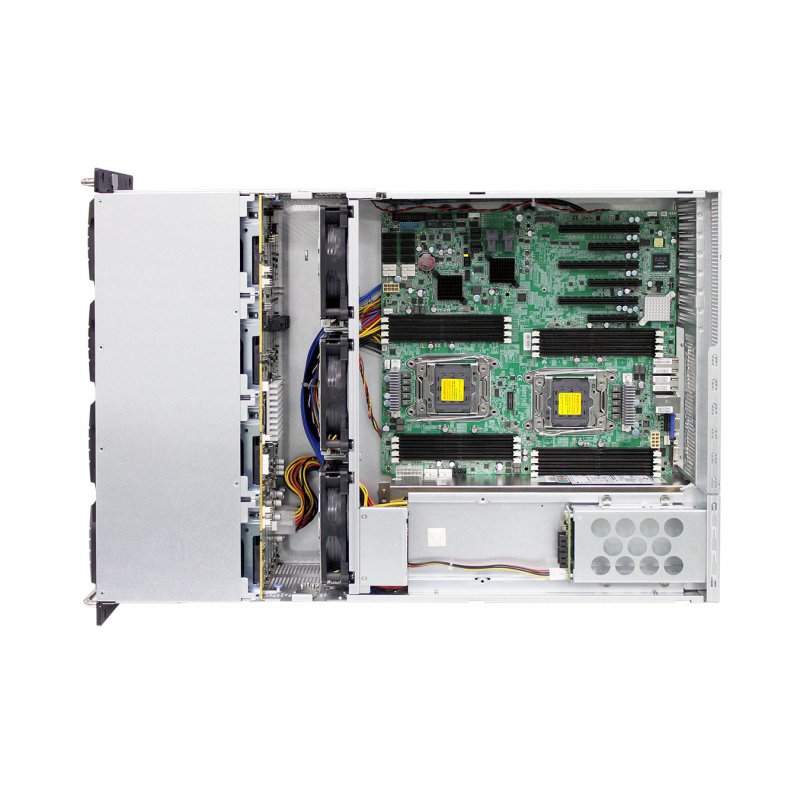

Product Images     SB401-LB (Top)

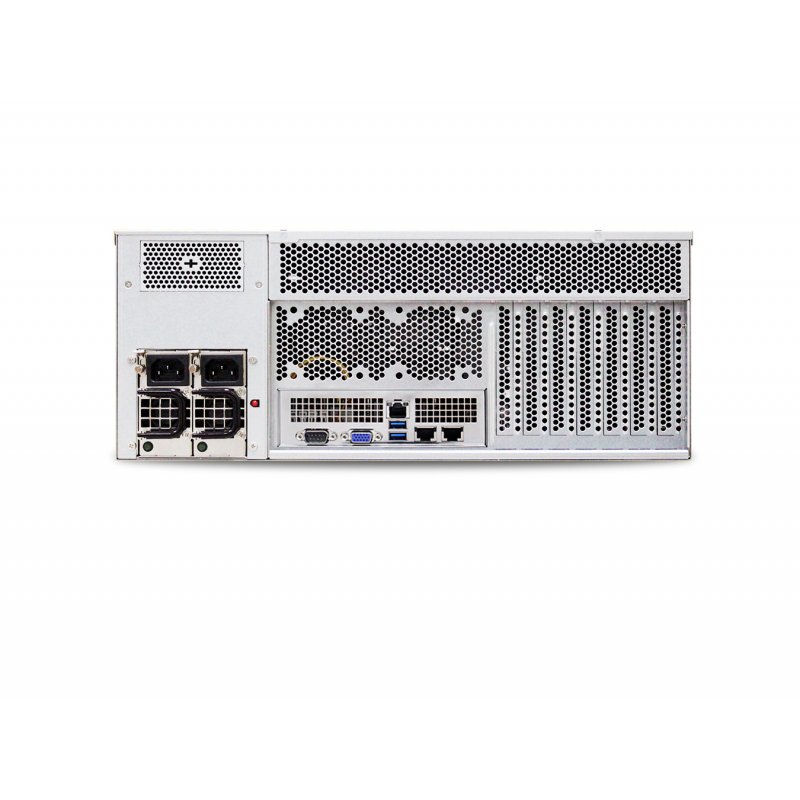

Product Images SB401-LB (Rear)
