Key Features
• Intelligent Enclosure Management
• Individual drive power management
• Hot swap design for easy maintenance and management
• Enclosure Cable Management Kit
• Tool-less drive traysKey Features
• Intelligent Enclosure Management
• Individual drive power management
• Hot swap design for easy maintenance and management
• Enclosure Cable Management Kit
• Tool-less drive trays

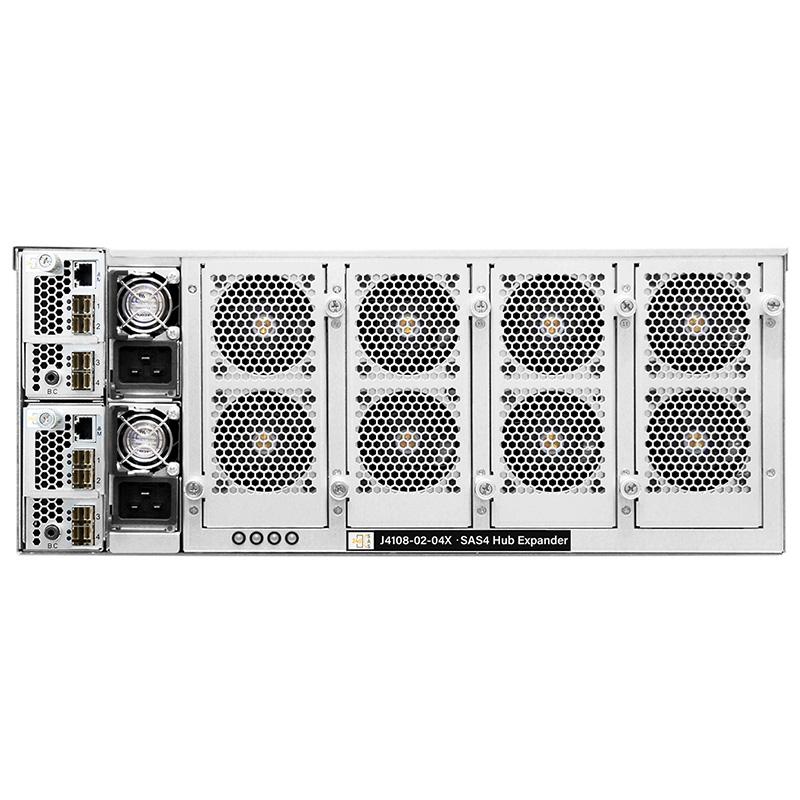

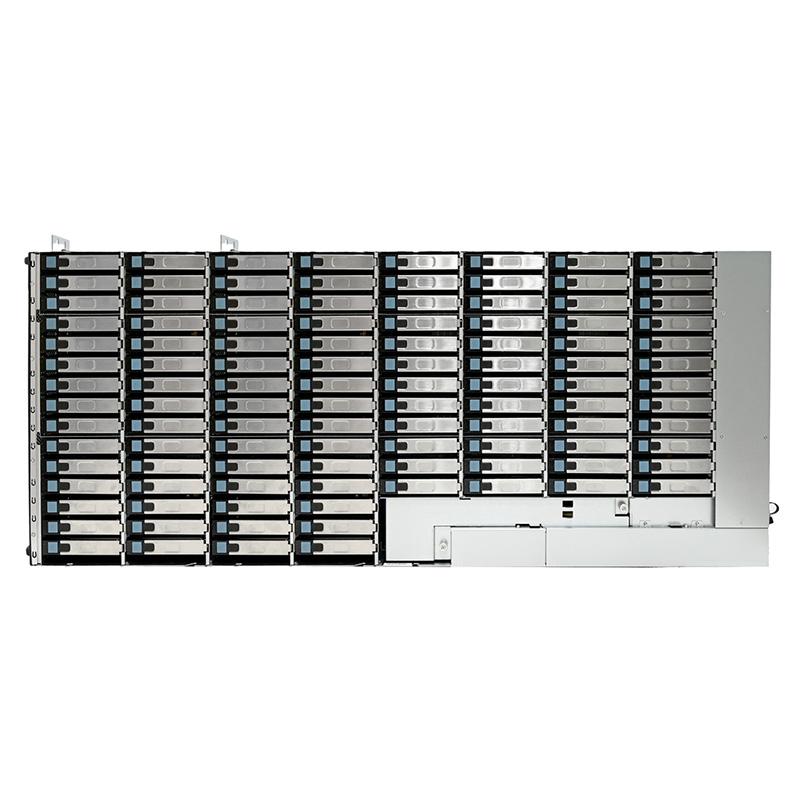

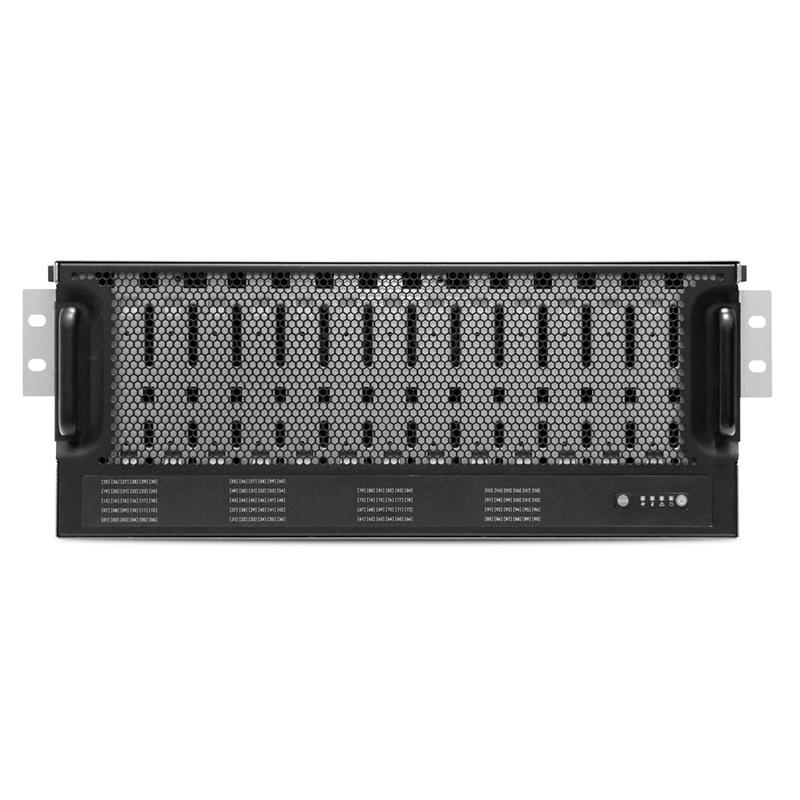

J4108-02-04X, a 4U 108-Bay 24Gb/s SAS JBOD, ideal for high-availability storage and high-performance appliance. This 4U 24Gb/s SAS JBOD enclosure with single or dual expanders supports 108 x 3.5” drives. (Support 2.5” with optional kit)
Key Features
• Intelligent Enclosure Management
• Individual drive power management
• Hot swap design for easy maintenance and management
• Enclosure Cable Management Kit
• Tool-less drive trays
| General |
| Number of Expander: Dual |
| Expander Chip : • Hub: SAS4x48 • Edge: SAS35x40 & SAS35x36/SAS4x40 &SAS4x32 XJ1-40782-01~04 Edge 24/30bays fw and mfg file. Please refer our J4078-01-35X. https://www.aicipc.com/tw/productdetail/40918 |
| Host/Expansion Interface: 4 x Mini SAS HD (SFF-8674) per expander module (backward compatible with SFF-8644 SAS12G) |
| Drives Supported |
| Drive Interface : • 24Gb & 12Gb SAS if using dual expanders • 24Gb & 12Gb SAS + 6Gb SAS/SATA if using single expander |
| Form Factor: 3.5” |
| Administration / Management |
| Admin/Firmware Upgrade: • In-band • IEM port |
| LED Indicators, Audible Alarm: Yes |
| Hot swap & Redundancy |
| Drive Bays: 108 |
| Cooling: • 8 x 60x56mm hot swap fans • 1 x 40x56mm fan per expander module |
| Power Supply: • 2000W 1+1 hot swap redundant 80+ Titanium (with C14 power plug) |
| Power Entry: Dual AC Inlet |
| Expander Modules: Dual SAS topology (Optional) |
| Electrical & Environment |
| AC Input: Platinum: • 200-240V~,50/60Hz,15A Titanium: • 100-127V~,50/60Hz,12A (except China) • 200-240V~,50/60Hz,10A |
| Operating Environment: • Temperature 0ºC to 35ºC • Relative humidity 20% to 80% |
| Non-operating Environment: • Temperature -20ºC to 60ºC • Relative humidity 10% to 90% |
| Physical Specification |
| Dimensions (W x D x H): • mm: 434 x 1050 x 176 434 x 1273 x 176 (with CMA) • inches: 17 x 41 x 7 17 x 50 x 7 (with CMA) |
| Gross Weight (w/ PSU, Rail, and Pallet; w/o Disks): • kgs: 66.97 • lbs: 147.6 |
| Packaging Dimension (W x D x H): • mm: 640 x 1380 x 526 • inches: 25.2 x 54.3 x 20.7 |
| Mounting: • Standard: 41" Slide Rail • Option: Cable Management Kit |
* All specifications are subject to change without notice.
| J4108-02-04X_Datasheet | Size : 0 MB | Download |
| J4108-02-04X_AVL | Size : 46 KB | Download |
| J4108-02-04X_BMC_4202JBD002203(AST2520) | Size : 31 MB | Download |
| J4108-02-04X_Hub_fw4A1_v1.24.1.58 | Size : 305 KB | Download |
| J4108-02-04X_Hub_mfg4A1.0_4U78_4U108_v1.1.0.60 | Size : 3 KB | Download |
| J4108-02-04X_Edge_24bays_fw4A5_v1.24.5.55 | Size : 296 KB | Download |
| J4108-02-04X_Edge_24bays_mfg4A5.0_4U78_4U108_v1.5.0.52 | Size : 3 KB | Download |
| J4108-02-04X_Edge_30bays_fw4A4_v1.24.4.54 | Size : 296 KB | Download |
| J4108-02-04X_Edge_30bays_mfg4A4.0_4U78_4U108_v1.4.0.52 | Size : 2 KB | Download |
| J4108-02-04X_User's Manual | Size : 43 MB | Download |
